Description
Description
SafeWaze 022-4084 Description

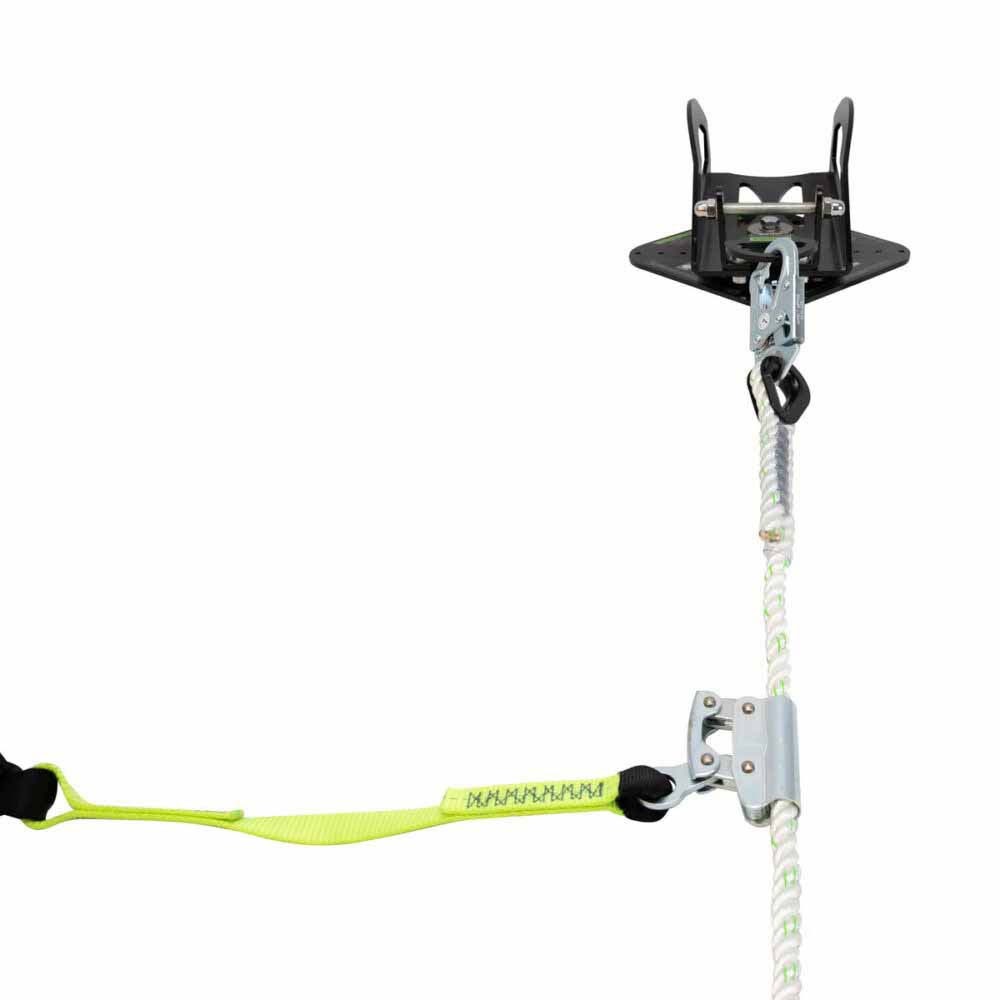

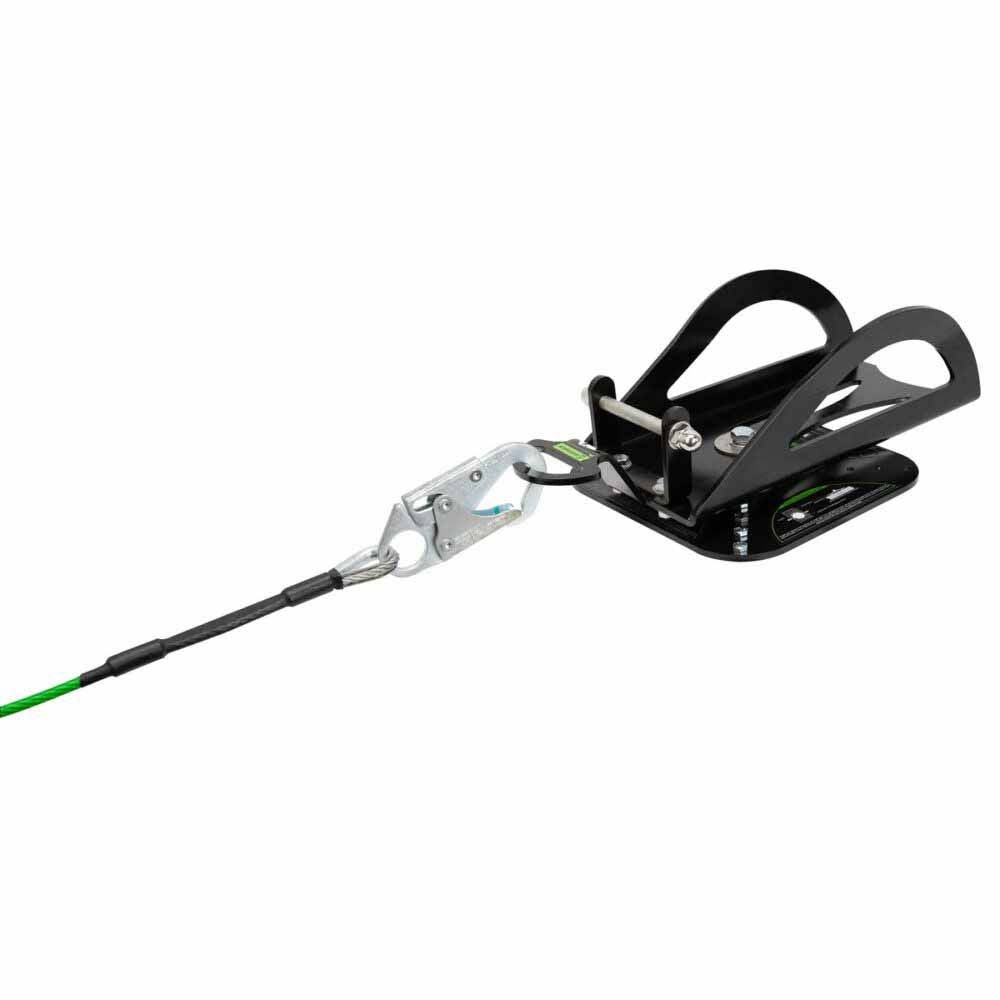

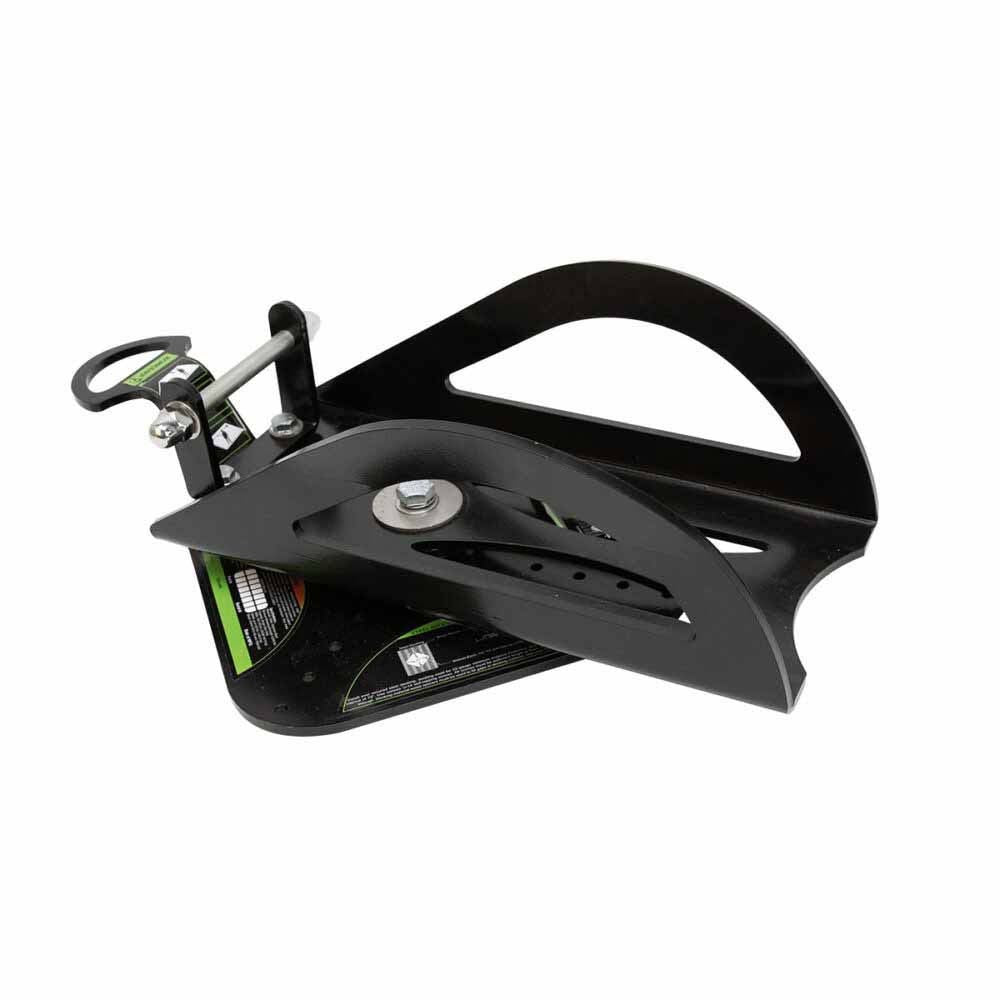

Durable, reusable roof anchor with 360 Degree swivel base that quickly attaches SRLs and provides a D-ring connection point for lanyards, accommodating most SRL sizes for use on metal, wood, or concrete roofs.
SafeWaze 022-4084 Includes
- (1) SRL Swivel Roof Anchor
- (8) Lag Screws for Wood
- (16) Self-Tapping Screws for Metal
SafeWaze 022-4084 Features
- Installs on Z-purlin, metal decking or wood roofs
- Also installs on flat concrete 3000 PSI or higher
- 360 Degree swivel base for increased mobility

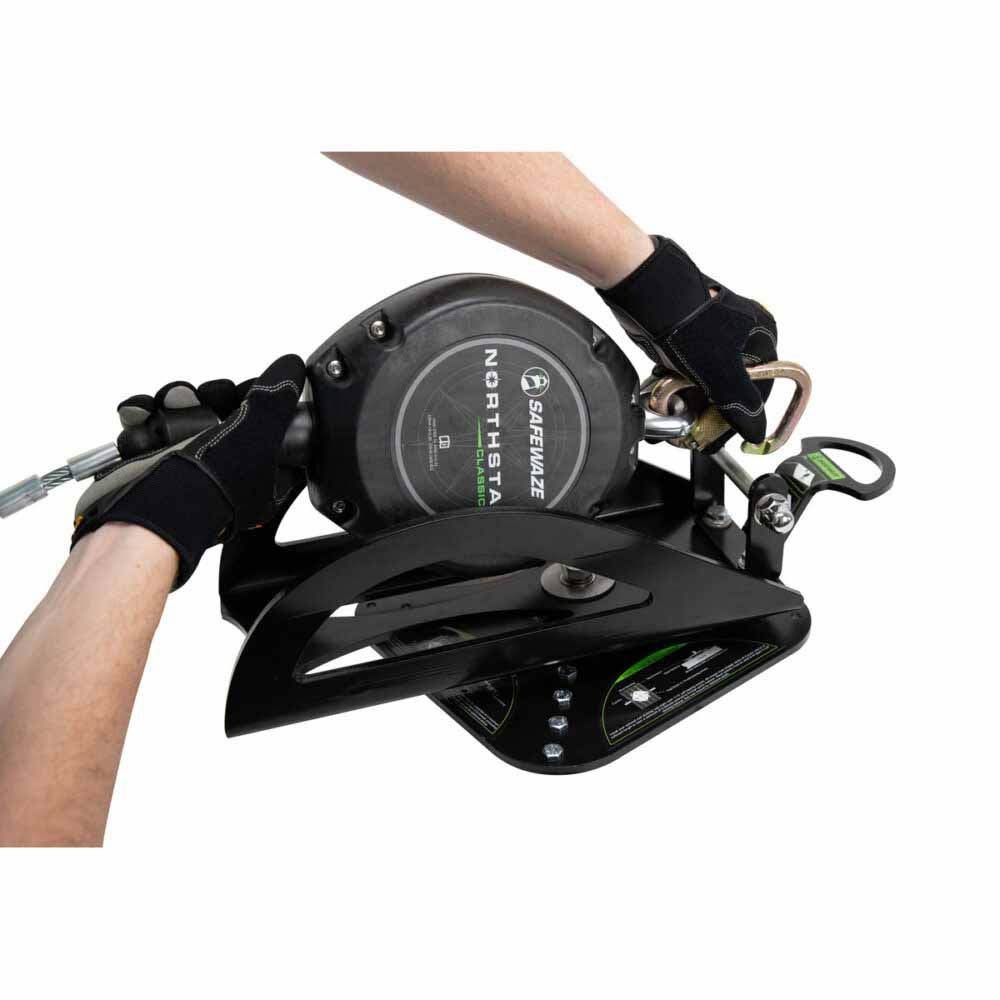

- Smart cradle design fits most SRL sizes
- Anchor post enables quick SRL attachment without disassembly

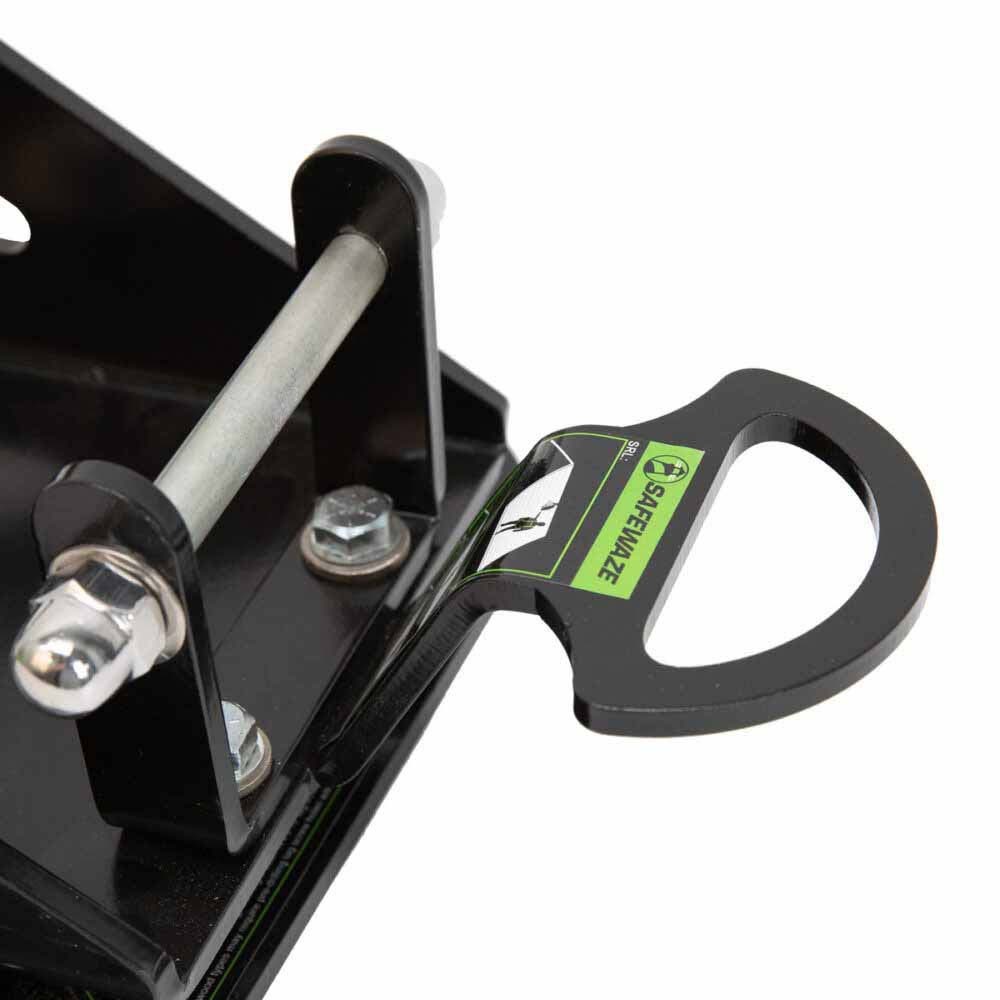

- D-ring connection for energy absorbing lanyards, VLLs and HLLs
- Temporary and reusable
- For flat or pitched roof applications
- Includes fasteners for wood and metal; concrete fasteners not included
SafeWaze 022-4084 Specifications
| Type | Temporary, reusable roof anchor |
| Material | Powder coated steel, stainless steel |
| Base Plate Size | 10" x 10" (254 mm x 254 mm) |
| Length | 19" (483 mm) |
| Weight | 18.2 lbs. (8.3 kg) |
| Number of Holes | 16 |
| Hole Diameter | 0.25" (6.4 mm) |
| Minimum Breaking Strength | 5,000 lbs. |
| ANSI Weight Capacity | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| OSHA Standards | 1910.140, 1926.502, 1910.66 |
