Safewaze 022-4085 Description

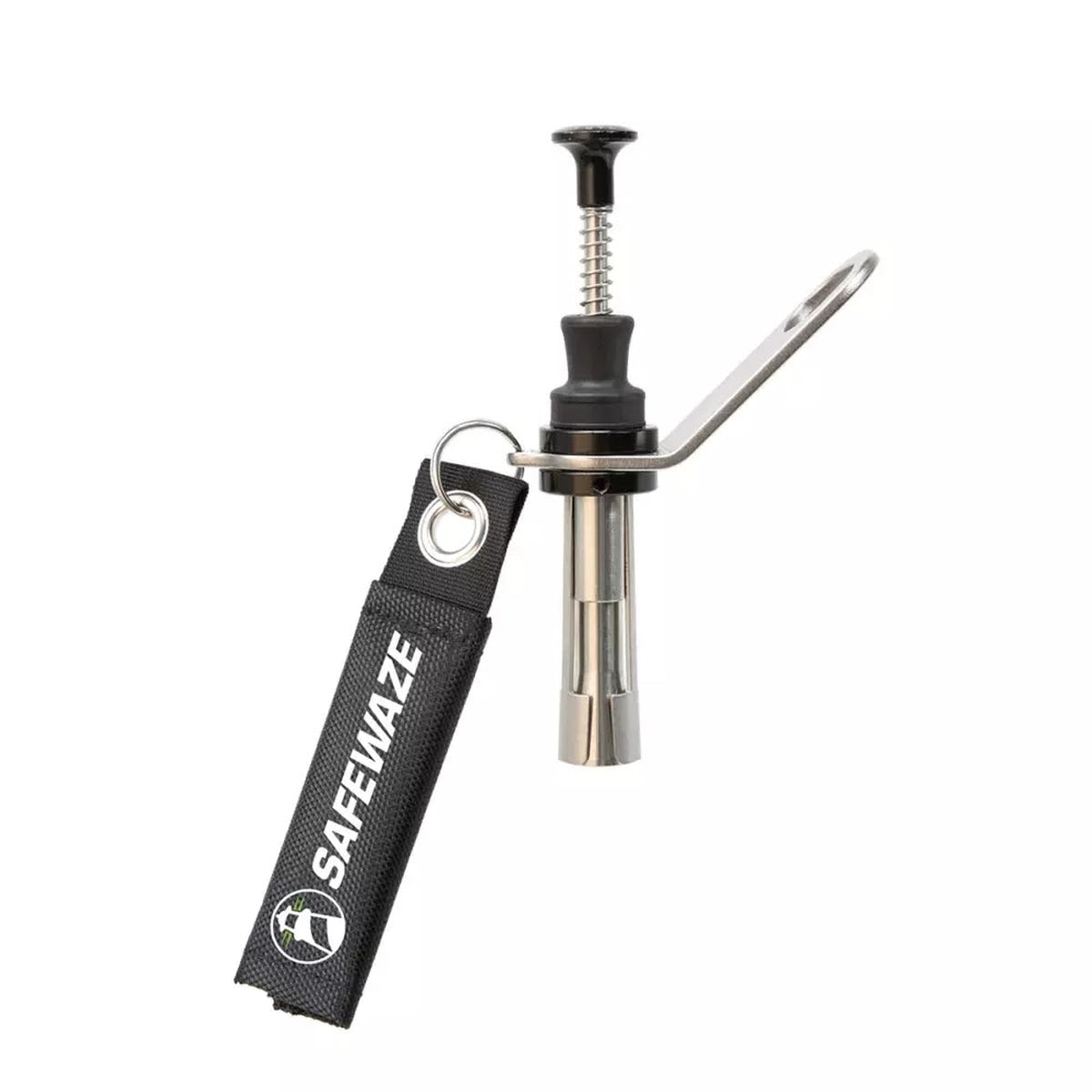

The Safewaze Removable Concrete Anchor is a compact, reusable temporary anchor point designed for quick installation in concrete. Its easy trigger mechanism allows fast removal by hand, with an optional hammer-assisted cap for easier extraction when needed.
Safewaze 022-4085 Includes
- (1) Removable Concrete Anchor
Safewaze 022-4085 Features
- Removable and reusable design for repeated use in concrete applications

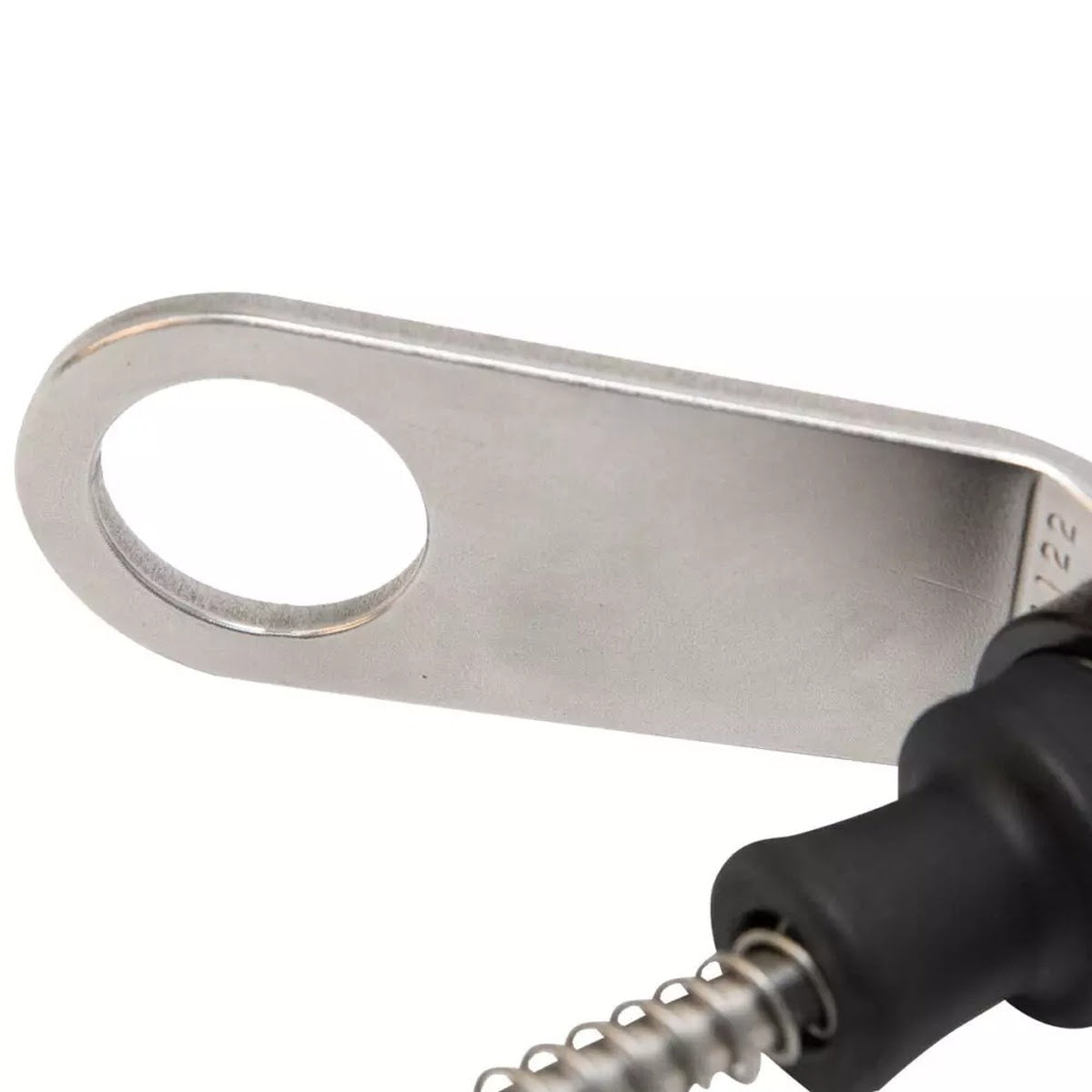

- 360 Degree rotating connection point for increased user mobility
- Easy trigger provides quick release for repeated use

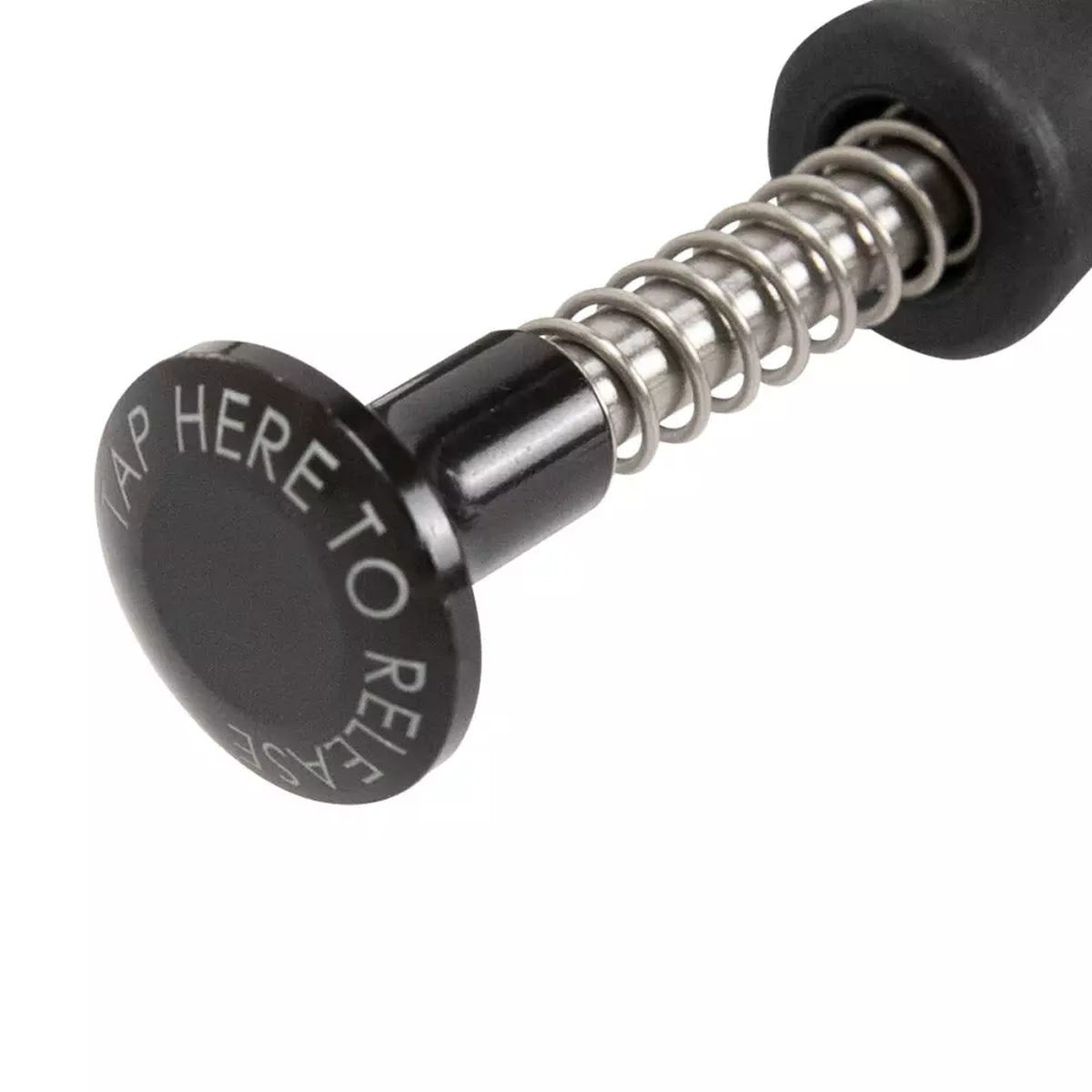

- Durable cap allows optional hammer-assisted removal
- Corrosion-resistant stainless steel construction
- Protective label cover helps maintain identification and compliance
- Suitable for horizontal, vertical, and overhead use, including use with HLLs
- Requires a 3/4 in x 3 in drilled hole for installation
- Replacement for legacy model FS876
Safewaze 022-4085 Specifications
| Anchor Type | Temporary |
| Material | Stainless steel body and D-ring; plated steel cap; nylon trigger; polyester label cover |
| Weight | 0.9 lbs |
| Overall Length | 6.5 in (165 mm) |
| Exposed Length | 3.7 in (94 mm) |
| Required Drilled Hole Diameter | 0.75 in (19 mm) |
| Required Hole Depth | 3 in (76 mm) |
| Minimum Breaking Strength (installed in reinforced concrete) | 5,000 lbs (in 3,000 PSI concrete) |
| Working Load Limit | 1,800 lbs (in 4,000 PSI or higher concrete) |
| ANSI Weight Capacity | 130-310 lbs (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs (191 kg) |
| ANSI Standards | Z359.18-2017 Type T |
| OSHA Standards | 1926.502; 1910.140; 1910.66 |
| Anchor Clearance | 6 in (25 mm) diameter |
Toolup Part # :
739983
