SafeWaze 023-5360 Description

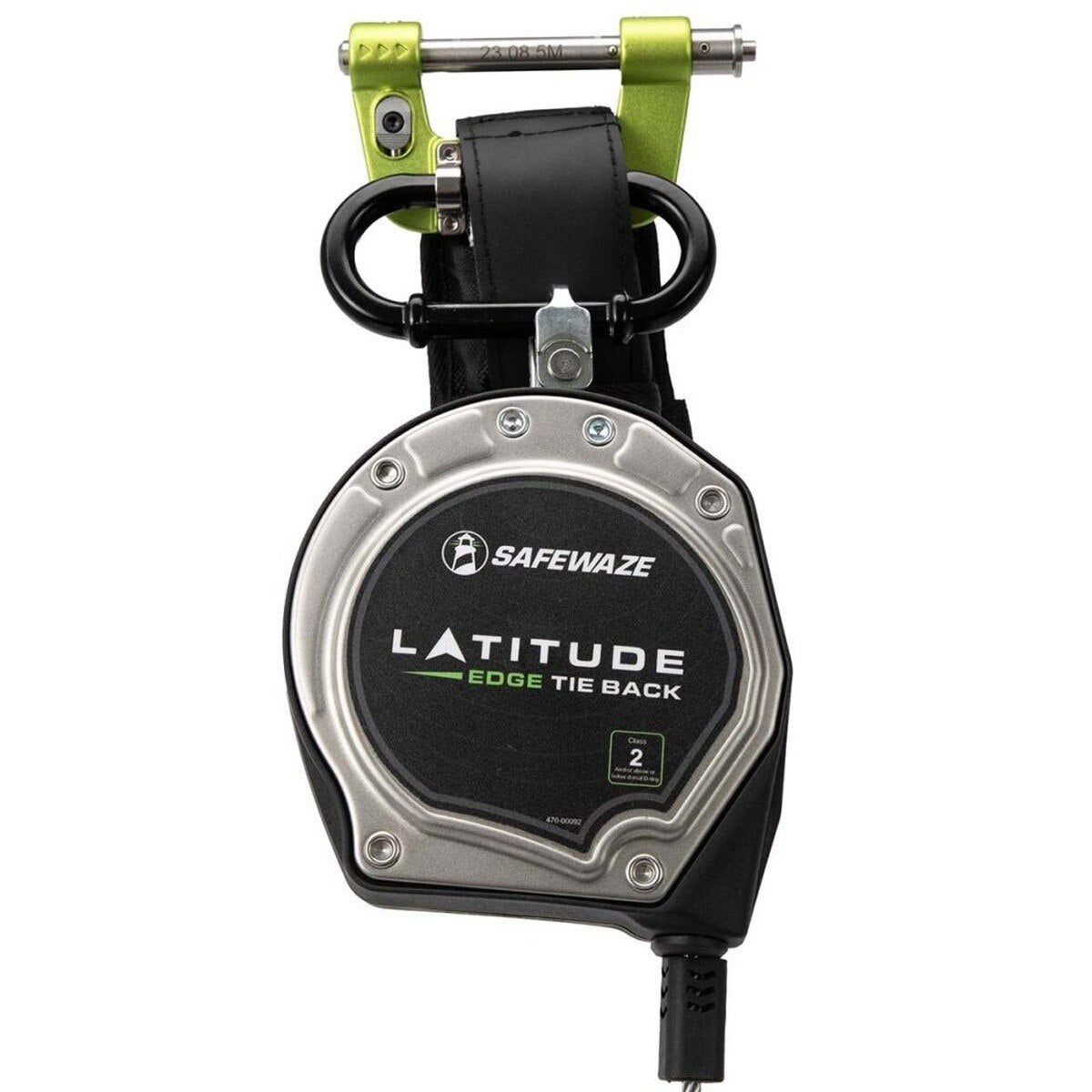

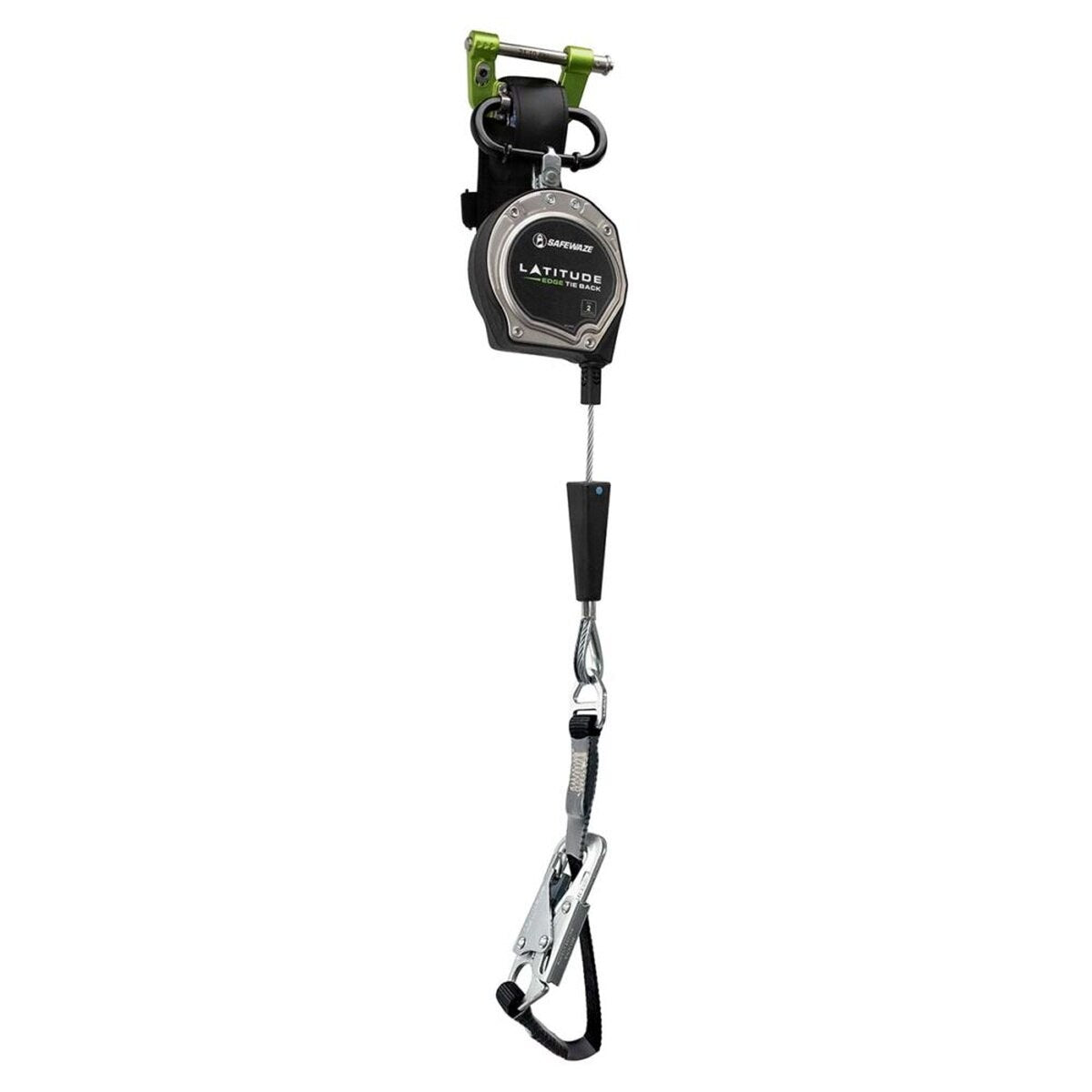

The SafeWaze Latitude Edge Tie-Back Personal SRL provides a 7 ft galvanized steel cable lifeline with an integrated 20 in tie-back web extension to wrap around structural members when a traditional anchor point is not available. Designed for leading-edge applications, this Class 2 SRL-P includes a compact frameless housing, a unique dorsal attachment bracket for improved mobility, and is RFID equipped for easier equipment tracking.
SafeWaze 023-5360 Includes
- (1) Latitude Edge Tie-Back 7 ft Single Cable Self-Retracting Lifeline (SRL) with 20 in Tie-Back
SafeWaze 023-5360 Features
- 7 ft single-leg galvanized steel cable SRL for personal fall protection

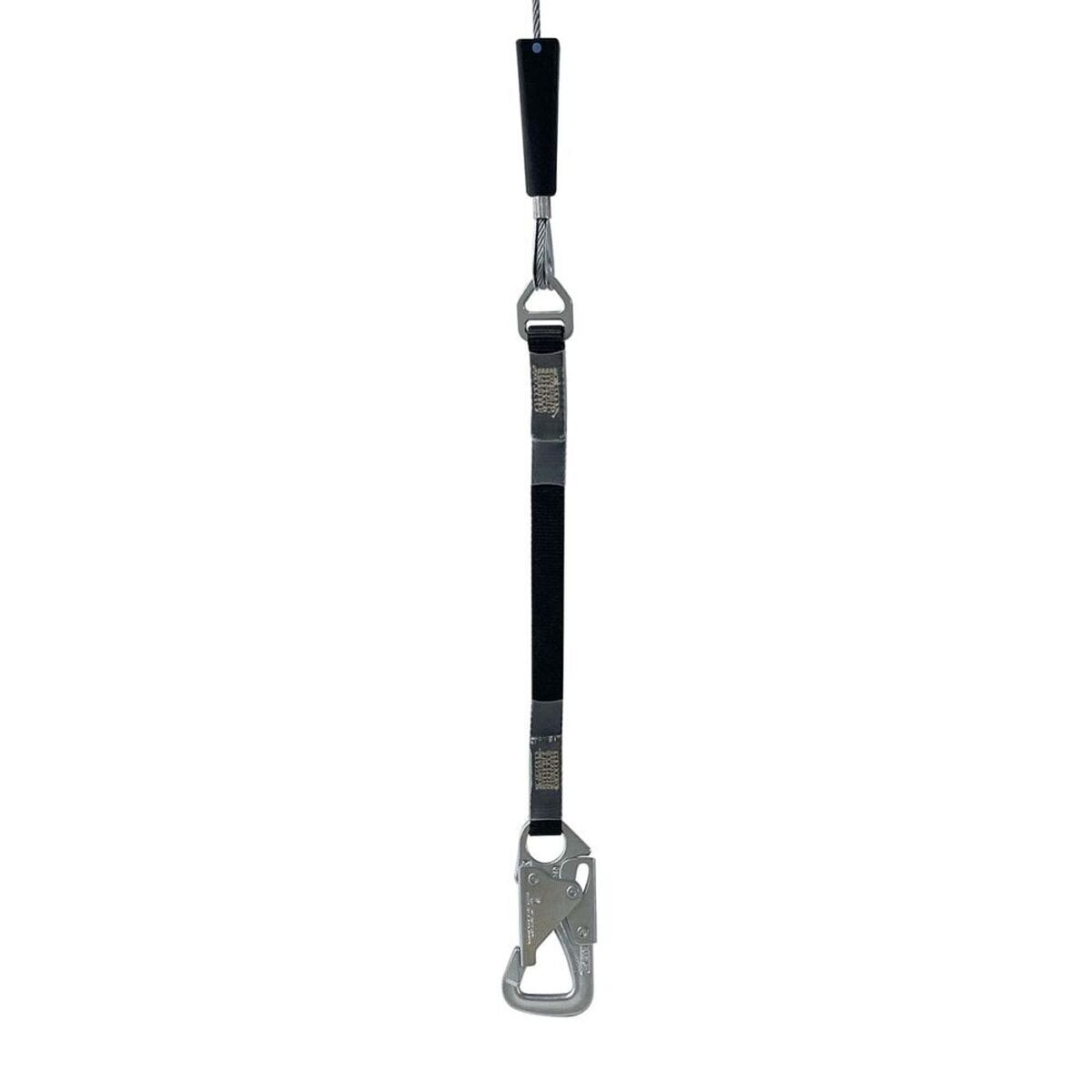

- 20 in web tie-back extension allows wrap-around tie-back anchoring when no traditional anchor is available
- Class 2 SRL-P rated for use above or below the dorsal D-ring
- Durable stainless steel housing with nylon sides
- Frameless design for a thinner, more compact housing size

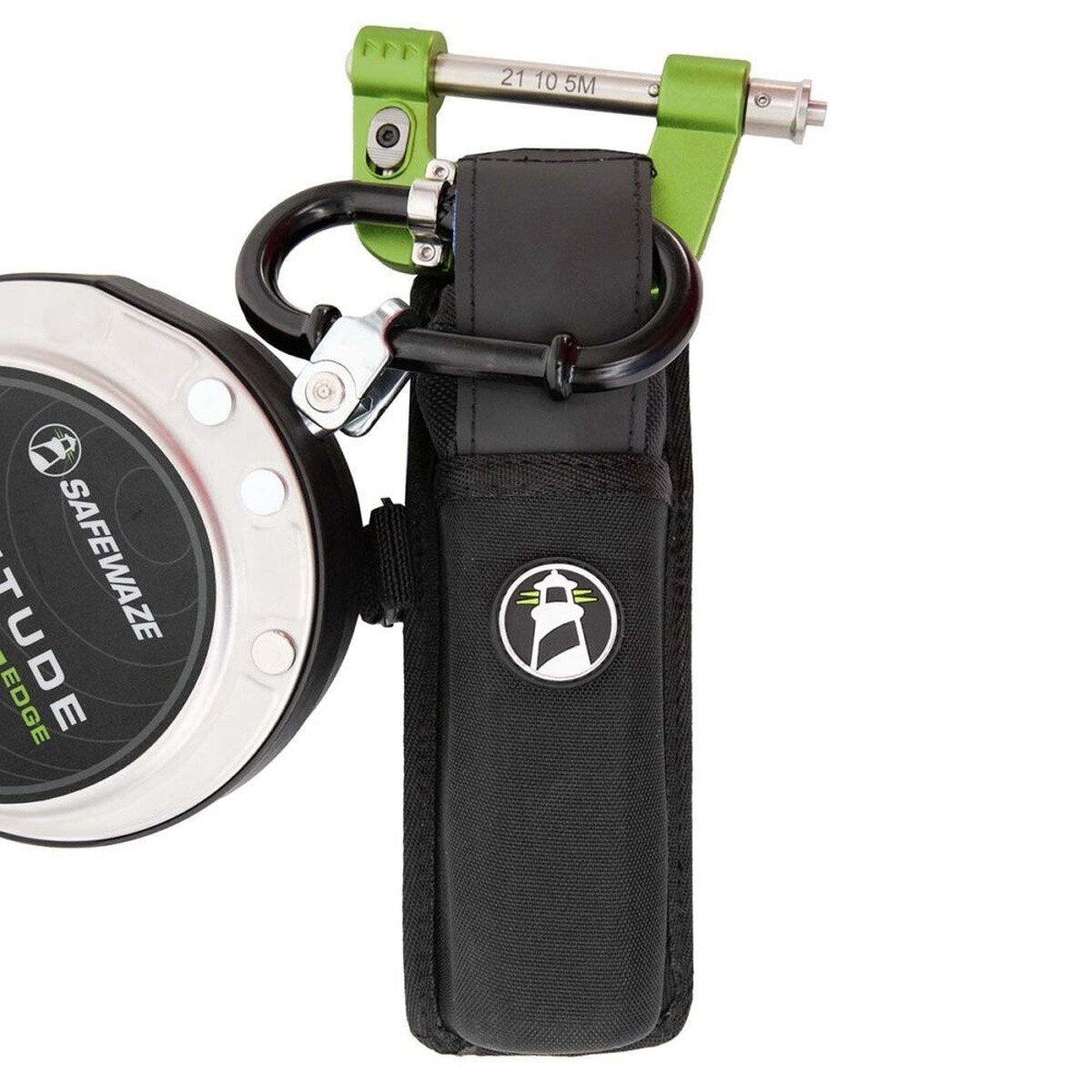

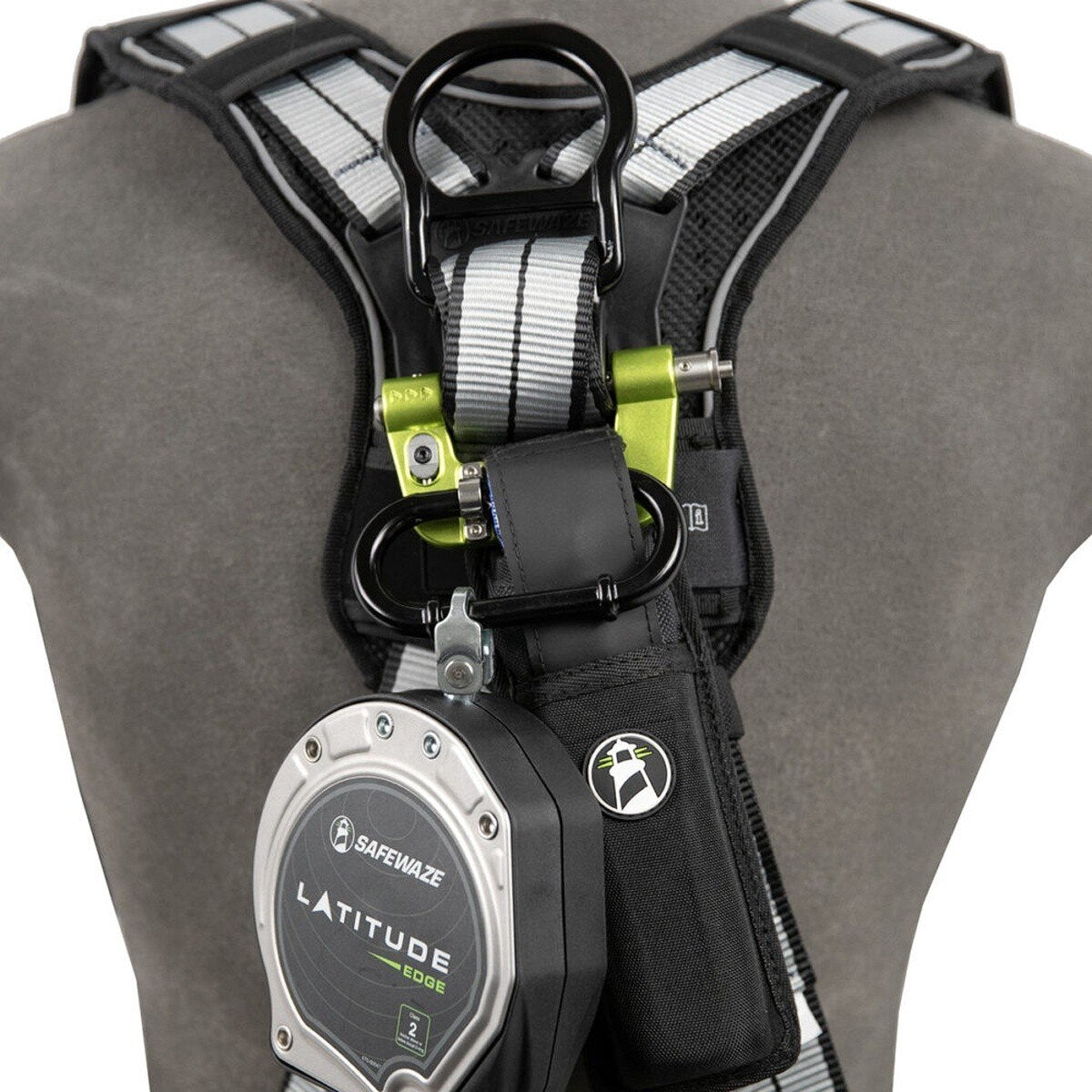

- Exclusive dorsal attachment bracket with SRL separator feature
- Compact shock pack design with harness restraint strap
- 360/180 Degree attachment point for a full range of motion
- Side payout for smooth retraction
- Protective label cover for longevity and traceability
- RFID equipped for asset tracking
- Z359.12 compliant components
- Serviceable and repair capable design
SafeWaze 023-5360 Specifications
| Product Type | Self-Retracting Lifeline (SRL) |
| Series | Latitude Edge Tie-Back |
| Lifeline Length | 7 ft |
| Legs | Single |
| Connector | 20 in Tie-back |
| SRL Class | Class 2 SRL-P |
| Cable Material | 3/16 in galvanized steel cable |
| Attachment Point | Tie-back snap hook |
| ANSI Standards | Z359.14-2021 |
| OSHA Standards | 1910.140, 1910.66 |
| ANSI Weight Capacity | 130-310 lbs (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs (191 kg) |
| Product Weight | 5.2 lbs (2.4 kg) |
Toolup Part # :
802866
