Safewaze 023-8089 Description

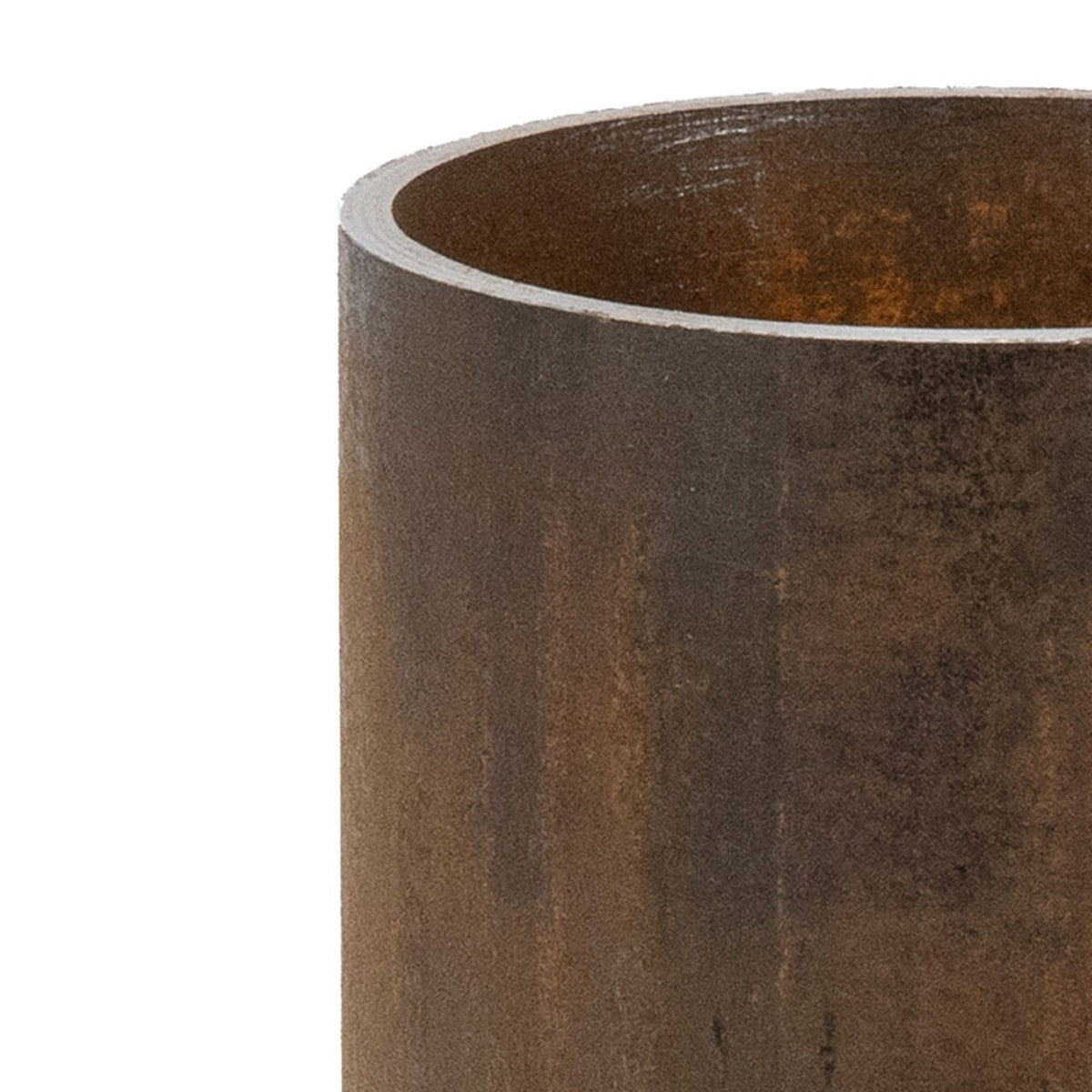

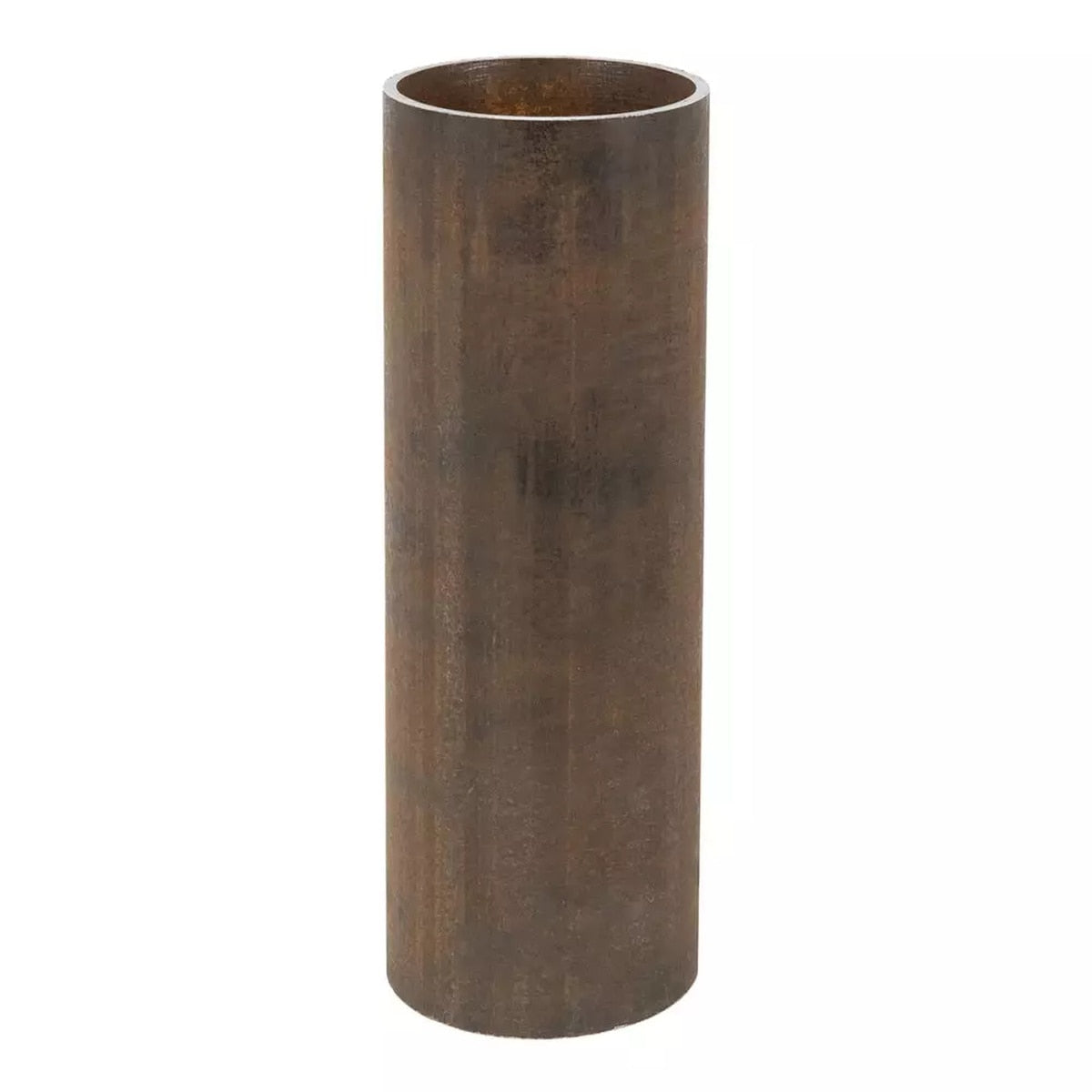

The SafeLink Steel Sleeve is an embedded base that reinforces the post when used with the Safewaze SafeLink HLL System. It is engineered for areas with heightened seismic activity to enhance overall system stability.
Safewaze 023-8089 Includes
- (1) Safewaze 023-8089 SafeLink Steel Sleeve
Safewaze 023-8089 Features
- Embedded base provides extra reinforcement for SafeLink HLL system posts
- Alternative to FS-EX2504 for use in seismic regions
- Cast in place at a minimum depth of 11 in
- Install no closer than 3-1/2 in to any concrete edge
- Must be installed into 2,000 psi or greater concrete
- Use with FS-EX5501-5 aluminum posts
Safewaze 023-8089 Specifications
| Material | Unfinished steel |
| Length | 12 in |
| Inside Diameter | 3.7 in |
| Outside Diameter | 4 in |
| Wall Thickness | 0.16 in |
| Weight | 7 lbs |
| Mounting Surface | Concrete |
| OSHA Standards | 1926.502, 1910.66 |
| Minimum Concrete Strength | 2,000 psi |
| Minimum Embed Depth | 11 in |
| Minimum Edge Distance | 3-1/2 in |
Toolup Part # :
869249
