Fall Safe | SKU:
FS-EX2502

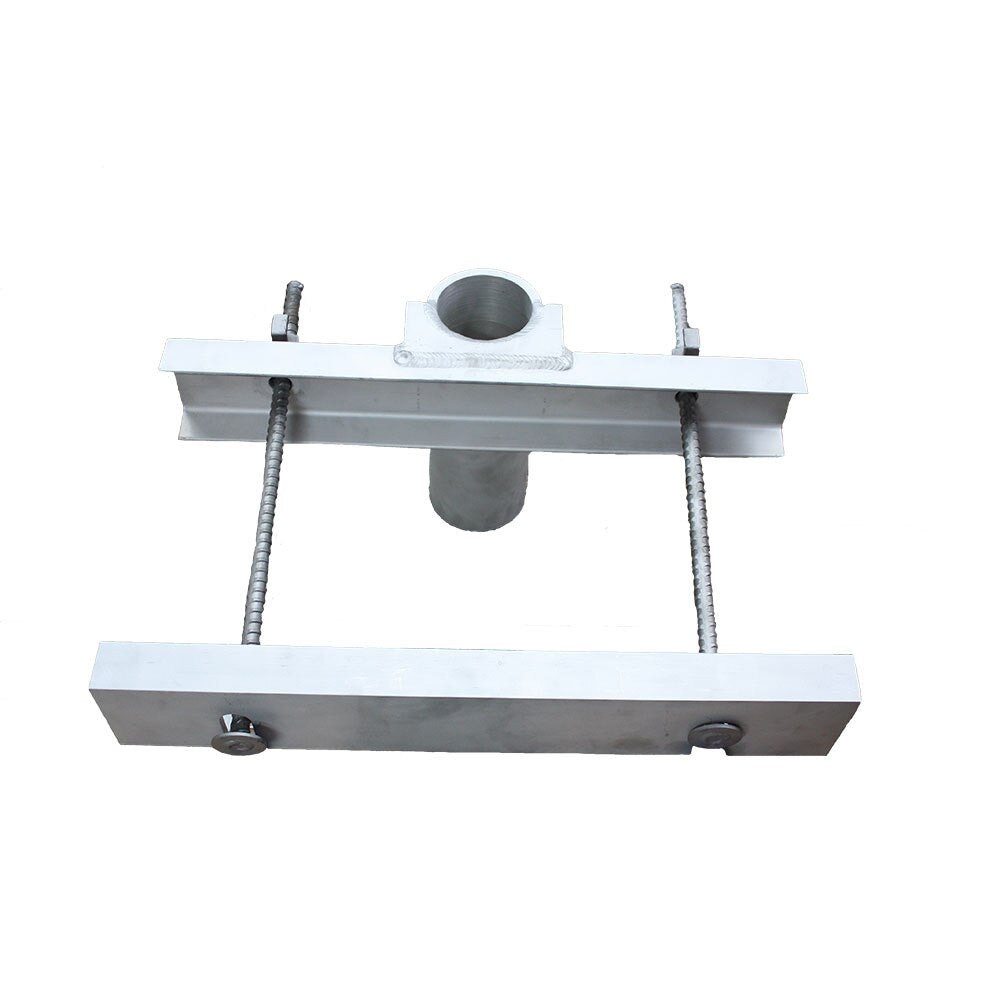

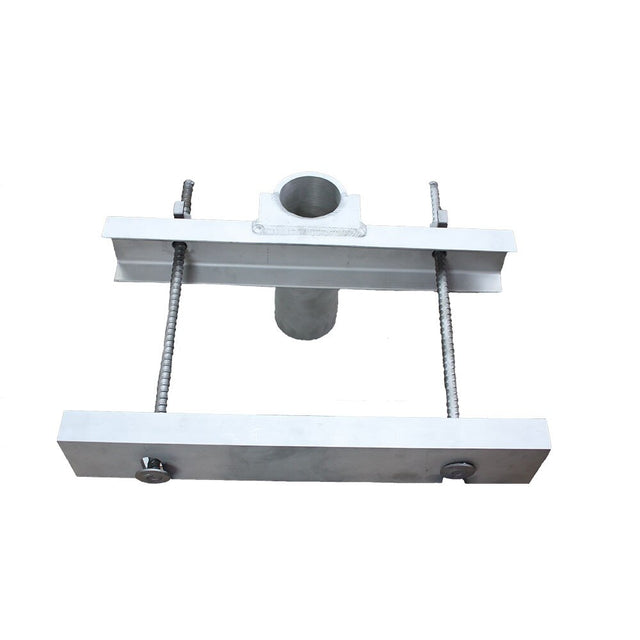

Safewaze FS-EX2502 Safelink Form Link Anchor
Free Shipping
$570.00
$609.14
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Fall Safe FS-EX2502 Description

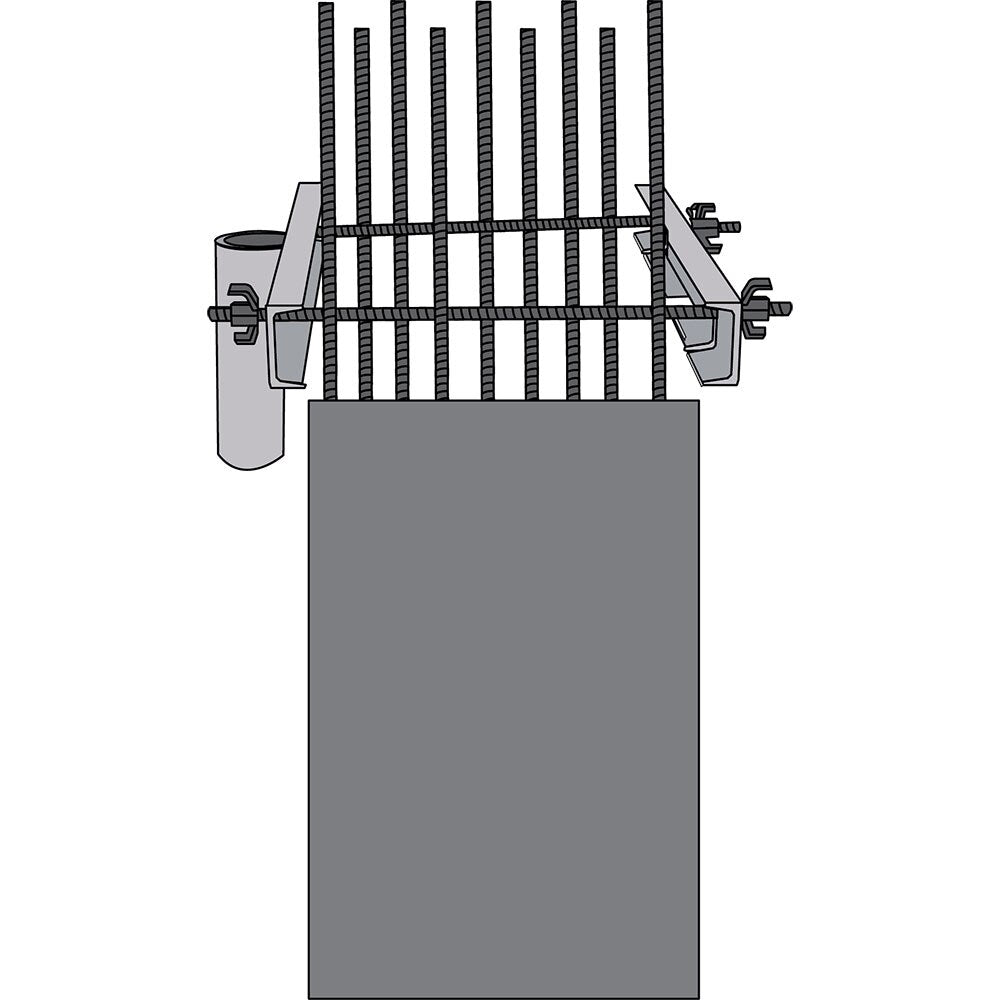

Aluminum form link anchor, designed for use with the Safewaze Mobile Safelink Horizontal Lifeline System and subdued edge work, can be used with (6) #7 rebar, clamped around a finished column or mounted to a finished wall at least 8" thick. The FS-EX5501-5 fits into the anchor. SafeLink, the result of a decade of development, addresses the difficulties and limitations of work on the leading surface edges of a building under construction, and other applications where horizontal work and low clearance fall hazards exist.
Fall Safe FS-EX2502 Includes
- (1) SafeLink Form Link Anchor
Fall Safe FS-EX2502 Features
- Column mounted rebar bracket for mounting post
- Desgined for use with Safewaze SafeLink System
Fall Safe FS-EX2502 Specifications
| Material | 6061-T6511 Aluminum |
| Length | 28" |
| Height | 24" |
| Inside Width | 3.75" (pole Receptor) |
| Outside Width | 4.5" (Pole Receptor) |
| Overall Width | 24.50" |
| Minimum Tensile Strength | 5000 lbs |
| Working Load | 310 lbs/Person; Up to 4-Person SafeLink System |
| Applicable Standards | Meets OSHA 1926.502 - ANSI Z359.1 - ANSI A10.32 |
