At a Glance
Weight Capacity
2100 lb
Fastener Length
4-3/4 in
Bolt Diameter
1/2 in
Material
Carbon Steel
Sold As
Individual
Mount Type
Eye
Safety Rating
OSHA 1926.502, ANSI Z359.12
Description
Description

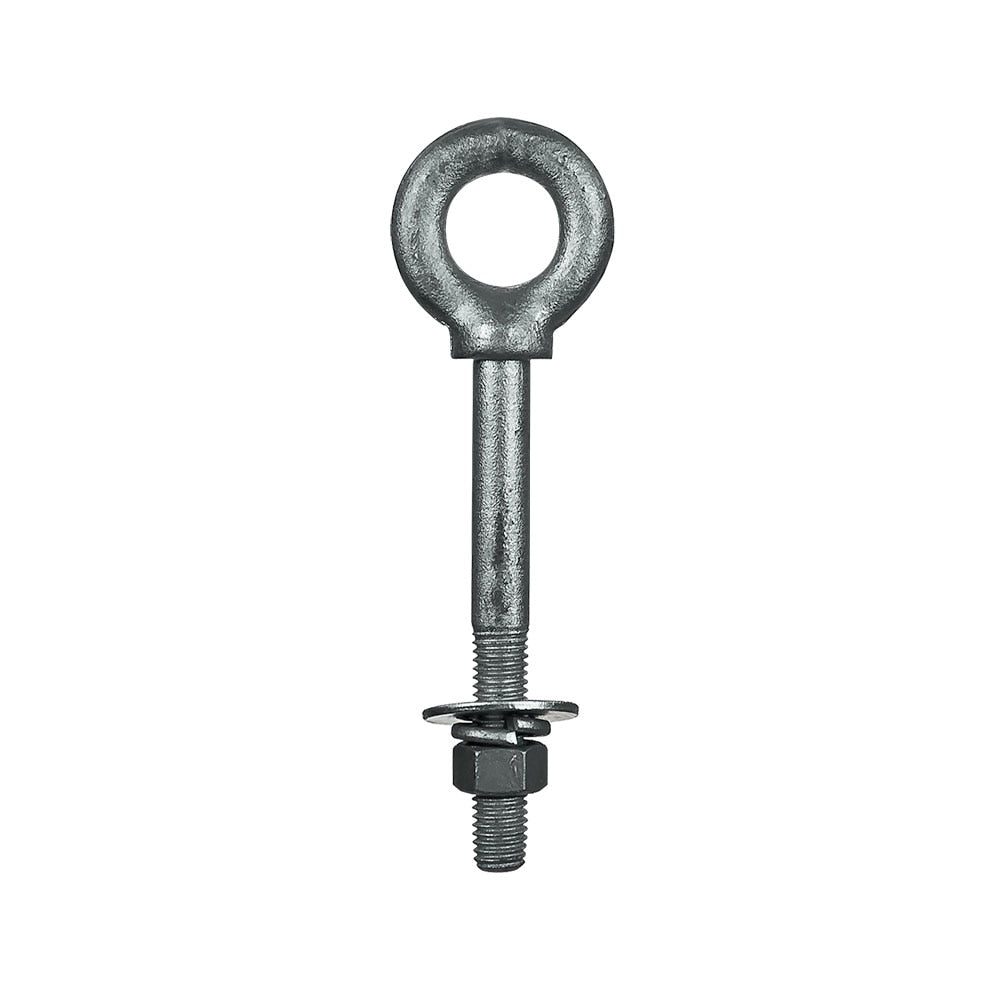

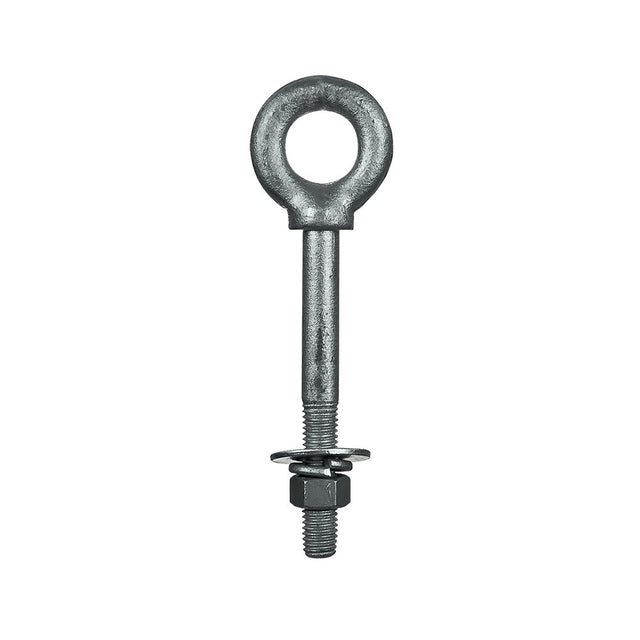

Fall Safe FS-EX2508 Description
Forged carbon steel eye bolts used to connect cable lifeline FS-EX2500-GA to the aluminum post FS-EX5501-5 of the Safewaze Mobile Safelink Horizontal Lifeline System. SafeLink, the result of a decade of development, addresses the difficulties and limitations of work on the leading surface edges of a building under construction, and other applications where horizontal work and low clearance fall hazards exist.
Fall Safe FS-EX2508 Includes
- (1) Eye bolt
- (1) Nut with Lock Washer
Fall Safe FS-EX2508 Features
- Eye bolt and nut with lock washer
- Used to connect cable lifeline FS-EX2500-GA to the aluminum post FS-EX5501-5
- Desgined for use with Safewaze SafeLink System
Fall Safe FS-EX2508 Specifications
| Shaft Length | 4.5' |
| Shaft Diameter | 1/2" |
| Inside Diameter of Eye | 1" |
| Material | Forged 1030 Carbon Steel; Hot Galvanized |
| Working Load | 2100 lbs |
| Applicable Standards | Meets OSHA 1926.502, ANSI Z359.12-2009, ANSI A10.32 |
Toolup Part # :
333180
