At a Glance
Anchor Type
Roof anchor
Weight Capacity
310 lb
Mounting Type
Permanent
Material
Galvanized Steel
Sold As
Individual
For Use On
Wood
Mount Type
Rigid Plate
Safety Rating
OSHA 1926.502, ANSI Z359.1
Description
Description

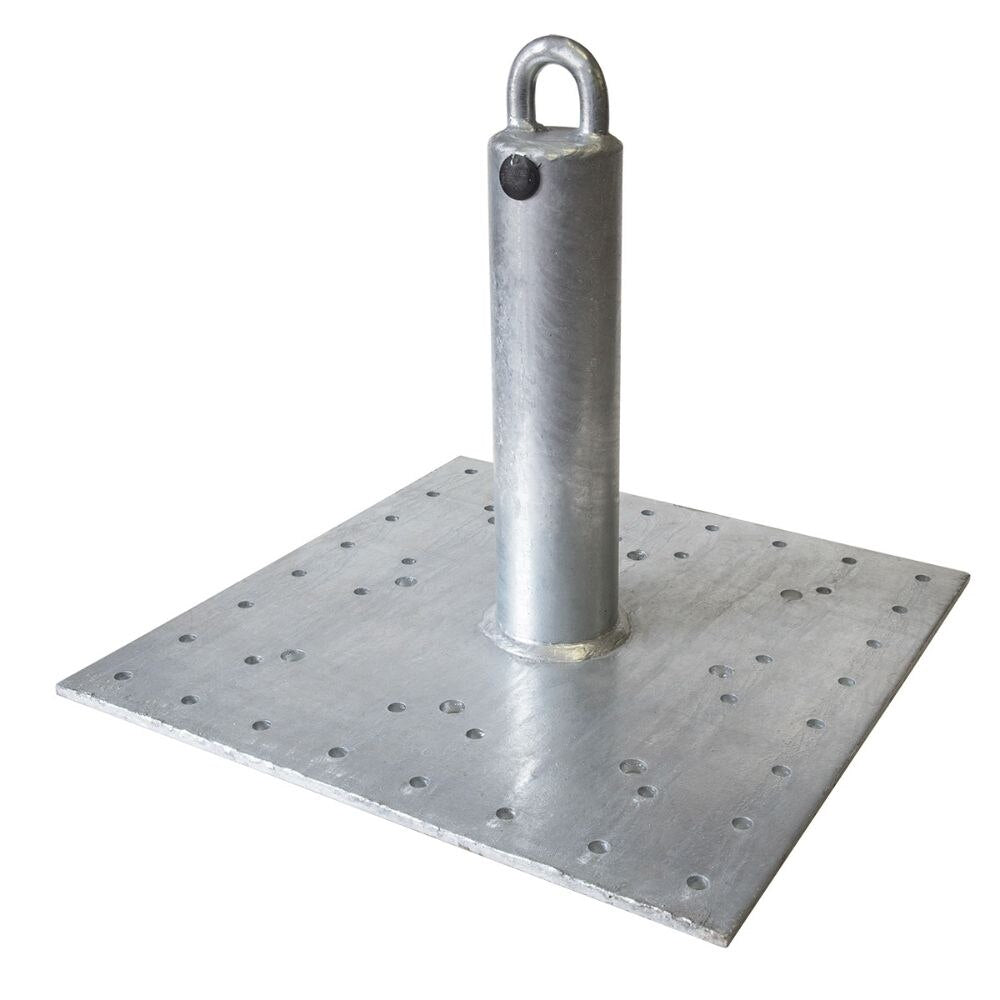

SafeWaze FS-EX325 Includes
- (1) Anchor Point Post
SafeWaze FS-EX325 Features
- Anchor point post for wood, concrete and steel installation
- Easy to install
- Single user
SafeWaze FS-EX325 Specifications
| Dimensions | 16" X 16" (406.4 mm x 406.4 mm) Baseplate 14.5" (368.3 mm) Overall Height From Bottom of Baseplate to Top of Loop |
| Number of Holes in Base | (40) - Fasten with #14-10 2" Wood Screws (Not Included). Screws Must Extend Through Deck 3/4" Minimum, (40) - Fasten with #14-14 2" Screws for Metal Decking (Not Included). Screws Must Penetrate Metal Decking by at Least 1/4", (8) - Fasten with 1/2" Hilit HIT-Z Rods or Equivalent (Not Included). Minimum 3-1/2" Embedment Required |
| Deck Requirements | Minimum 5/8” CDX Plywood. All Screw Holes Must be Used, Minimum 20 Gauge Steel Material for Steel Installation. All Screw Holes Must be Used, Minimum 6" Thick, 2500 p.s.i., Concrete for Concrete Installation. All Concrete Fastener Installation Holes Must be Used |
| Material | Galvanized Steel |
| Working Load | 310 lbs (140.61 kg) - Designed for Single Person Use |
| Strength | 5000 lbs (2267.96 kg) Ultimate Strength. Supporting Structure Must Have a Strength of at Least 5000 lbs (2267.96 kg) |
| Applicable Standards | Meets OSHA 1926.502 - ANSI Z359.1 - ANSI A10.32Designed for Wood, Concrete and Steel, the Safewaze FS-EX325 12" anchor point is easy to install. |
Toolup Part # :
402911
