SafeWaze SW-EX100 Description

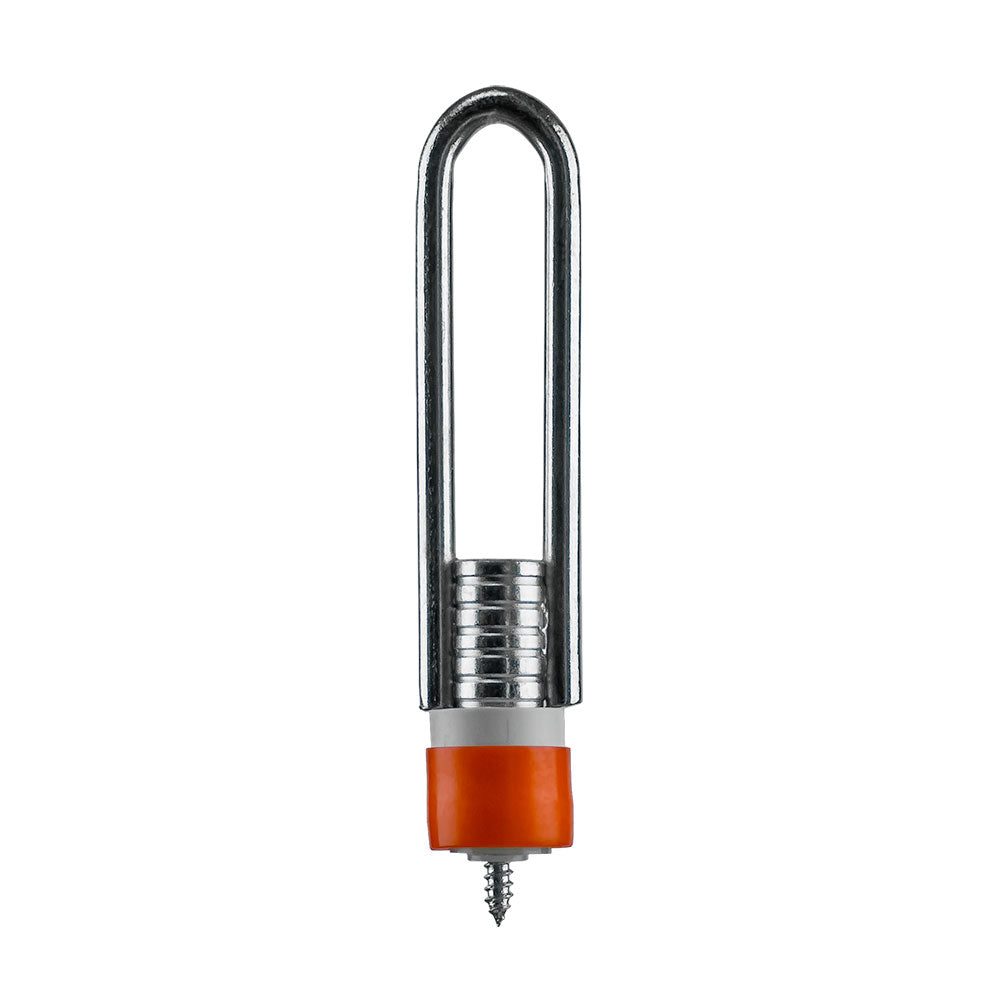

The Safewaze SW-EX100 Straight Loop insert is a pre-installed receptacle that is cast-in place during construction of the surface for the purpose of attaching an anchorage connector once the concrete is fully cured.
SafeWaze SW-EX100 Includes
- (1) Straight Loop Insert
SafeWaze SW-EX100 Features
- Non-Removable
- Designed for Concrete installation
SafeWaze SW-EX100 Specifications
| Length | 7.25" |
| Width | 1.63" |
| Materials | Straight Loop Insert - Zinc Plated Steel, Screw - Plastic, Hardware Assembly - Zinc Plated Steel, Plastic, Rubber, O-ring - Rubber, Housing - Plastic |
| Static Tensile Strength | 10000 lbs - 44.5 kN |
| Weight Capacity | 310 - Single User |
| Applicable Standards | Meets OSHA 1926.502 - OSHA 1910.66 |
