At a Glance
Anchor Type
Swivel Anchor
Thread Type
UNC
Fastener Type
Bolt
Fastener Length
3-1/4 in
Grade
Grade 8
Material
Galvanized Steel
Sold As
Individual
Finish
Zinc Plated
Description
Description

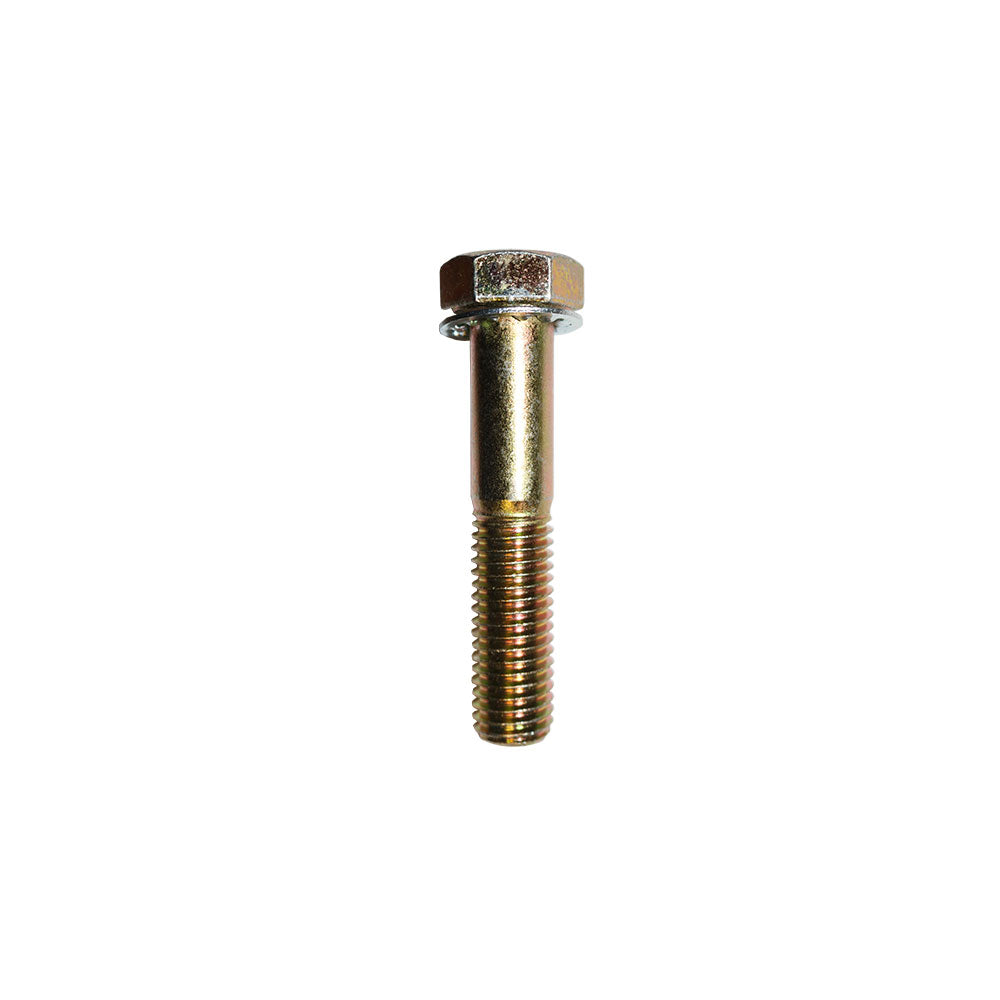

SafeWaze SW-EX175 Description
Assembly bolt for the SW-EX150 Straight Loop Mega Swivel 10K anchor. Mega swivel can be purchased separately if required.
SafeWaze SW-EX175 Includes
- (1) Bolt
SafeWaze SW-EX175 Features
- Non-Removable
- Mounting bolt for use with the FS-EX100 Straight Look Insert and SW-EX150 Mega Swivel anchor
- Can be used in horizontal, vertical and overhead applications
- Single user
SafeWaze SW-EX175 Specifications
| Length | 3.25" |
| Diameter | 5/8" |
| Materials | Zinc-Plated Steel |
| Minimum Tensile Strength | 10000 lbs - 44 kN |
| Weight Capacity | 310 - Single User |
| Applicable Standards | Meets OSHA 1926.502 - OSHA 1910.66 - ANSI Z359.1 - ANSI Z359.7 |
Toolup Part # :
402703
