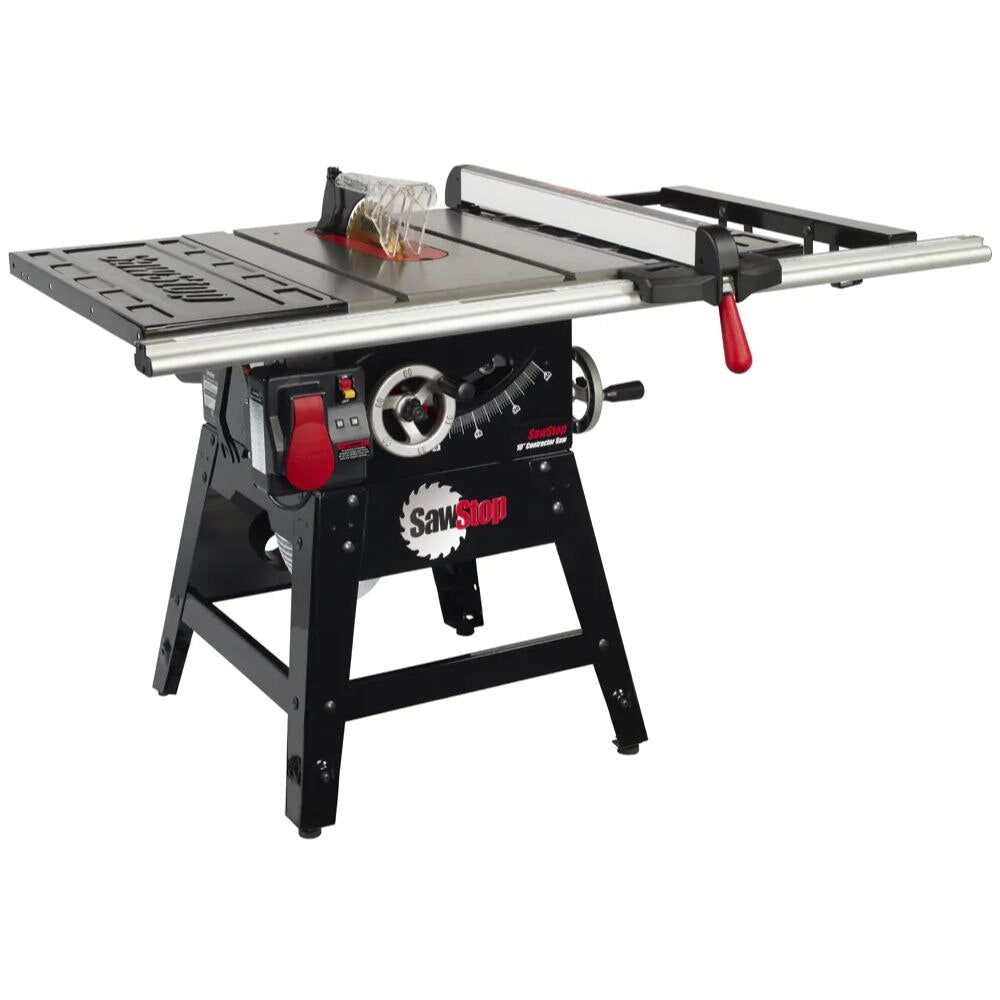

SawStop CNS175-SFA30 Contractor Table Saw 1.75HP 120V 60Hz 30" Aluminum Fence System

INCLUDES:
• (1) 1-3/4 HP Contractor Saw with Stand
• (1) 30" Aluminum Extrusion Fence System
• (1) 10" 40T Combination Blade
• (2) Stamped Wings
• (1) Blade Guard Assembly
• (1) Miter Gauge
• (1) Riving Knife
• (1) Blade Wrenches
• (1) Owners Manual

FEATURES:
• 30" Aluminum Fence system provides smooth operation and precision measurements.
• SawStop Safety System stops on contact with skin.
• Includes Two Steel Extension Wings
• The most configurable saw in the SawStop lineup
• Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw at an affordable price.

SPECIFICATIONS:
• Overall Saw Dimension: 58-1/2" W, 40" D, 34-3/4 H
• Motor: 1.75 HP, 1 Phase, 110V, 14 A
• Cabinet Footprint: 25-3/4" W x 27" D
• Cast Iron Table: 20" W x 27" D
• Cast Iron Table (w/ extension wings): 44" w x 27" D (w/opt. cast iron wings)
• Extension Wings: 12" W x 27" D Each
• Blade: 40-Tooth, Prof. Grade, 5/8" Arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078" (2mm)
• Max. Depth of Cut, Blade at 0º: 3-1/8"
• Max. Depth of Cut, Blade at 45º: 2-1/4"
• Max. Rip, Right of Blade - 30": 30-1/2" (w/ 30? rails)
• Max. Rip, Right of Blade - 36": 36-1/2" (w/ 36? rails)
• Max. Rip, Right of Blade - 52": 52-1/2" (w/ 52? rails)
• Max. Rip, Left of Blade: 16-1/2" (w/ 30" Std. Fence)
• Max. Rip, Left of Blade (options): 12-1/2" (w/ T-Glide Fence)
• Dado Diameter: 8" (req. dado brake + insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Main Bearing Size: 62mm OD x 30mm ID
• Second Bearing Size: 52mm OD x 25mm ID
• Table in Front of Blade (max. elevation): 10-5/8"
• Table Behind Blade (max. elevation): 7-1/8"
• Arbor Runout: 0.001" Maximum Allowable Runout
• Table Flatness Measured Diagonally: 0.016" Maximum Gap
• Blade Alignment with Miter Slot: 0.010" Maximum Displacement
• Deviation of Miter Gauge Indexing Stops From Actual: ±0.25º
• Alignment Between Splitter and Blade: 0.010" Maximum Difference
• Miter Slots T-Shaped: 3/4" at Top, 1" at Bottom, 3/8" Deep
• Miter Slots Center: 11-1/8" Center-to-Center
• Miter Slots Info: 5-1/2" (arbor flange to center of right slot)
• Dust Collection Port Diameter: 4" Under Table Top
• Riving Knife / Splitter Thickness: 0.090" (2.3 mm)
• Blade Guard (dust collection): N/A
• Blade Guard: Golycarbonate, Extends only 5/8" to Right of Blade
• Insert: Zero Clearance, Phenolic Core, Melamine Surfaces
• Hand Wheels: 6" Diameter, Cast Alum. w/ ABS Handle
• Belts: V-Ribbed Belt – Static Dissipative
• Motor Configuration 1: CNS175: 1.75 HP, 110V, 14 A

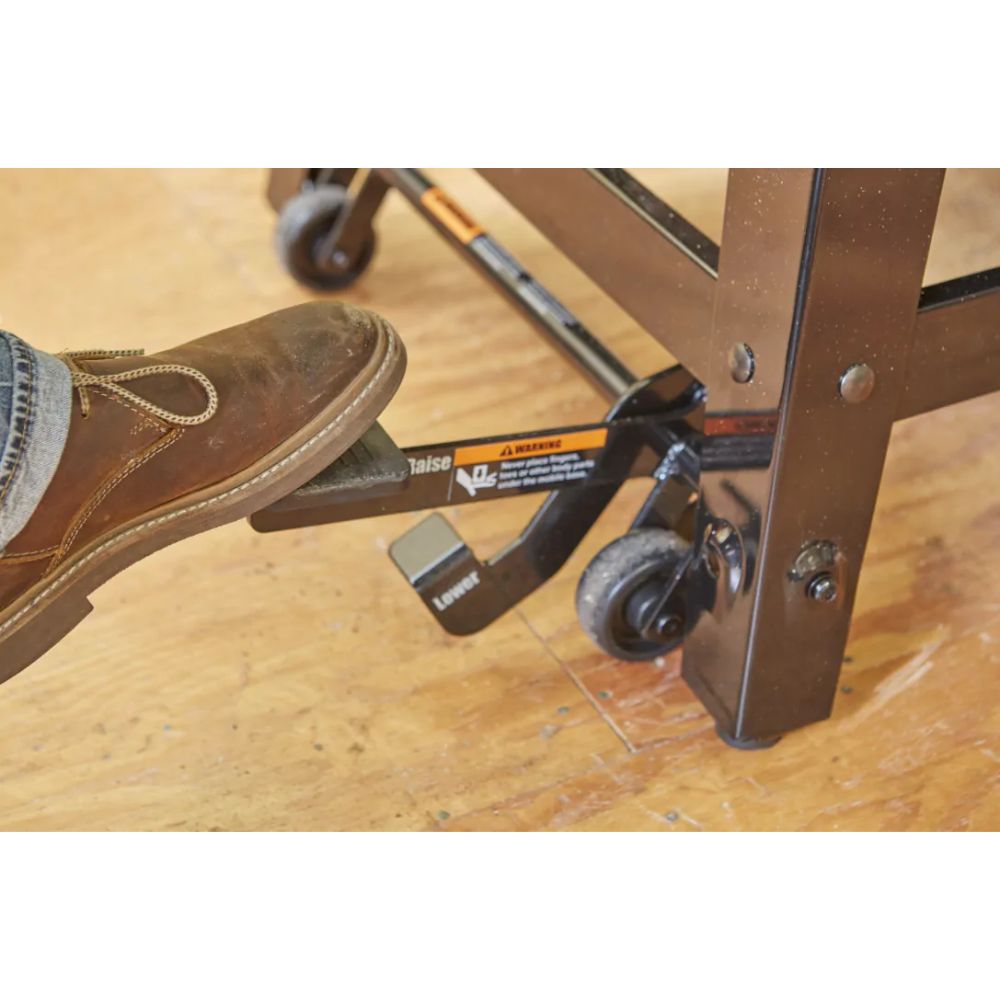

The SawStop® 110V, 1.75HP 10" Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Cabinet Saw, this saw's 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop's® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Contractor Saw is engineered to be the cornerstone of a home shop. Mobile base sold separately (#22948).
