SawStop CTS-120A60 Compact Table Saw - 15A 120V 60Hz
Description
Description
SawStop CTS-120A60 Description

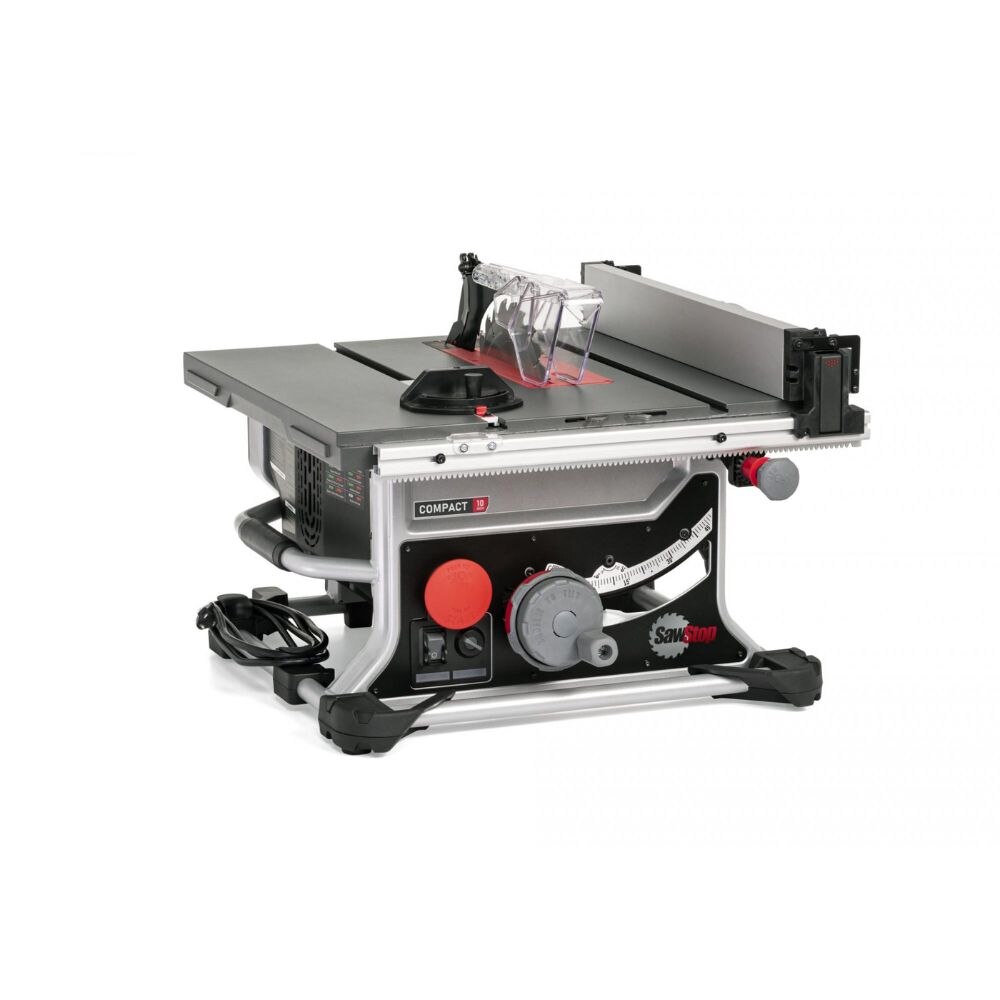

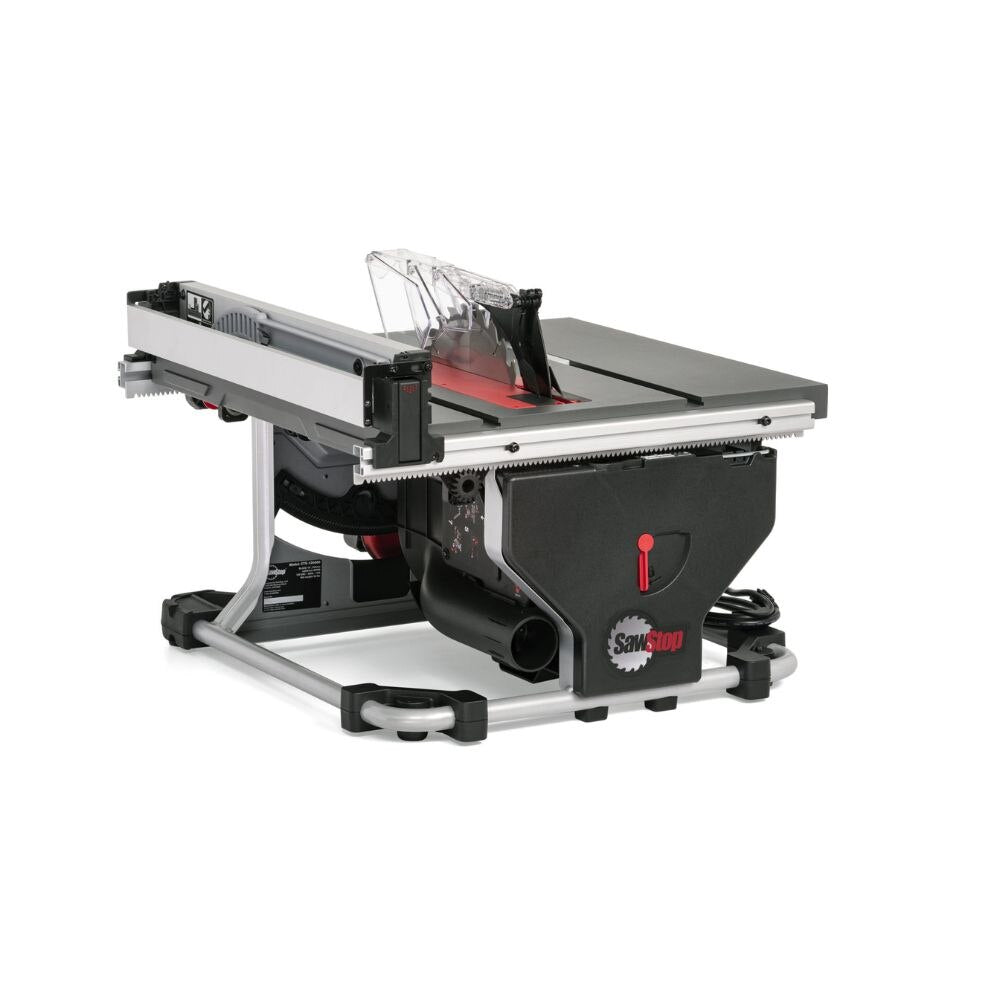

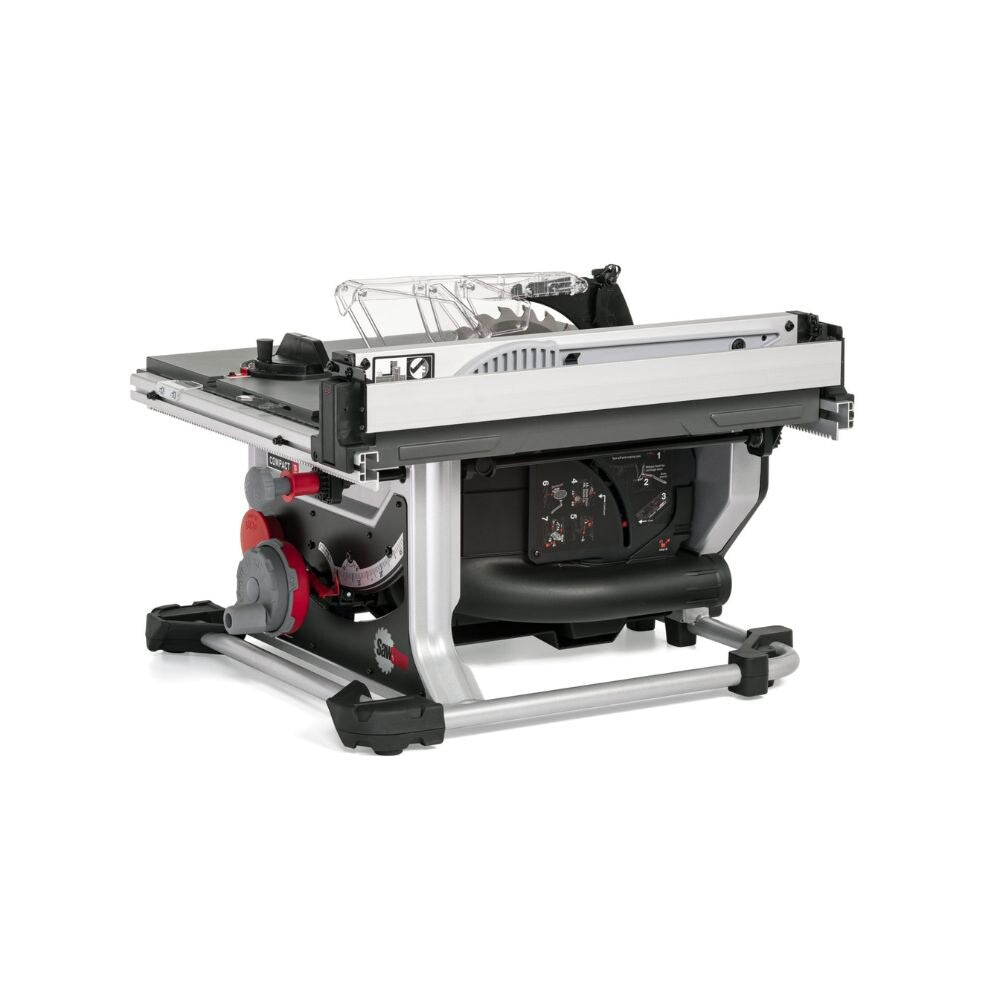

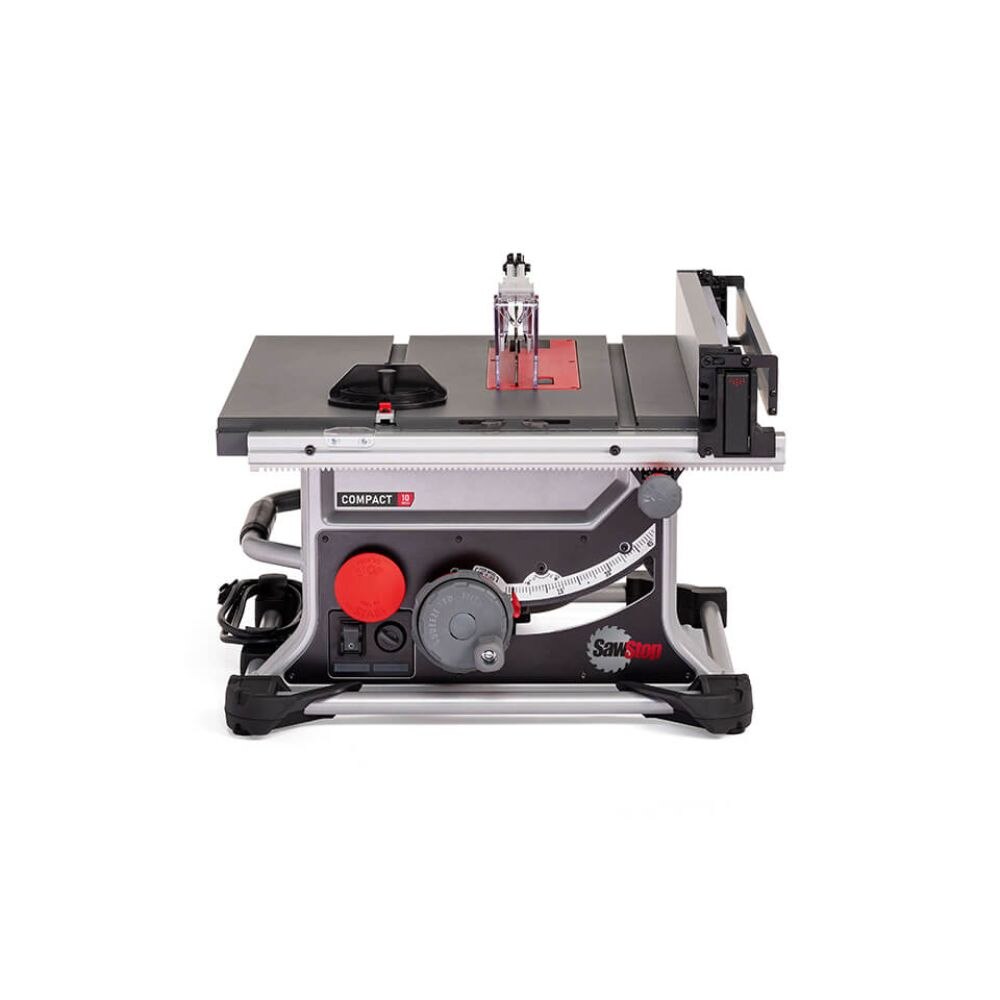

The SawStop Compact Table Saw (CTS) is the smallest, most portable table saw featuring SawStop's legendary safety brake. It's a great fit for contractors and homeowners looking for a safe, mobile table saw that can be easily transported and tucked away when not needed. Like other SawStop saws, the safety system stops the spinning blade on contact with skin and drops it below the table in less than 5 milliseconds. It's packed with features, power, precision, safety and a surprising 24-1/2'' of rip capacity. The rack and pinion fence stays dead square, the tilt and blade height adjustments are easy to operate, and all included accessories store securely on the saw itself.
SawStop CTS-120A60 Includes
- (1) Compact Table Saw
- (1) Miter Gauge
- (1) Brake Cartridge (TSBC-10R3; installed)
- (1) 3mm Hex Key
- (2) Blade Wrenches
- (1) Riving Knife (installed)
- (1) Blade Guard with Spreader and Anti-Kickback Pawls
- (1) 24-Tooth Ripping Blade (BTS-R-24ATB; installed)
- (1) Push Stick (on fence)
- (1) Table Saw Insert (CTS-TSI; installed)
SawStop CTS-120A60 Features
- In less than 5 milliseconds, the patented safety system stops the spinning blade on contact with skin and drops it below the table
- Portable form factor with heavy-duty construction for the stability you need for smooth cuts on the job site
- Compact size, carry handle and on-saw storage mean you have everything you need at hand
- Rack and pinion fence is easy to adjust and remove, and features a built-in high and low shelf to support all types of cuts
- All saw blade adjustments are made conveniently from the centrally located knob
- Quick-Tilt bevel with micro-adjust makes it easy to tilt the saw blade with one hand and fine-tune it in 1° increments

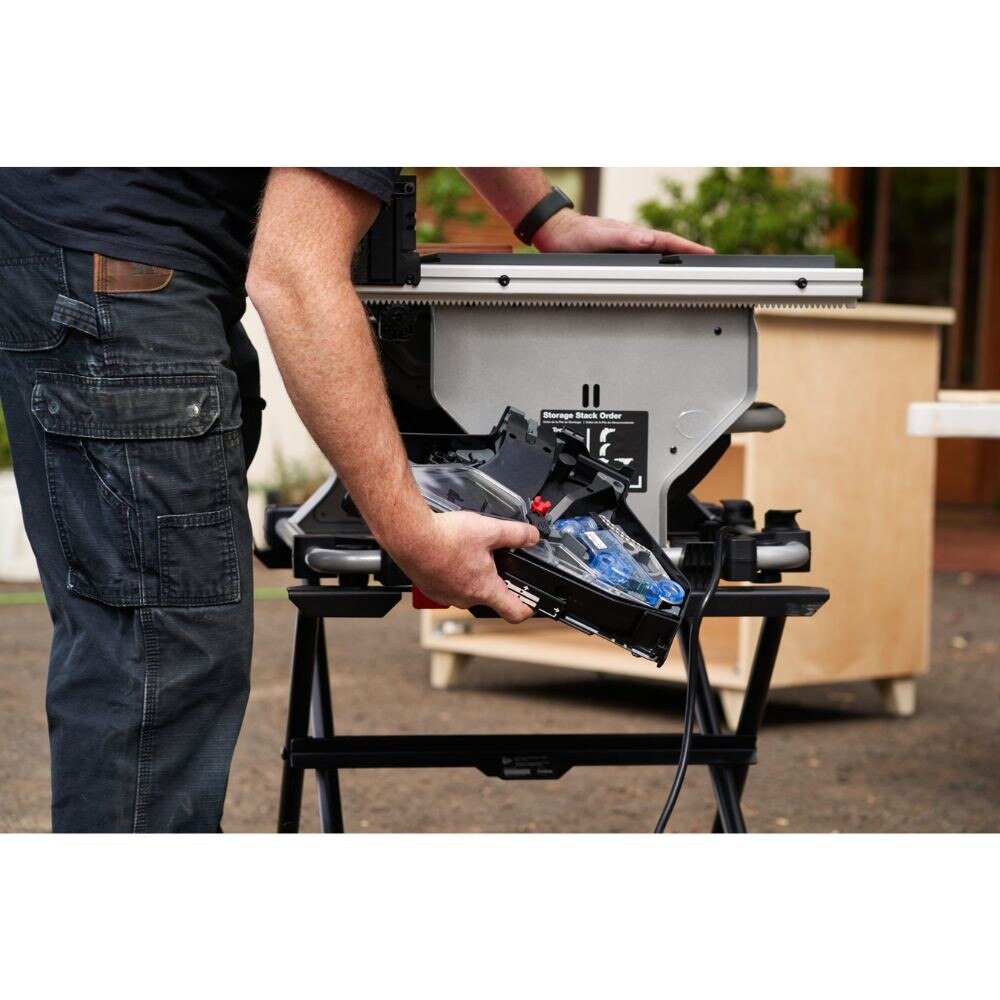

- Storage compartment lets you stow away tools and accessories in one location for easy retrieval
- Includes saw blade, push stick, miter gauge, blade guard, riving knife and more
SawStop CTS-120A60 Specifications
| Overall Dimensions (saw only) | Approximately 23-1/2" W x 27" D x 14-1/4" H |

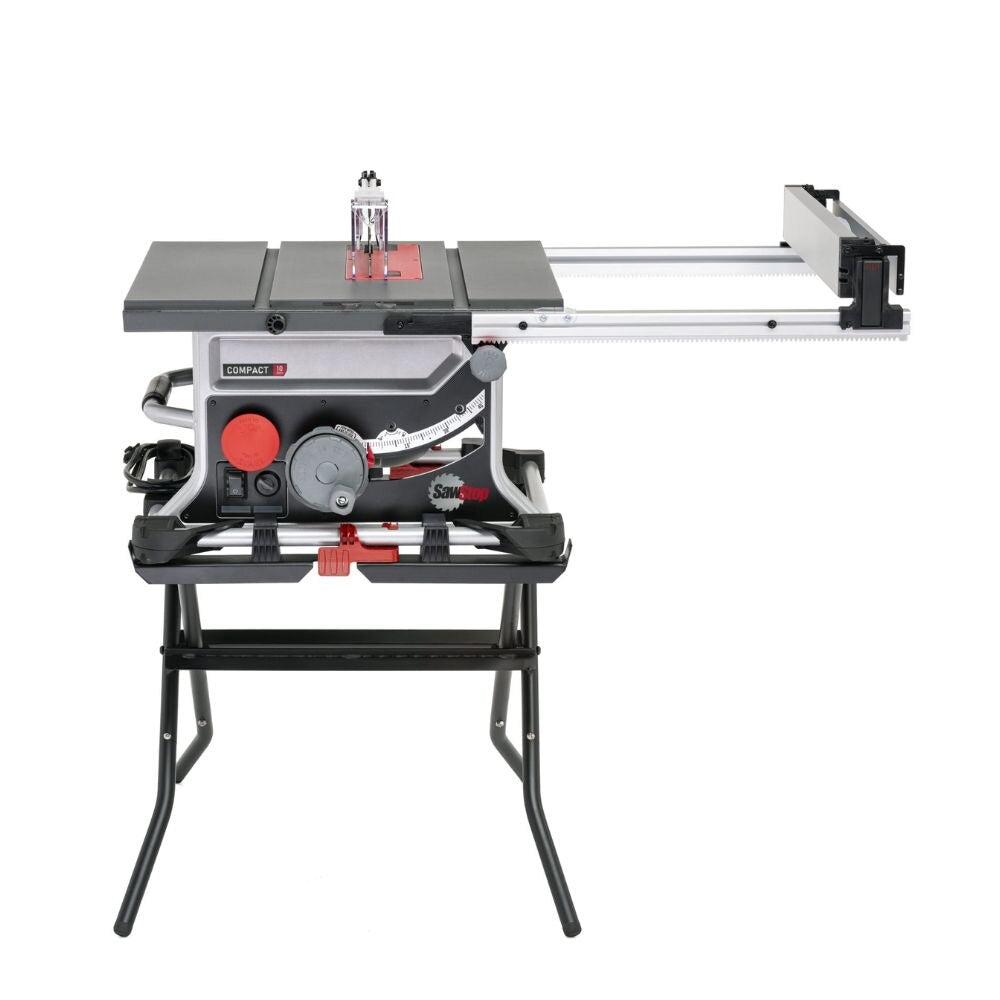

| Overall Dimensions (saw w/optional stand) | Approximately 23-1/2" W x 27" D x 36" H |
| Motor Configuration | 120 VAC 60 Hz, Universal |
| Amperage | 15A |
| No Load RPM | 4000 |
| Saw Blade Diameter | 10" |
| Max. Depth of Cut, Blade at 0? | 3-1/8" |
| Max. Depth of Cut, Blade at 45? | 2-1/8" |
| Max. Rip Capacity | 24-1/2" |
| Weight (saw only) | 65 lbs |
