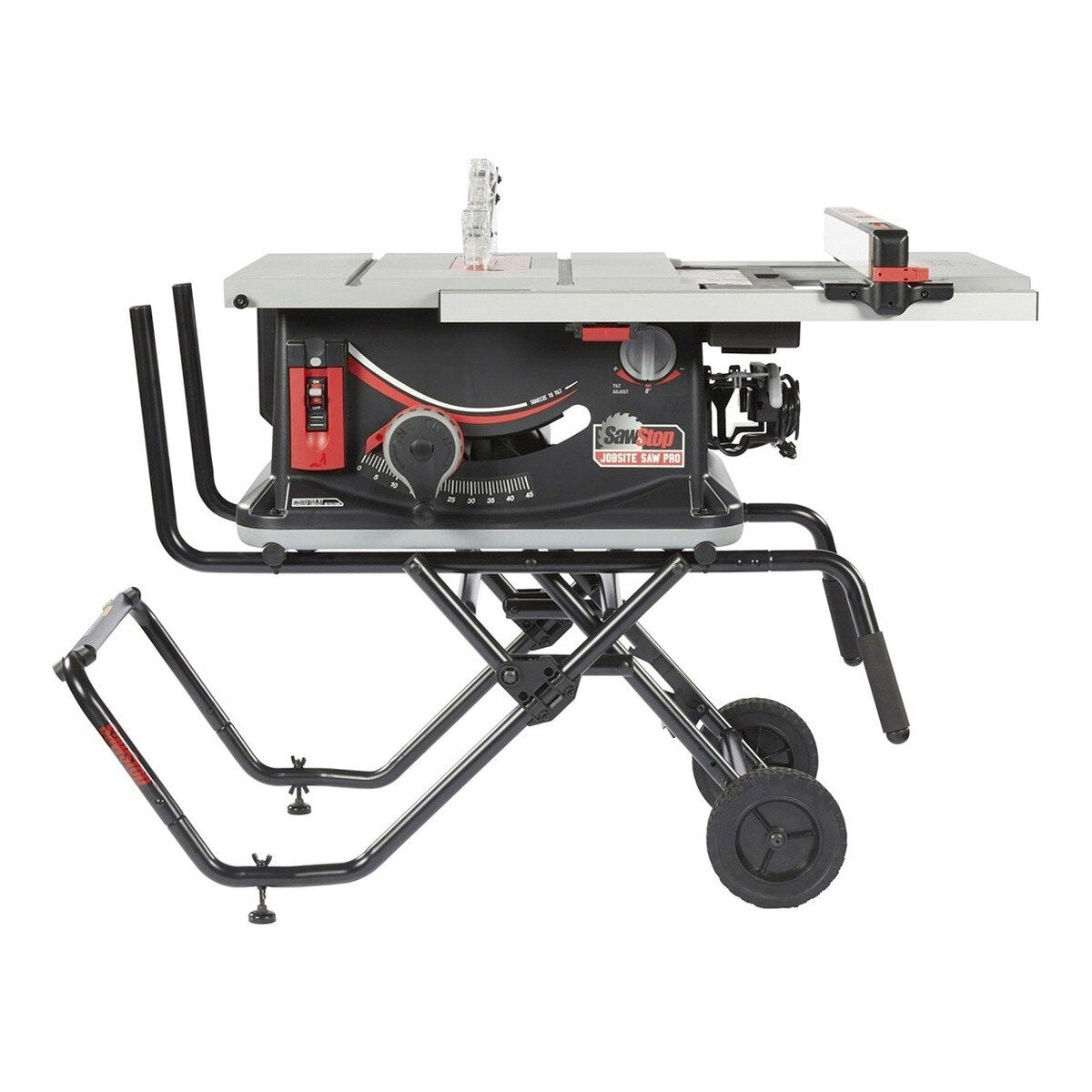

SawStop JSS-120A60 Description
The SawStop Jobsite Saw Pro pairs the brand’s patented safety system with a powerful 15A, 120V motor and mobile cart for easy transport. It features a 10 in. blade, one-turn elevation, Quick-Tilt bevel adjustment, and a solid Hi-Low T-Style fence with Ergolock for accurate, repeatable cuts.
SawStop JSS-120A60 Includes
- (1) Jobsite Saw Pro JSS-120A60
- (1) Mobile Cart Assembly
- (1) High/Low T-Style Fence with Ergolock
- (1) Miter Gauge
- (1) Active Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10 in. Blade
- (1) Zero Clearance Insert
- (1) Standard Brake Cartridge
- (1) Assembly Instructions Poster
- (1) Hardware Pack
- (1) 3mm Hex Key
- (1) 4mm Hex Key
- (1) 5mm Hex Key
SawStop JSS-120A60 Features
- Patented safety system stops blade on skin contact
- One-turn elevation for fast blade height adjustment
- Quick-Tilt bevel adjustment with 1-degree increments

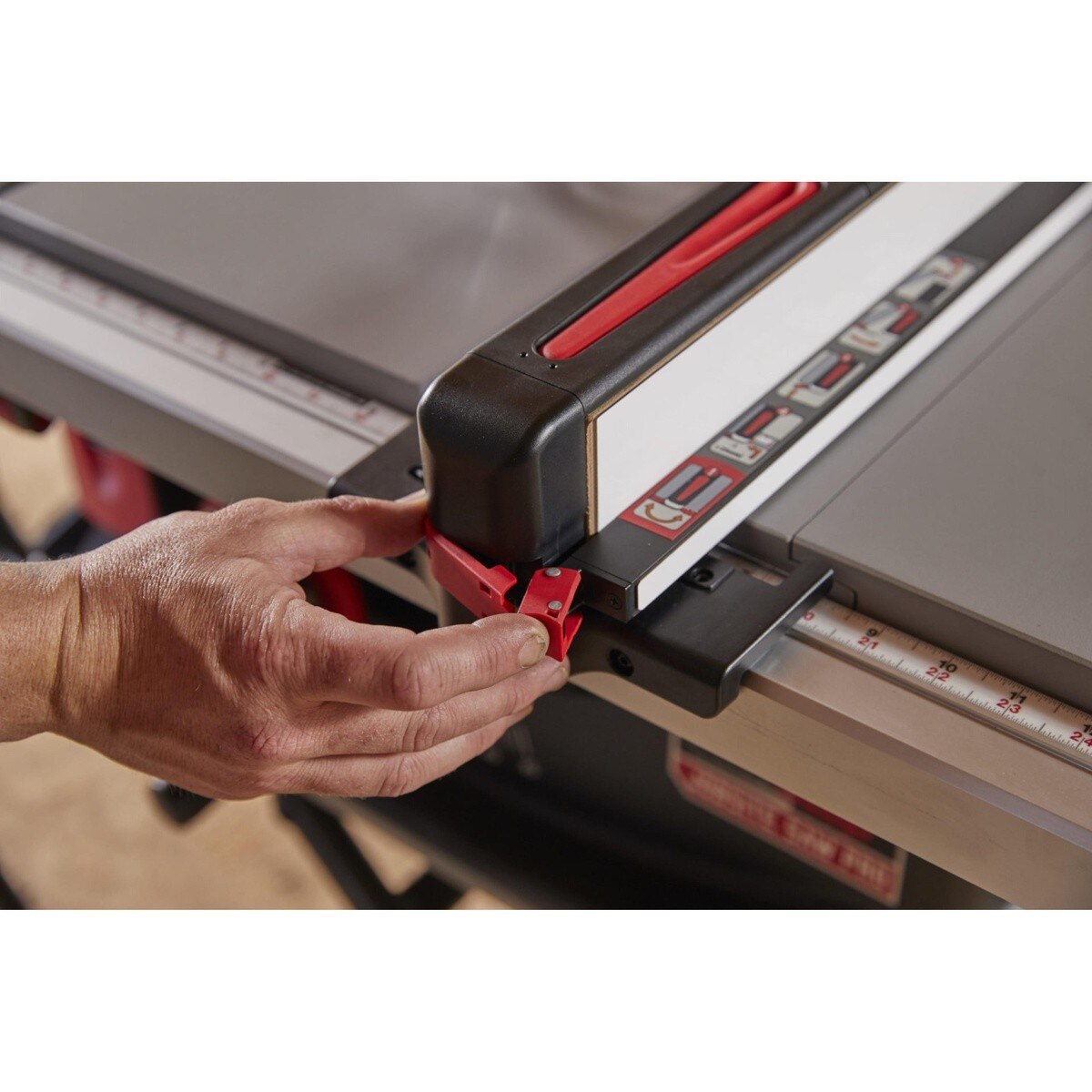

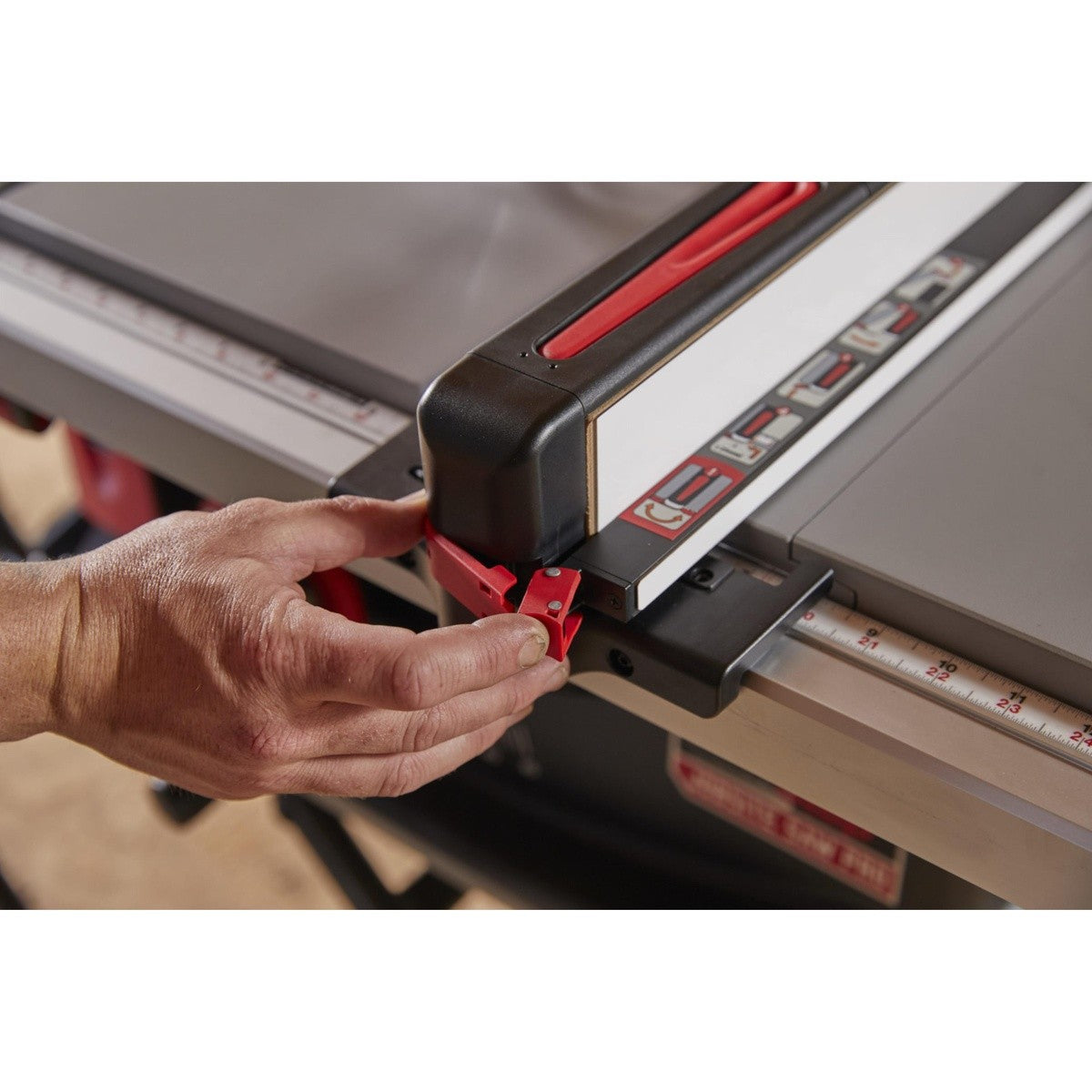

- Solid Hi-Low T-Style fence with Ergolock; 25-1/2 in. rip capacity
- Active dust collection blade guard and internal shroud
- Simple foot-pedal cart for easy mobility and storage

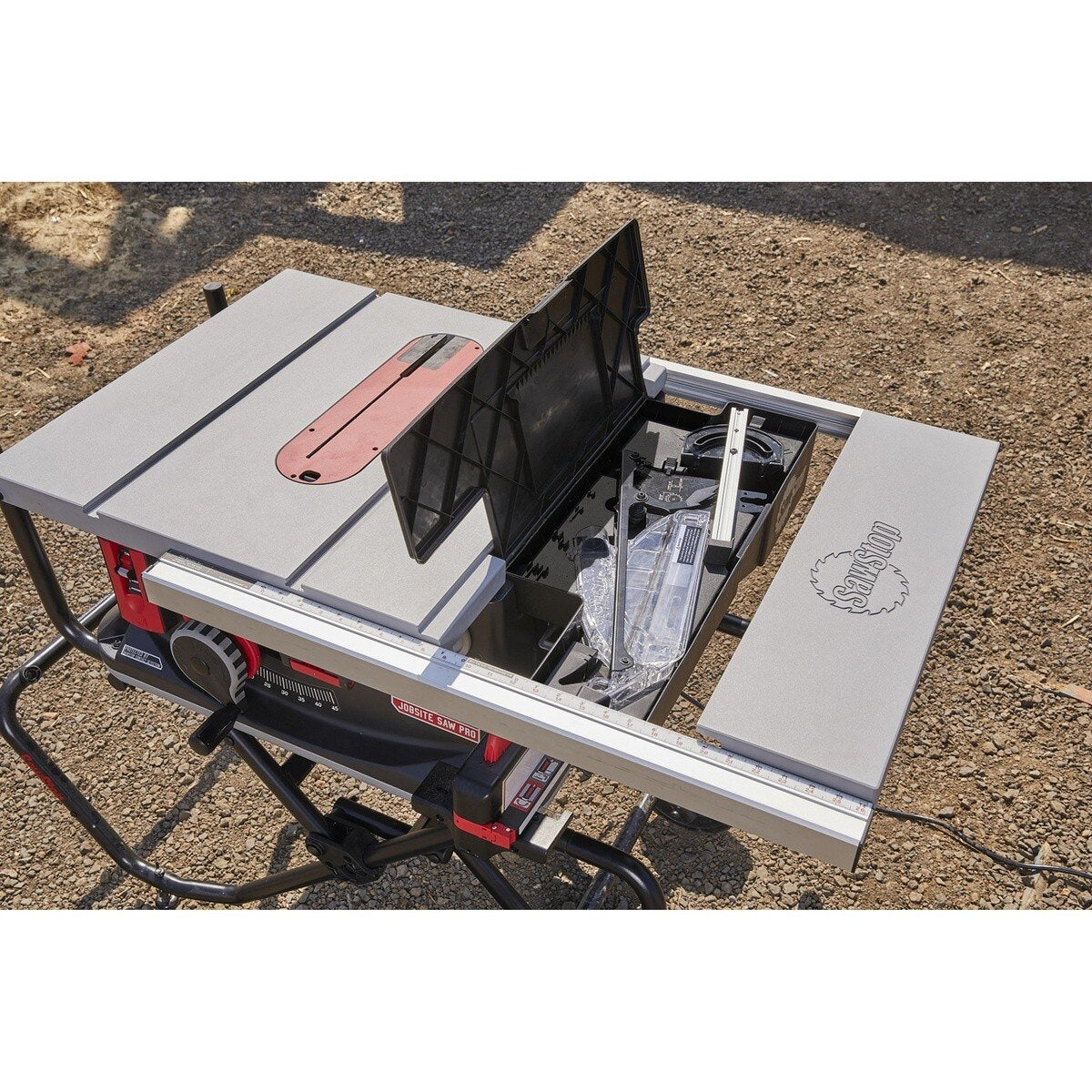

- Onboard storage for accessories
- CSA certified
SawStop JSS-120A60 Specifications
| Motor | 120 VAC 60 Hz, 15A, Universal |
| Continuous Horsepower | 1.5 HP |
| Peak Horsepower | 4 HP |
| Blade Diameter | 10 in |
| Arbor Diameter | 5/8 in |
| Blade Tilt | Left |
| Max Depth of Cut at 90° | 3-1/8 in |
| Max Depth of Cut at 45° | 2-1/8 in |
| Rip Capacity Right | 25-1/2 in |
| Rip Capacity Left | 9-3/4 in |
| Dado Diameter (Max.) | 8 in |
| Dado Width (Max.) | 29/32 in |
| No-Load Speed | 4000 RPM |
| Table Dimensions (retracted) | 31-1/4 in W x 24-5/8 in D |
| Table Dimensions (extended) | 43-3/8 in W x 24-5/8 in D |
| Stowed Dimensions | 26-1/2 in L x 29 in W x 45 in H |
| Saw Dimensions Open Cart | 48 in W x 29 in D x 36 in H |
| Saw Dimensions Closed Cart | 26-1/2 in W x 29 in D x 45 in H |
| Weight (Saw Only) | 84 lb |
| Weight (with Cart) | 113 lb |
| Shipping Weight (with Cart) | 137 lb |
| Cord Length | 116 in |
Toolup Part # :
619863
