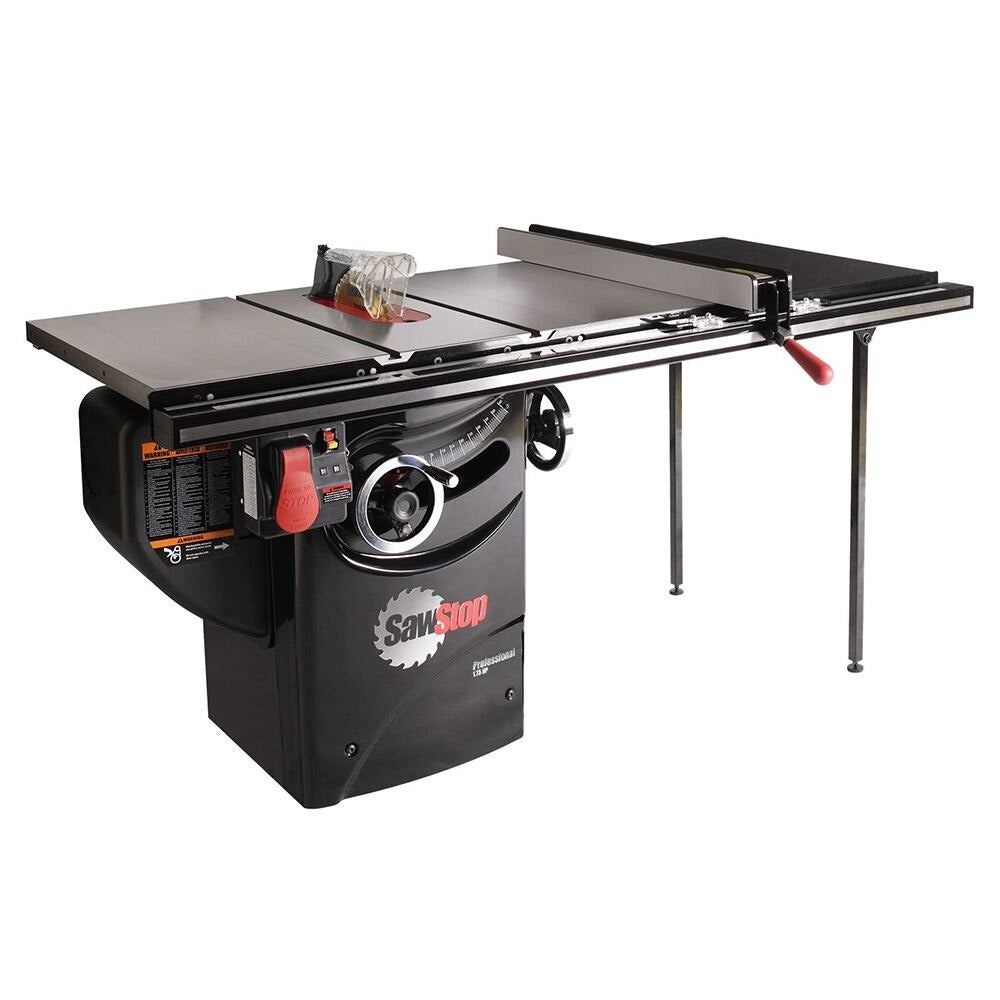

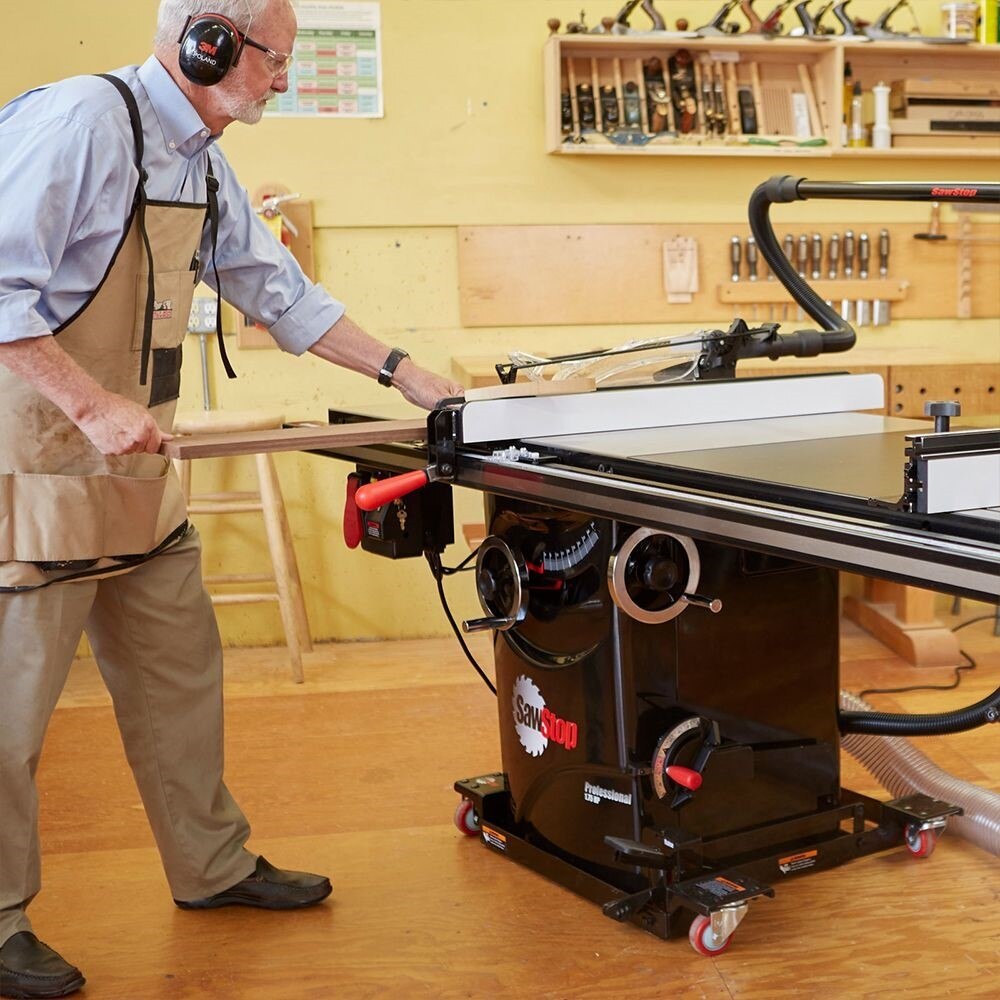

SawStop PCS175-TGP236 Professional Table Saw 1.75HP 120V 60Hz 36" Pro T-Glide Fence System

INCLUDES:
• (2) Cast Iron Extension Wings
• (1) Miter Gauge
• (1) Micro Blade Guard (1.75HP Models)
• (1) Dust Collection Blade Guard (3HP Models)
• (1) Riving Knife
• (2) Blade Wrenches
• (1) Push Stick
• (1) 10” Blade
• (1) Standard Lockdown Insert
• (1) Standard Brake Cartridge
• (1) Owner’s Manual
• (2) Hardware Packs
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge

FEATURES:
• 36" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.
• ASSEMBLY: 1.75HP Professional Cabinet Saw with 36” Professional T-Glide fence system, rails & extension table

SPECIFICATIONS:
• Overall Saw Dimension: 69 1/8" W x 33" D x 34" H
• Motor Configuration: 1.75 HP, 120V, 14 A (user config. to 220v w/optional kit available for purchase).
• Cabinet Footprint: 19 3/8" W x 19 3/8" D
• Cast Iron Table: 20" W x 27" D
• Extension Wings: 12" W x 27" D Each
• Cast Iron Table (W/ Extension Wings): 44" W x 27" D
• Extension Table 36": 23-3/4" W x 27" D
• Blade: 40-tooth, Prof. Grade, 5/8" Arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078" (2mm)
• Max. Depth of Cut, Blade At 0º: 3-1/8"
• Max. Depth of Cut, Blade At 45º: 2-1/4"
• Max. Rip, Right of Blade – 36": 36" (w/ 36" rails)
• Max. Rip, Left of Blade: 12"
• Dado Diameter: 8" (requires 8R2 brake, dado insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Main Bearing Size: 62mm OD x 30mm ID
• Second Bearing Size: 52mm OD x 25mm ID
• Table in Front of Blade (Max. Elevation): 10 1/4"
• Table Behind Blade (Max. Elevation): 7-1/2"
• Arbor Runout: 0.001" Maximum allowable runout
• Table Flatness Measured Diagonally: 0.010" Maximum gap
• Blade Alignment with Miter Slot: 0.010" Maximum displacement
• Deviation of Miter Gauge Indexing Stops from Actual: ±0.25º
• Alignment Between Splitter and Blade: 0.010" Maximum difference
• Miter Slots T-Shaped: 3/4" at Top, 1" at Bottom, 3/8" Deep
• Miter Slots Center: 11-11/8" Center-to-Center
• Miter Slots Info: 5-1/2" (arbor flange to center of right slot)
• Dust Collection Port Diameter: 4"
• Riving Knife / Splitter Thickness: 0.090" (2.3 mm)
• Dust Collection Blade Guard (Standard On 3 HP Saws) (Optional On 1.75 HP Saws): Polycarbonate, Extends 1-3/16" Right of Blade
• Blade Guard (Dust Collection) Port Diameter: 1-1/2" Outside, 1-1/4" Inside

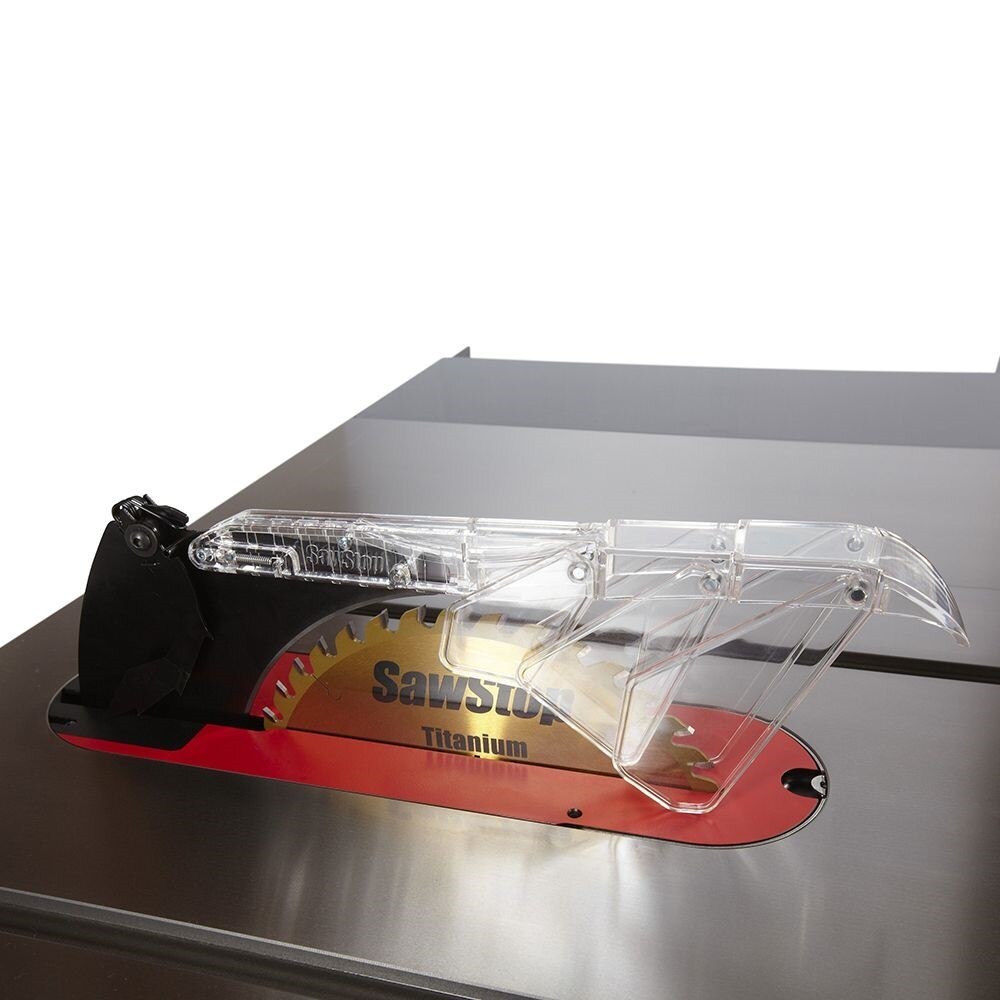

• Micro Blade Guard (Standard On 1.75 HP Saws): Polycarbonate, Extends 1" Right of Blade
• Insert: Zero Clearance, Phenolic Core, Melamine Surfaces

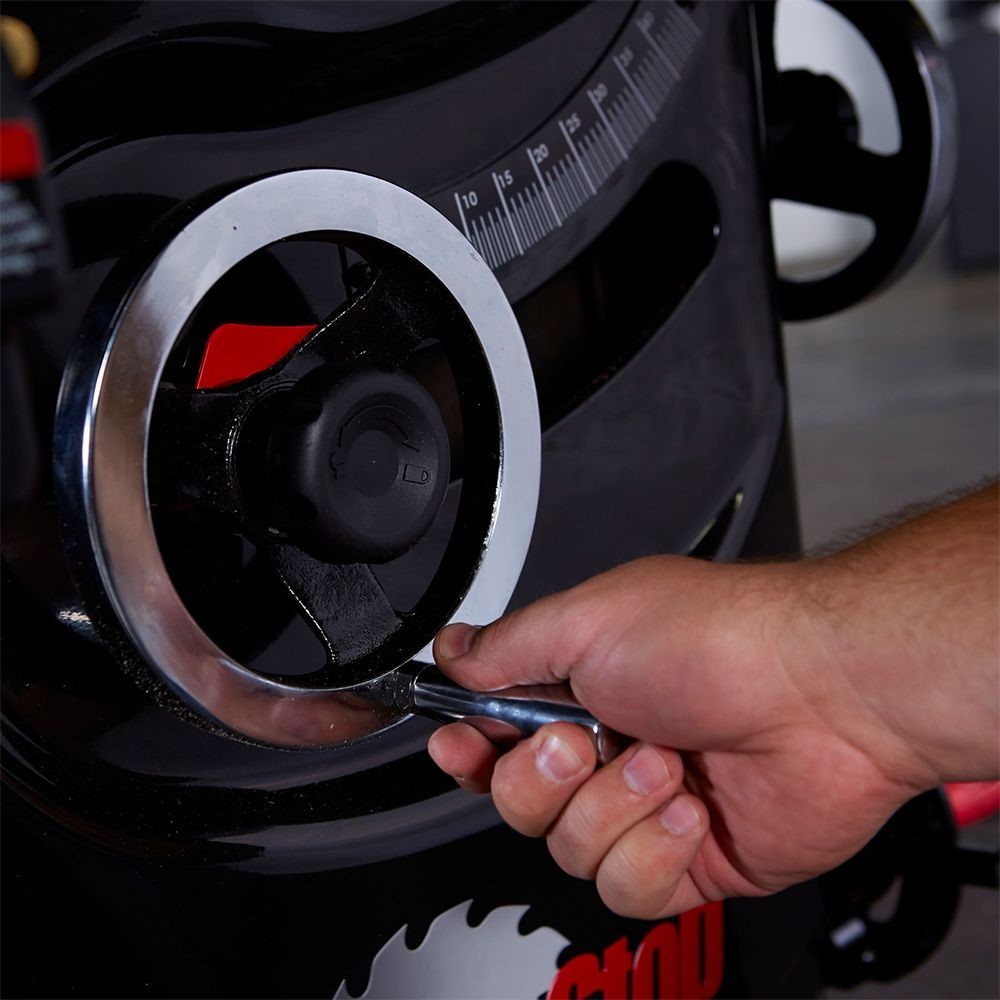

• Hand Wheels: 7" Diameter, Cast Iron w/ Chrome Handle
• Belts: 2 V-Ribbed Belts – Arbor B. Static Dissipative
• Assembled Weight – w/ 30" Fence Systems: 367 lbs (1.75 HP)
• Weight – Table Saw Only: 317 lbs (1.75 HP)


The SawStop 10" Professional Cabinet Saw PCS175-TGP236 provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop's legendary safety system, ground breaking dust collection and flawless fit and finish it's ready to help you get the job done.
