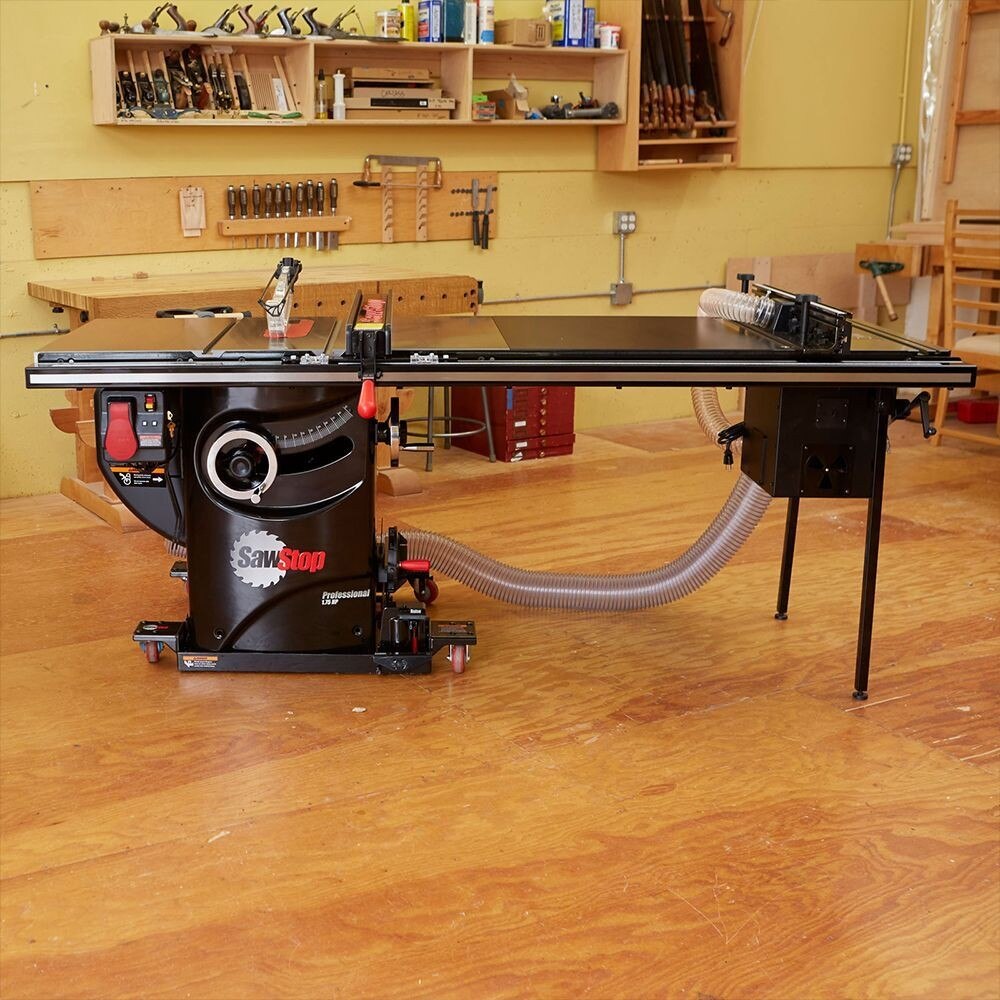

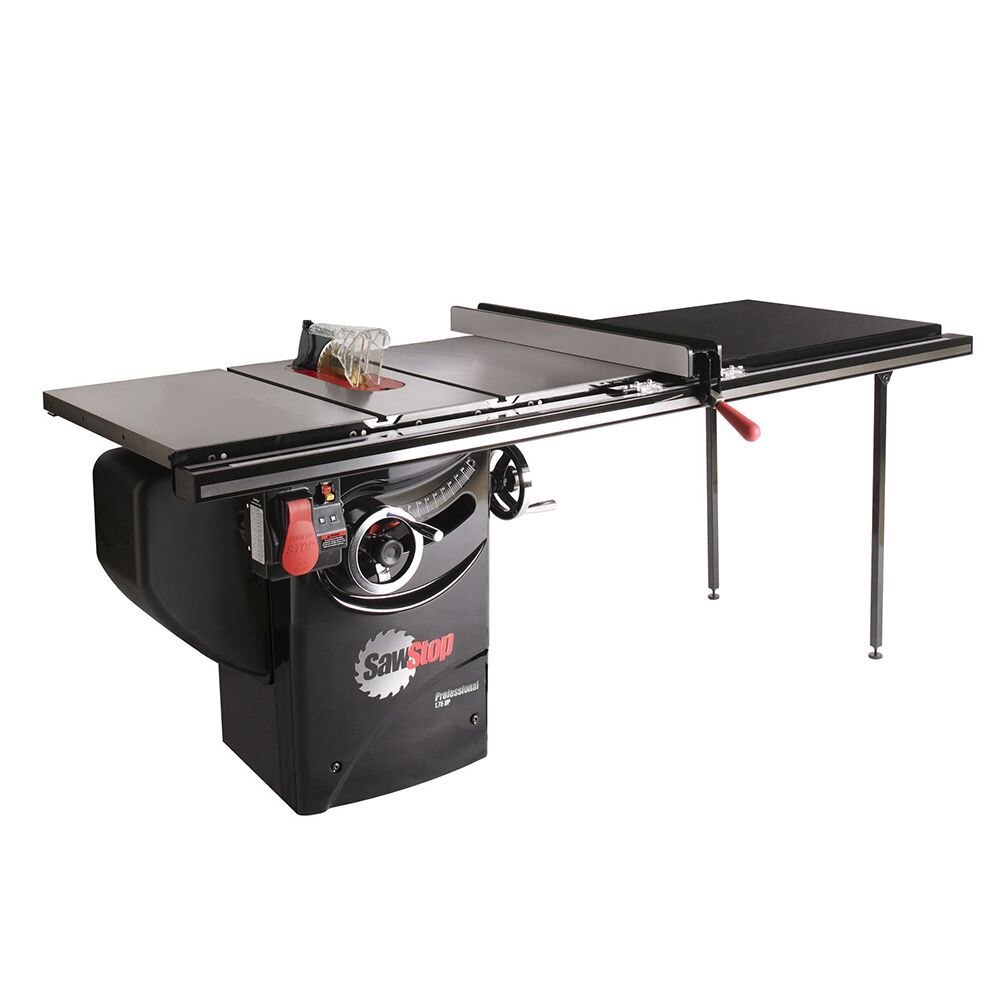

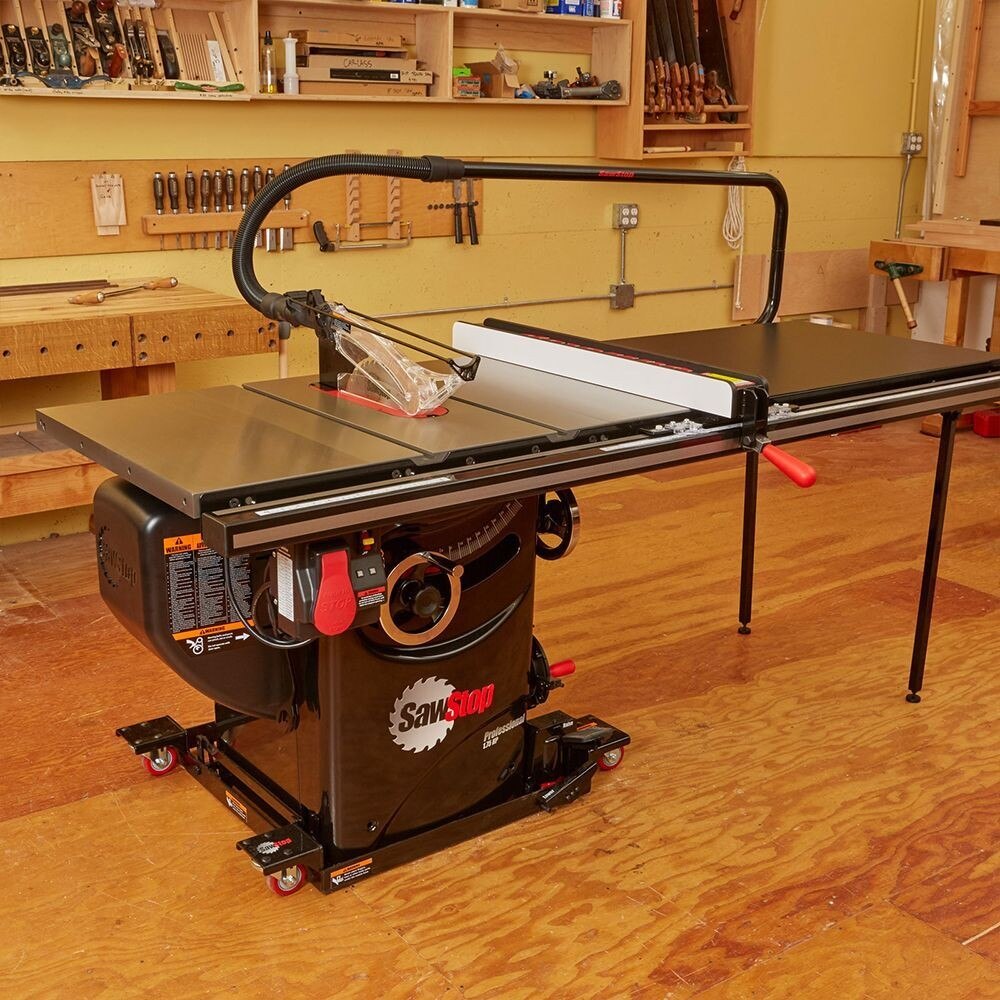

SawStop PCS175-TGP252 Professional Table Saw 1.75HP 120V 60Hz 52" Pro T-Glide Fence System

INCLUDES:
• (2) Cast Iron Extension Wings
• (1) Miter Gauge
• (1) Micro Blade Guard (1.75HP Models)
• (1) Dust Collection Blade Guard (3HP Models)
• (1) Riving Knife
• (2) Blade Wrenches
• (1) Push Stick
• (1) 10” Blade
• (1) Table Insert
• (1) Standard Brake Cartridge
• (2) Hardware Packs
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge

FEATURES:
• 52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.
• ASSEMBLY: 1.75HP Professional Cabinet Saw with 52” Professional T-Glide fence system, rails & extension table

SPECIFICATIONS:
• Overall Saw Dimension: 85-1/4" W x 33" D x 34" H
• Motor Configuration: PCS175: 1.75 HP, 120V, 14 A (user config. to 220v w/optional kit available for purchase).
• Cabinet Footprint" 19-3/8" W x 19 3/8" D
• Cast Iron Table: 20" W x 27" D
• Extension Wings: 12" W x 27" D each
• Cast Iron Table (w/ Extension Wings): 44" W x 27" D
• Extension Table: 40-1/8" W x 27" D
• Blade: 40-Tooth, Prof. Grade, 5/8" Arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078" (2mm)
• Max. Depth of Cut, Blade At 0º: 3-1/8"
• Max. Depth of Cut, Blade At 45º: 2-1/4"
• Max. Rip, Right of Blade: 52" (w/ 52" rails)
• Max. Rip, Left of Blade: 12"
• Dado Diameter: 8" (requires 8R2 brake, dado insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Main Bearing Size: 62mm OD x 30mm ID
• Second Bearing Size: 52mm OD x 25mm ID
• Table in Front of Blade (Max. Elevation): 10-1/4"
• Table Behind Blade (Max. Elevation): 7-1/2"
• Arbor Runout: 0.001" Maximum allowable runout
• Table Flatness Measured Diagonally: 0.010" Maximum gap
• Blade Alignment with Miter Slot: 0.010" Maximum displacement
• Deviation of Miter Gauge Indexing Stops From Actual: ±0.25º
• Alignment Between Splitter and Blade: 0.010" Maximum difference
• Miter Slots T-Shaped: 3/4" at Top, 1" at Bottom, 3/8" Deep
• Miter Slots Center: 11-1/8" Center-to-Center
• Miter Slots Info: 5-1/2" (arbor flange to center of right slot)
• Dust Collection Port Diameter: 4"
• Riving Knife / Splitter Thickness: 0.090" (2.3 mm)
• Dust Collection Blade Guard (OPTIONAL ITEM): Polycarbonate, Extends 1-3/16" Right of Blade
• Blade Guard (Dust Collection) Port Diameter: 1-1/2" Outside, 1-1/4" Inside

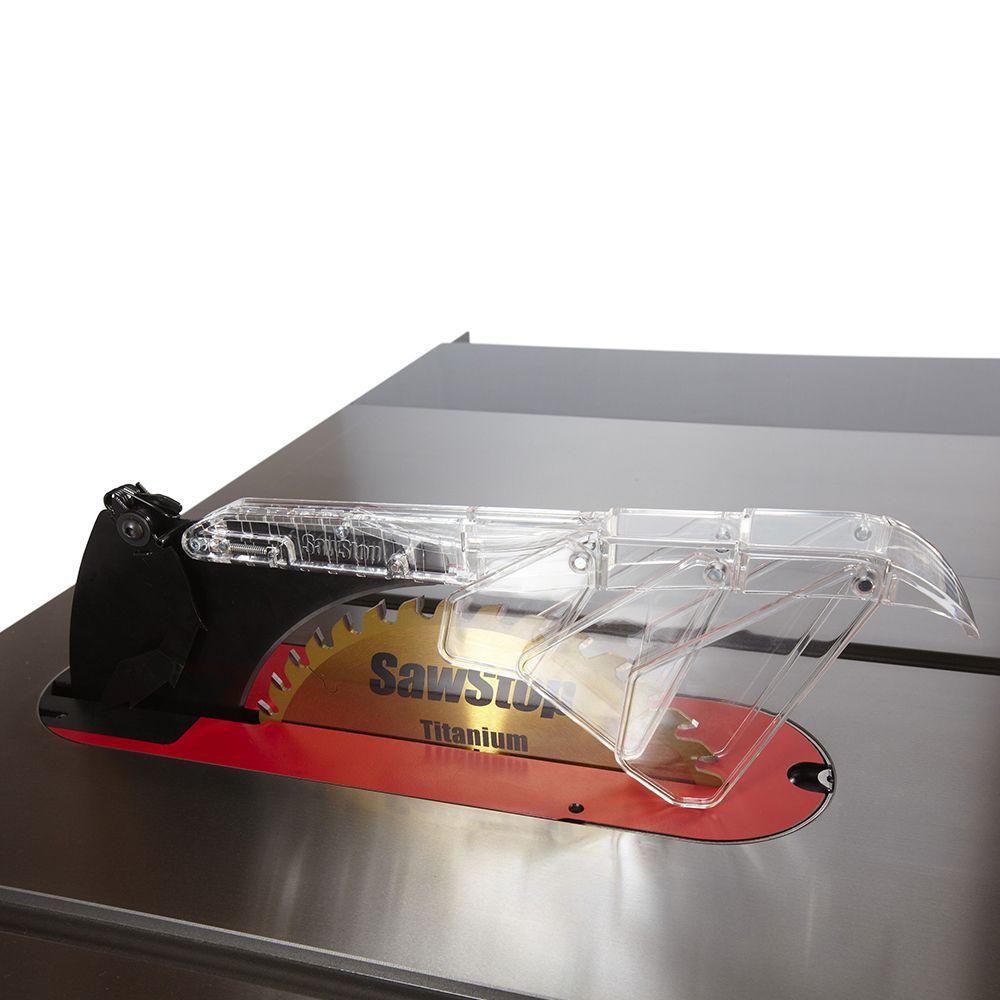

• Micro Blade Guard (STANDARD): Polycarbonate, Extends 1" Right of Blade
• Insert: Zero Clearance, Phenolic Core, Melamine Surfaces

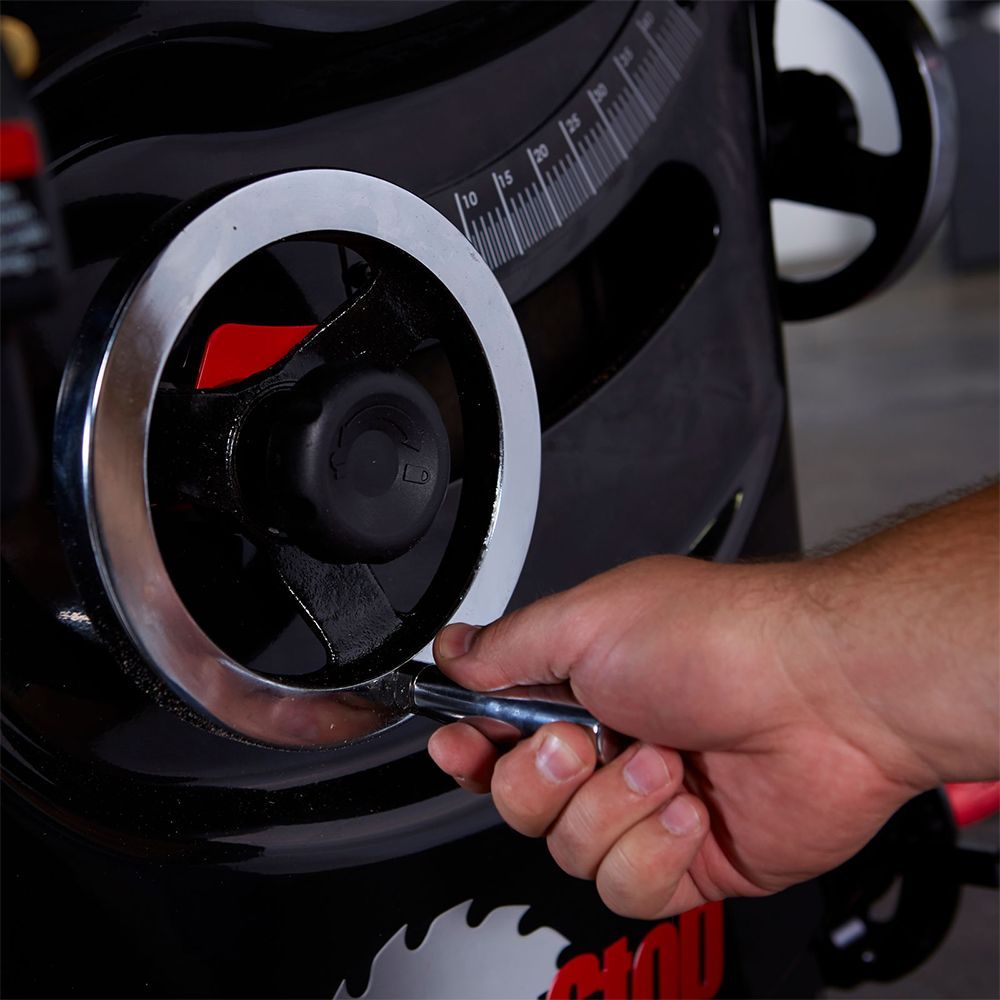

• Hand Wheels: 7" Diameter, Cast Iron w/ Chrome Handle
• Belts: 2 V-Ribbed Belts - Arbor B. Static Dissipative
• Assembled Weight: 431 lbs
• Weight - Table Saw Only: 317 lbs


The professional cabinet saw is SawStop's top selling cabinet saw, offering unmatched fit and finish and best-in class cutting performance. The 52 In. T-Glide fence & rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.01 In. maximum gap. 99% dust collection is delivered above the table with the available dust collection blade guard (Model # TSG-DC, sold separately), and below the table with advanced shrouding around the blade. Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. The control box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
