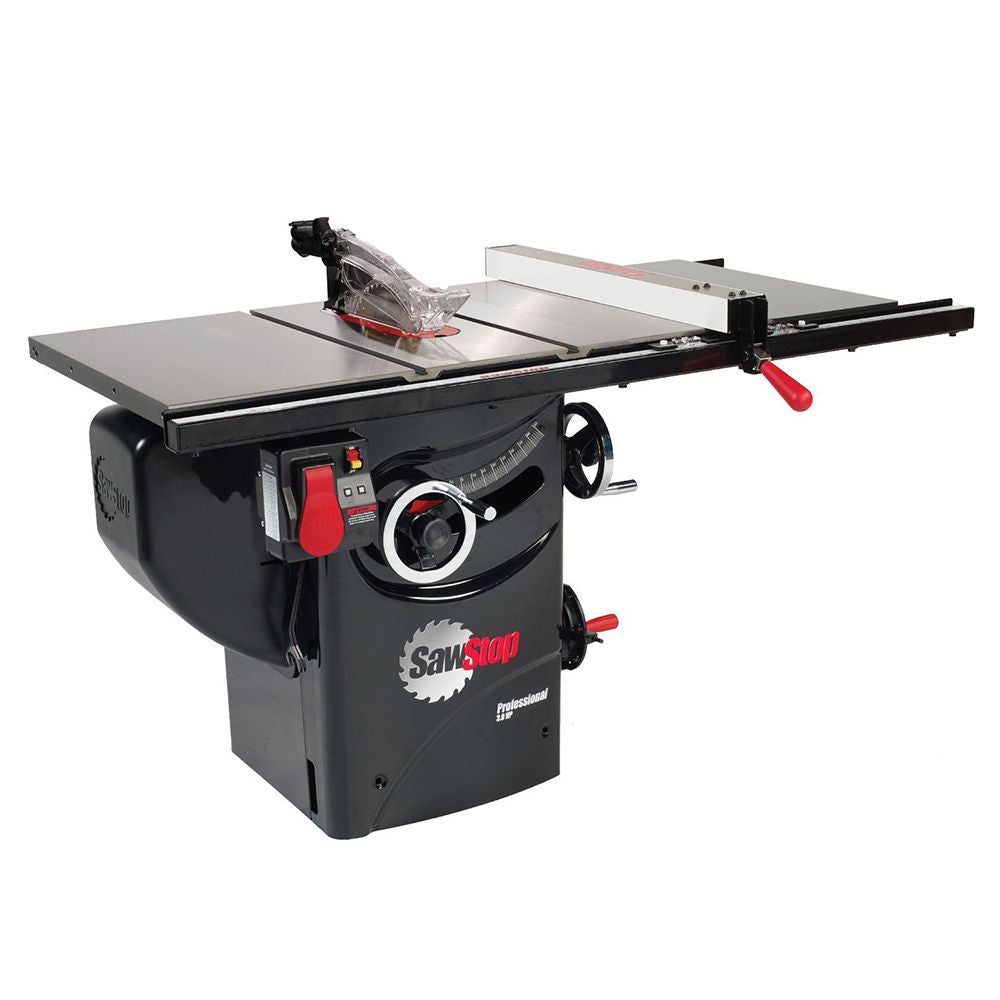

SawStop PCS31230-TGP236 Professional Table Saw 3HP 230V 60Hz 36" Pro T-Glide Fence System

INCLUDES:
• (1) SawStop PCS™ 3HP Table Saw Body
• (1) Professional Series 36" Extension Table
• (1) T-Glide Pro Fence
• (1) T-Glide Pro 36" Rails

FEATURES:
• 36" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.

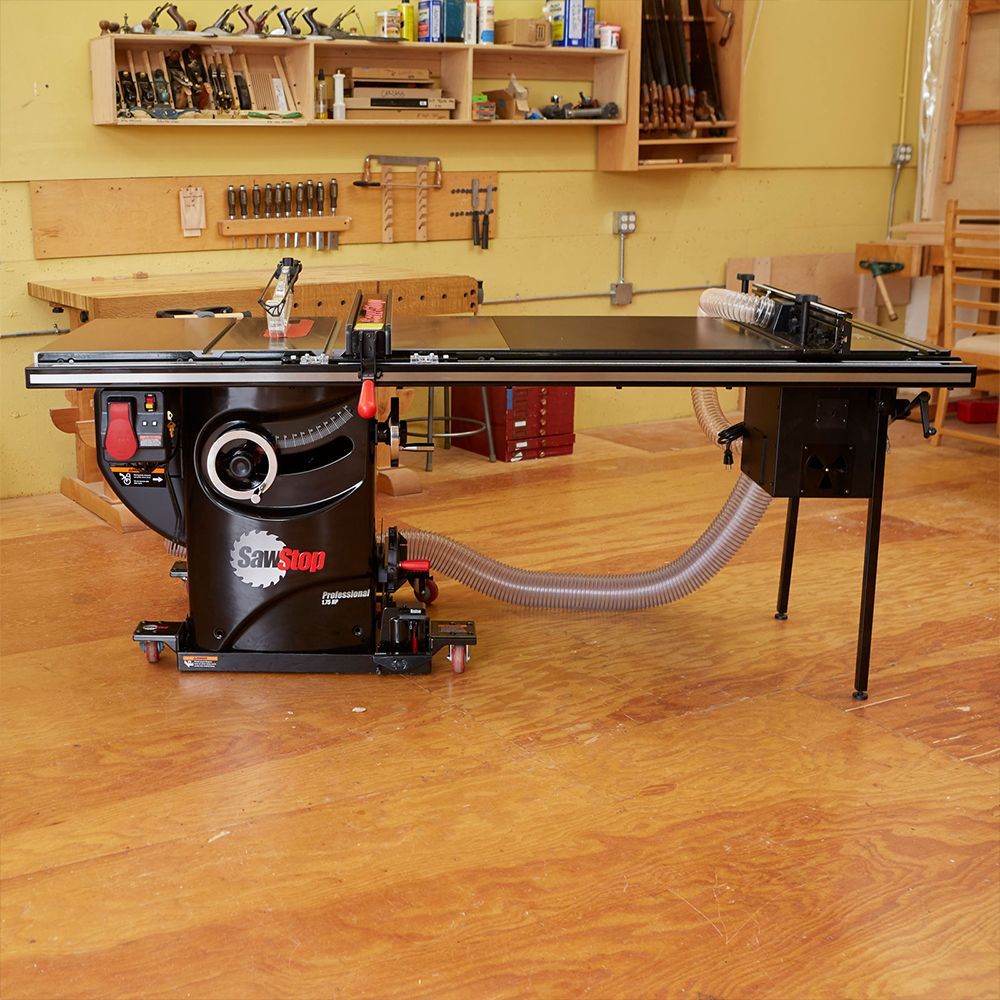

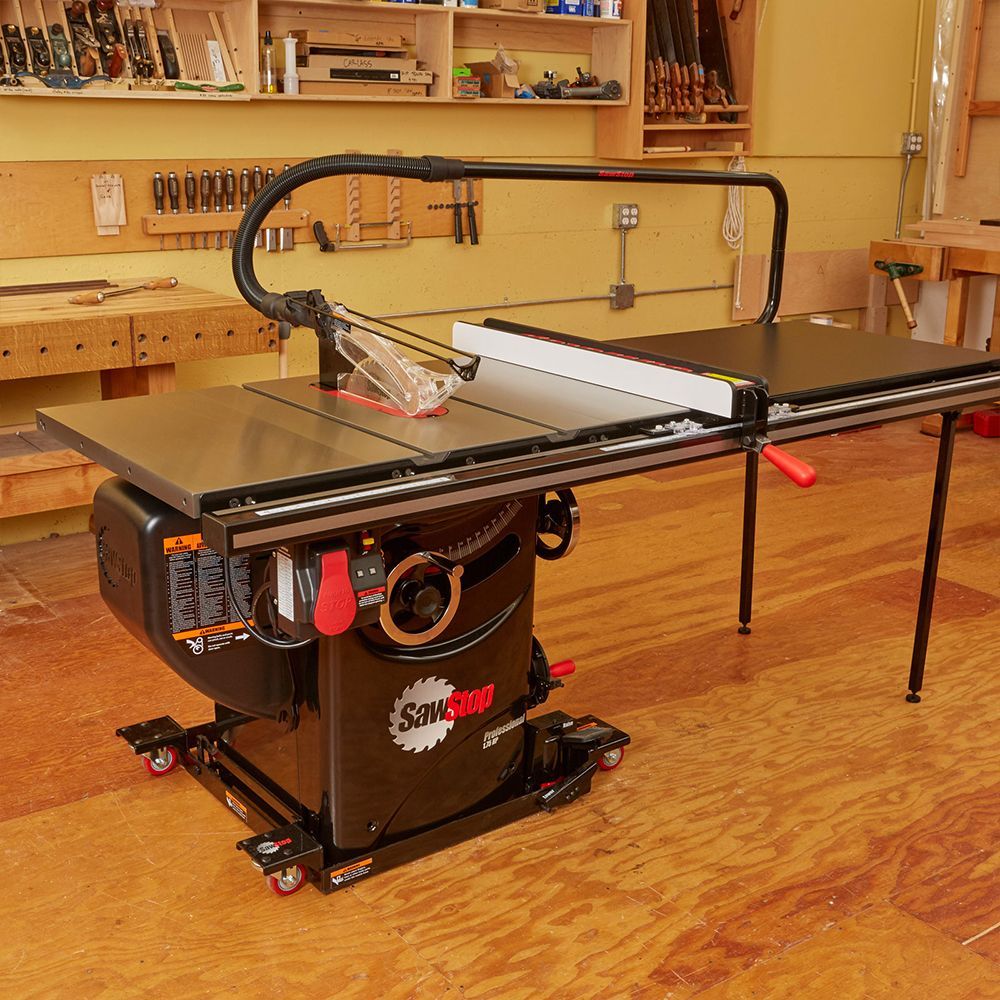

• ASSEMBLY: 3HP Professional Cabinet Saw with 36” Professional T-Glide fence system, rails & extension table

SPECIFICATIONS:
• Overall Saw Dimension: 69-1/8" W x 33" D x 34" H
• Motor Configuration: 3 HP, 1 Phase, 230V, 13 A, Plug: NEMA 6-15P w/ 9’ Cord
• Cabinet Footprint: 19-3/8" W x 19 3/8" D
• Cast-Iron Table: 20" W x 27" D
• Extension Wings: 12" W x 27" D Each
• Cast Iron Table (w/ Extension Wings): 44" W x 27" D
• Extension Table: 23-3/4" W x 27" D
• Blade: 40-tooth, prof. grade, 5/8" arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078" (2mm)
• Max. Depth of Cut, Blade At 0º: 3-1/8"
• Max. Depth of Cut, Blade At 45º: 2-1/4"
• Max. Rip, Right of Blade: 36" (w/ 36" rails)
• Max. Rip, Left of Blade: 12"
• Dado Diameter: 8" (requires 8R2 brake, dado insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Main Bearing Size: 62mm OD x 30mm ID
• Second Bearing Size: 52mm OD x 25mm ID
• Table in Front of Blade (Max. Elevation): 10-1/4"
• Table Behind Blade (Max. Elevation): 7-1/2"
• Arbor Runout: 0.001" Maximum allowable runout
• Table Flatness Measured Diagonally: 0.010" Maximum gap
• Deviation of Miter Gauge Indexing Stops From Actual: ±0.25º
• Alignment Between Splitter and Blade: 0.010" Maximum difference
• Miter Slots T-Shaped: 3/4" at Top, 1" at Bottom, 3/8" Deep
• Miter Slots Center: 11-1/8" Center-to-Center
• Miter Slots Info: 5-1/2" (arbor flange to center of right slot)
• Dust Collection Port Diameter: 4"
• Riving Knife / Splitter Thickness: 0.090" (2.3 mm)

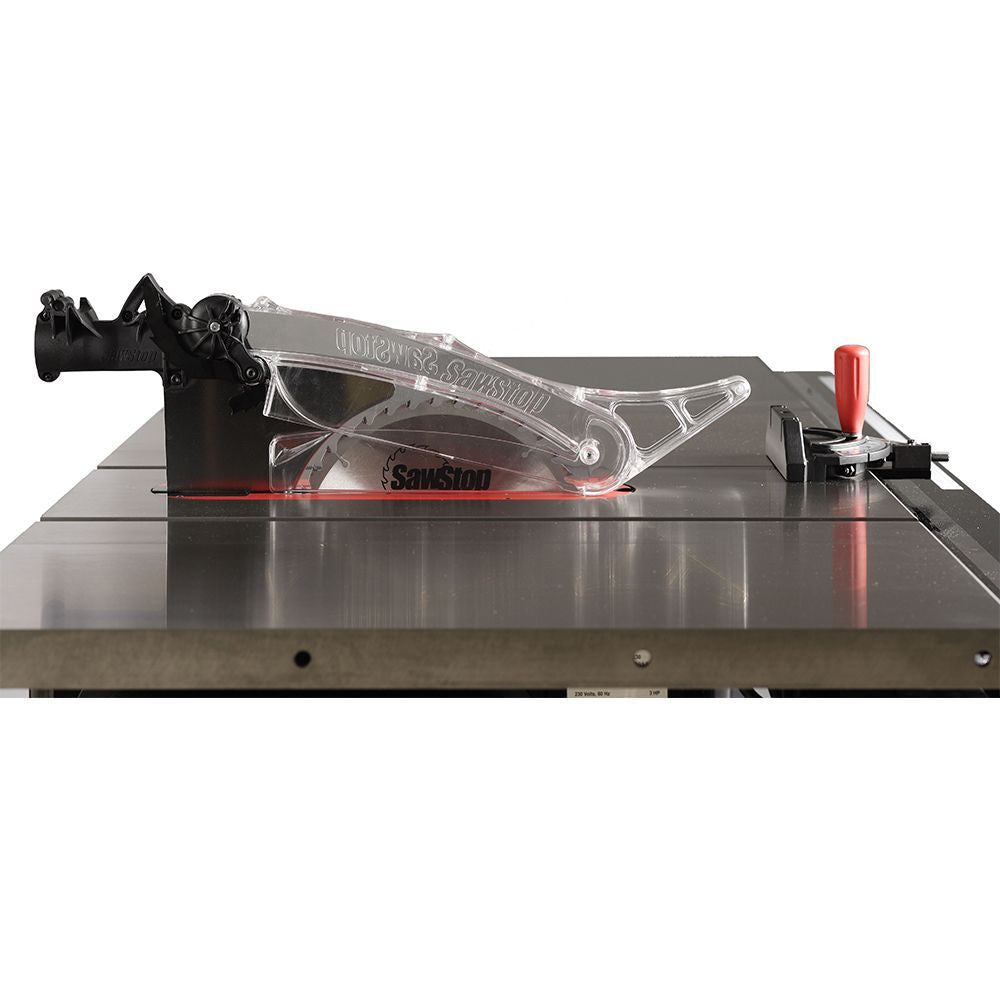

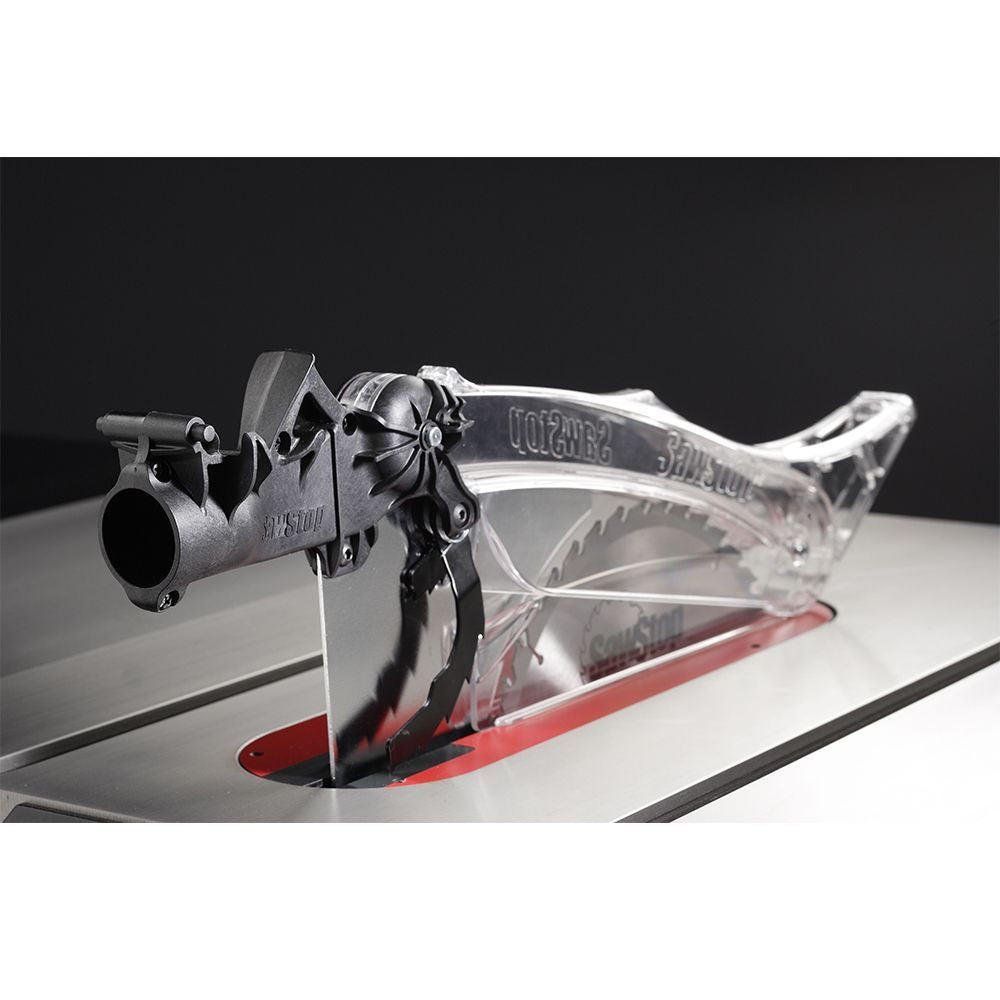

• Dust Collection Blade Guard (STANDARD): Polycarbonate, Extends 1-3/16" Right of Blade
• Insert: Zero Clearance, Phenolic Core, Melamine Surfaces

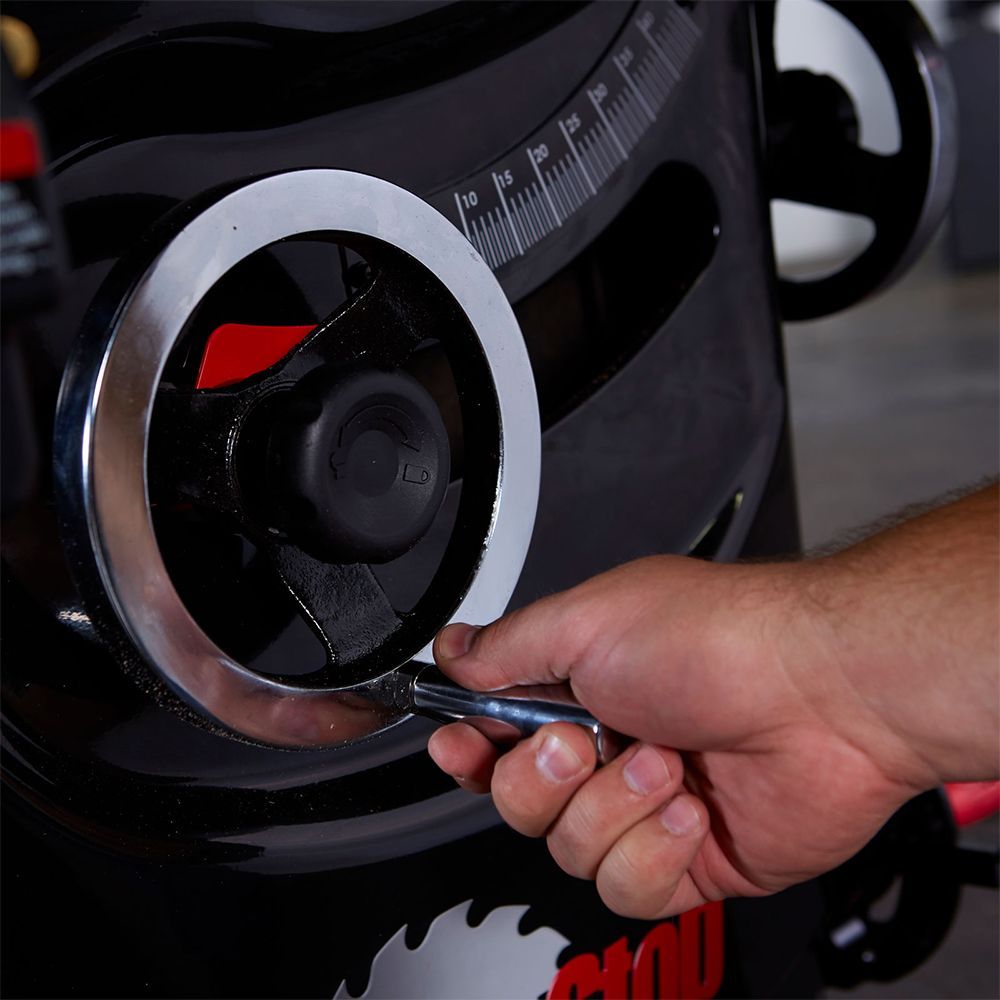

• Hand Wheels: 7" Diameter, Cast Iron w/ Chrome Handle
• Belts: 2 V-Ribbed Belts - Arbor B. Static Dissipative
• Assembled Weight: 426 lbs
• Weight - Table Saw Only: 335 lbs


This 220V Single Phase 3 HP 13 Amp 10" Professional Cabinet Saw with 36" Professional Series T-Glide Fence System (PCS31230-TGP236) from SawStop is well designed and has safety at the forefront. Its patented safety system prevents serious accidents and injuries to provide the highest level of safety during operation. Powered by a high performance 220V motor, it delivers fast and accurate cutting action. Its professional fence system delivers the straightest and most accurate cuts possible.
