SawStop | SKU:

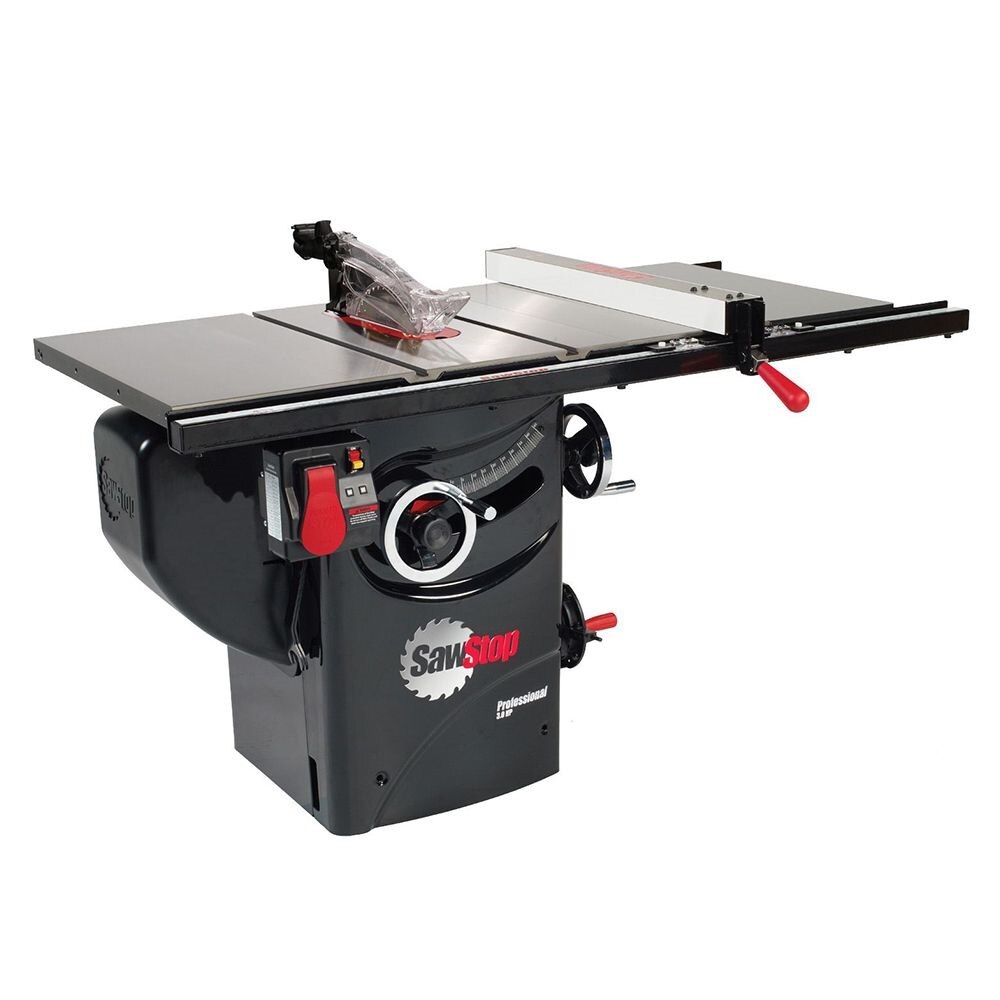

SawStop PCS31230-TGP252 Professional Table Saw 3HP 230V 60Hz 52" Pro T-Glide Fence System
Free Shipping
$3,675.00
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) SawStop PCS™ 3HP Table Saw Body
• (1) T-Glide Pro 52" Table
• (1) T-Glide Pro Fence
• (1) T-Glide Pro 52" Rails
FEATURES:

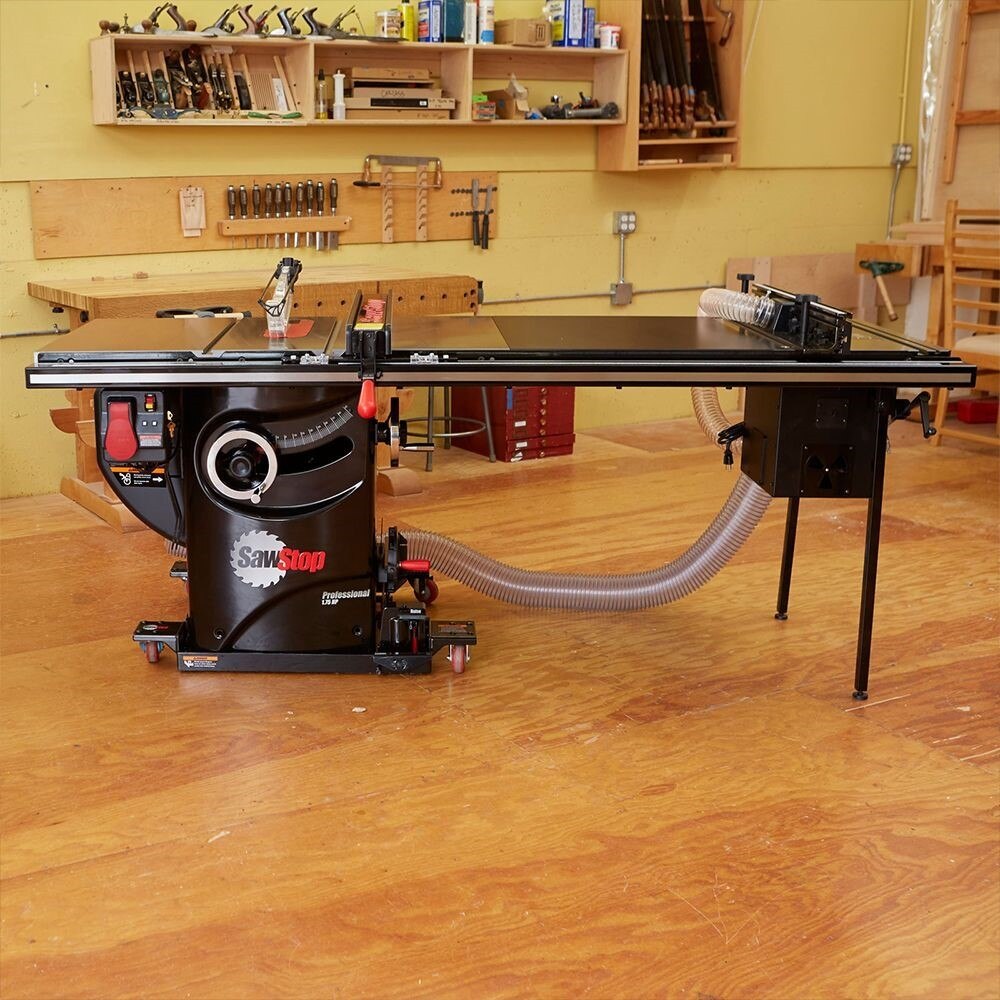

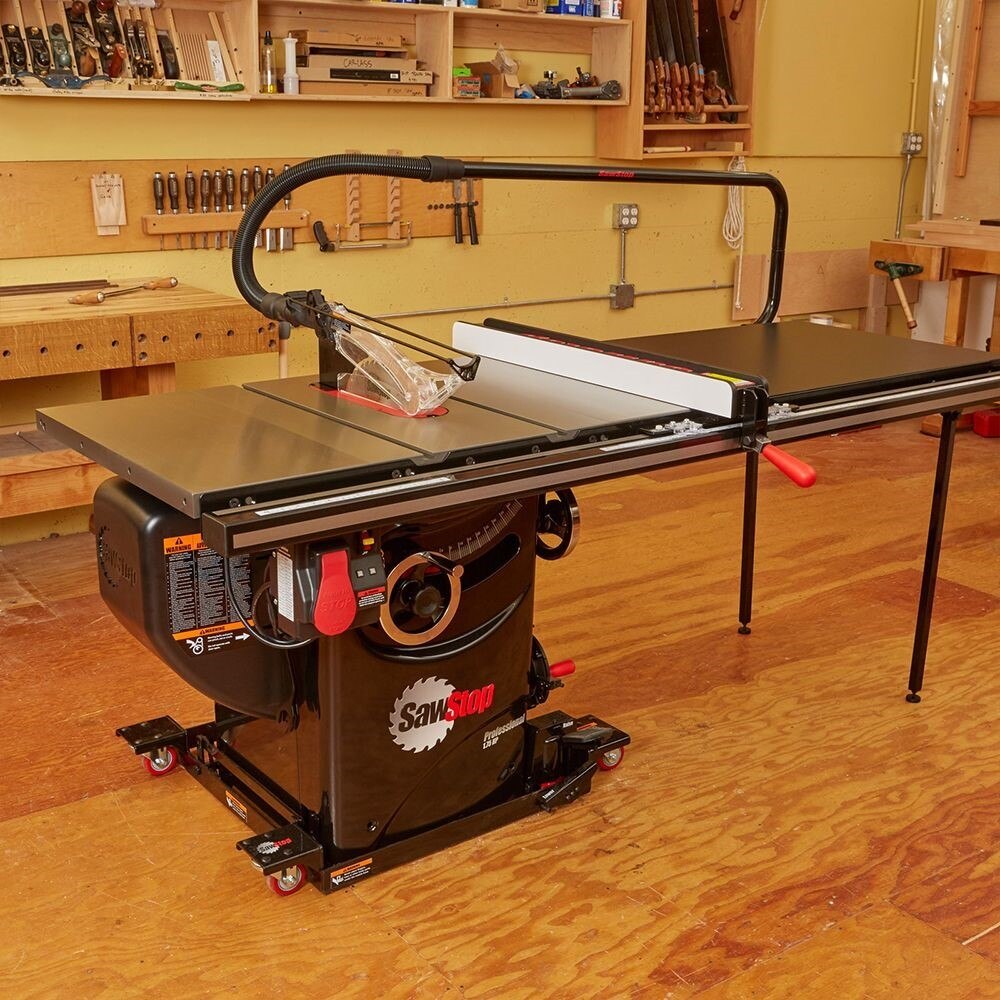

• 52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.
• ASSEMBLY: 3HP Professional Cabinet Saw with 52” Professional T-Glide fence system, rails & extension table
SPECIFICATIONS:
• Overall Saw Dimensions: 85-1/4" W x 33" D x 34" H
• Cabinet Footprint: 19-3/8" x 19-3/8"

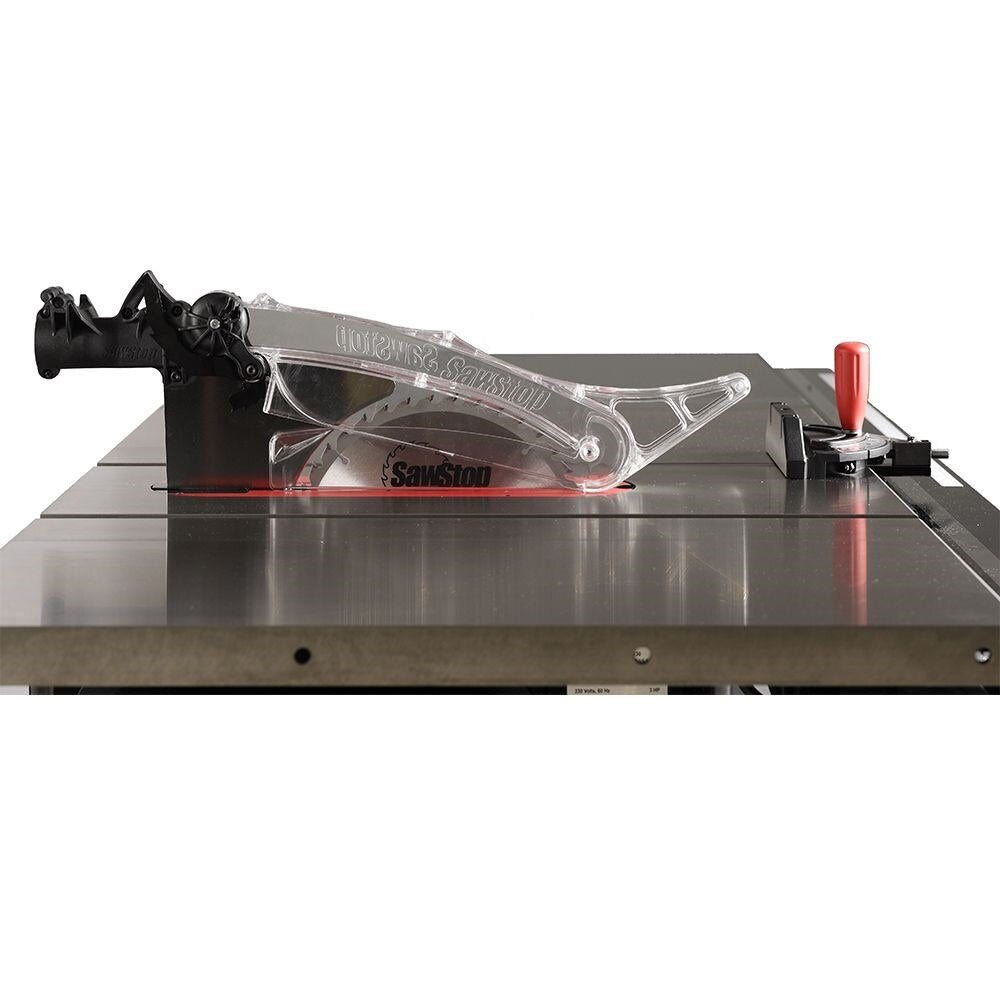

• Cast-Iron Table: 20" x 27"
• Cast-Iron Table Size with Extension Wings: 44" x 27"
• Motor: 3 HP, 1-Phase, 230V, 13A
• Blade: 40-Tooth, Professional Grade, 5/8" Arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078"
• Max. Depth of Cut, Blade at 0º: 3-1/8"
• Max. Depth of Cut, Blade at 45º: 2-1/4"
• Max. Rip, Left of Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade (max. elevation): 10-1/4"
• Table Behind Blade (max. elevation): 7-1/2"
• Table Flatness Measured Diagonally: 0.010" Maximum Gap
• Miter Slots: T-Shaped, 3/4" at Top, 1" at Bottom, 3/8" Deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2mm)

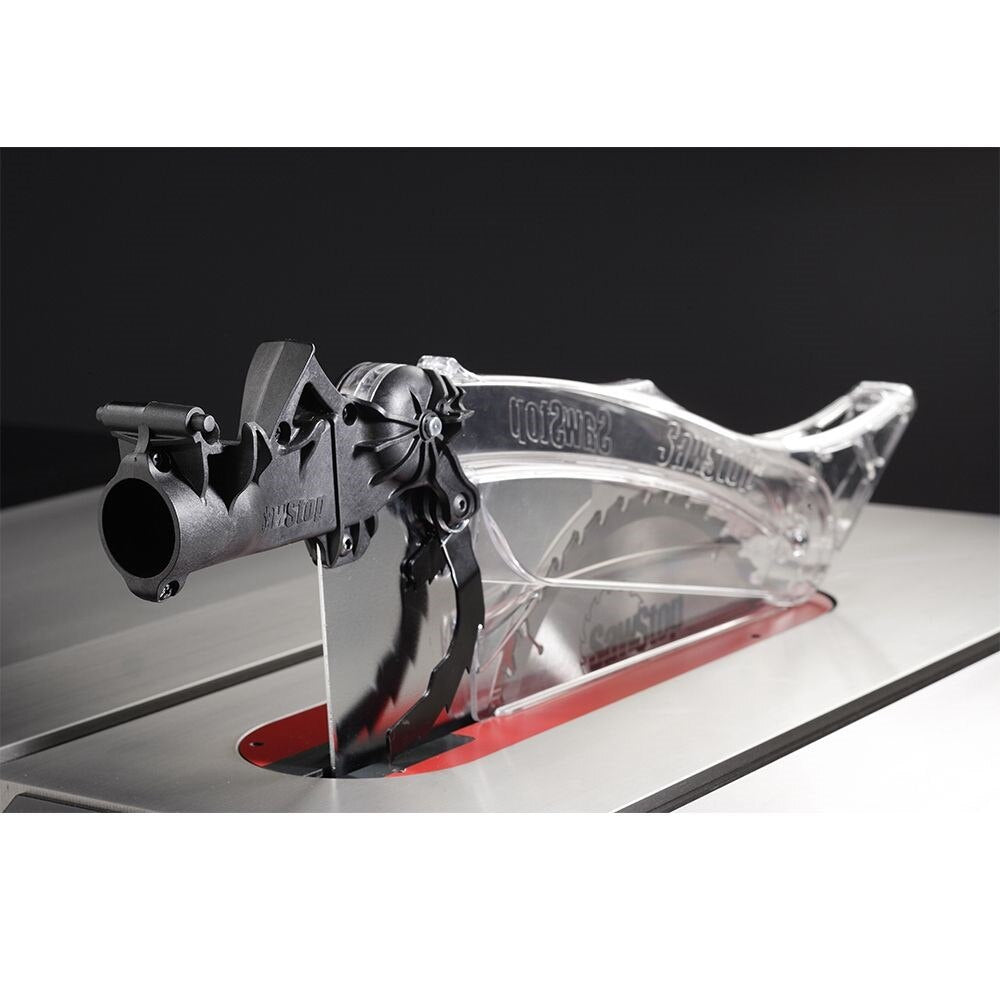

• Blade Guard: Polycarbonate, Extends Only 5/8" to Right of Blade
• Insert: Zero Clearance, Steel Core, ABS Surfaces
• Belts: 2 V-Ribbed Belts – Arbor Belt is Static Dissipative
The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.
• (1) SawStop PCS™ 3HP Table Saw Body
• (1) T-Glide Pro 52" Table
• (1) T-Glide Pro Fence
• (1) T-Glide Pro 52" Rails
FEATURES:
• 52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.
• ASSEMBLY: 3HP Professional Cabinet Saw with 52” Professional T-Glide fence system, rails & extension table
SPECIFICATIONS:
• Overall Saw Dimensions: 85-1/4" W x 33" D x 34" H
• Cabinet Footprint: 19-3/8" x 19-3/8"
• Cast-Iron Table: 20" x 27"
• Cast-Iron Table Size with Extension Wings: 44" x 27"
• Motor: 3 HP, 1-Phase, 230V, 13A
• Blade: 40-Tooth, Professional Grade, 5/8" Arbor
• Blade Diameter: 10"
• Blade Tilt: Left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078"
• Max. Depth of Cut, Blade at 0º: 3-1/8"
• Max. Depth of Cut, Blade at 45º: 2-1/4"
• Max. Rip, Left of Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Dado Max. Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade (max. elevation): 10-1/4"
• Table Behind Blade (max. elevation): 7-1/2"
• Table Flatness Measured Diagonally: 0.010" Maximum Gap
• Miter Slots: T-Shaped, 3/4" at Top, 1" at Bottom, 3/8" Deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2mm)
• Blade Guard: Polycarbonate, Extends Only 5/8" to Right of Blade
• Insert: Zero Clearance, Steel Core, ABS Surfaces
• Belts: 2 V-Ribbed Belts – Arbor Belt is Static Dissipative
The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.
