SharkBite 22186-0000LF Description

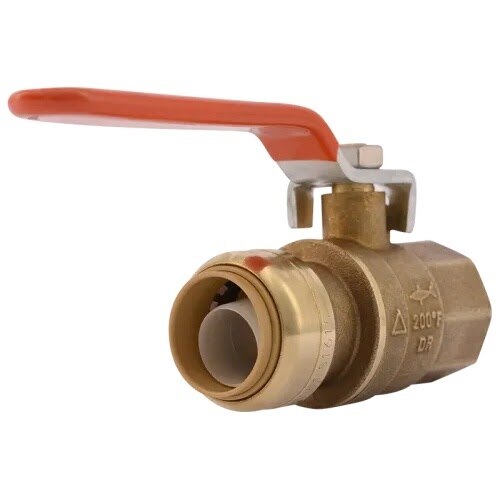

The SharkBite 22186-0000LF quarter-turn ball valve provides a quick transition from a 3/4 in. FNPT threaded connection to a 3/4 in. push-to-connect connection for use with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe. Its push-to-connect design helps simplify installation in tight spaces and wet lines without requiring special tools, crimping, glue, or soldering.
SharkBite 22186-0000LF Includes
- (1) 3/4 in. Push-to-Connect x 3/4 in. FNPT Adapter Quarter-Turn Ball Valve
SharkBite 22186-0000LF Features
- Transitions from a 3/4 in. FNPT threaded end to a 3/4 in. push-to-connect pipe connection
- Quarter-turn ball valve design allows fast shutoff control
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe
- Can be installed in wet lines
- No special tools, crimping, glue or soldering required
- Ideal for working in tight spaces
- Removable with a Disconnect Clip or Disconnect Tongs, sold separately
- Rated for 200 psi and 200 Degree F (93 Degree C)
SharkBite 22186-0000LF Specifications
| Product Type | Quarter-Turn Ball Valve |
| Connection 1 | 3/4 in. Push-to-Connect |
| Connection 2 | 3/4 in. FNPT |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT and SDR-9 HDPE |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 200 Degree F (93 Degree C) |
| Wet Line Installation | Yes |
| Tool Requirement | No special tools, crimping, glue, or soldering required |
| Removal | Disconnect Clip or Disconnect Tongs, sold separately |
Toolup Part # :
883434
