SharkBite 23056LF Description

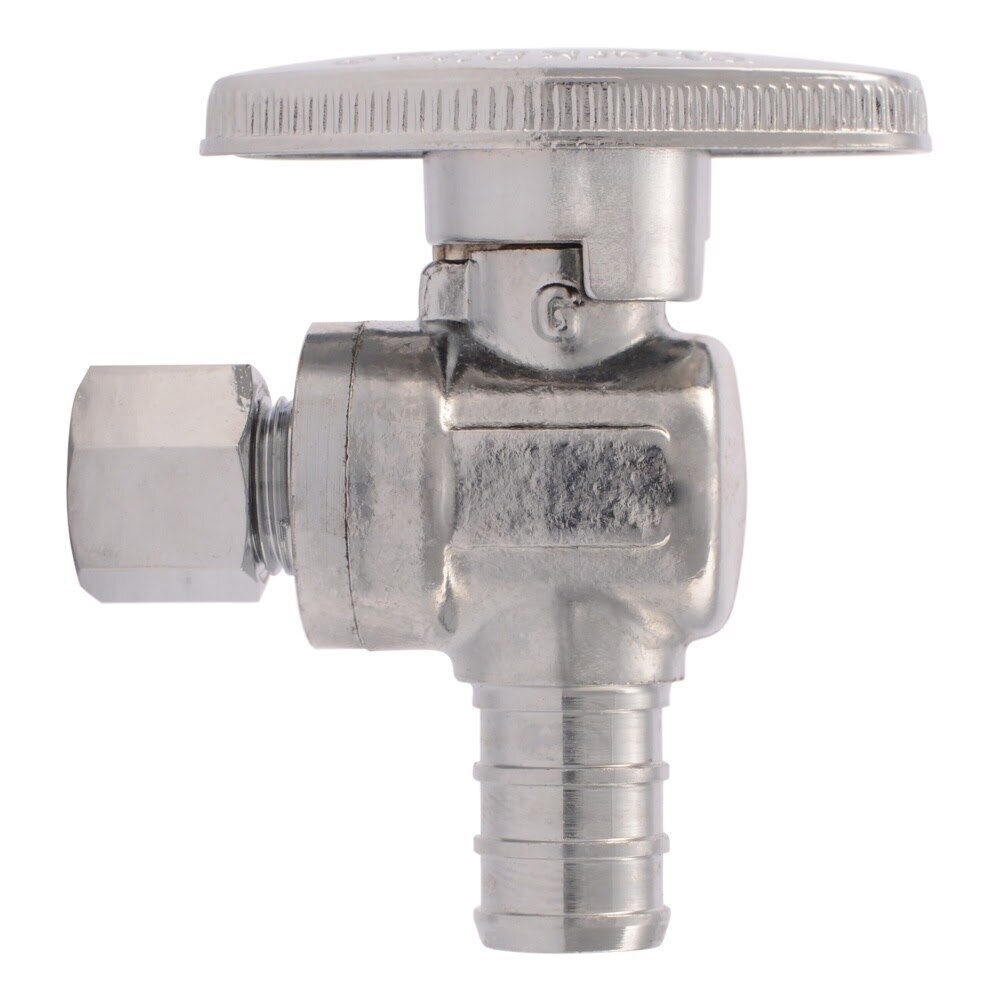

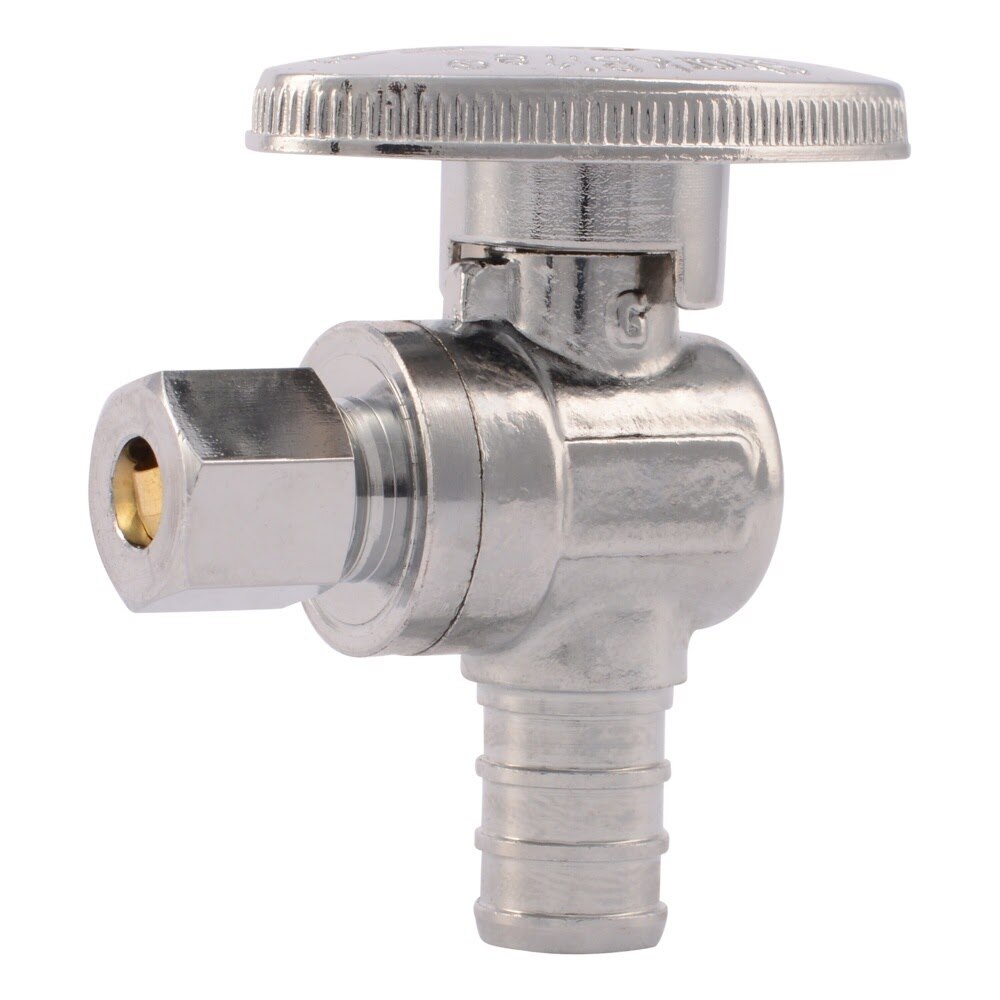

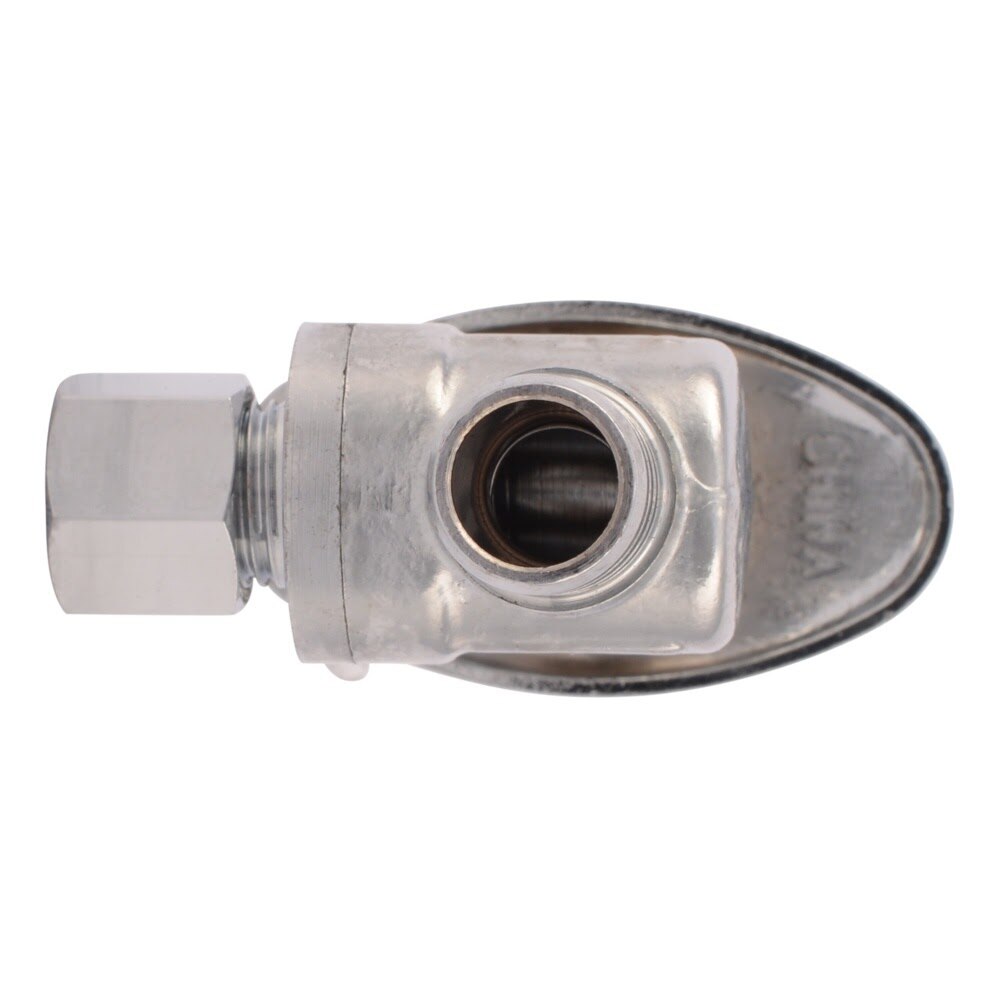

This SharkBite brass quarter turn angle stop valve features a 1/2 in. PEX barb inlet and 1/4 in. OD compression outlet for controlling water flow to household plumbing fixtures. Its lead free chrome plated DZR brass construction offers durable performance, while the quarter turn design allows quick shutoff for maintenance and repair without turning off water to the entire home.
SharkBite 23056LF Includes
- (1) Brass quarter turn angle stop valve
SharkBite 23056LF Features
- 1/2 in. PEX barb inlet x 1/4 in. OD compression outlet
- Quarter turn valve provides quick on and off water control
- Lead free chrome plated DZR brass construction
- Compatible with PEX pipe using copper crimp rings or stainless steel clamps
- Allows fixture shutoff for easier maintenance and repair
- Well suited for ice maker connections
SharkBite 23056LF Specifications
| Type | Angle stop valve |
| Material | Lead free chrome plated DZR brass |
| Inlet Thread Type | PEX Barb |
| Outlet Thread Type | OD Compression |
| Turn | Quarter turn |
| Configuration | Angled valve |
| Inlet Diameter | 1/2-in |
| Outlet Diameter | 1/4-in |
| Maximum Pressure | 125 PSI |
| Package Quantity | 1 |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 2-year limited |
| Each Length (in) | 7.99 |
| Each Width (in) | 5.00 |
| Each Height (in) | 1.00 |
| Each Shipping Weight (lb) | 0.20 |
