SharkBite 23057LF Description

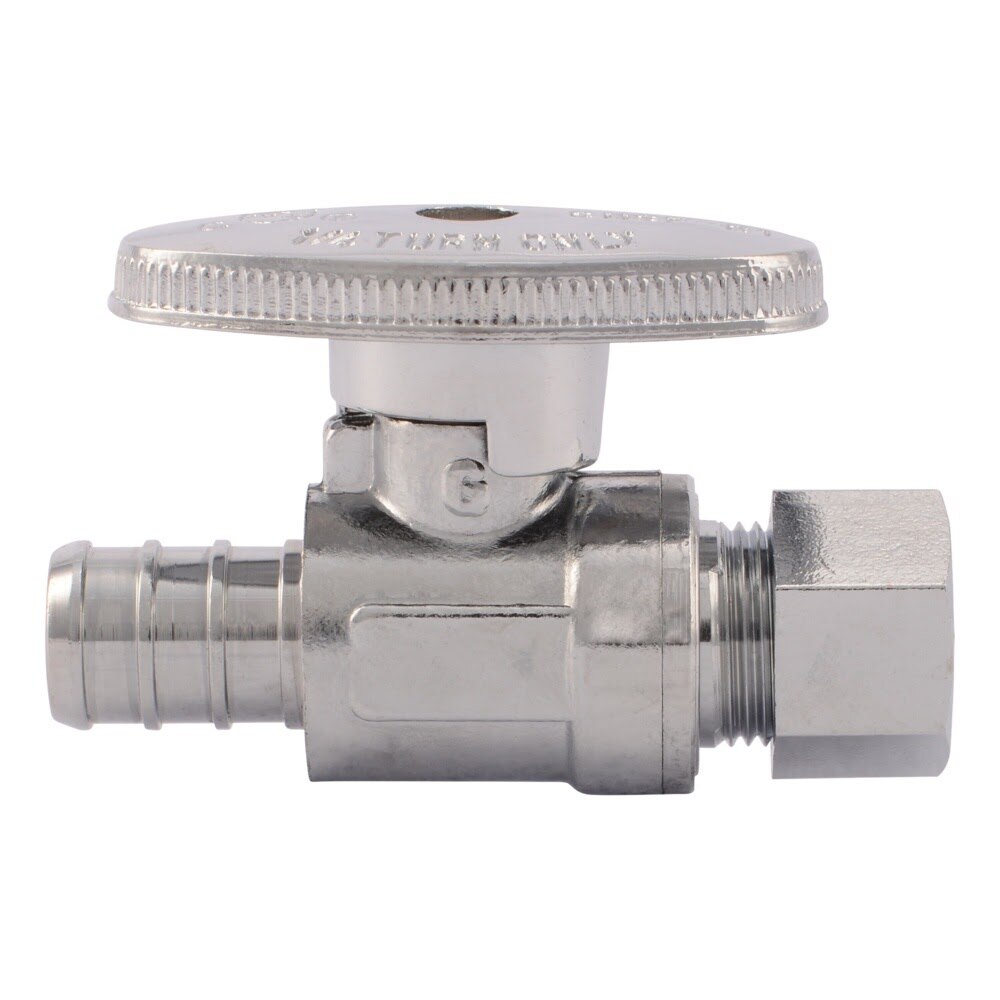

SharkBite 23057LF is a lead-free chrome-plated brass quarter-turn straight stop valve with a 1/2 in. PEX barb inlet and 3/8 in. OD compression outlet. Designed for Type A PEX systems, it features a full-flow design for strong water output and simple shutoff control in indoor potable water applications.

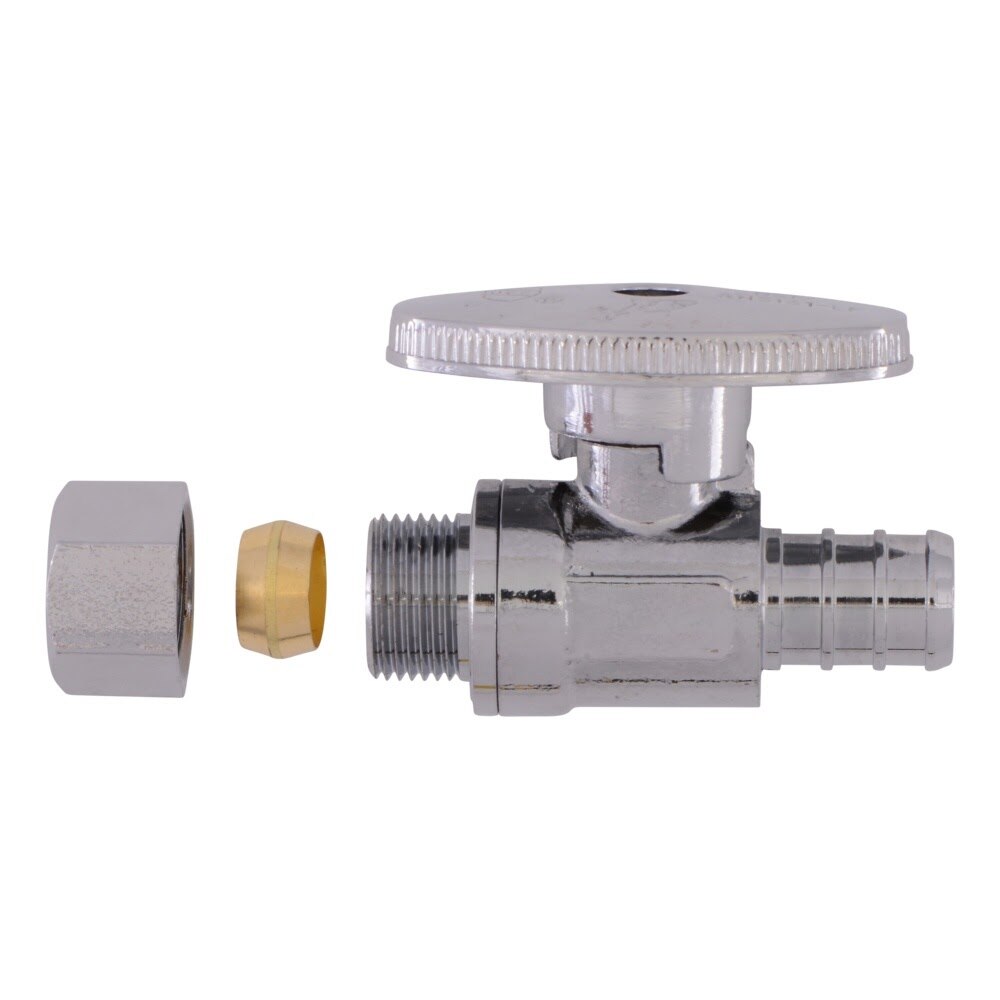

SharkBite 23057LF Includes
- (1) Quarter-Turn Straight Stop Valve
- (1) Compression Nut
- (1) Compression Sleeve
SharkBite 23057LF Features
- Designed for use within Type A PEX piping systems
- Full-flow design helps maximize water output
- Quarter-turn handle offers easy on/off flow control
- Lead-free chrome-plated DZR brass construction provides durability and reliability
- 1/2 in. PEX barb inlet x 3/8 in. OD compression outlet
- Compatible with copper crimp or stainless steel clamp ring systems
- Straight valve configuration for fixture shutoff applications
- Suitable for indoor potable water applications
- Meets IAPMO, UPC, IPC, cUPC, ASTM F1807, ASTM F2098, and NSF 14 requirements
SharkBite 23057LF Specifications
| Brand | SharkBite |
| Model Number | 23057LF |
| Product Type | Straight Stop Valve |
| Valve Configuration | Straight |
| Valve Operation | Quarter Turn |
| Connection Type | PEX Barb x Compression |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. OD |
| Compatible Pipe Material | PEX |
| Application | Potable Water |
| Material | Brass |
| Finish | Chrome-Plated |
| Lead Free | Yes |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Indoor/Outdoor | Indoor |
| Product Length | 0.921 in. |
| Standards | IAPMO, UPC, IPC, cUPC, ASTM F1807, ASTM F2098, NSF 14 |
Toolup Part # :
884614
