SharkBite 23058LF Description

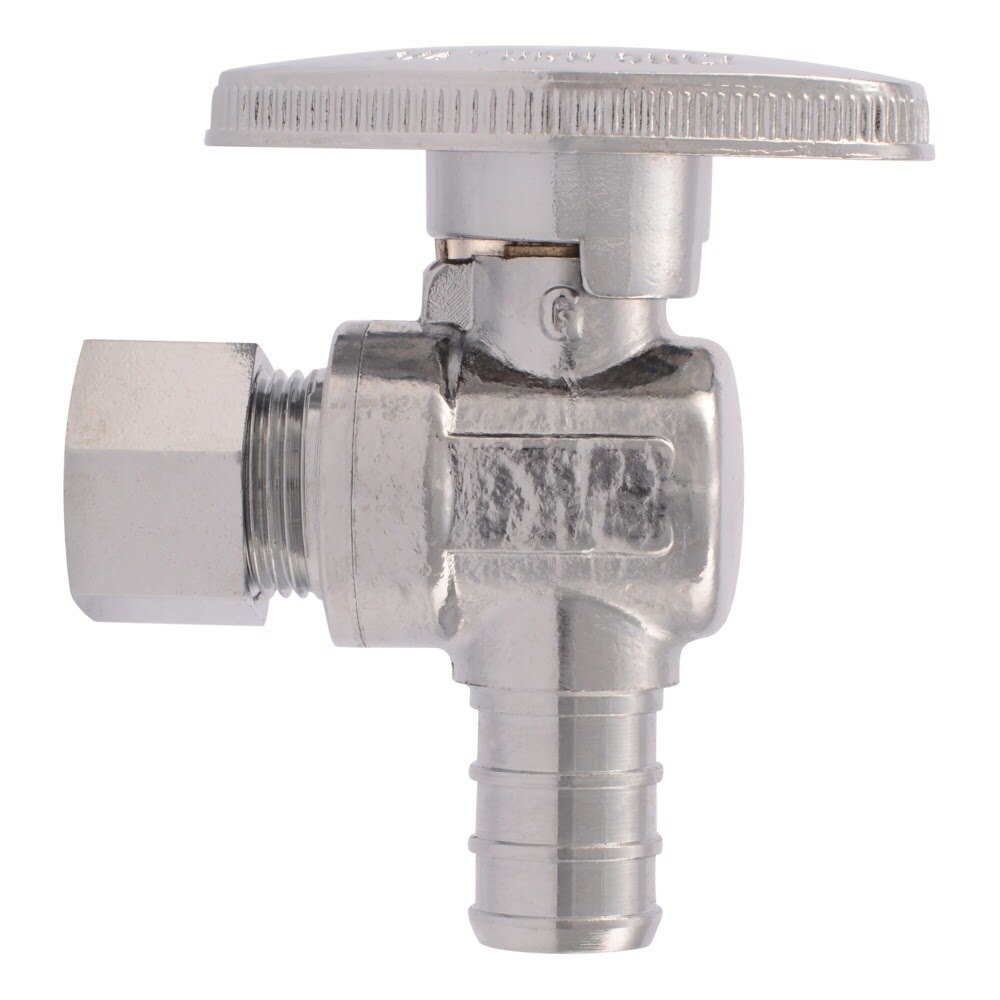

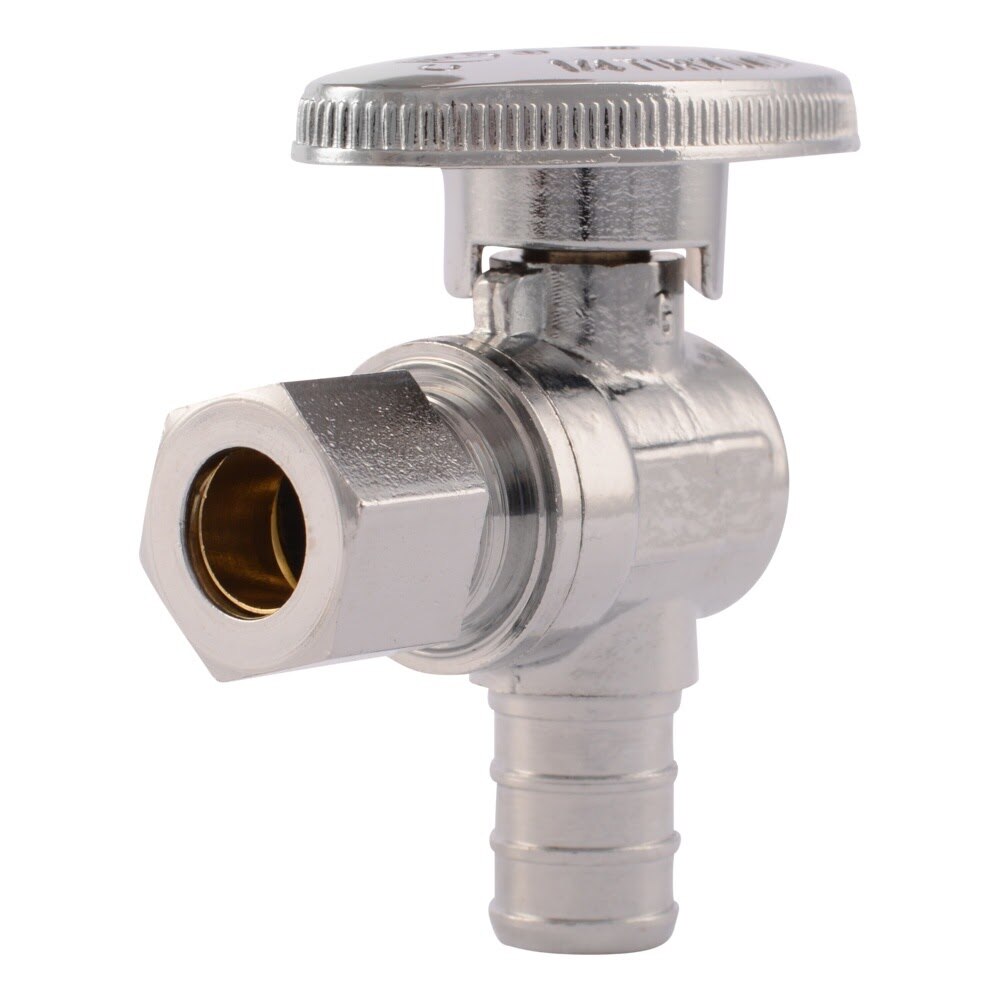

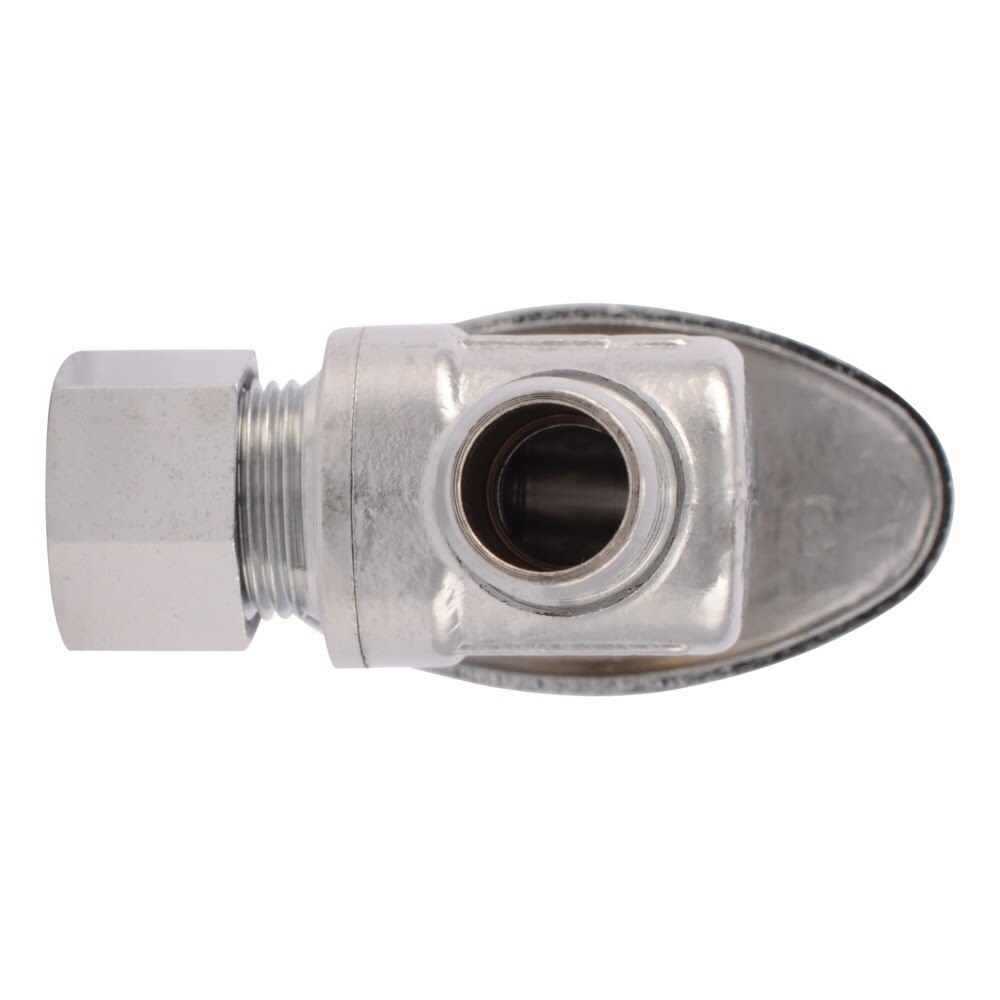

The SharkBite 23058LF is a quarter turn angle stop valve with a 1/2 in. PEX barb inlet and 3/8 in. OD compression outlet for dependable shutoff control in potable water applications. Built from lead free chrome plated DZR brass, it offers durable performance, full flow water output, and compatibility with Type A PEX systems.
SharkBite 23058LF Includes
- (1) Quarter Turn Angle Stop Valve
SharkBite 23058LF Features
- Quarter turn handle provides simple on and off flow control
- Full flow design helps maximize water output
- 1/2 in. PEX barb inlet connects to 3/8 in. OD compression outlet
- Lead free chrome plated DZR brass construction offers durability and reliability
- Designed for use within Type A PEX piping systems
- Compatible with copper crimp or stainless steel clamp ring systems
- Rated for potable water applications up to 125 PSI
- Maximum working temperature of 160 Degree F
- Meets ASTM F1807, ASTM F2098, IAPMO, UPC, IPC, cUPC, and NSF 14 requirements
SharkBite 23058LF Specifications
| Product Type | Angle Stop Valve |
| Valve Configuration | Angle |
| Operation | Quarter Turn |
| Inlet Connection | 1/2 in. PEX Barb |
| Outlet Connection | 3/8 in. OD Compression |
| Connection Type | Barb x Compression |
| Material | Lead Free DZR Brass |
| Finish | Chrome Plated |
| Compatible Pipe Material | PEX |
| Application | Potable Water |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 Degree F |
| Indoor/Outdoor | Indoor |
| Pack Size | 1 |
| Standards | ASTM F1807, ASTM F2098, IAPMO, UPC, IPC, cUPC, NSF 14 |
