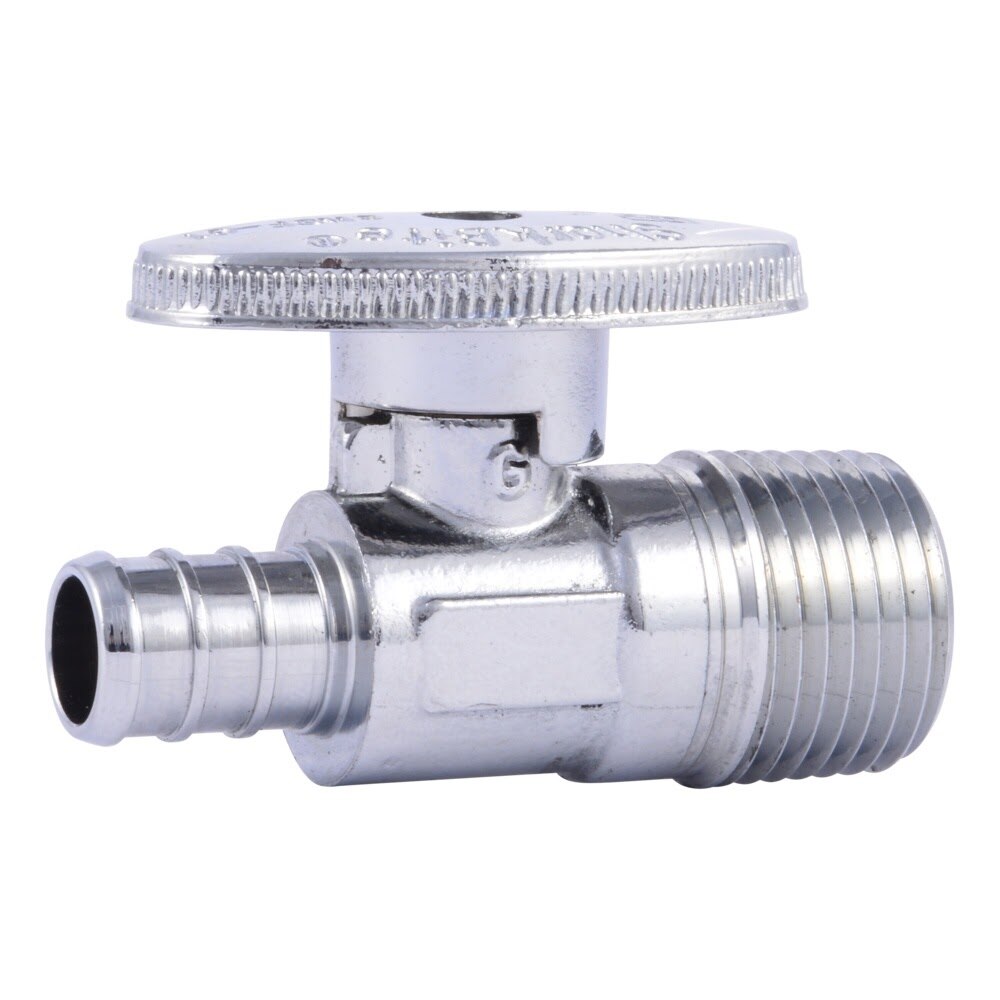

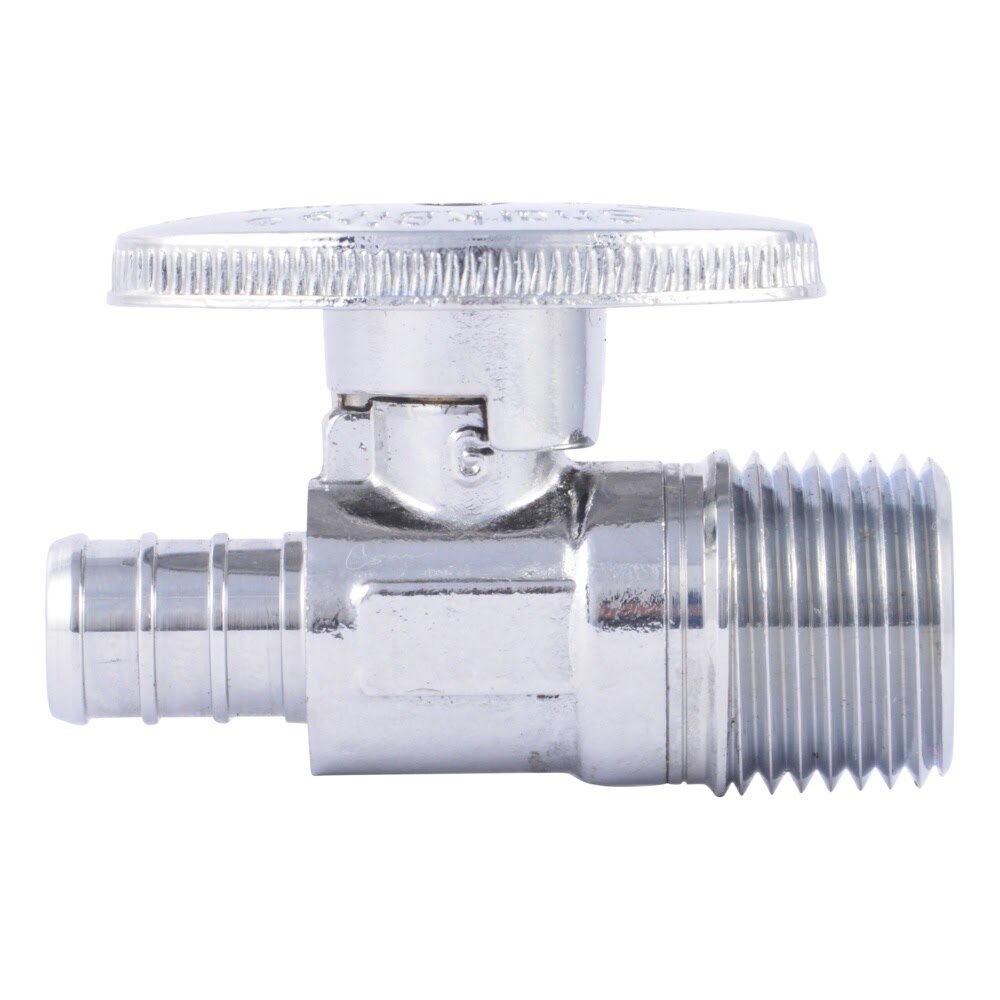

SharkBite 23061LF Description
The SharkBite 23061LF is a lead-free brass straight stop valve with a 1/2 in. barb inlet and 1/2 in. MPT outlet for PEX plumbing systems. It allows water to be shut off at the fixture for easier maintenance and repair and is compatible with PEX and PE-RT pipe for potable water applications.
SharkBite 23061LF Includes
- (1) 1/2 in. x 1/2 in. MPT brass barb straight stop valve
SharkBite 23061LF Features
- Straight stop valve helps isolate water flow at the fixture
- 1/2 in. barb inlet x 1/2 in. male pipe thread outlet
- Lead-free brass construction
- Compatible with PEX and PE-RT pipe
- Connects to PEX using copper crimp rings or stainless steel clamps
- Suitable for potable water systems
- Working temperature range from 40 F to 200 F
- Rated up to 80 psi at 200 F
SharkBite 23061LF Specifications
| Product Type | Straight Stop Valve |
| Material | Lead-free DZR brass |
| Inlet Connection | 1/2 in. Barb (PEX/Crimp) |
| Outlet Connection | 1/2 in. MPT |
| Compatible Pipe Material | PEX, PE-RT |
| Connection Method | Copper crimp rings or stainless steel clamps |
| Application | Potable water systems |
| Minimum Working Temperature | 40 F |
| Maximum Working Temperature | 200 F |
| Maximum Pressure | 80 psi |
| Item Width (in) | 4.25 |
| Item Height (in) | 7.50 |
| Item Length (in) | 7.50 |
| Item Weight (lbs) | 0.26 |
