SharkBite 23066LF Description

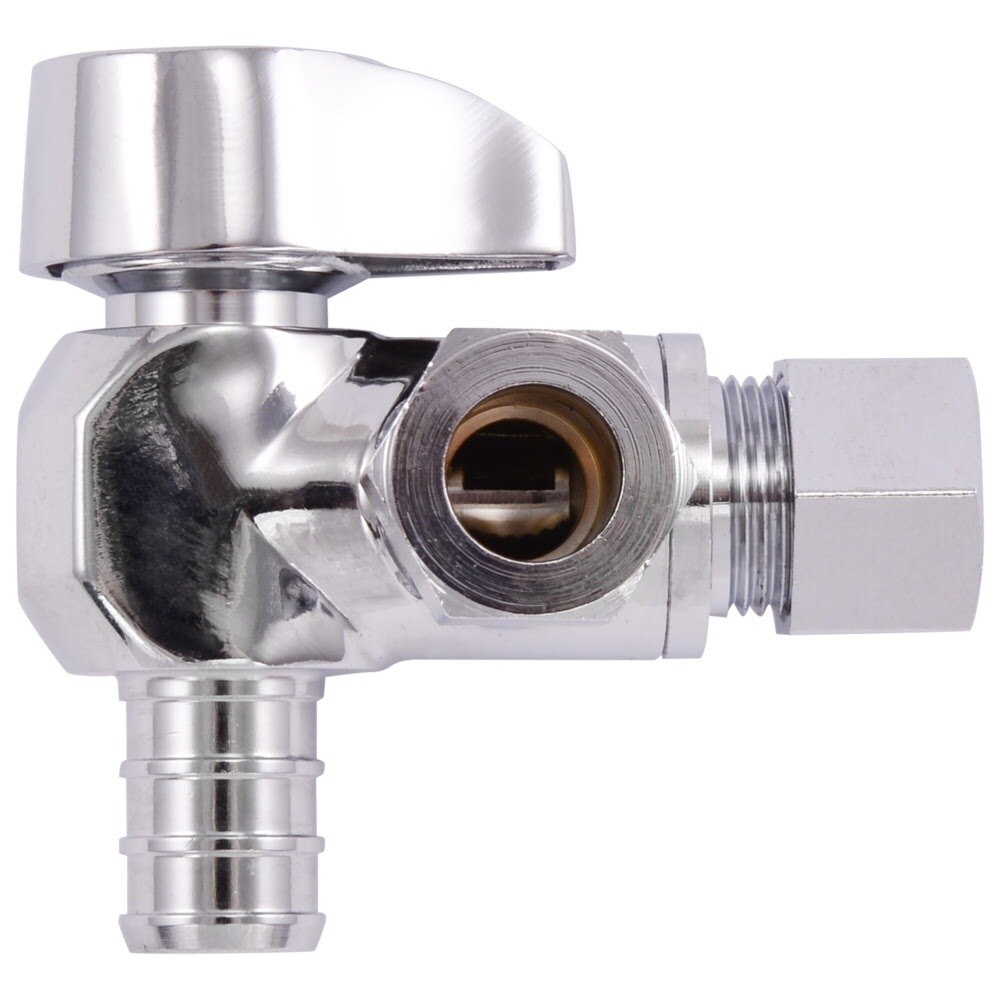

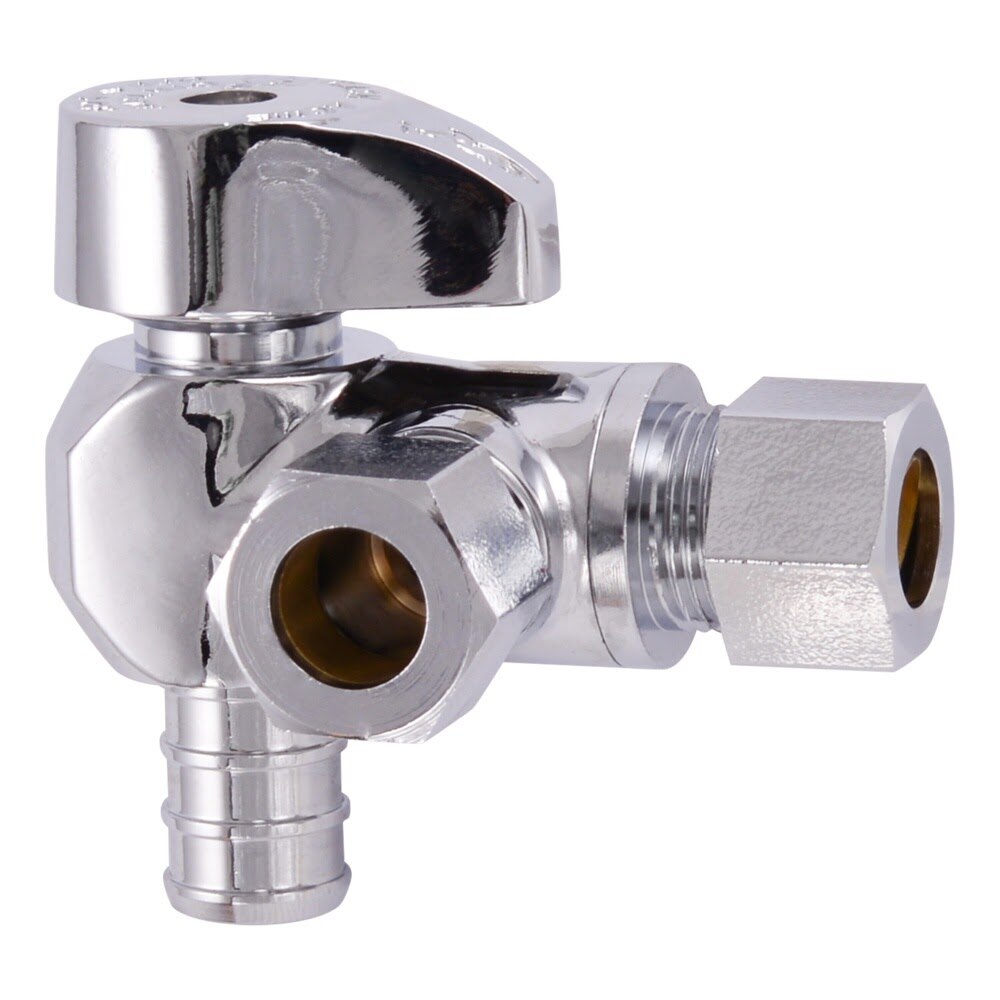

The SharkBite 23066LF is a quarter-turn dual outlet stop valve with a 1/2 in. PEX barb inlet and two 3/8 in. OD compression outlets for controlling water flow to fixture supply lines. Built from lead-free DZR brass with a chrome-plated finish, it is designed for potable water applications and is compatible with stainless steel clamp and copper crimp ring systems.
SharkBite 23066LF Includes
- (1) 1/2 in. PEX barb x 3/8 in. OD compression x 3/8 in. OD compression quarter-turn dual outlet stop valve
SharkBite 23066LF Features
- Quarter-turn handle allows quick shutoff control
- Dual outlet configuration helps serve two fixture supply lines
- 1/2 in. PEX barb inlet
- Two 3/8 in. OD compression outlets
- Compatible with PEX pipe
- Works with stainless steel clamp and copper crimp ring systems
- Lead-free DZR brass construction for durability and reliability
- Chrome-plated finish
- Designed for potable water applications
- Maximum working pressure of 125 PSI
- Maximum working temperature of 200 Degree F
SharkBite 23066LF Specifications
| Brand | SharkBite |
| Part Number | 23066LF |
| Product Type | Quarter Turn Dual Outlet Stop Valve |
| Application | Potable Water |
| Compatible Pipe Material | PEX |
| Compatible Product | Faucet, Toilet |
| Connection Type | Barb x Compression |
| Valve Configuration | Dual Outlet |
| Operation | Quarter Turn |
| Material | Lead-free DZR brass |
| Finish | Chrome-plated |
| Inlet Diameter | 1/2 in. |
| Outlet 1 Diameter | 3/8 in. |
| Outlet 2 Diameter | 3/8 in. |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 200 Degree F |
| Indoor/Outdoor | Indoor |
| Product Length | 1.47 in. |
