SharkBite 23070 Description

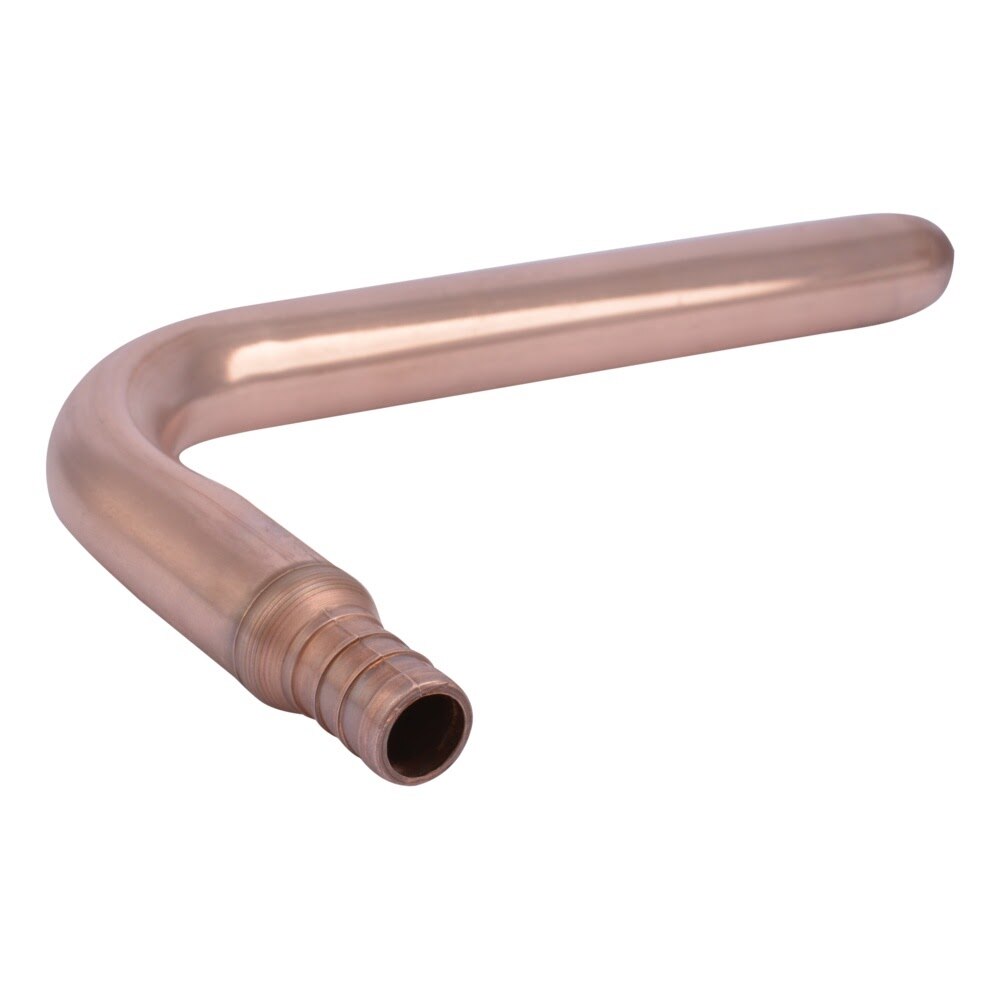

The SharkBite 23070 copper stub-out elbow is designed for rough-in plumbing connections with PEX pipe. This 90 Degree fitting is compatible with PEX-A, PEX-B, PEX-C, and PERT tubing, installs with a crimp ring or stainless steel clamp, and is rated for potable water applications up to 200 Degree F and 160 psi.
SharkBite 23070 Includes
- (1) 1/2 in. PEX Barb x 6 in. Copper Stub-Out 90 Degree Elbow Fitting
SharkBite 23070 Features
- 90 Degree elbow design for PEX rough-in plumbing applications
- Durable copper stub-out construction
- Compatible with PEX-A, PEX-B, PEX-C, and PERT pipe
- Installs with a crimp ring or stainless steel PEX clamp
- Lead-free fitting for potable water systems
- Allows drywall completion and system pressure testing during construction
- NSF listed and meets UPC, IPC, and cUPC requirements
- Rated for up to 200 Degree F and 160 psi
SharkBite 23070 Specifications
| Application | Potable Water |
| Bend Degree | 90 Degree |
| Compatible Pipe Material | PEX |
| Compatible PEX Types | PEX-A, PEX-B, PEX-C, PERT |
| Connection | Barb x Copper Sweat |
| Connection 1 | Barb |
| Connection 2 | Copper Sweat |
| Material | Copper |
| Lead Free | Yes |
| Fitting Type | Elbow |
| PEX Fitting Type | Crimp-Barb |
| Fitting Size | 1/2 in. x 1/2 in. |
| Stub-Out Length | 6 in. |
| Maximum Working Temperature | 200 F |
| Maximum Working Pressure | 160 psi |
| Product Weight | 0.19 lb |
Toolup Part # :
884731
