SharkBite 24612LF Description

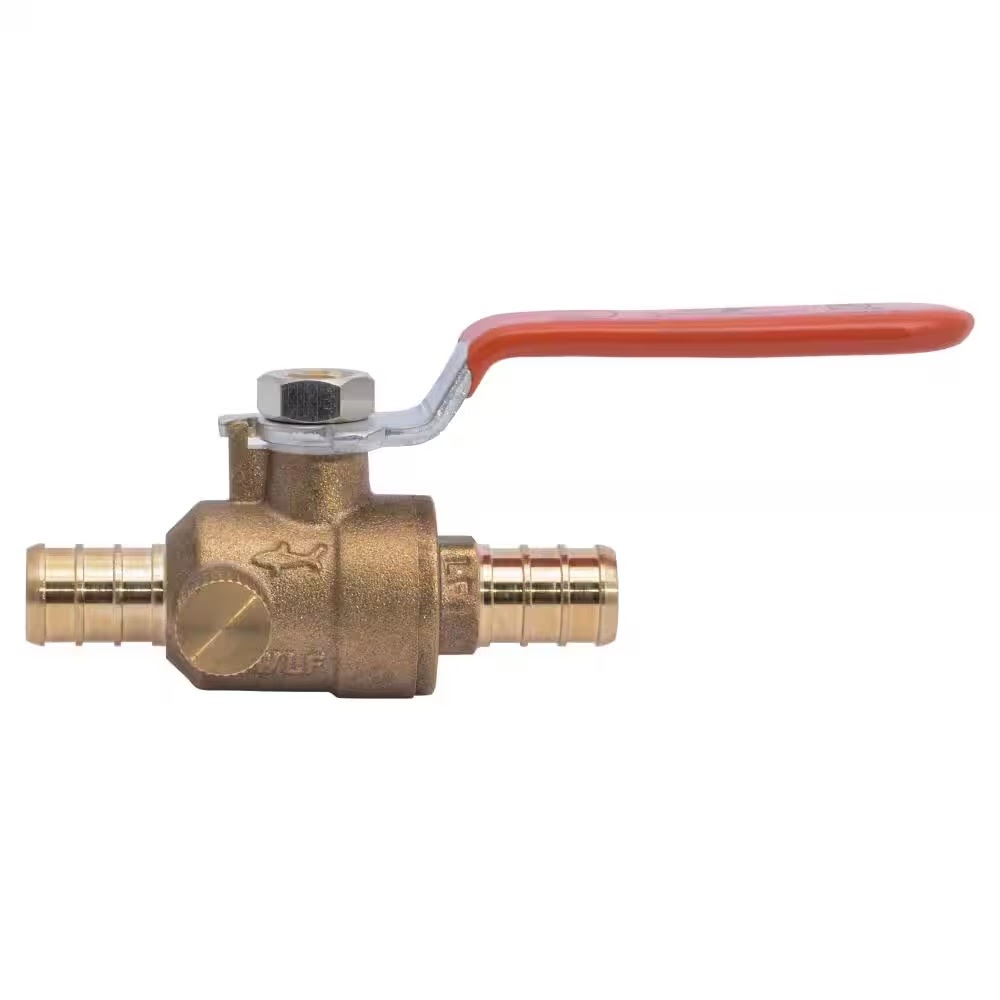

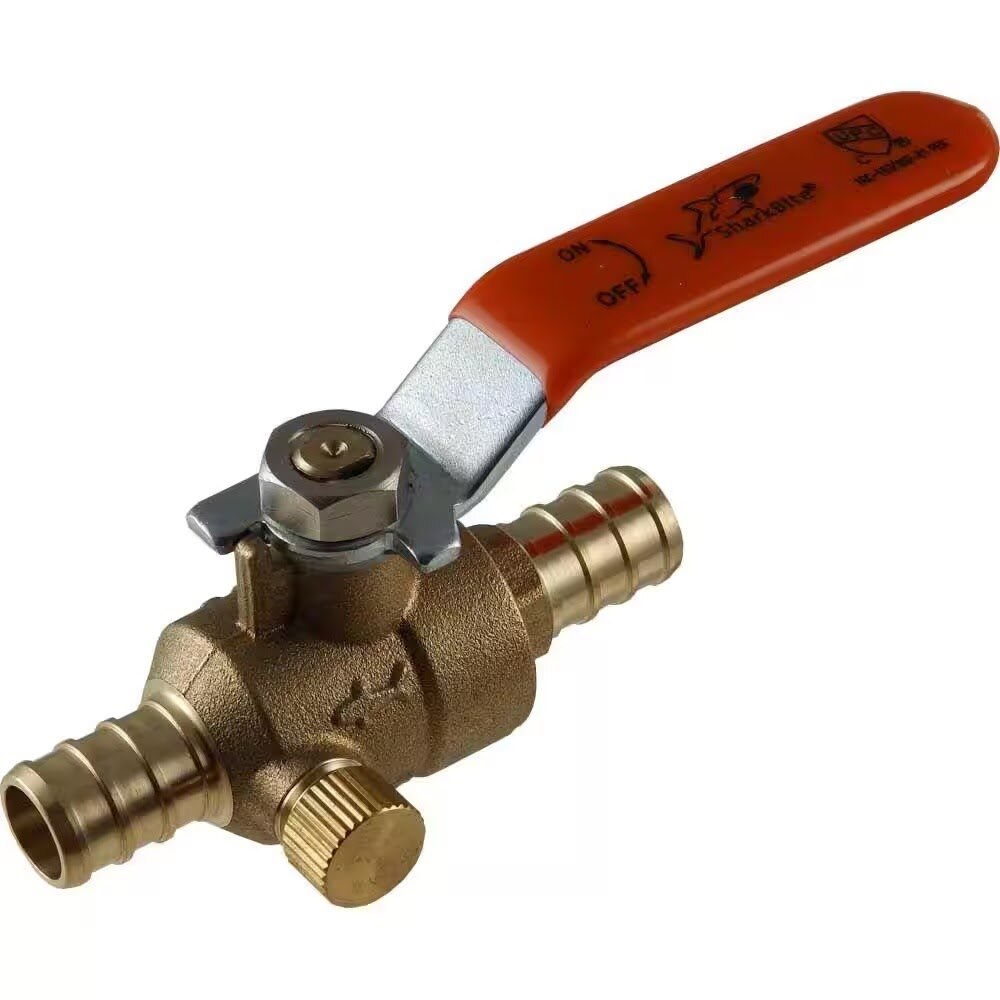

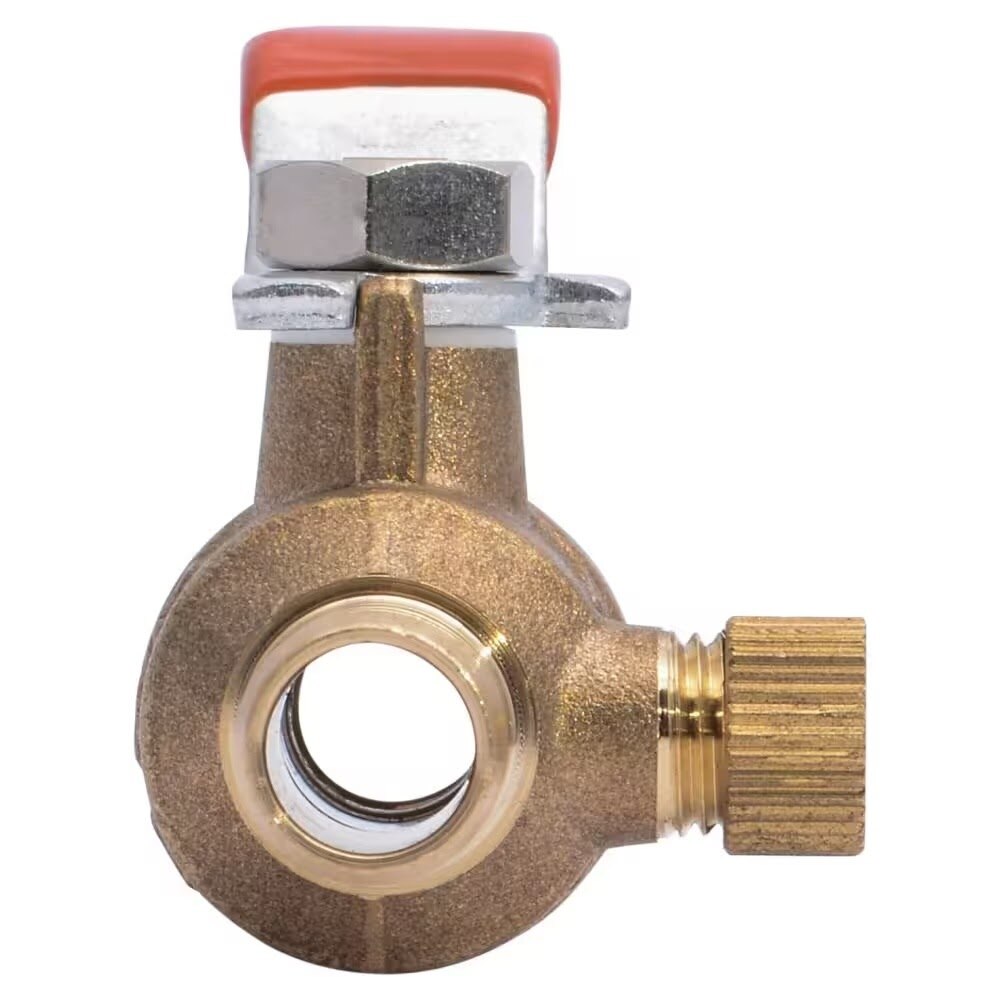

The SharkBite 24612LF is a 1/2 in. x 1/2 in. PEX barb brass ball valve with an integrated drain for dependable shutoff and service access in potable water systems. Built from lead-free DZR brass, it features a quarter turn lever handle and is compatible with stainless steel clamp and copper crimp ring connection systems for durable PEX installations.
SharkBite 24612LF Includes
- (1) 1/2 in. x 1/2 in. Brass Quarter Turn PEX Barb Ball Valve with Drain
SharkBite 24612LF Features
- Lead-free DZR brass construction for durability and reliability
- Quarter turn lever handle provides quick shutoff control
- Integrated drain helps simplify servicing and maintenance
- Barb x Barb connection for PEX systems
- Compatible with stainless steel clamp and copper crimp ring systems
- Suitable for potable water applications
- Rated to 200 PSI and 200 DegreeF
- NSF listed and meets UPC, IPC, and cUPC requirements
- Single lever control can be rotated after installation for easier use
- Suitable for indoor and outdoor use
SharkBite 24612LF Specifications
| Valve Type | Quarter-turn ball valve |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Connection | Barb x Barb |
| Compatible Pipe Material | PEX |
| Material | Lead-free DZR brass |
| Application | Potable Water |
| Handle Style | Lever |
| Maximum Pressure | 200 PSI |
| Maximum Working Temperature | 200 DegreeF |
| Indoor/Outdoor | Indoor, Outdoor |
| Product Length | 4.37 in. |
| Product Width | 0.93 in. |
| Product Height | 1.75 in. |
| Product Weight | 0.27 lb |
Toolup Part # :
884461
