At a Glance
Handle Type
Lever
Max PSI
160 PSI
Pipe Size
3/4 in
Connection Type
PEX Crimp
Material
Brass
Sold As
Individual
Description
Description
SharkBite 24613LF Description

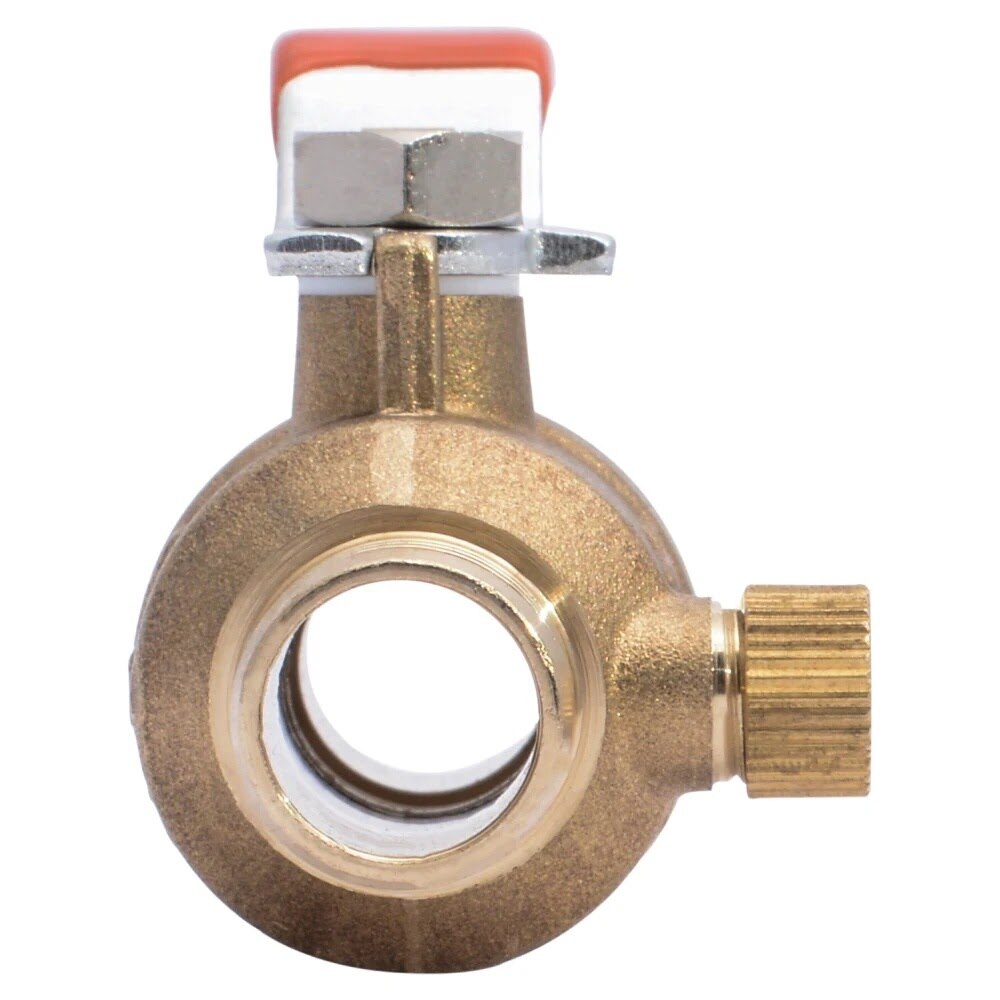

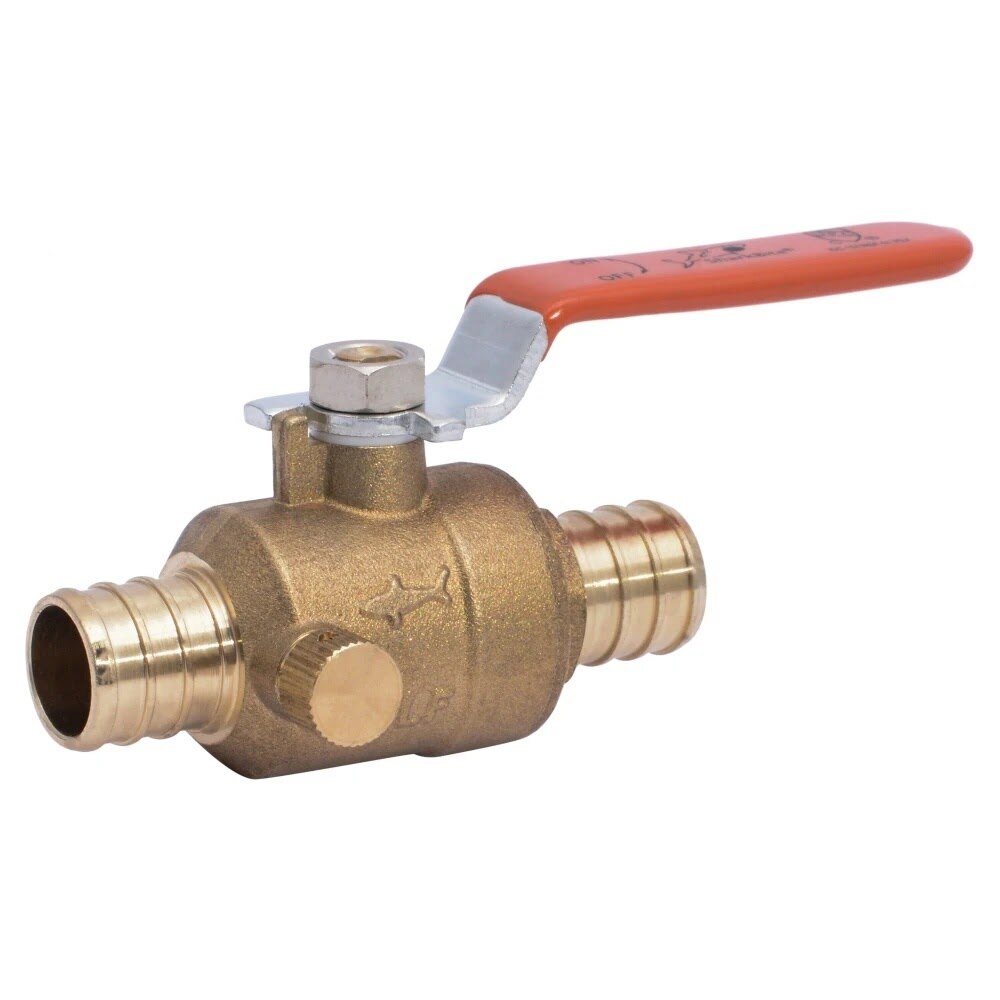

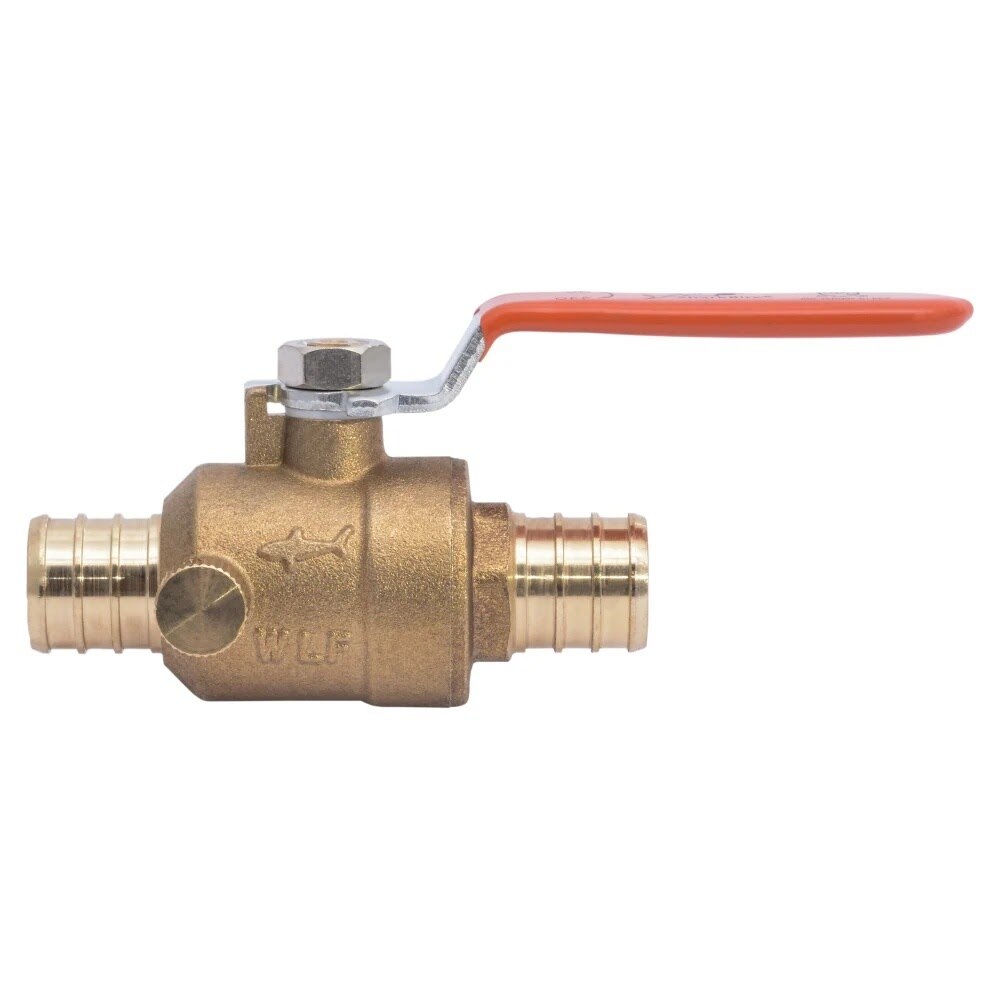

SharkBite 24613LF is a 3/4 in. x 3/4 in. PEX barb brass quarter-turn ball valve with drain for controlling water flow in potable water and hydronic systems. Its lead-free brass construction, built-in vent, and easy quarter-turn handle make shutoff and line draining simple for PEX installations.
SharkBite 24613LF Includes
- (1) 3/4 in. x 3/4 in. PEX Barb Quarter-Turn Ball Valve with Drain
SharkBite 24613LF Features
- 3/4 in. PEX barb inlet and 3/4 in. PEX barb outlet
- Quarter-turn handle allows easy on and off flow control
- Built-in drain and vent helps drain water from the line after shutoff
- Lead-free brass construction for potable water applications

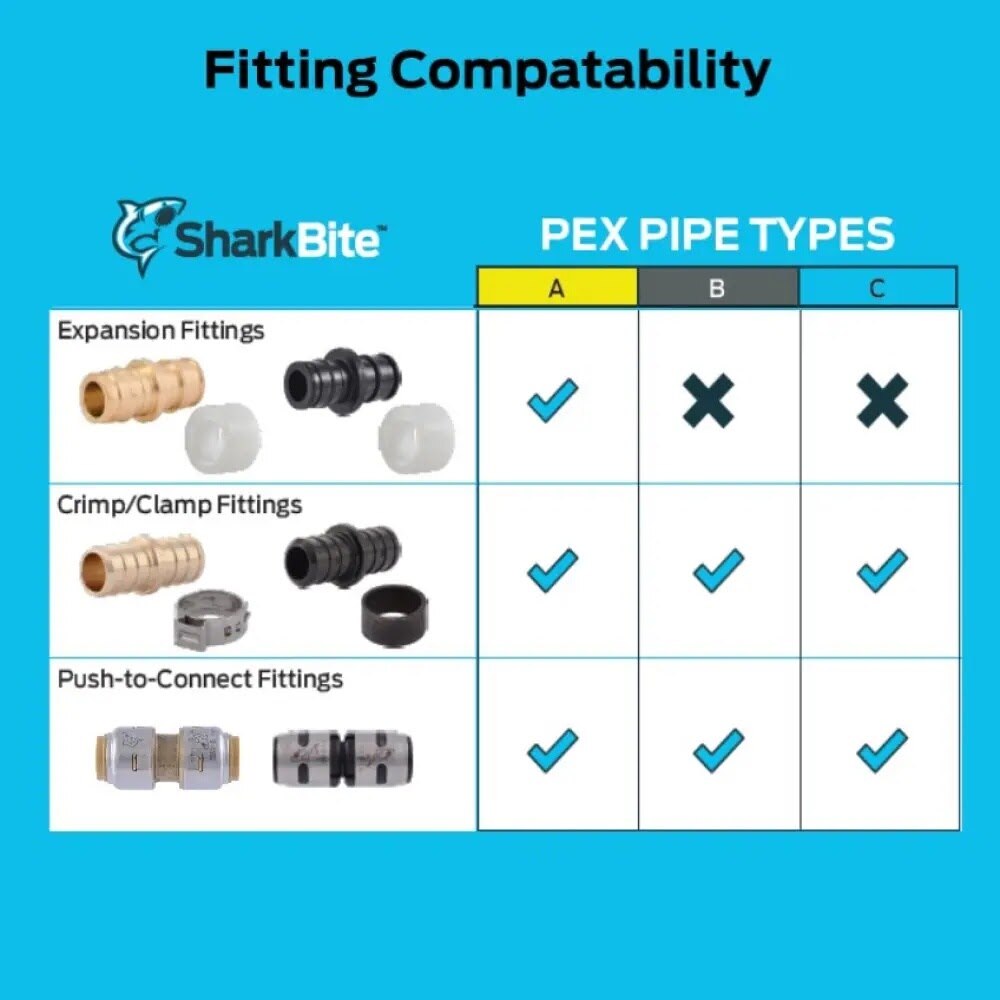

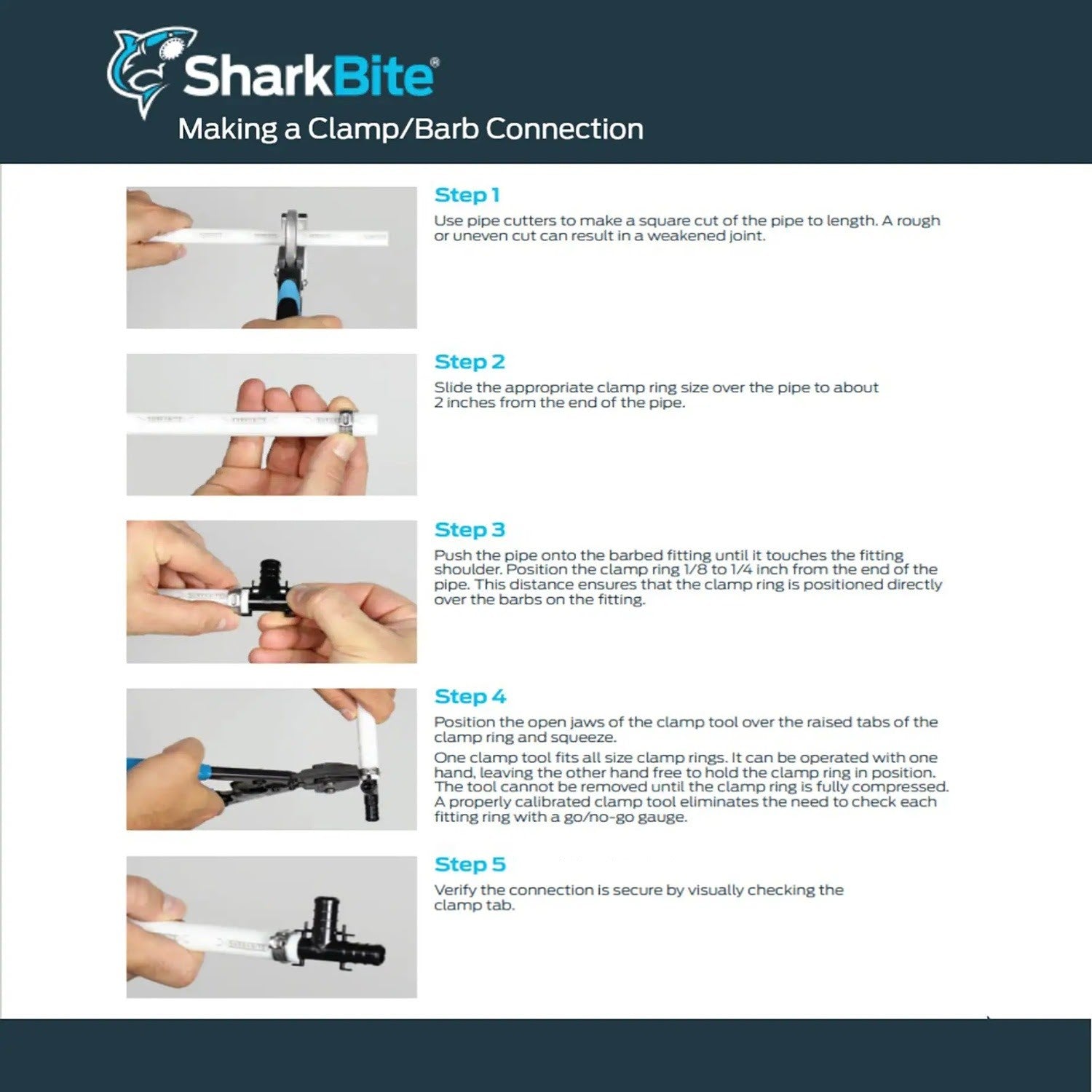

- Compatible with PEX pipe using copper crimp or stainless steel clamp connection methods
- Suitable for potable water and hydronic applications
- Rated for pressures up to 160 PSI
SharkBite 24613LF Specifications
| Inlet Size | 3/4 in. |
| Outlet Size | 3/4 in. |
| Inlet Connection Type | PEX barb |
| Outlet Connection Type | PEX barb |
| Material | Lead-free brass |
| Drain/Vent | Yes |
| Compatible Pipe Material | PEX |
| Connection Method | Copper crimp or stainless steel clamp |
| Application | Potable water and hydronic systems |
| Maximum Pressure | 160 PSI |
| Length | 4.46 in. |
| Width | 2.04 in. |
| Height | 1.50 in. |
| Shipping Weight | 0.47 lb |
Toolup Part # :
883987
