SharkBite 24615-0000LF Description

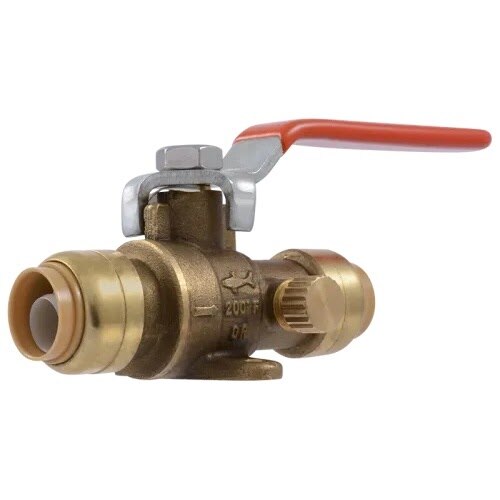

SharkBite's 1/2 in. x 1/2 in. quarter-turn ball valve features a drain / vent and mounting bracket for added installation flexibility and stability. The push-to-connect design installs quickly on PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe without special tools, crimping, glue, or soldering.
SharkBite 24615-0000LF Includes
- (1) 1/2 in. x 1/2 in. Quarter-Turn Ball Valve with Drain and Mounting Bracket
SharkBite 24615-0000LF Features
- Push-to-connect design enables quick installation
- Drain / vent allows water to be drained from the line when needed
- Mounting bracket / tab adds stability when attaching to surfaces
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe
- Can be installed in wet lines
- Can be rotated for easier and faster installation
- No special tools, crimping, glue or soldering required
- Ideal for working in tight spaces
- Removable using a Disconnect Clip or Disconnect Tongs sold separately
- Rated for 200 psi and 200 DegreeF (93 DegreeC)
SharkBite 24615-0000LF Specifications
| Connection Size | 1/2 in. x 1/2 in. |
| Drain / Vent Size | 1/8 in. NPSM |
| Connection Type | Push-to-Connect |
| Valve Operation | Quarter-Turn |
| Drain / Vent | Yes |
| Mounting Bracket | Yes |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT and SDR-9 HDPE |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 200 DegreeF (93 DegreeC) |
| Product Length (in) | 5.40 |
| Product Width (in) | 1.93 |
| Product Height (in) | 1.18 |
| Product Weight (lbs) | 0.48 |
