SharkBite 24616-0000LF Description

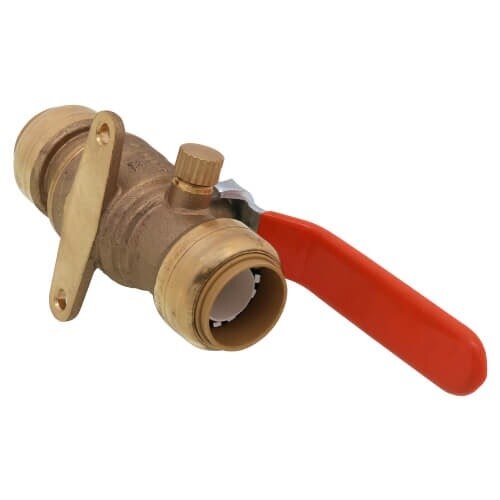

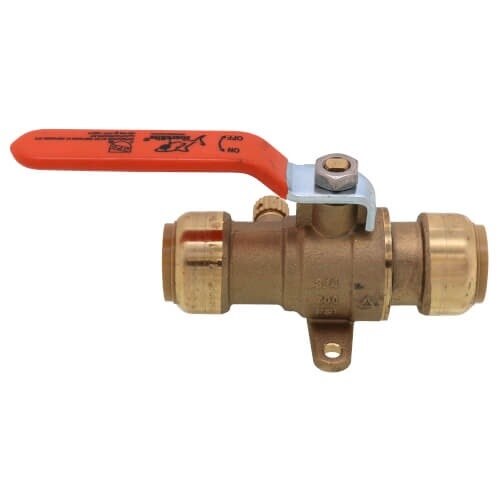

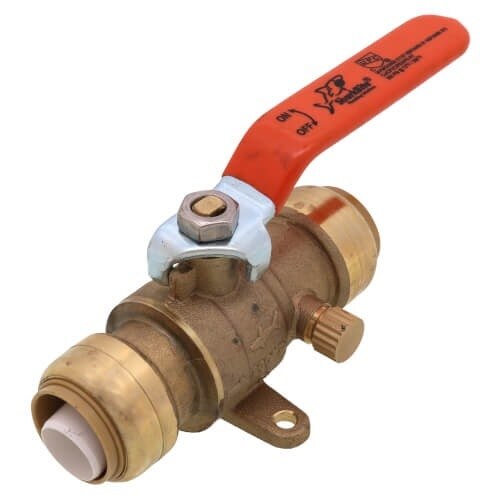

The SharkBite 24616-0000LF is a 3/4 in. x 3/4 in. lead-free forged brass quarter-turn ball valve with an integrated drain/vent and mounting bracket. Its push-to-connect ends install quickly on copper, CPVC, PEX, and PE-RT tubing without soldering, clamps, unions, or glue, while the full-port design helps maintain strong flow.
SharkBite 24616-0000LF Includes
- (1) 3/4 in. x 3/4 in. Quarter-Turn Ball Valve with Drain
- (1) Mounting Bracket
SharkBite 24616-0000LF Features
- Push-to-connect design installs without soldering, clamps, unions, or glue
- Quarter-turn lever handle provides easy shutoff control
- Integrated drain/vent allows water lines to be drained when needed
- Mounting bracket helps provide a secure, stable installation
- Full-port ball valve supports free water flow through the valve
- Compatible with copper, CPVC, PEX, and PE-RT tubing
- Lead-free forged brass construction for plumbing and heating applications
- Approved to IAPMO/ANSI Z1157, NSF/ANSI 61, and NSF 372
SharkBite 24616-0000LF Specifications
| Brand | SharkBite |
| Product Type | Ball Valve |
| Valve Type | Quarter-Turn |
| Nominal Size | 3/4 in. x 3/4 in. |
| Connection Type | Push-Fit x Push-Fit |
| Fitting System Compatibility | Push Fit |
| Connection Method | Push-Fit |
| Tubing Compatibility | CPVC, Copper, PEX, PE-RT |
| Material | Brass |
| Port Type | Full Port |
| Feature | Drain/Vent |
| Includes | Mounting Bracket |
| Lead Free | Yes |
| Max Pressure (PSI) | 200 |
| Max Temp (F) | 200 DegreeF |
| Insertion Depth | 1-1/8 in. |
| Application | Plumbing, Heating |
| Warranty | 25 Year |
| Product Length (in) | 5.47 |
| Product Width (in) | 2.36 |
| Product Height (in) | 1.89 |
| Shipping Weight (lbs) | 0.72 |
| Approvals | IAPMO/ANSI Z1157; NSF/ANSI 61; NSF 372 |
