At a Glance
Handle Type
Lever
Max PSI
200 PSI
Pipe Size
1/2 in
Connection Type
Push-Fit
Material
Brass
Sold As
Individual
Description
Description

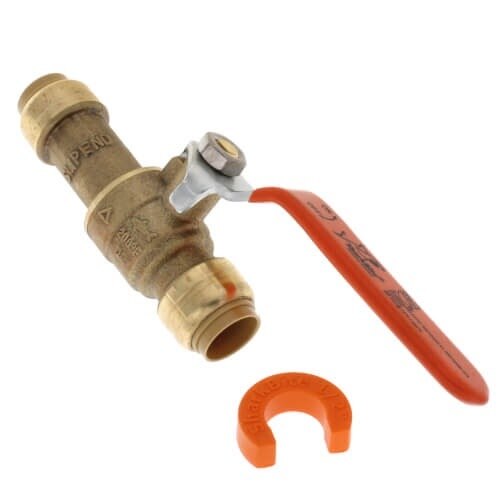

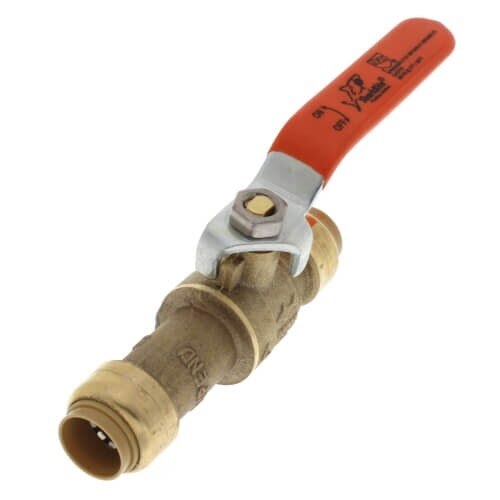

SharkBite 24735LF Description
The SharkBite 24735LF is a lead free forged brass slip ball valve built for fast shutoff and easy plumbing installation. Its quarter turn lever and full port design provide smooth operation and strong flow, while push fit connections let you install it in seconds on copper, CPVC, and PEX without soldering, clamps, unions, or glue.
SharkBite 24735LF Includes
- (1) 1/2 in x 1/2 in Slip Quarter Turn Ball Valve
SharkBite 24735LF Features
- Instant push fit installation on copper, CPVC, and PEX
- No soldering, clamps, unions, or glue required
- Quarter turn lever provides easy shutoff control
- Full port design allows strong water flow
- Slip feature helps simplify installation on existing copper and CTS CPVC pipe
- Lead free forged brass construction
- Rated for up to 200 PSI and 200 F
- 25 year warranty
SharkBite 24735LF Specifications
| Size | 1/2 in. |
| Connection Type | Push-Fit x Push-Fit |
| Connection Method | Push-Fit |
| Port Type | Full Port |
| Material | Forged brass |
| Compatible Pipe Material | Copper, CPVC, PEX |
| Max Pressure | 200 PSI |
| Max Temp | 200 F |
| Insertion Depth | 15/16 in. |
| Lead Free | Yes |
| Warranty | 25 year |
| Length | 6.10 in. |
| Width | 1.13 in. |
| Height | 1.13 in. |
| Weight | 0.46 lb |
Toolup Part # :
884010
