SharkBite 24933 Description

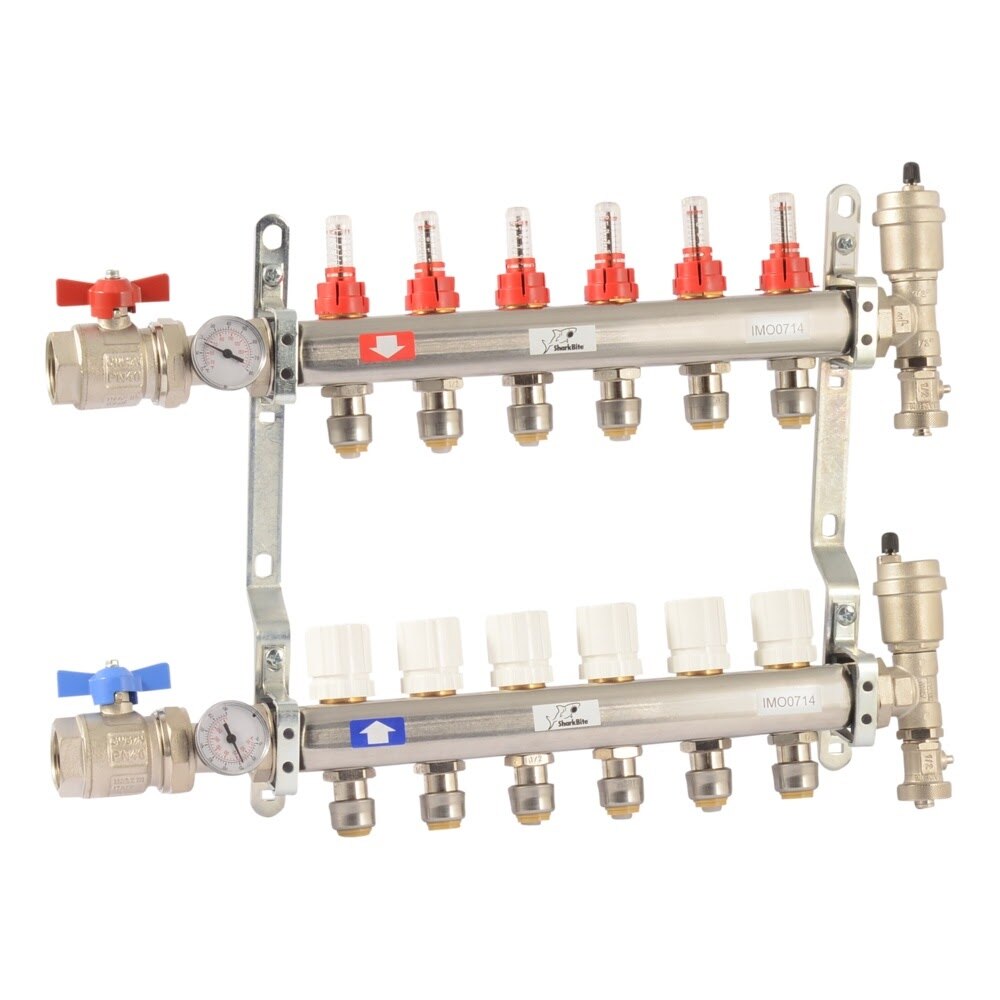

The SharkBite 6-loop radiant heating manifold kit is designed for underfloor PEX heating systems and helps regulate flow to each circuit with precise control. Its stainless steel construction, built-in temperature gauges, flow meters, balancing valves, and push-to-connect loop ports support faster installation and reliable system performance.
SharkBite 24933 Includes
- (1) 6 Loop Radiant Heating Manifold Kit
SharkBite 24933 Features
- 6-loop manifold kit for radiant underfloor heating systems
- Helps precisely regulate flow to each PEX circuit
- 1/2 in. push-to-connect loop ports simplify installation
- 1 in. FNPT inlet supports common system connections
- Stainless steel manifold construction offers durability and corrosion resistance
- Temperature gauges on supply and return manifolds help monitor system performance
- Flow balancing valves and flow meters support even heat distribution
- Integrated air vent and drain help simplify servicing
- Rated for 200 psi and 200 DegreeF
- No crimping, glue, or soldering required
SharkBite 24933 Specifications
| Product Type | Radiant heating manifold kit |
| Loop Count | 6 |
| Application | Underfloor heating |
| Compatible Tubing | PEX |
| Material | Stainless steel |
| Inlet Size | 1 in. |
| Inlet Connection Type | FNPT |
| Loop Port Size | 1/2 in. |
| Loop Port Connection Type | Push-to-connect |
| Pressure Rating | 200 psi |
| Maximum Temperature | 200 DegreeF (93 DegreeC) |
| Integrated Air Vent | Yes |
| Integrated Drain | Yes |
| Temperature Gauges | Supply and return |
| Flow Control | Flow balancing valves and flow meters |
| Product Length | 22.28 in. |
| Product Width | 16.14 in. |
| Product Height | 3.74 in. |
| Shipping Weight | 8.16 lb |
