SharkBite 24936 Description

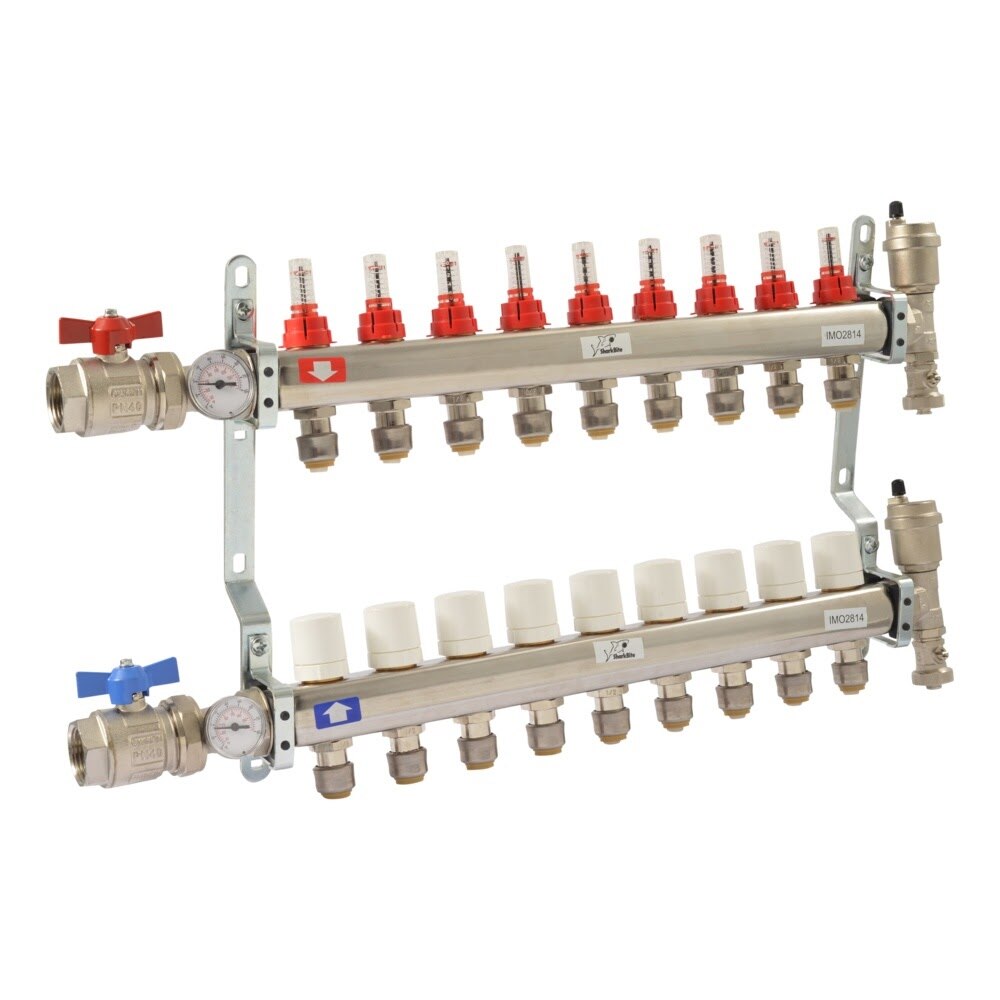

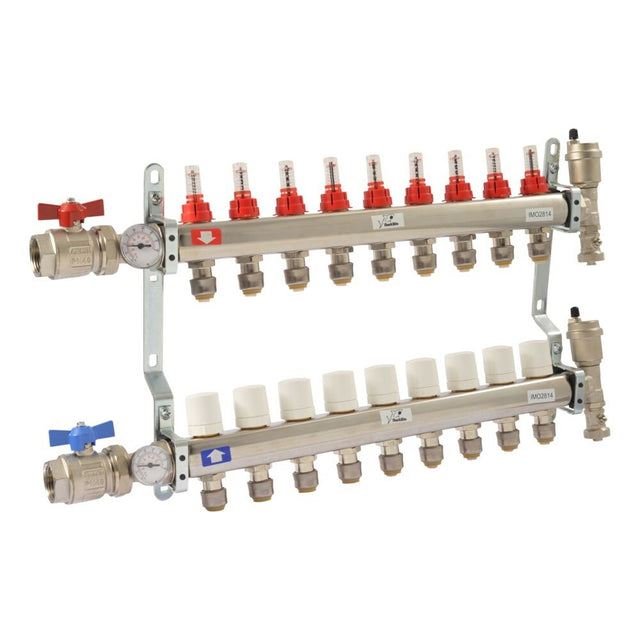

The SharkBite 9 loop radiant heating manifold helps regulate flow to each circuit in a PEX underfloor heating system while simplifying installation with 1/2 in. push-to-connect loop ports and a 1 in. FNPT inlet. Built for dependable control, it features flow meters, balancing valves, supply and return temperature gauges, and an integrated air vent and drain.
SharkBite 24936 Includes
- (1) 9 Loop Radiant Heating Manifold Assembly
SharkBite 24936 Features
- Regulates and balances flow across 9 radiant heating circuits
- 1/2 in. SharkBite push-to-connect loop ports help speed installation
- 1 in. FNPT inlet for system connection
- Flow meters and balancing valves support precise circuit adjustment
- Supply and return temperature gauges help monitor system performance
- Integrated air vent and drain simplify servicing
- Stainless steel construction resists corrosion
- Designed for use in PEX underfloor heating systems
- No crimping, glue, soldering, or special tools required
- Rated for 200 psi and 200 F
SharkBite 24936 Specifications
| Product Type | Radiant heating manifold |
| Loop Count | 9 |
| Connection Type | Push-to-connect |
| Loop Port Size | 1/2 in. |
| Inlet Size | 1 in. FNPT |
| Application | Underfloor heating |
| Compatible Tubing | PEX |
| Material | Stainless steel |
| Pressure Rating | 200 psi |
| Maximum Temperature | 200 F (93 C) |
| UPC | 697285249363 |
| Item Length (in) | 30.71 |
| Item Width (in) | 16.14 |
| Item Height (in) | 3.74 |
| Shipping Weight (lb) | 18.33 |
