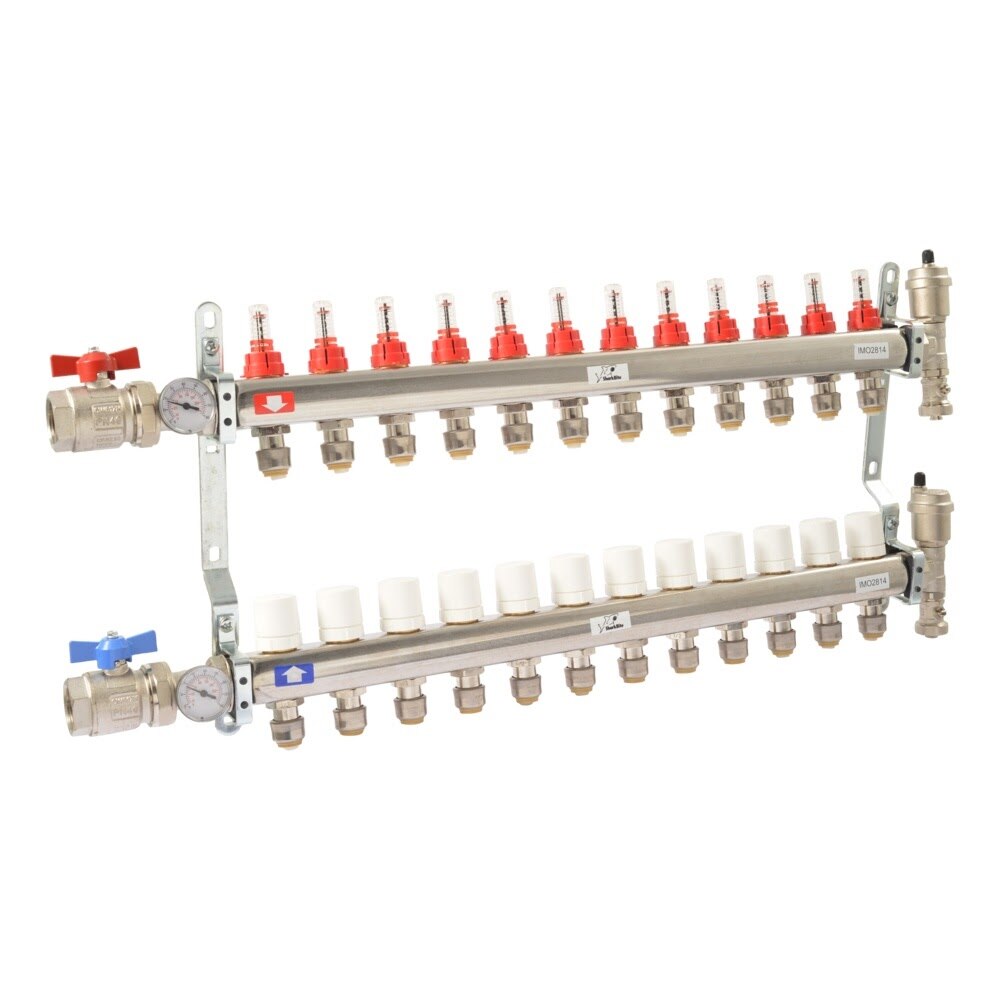

SharkBite 24939 Description
The SharkBite 24939 is a 12 loop radiant heating manifold designed for underfloor PEX heating systems. Its stainless steel construction, 1 in. FNPT inlet, and 1/2 in. push-to-connect loop ports help simplify installation, while flow meters, balancing valves, temperature gauges, and integrated air vent and drain components support precise system control and reliable performance.
SharkBite 24939 Includes
- (1) 12 Loop Radiant Heating Manifold
- (1) Supply Manifold with Flow Meters
- (1) Return Manifold with Shut-Off Valves
- (2) Temperature Gauges
- (2) Ball Valves
- (2) Mounting Brackets
- (2) Air Vent and Drain Assemblies
SharkBite 24939 Features
- Designed for underfloor PEX radiant heating systems
- 12 loop manifold helps regulate flow to each circuit
- 1/2 in. SharkBite push-to-connect loop ports speed installation
- 1 in. FNPT inlet connection
- Stainless steel construction offers durability and corrosion resistance
- Flow balancing valves and flow meters help improve thermal comfort and reduce waste
- Temperature gauges on supply and return manifolds aid system monitoring
- Integrated air vent and drain
- No special tools, crimping, glue, or soldering required
- Rated for up to 200 psi and 200 F
SharkBite 24939 Specifications
| Brand | SharkBite |
| Product Type | Radiant Heating Manifold |
| Loop Count | 12 |
| Loop Port Connection Size | 1/2 in. |
| Inlet Connection | 1 in. FNPT |
| Material | Stainless steel |
| Application | Underfloor heating / PEX radiant heating systems |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 200 F (93 C) |
| Product Length (in) | 35.04 |
| Product Width (in) | 16.14 |
| Product Height (in) | 3.74 |
| Shipping Weight (lbs) | 22.28 |
| UPC | 697285249394 |
