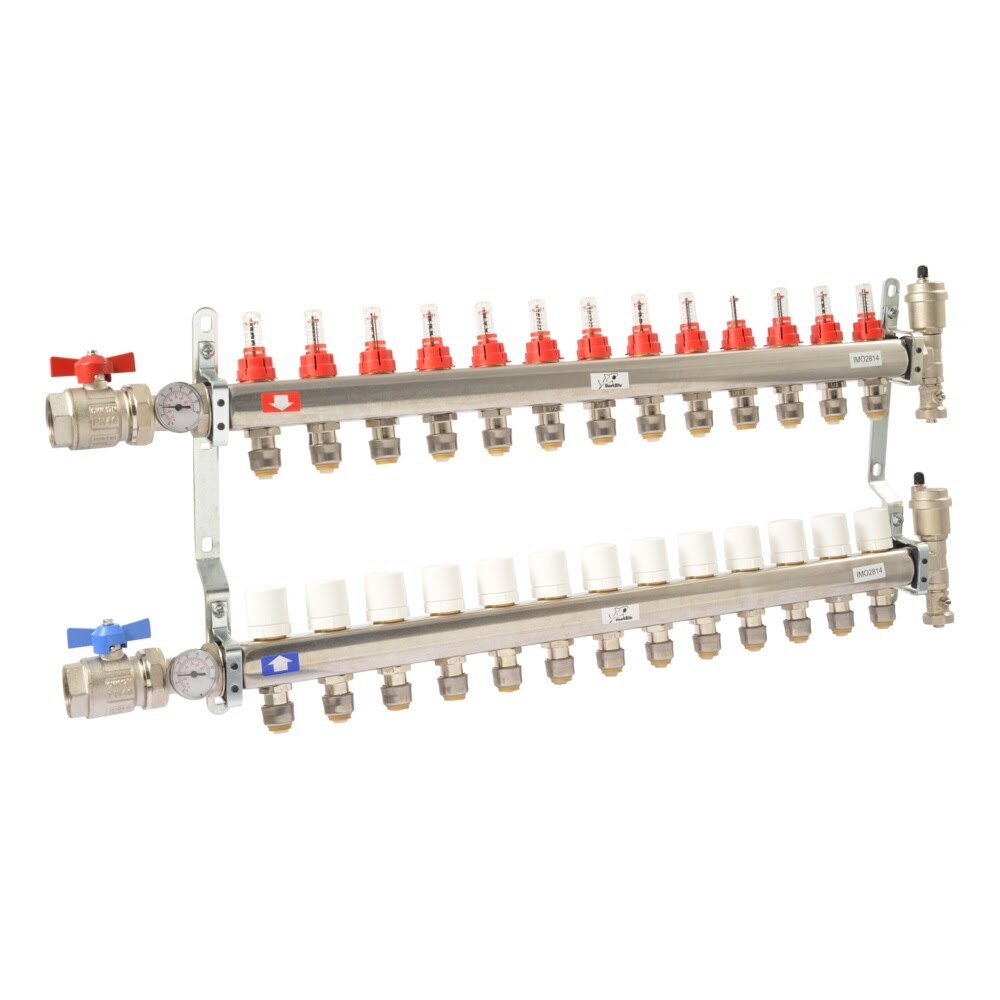

SharkBite 24940 Description
The SharkBite 13 loop radiant heating manifold is designed for underfloor PEX heating systems and uses push-to-connect 1/2 in. loop ports with a 1 in. FNPT inlet for faster installation. Its stainless steel construction, flow meters, balancing valves, temperature gauges, and integrated air vent and drain help provide precise circuit control, dependable performance, and fewer potential leak points.
SharkBite 24940 Includes
- (1) 13 Loop Radiant Heating Manifold
SharkBite 24940 Features
- Designed for underfloor PEX radiant heating systems
- 13-loop manifold helps regulate flow to individual heating circuits
- Push-to-connect 1/2 in. loop ports simplify installation
- 1 in. FNPT inlet connection
- Stainless steel construction for durability and corrosion resistance
- Supply and return temperature gauges help monitor system performance
- Flow balancing valves and flow meters support precise circuit adjustment
- Integrated air vent and drain
- No special tools, crimping, glue, or soldering required
- Minimizes leak risk by reducing excess connection points
- Rated for 200 psi
- Rated for temperatures up to 200 DegreeF (93 DegreeC)
SharkBite 24940 Specifications
| Product Type | Radiant Heating Manifold |
| Loop Count | 13 |
| Application | Underfloor heating |
| Compatible System | PEX radiant heating systems |
| Loop Port Size | 1/2 in. |
| Loop Port Connection Type | Push-to-Connect |
| Inlet Size | 1 in. |
| Inlet Type | FNPT |
| Material | Stainless Steel |
| Maximum Pressure | 200 psi |
| Maximum Temperature | 200 DegreeF (93 DegreeC) |
| Product Length (in) | 35.04 |
| Product Width (in) | 16.14 |
| Product Height (in) | 3.74 |
| Shipping Weight (lb) | 23.50 |
