At a Glance
Connection Type
Push-Fit
Connection Size
1/4 in
Sold As
Individual
Application
Ice Maker
Description
Description

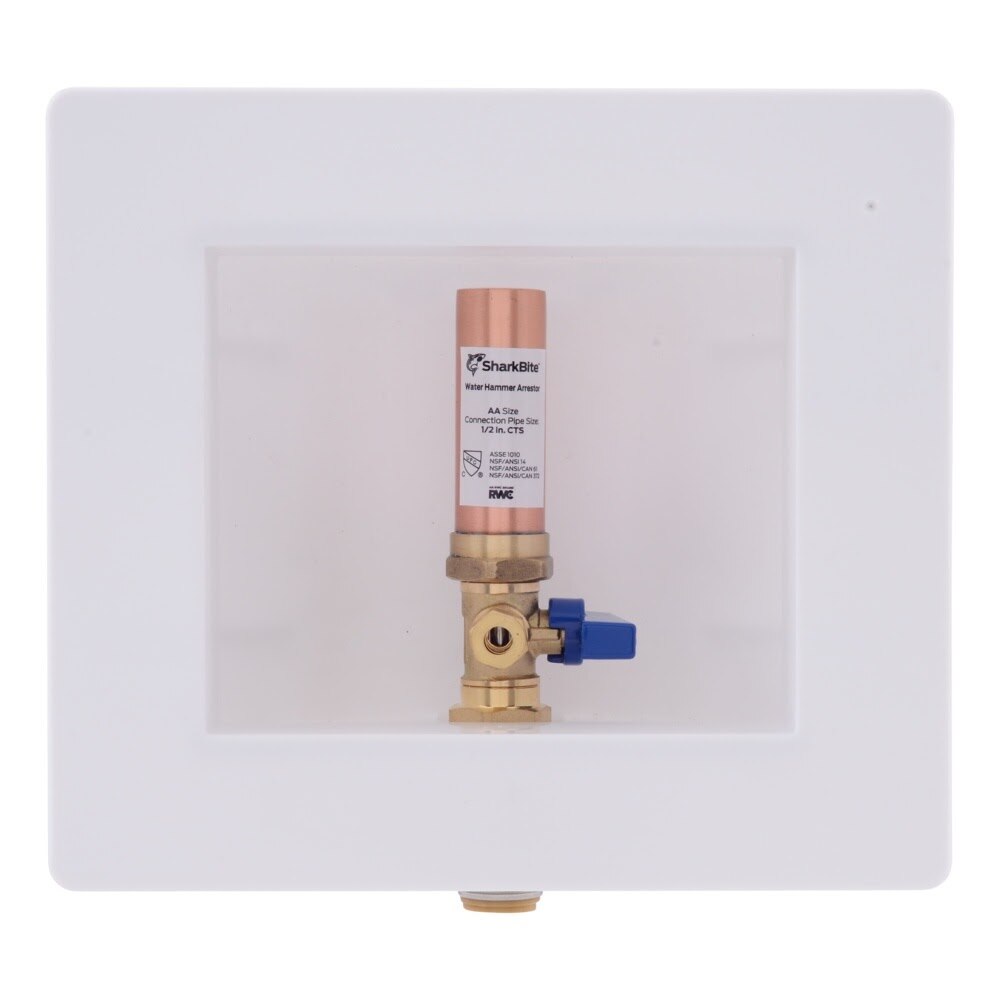

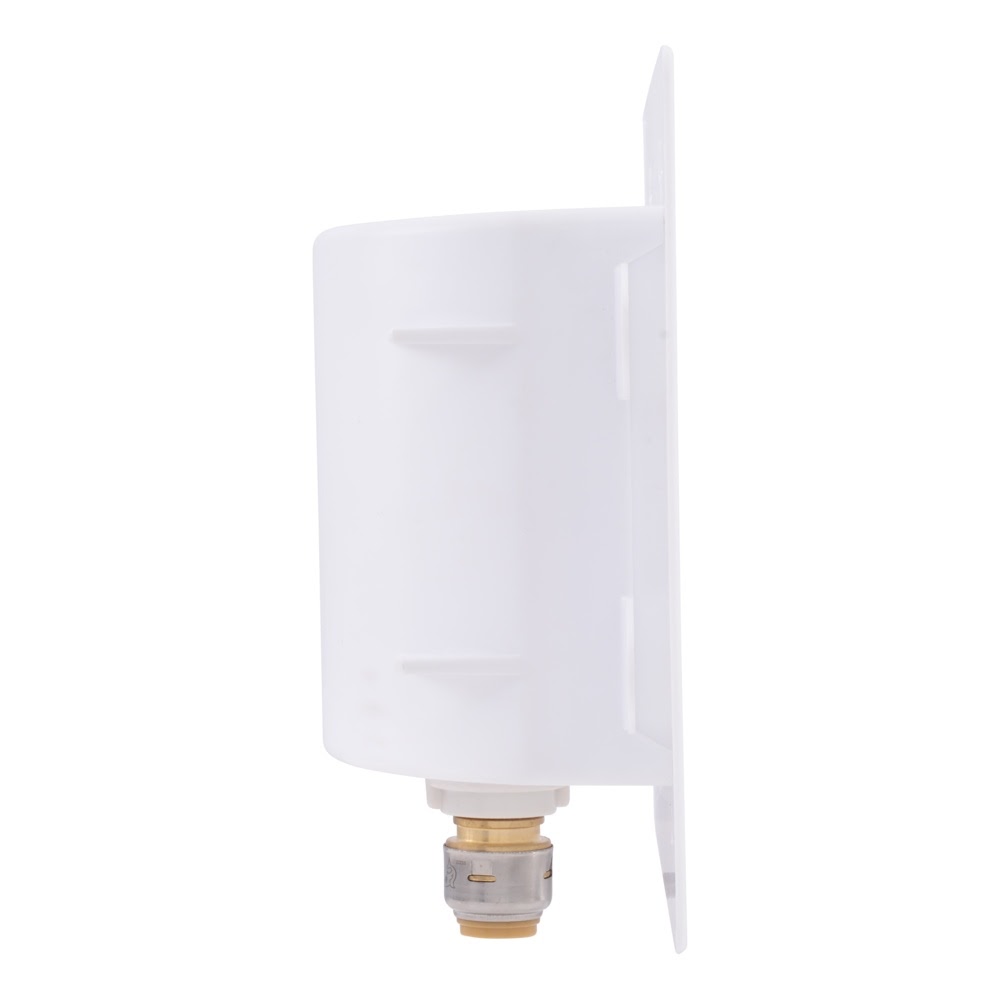

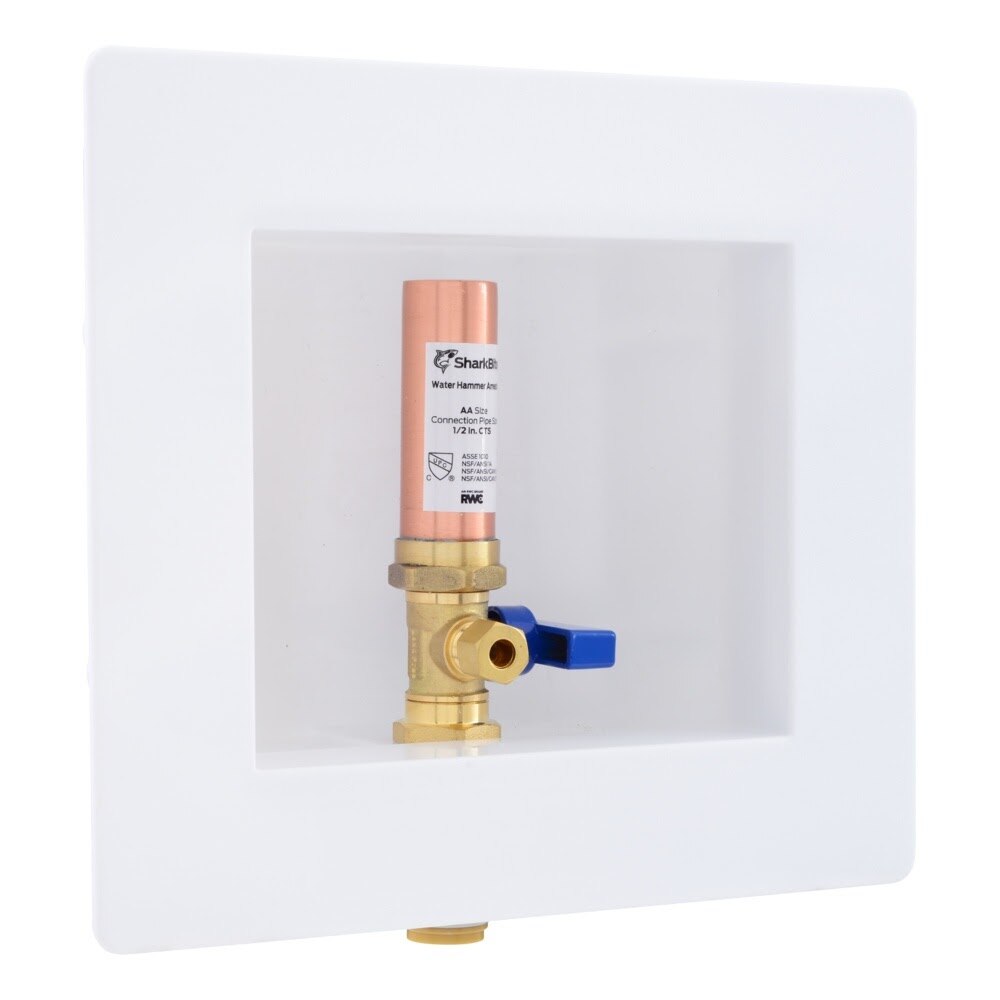

SharkBite 25033 Description
The SharkBite ice maker outlet box provides a recessed connection point for refrigerator ice makers and water dispensing appliances. This model includes a water hammer arrestor, a quarter-turn shut-off valve, a 1/2 in. push-to-connect inlet, and a 1/4 in. OD compression outlet for fast installation without soldering, crimping, or glue.
SharkBite 25033 Includes
- (1) Ice Maker Outlet Box with Water Hammer Arrestor
SharkBite 25033 Features
- Includes a water hammer arrestor to help reduce pipe noise and shock
- Quarter-turn shut-off valve with 1/4 in. OD compression outlet
- 1/2 in. push-to-connect inlet for quick installation
- Compatible with PEX, copper, CPVC and PE-RT pipe
- One-piece recessed box design creates a clean appliance water connection
- Snap-on faceplate accommodates up to 3/4 in. drywall
- Can be mounted to the left or right side of a stud bay
- No special tools, crimping, glue or soldering required
- Box can be rotated for easier installation
SharkBite 25033 Specifications
| Product Type | Ice Maker Outlet Box |
| Water Hammer Arrestor | Yes |
| Inlet Connection | 1/2 in. PTC |
| Outlet Connection | 1/4 in. OD Compression |
| Shut-Off Type | Quarter-turn |
| Installation Type | Push-to-connect |
| Compatible Pipe Material | PEX, copper, CPVC and PE-RT |
| Drywall Compatibility | Up to 3/4 in. |
| Application | Refrigerator ice maker or water dispensing appliance |
| Each Length | 8.38 in. |
| Each Width | 3.50 in. |
| Each Height | 7.88 in. |
| Each Shipping Weight | 1.03 lb |
Toolup Part # :
883106
