SharkBite 25568 Description
The SharkBite Dishwasher Installation Kit provides a fast, simple way to connect a dishwasher water supply line using push-to-connect fittings and a 10 ft. coil of 1/4 in. PEX pipe. It is compatible with PEX, copper, CPVC and PE-RT pipe, installs without special tools, crimping, glue or soldering, and includes disconnect clips for easy removal and service.

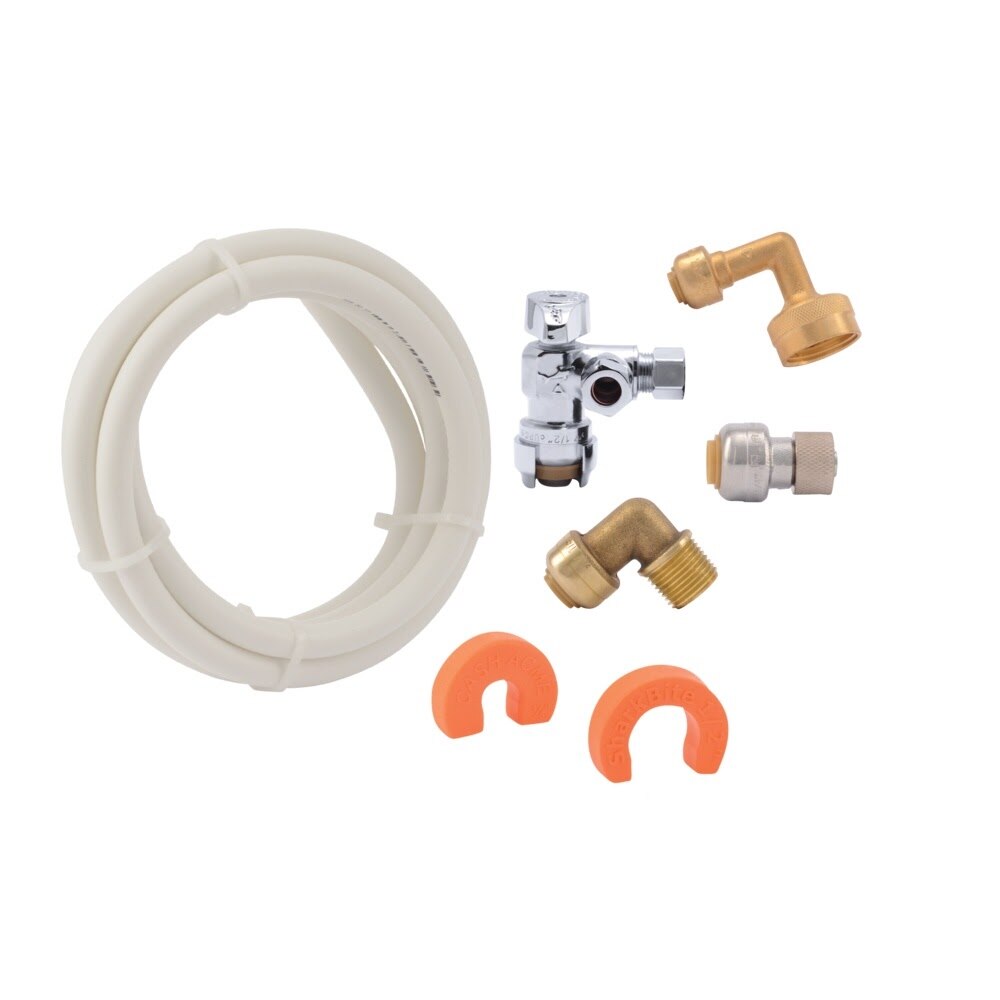

SharkBite 25568 Includes
- (1) Dishwasher Installation Kit
- (1) Dual Outlet Angle Stop Valve
- (1) 1/4 in. (3/8 in. OD) x 3/8 in. Compression Adapter
- (1) 1/4 in. (3/8 in. OD) x 3/8 in. MNPT Dishwasher Elbow
- (1) 1/4 in. (3/8 in. OD) x 3/4 in. Female Hose Thread Universal Dishwasher Elbow
- (1) 10 ft. Coil of 1/4 in. PEX Pipe
- (1) 1/4 in. Disconnect Clip
- (1) 1/2 in. Disconnect Clip
SharkBite 25568 Features
- Quick push-to-connect installation for dishwasher water supply hookups
- Compatible with PEX, copper, CPVC and PE-RT pipe
- No special tools, crimping, glue or soldering required
- Can be installed in wet lines
- Fittings can be rotated for easier installation in tight spaces
- Disconnect clips included for removal and service
- Reduces installation time and helps minimize installation errors
SharkBite 25568 Specifications
| Product Type | Dishwasher Installation Kit |
| Application | Dishwasher water supply connection |
| Connection Type | Push-to-connect |
| Compatible Pipe Materials | PEX, copper, CPVC and PE-RT |
| Included Pipe Length | 10 ft. |
| Included Pipe Size | 1/4 in. (3/8 in. OD) |
| Valve Included | Dual outlet angle stop valve |
| Compression Adapter Size | 1/4 in. (3/8 in. OD) x 3/8 in. |
| MNPT Dishwasher Elbow Size | 1/4 in. (3/8 in. OD) x 3/8 in. |
| Female Hose Thread Elbow Size | 1/4 in. (3/8 in. OD) x 3/4 in. |
| Product Length (in) | 7.87 |
| Product Width (in) | 8.27 |
| Product Height (in) | 1.57 |
Toolup Part # :
885492
