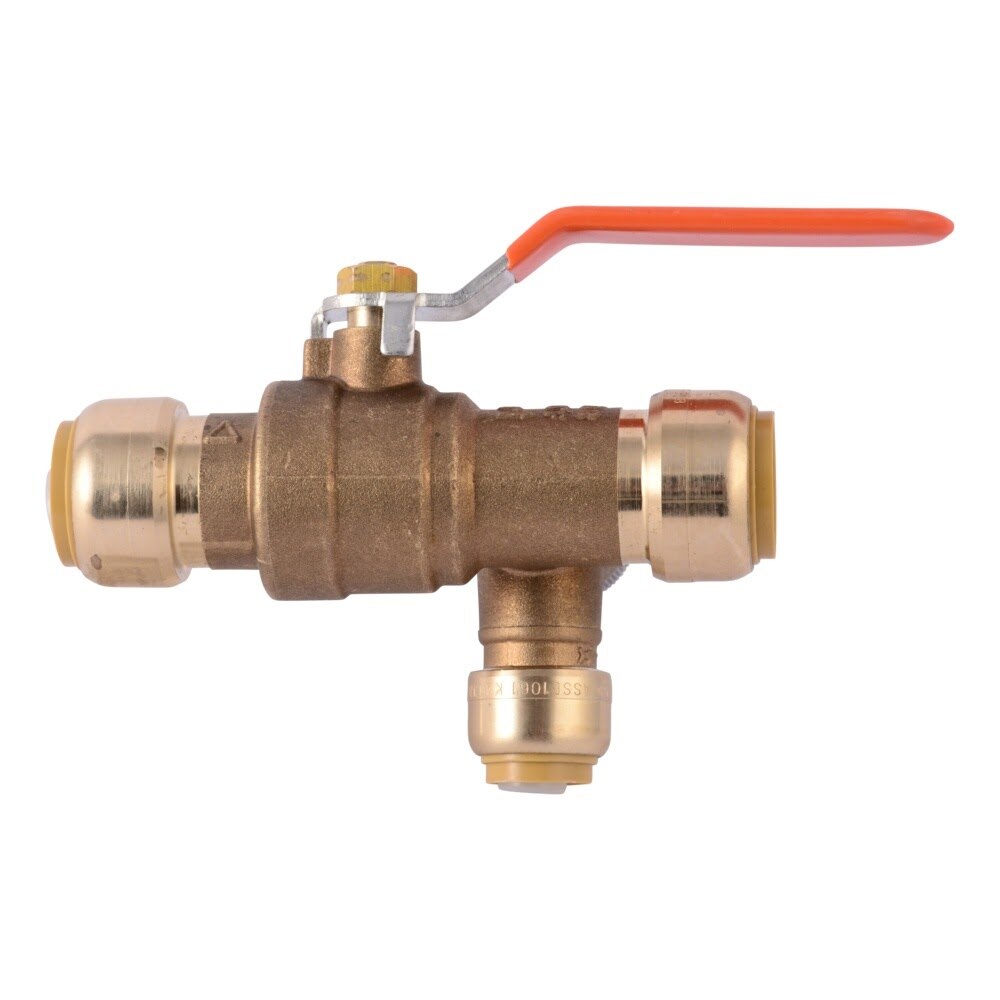

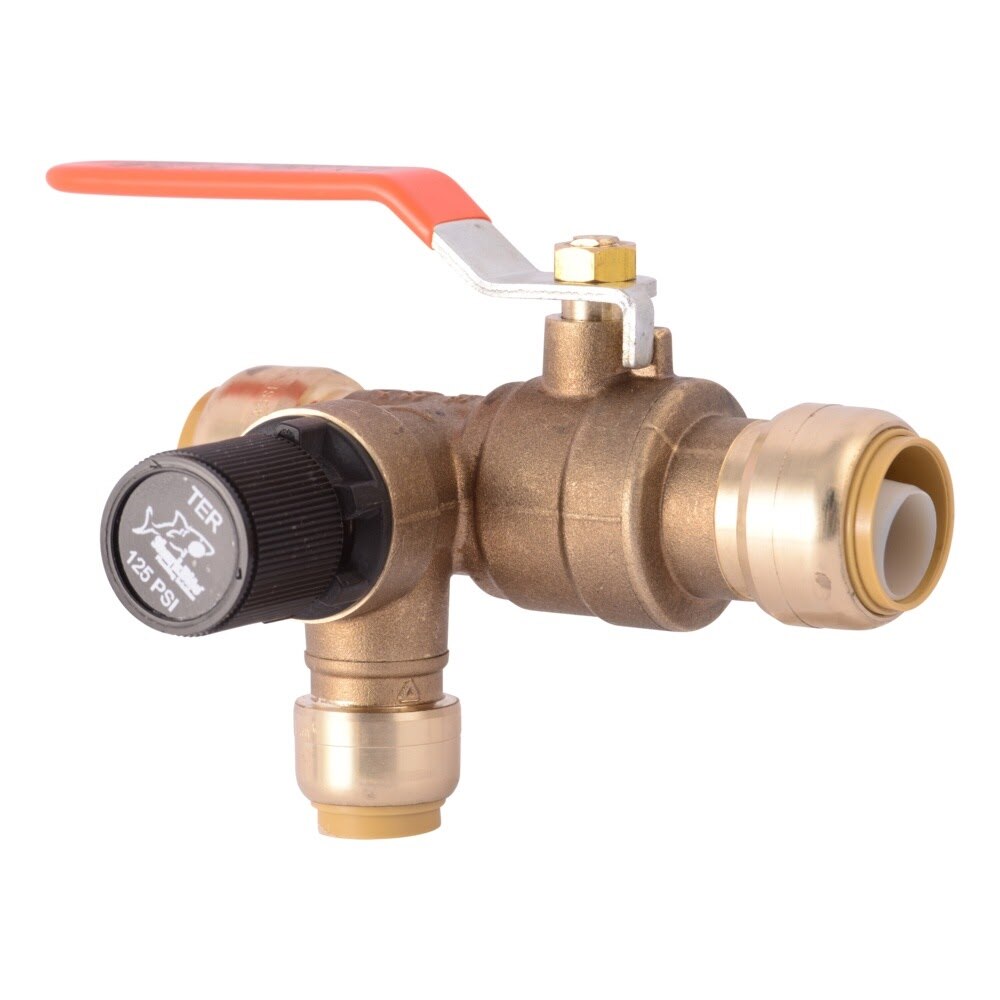

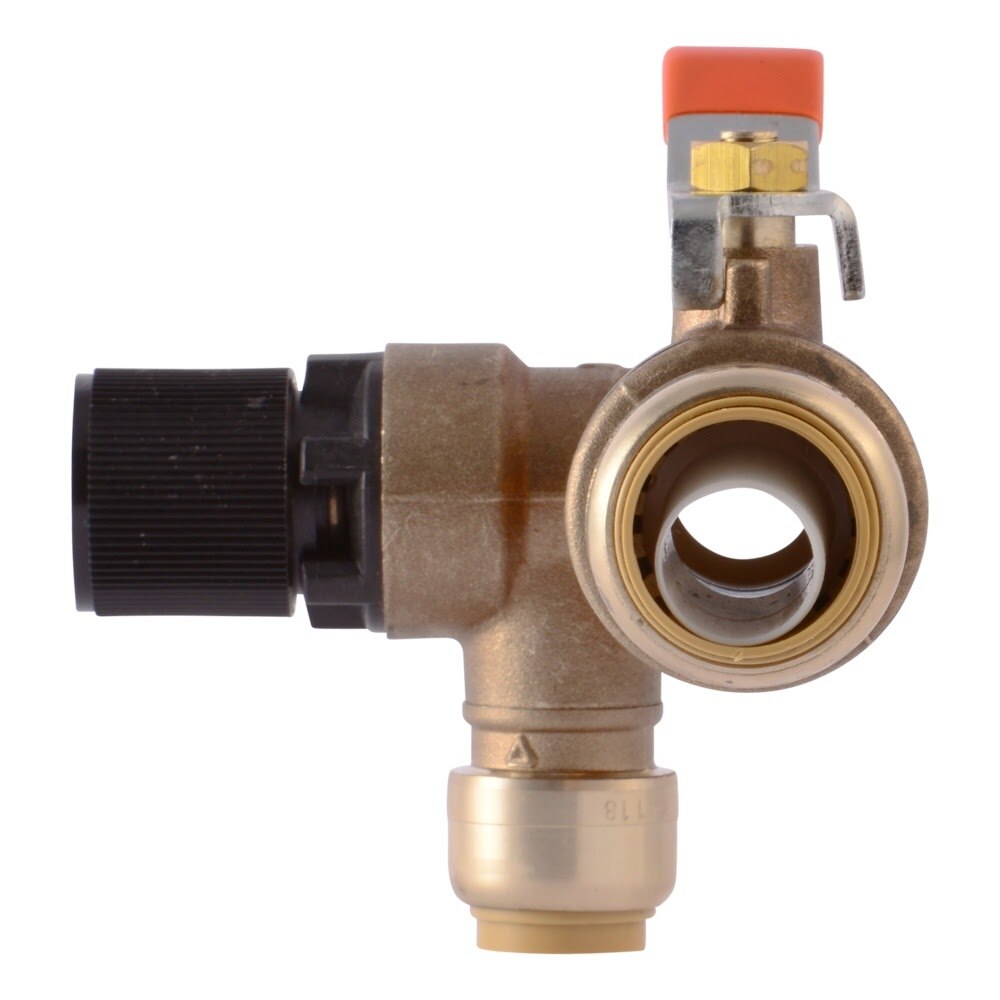

SharkBite 25704LF Description
The SharkBite thermal expansion relief valve helps protect hot water supply systems from high pressure caused by thermal expansion while eliminating the need for a separate expansion tank, shut-off valve, and fitting. Its 3/4 in. x 3/4 in. x 1/2 in. outlet push-to-connect design installs quickly without special tools and is compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe.
SharkBite 25704LF Includes
- (1) Thermal Expansion Relief Valve
SharkBite 25704LF Features
- Helps protect hot water supply systems from high pressure caused by thermal expansion
- Eliminates the need for an expansion tank, shut-off valve, and fitting
- Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe
- Can be installed in wet lines
- Can be rotated for easier installation
- No special tools, crimping, glue, or soldering required
- Ideal for working in tight spaces
- Removable using a Disconnect Clip or Disconnect Tongs sold separately
- 1/2 in. outlet drains at 125 PSI
- Rated for 200 psi and 200 Degrees F (93 Degrees C)
SharkBite 25704LF Specifications
| Product Type | Thermal Expansion Relief Valve |
| Size | 3/4 in. x 3/4 in. x 1/2 in. Outlet |
| Connection Type | Push-to-Connect |
| Application | Hot water supply systems |
| Compatible Pipe Materials | PEX, copper, CPVC, PE-RT, and SDR-9 HDPE |
| Outlet Drain Pressure | 125 PSI |
| Maximum Pressure Rating | 200 psi |
| Maximum Temperature Rating | 200 Degrees F (93 Degrees C) |
| Wet Line Installation | Yes |
| Rotatable for Installation | Yes |
Toolup Part # :
881990
