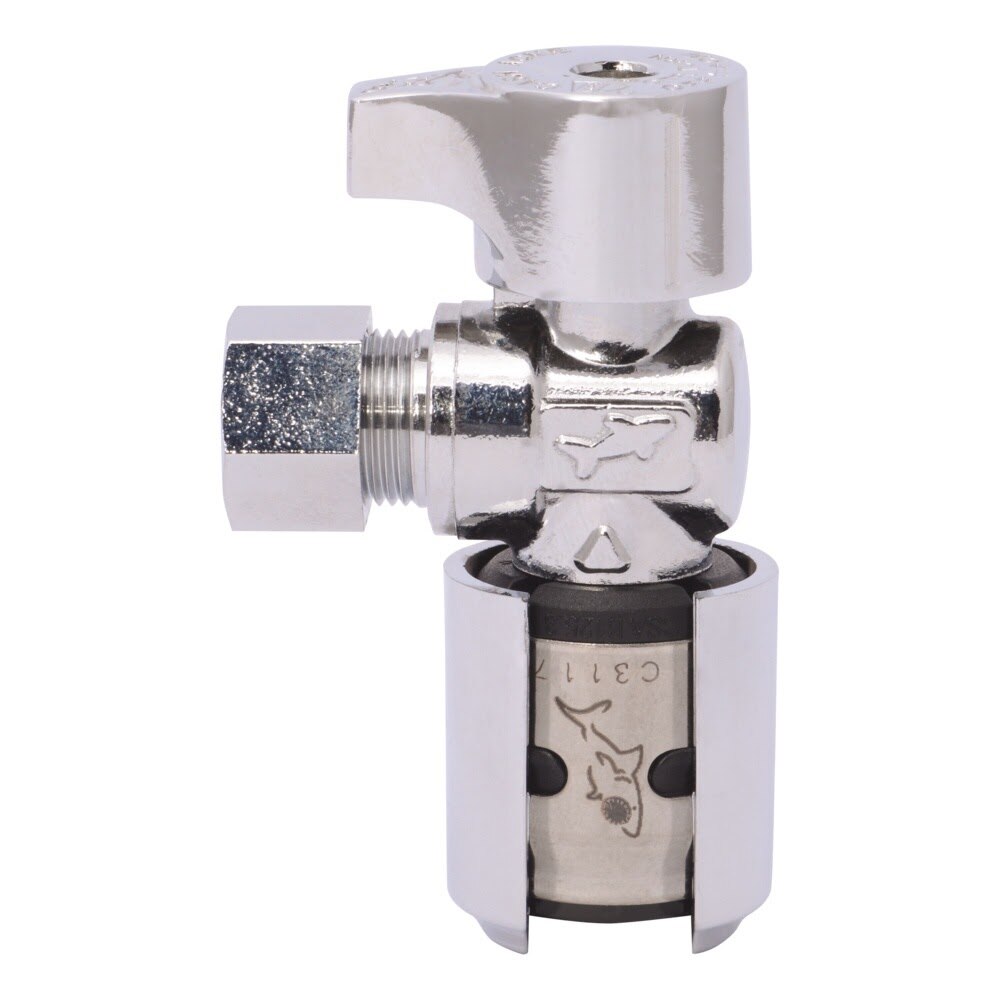

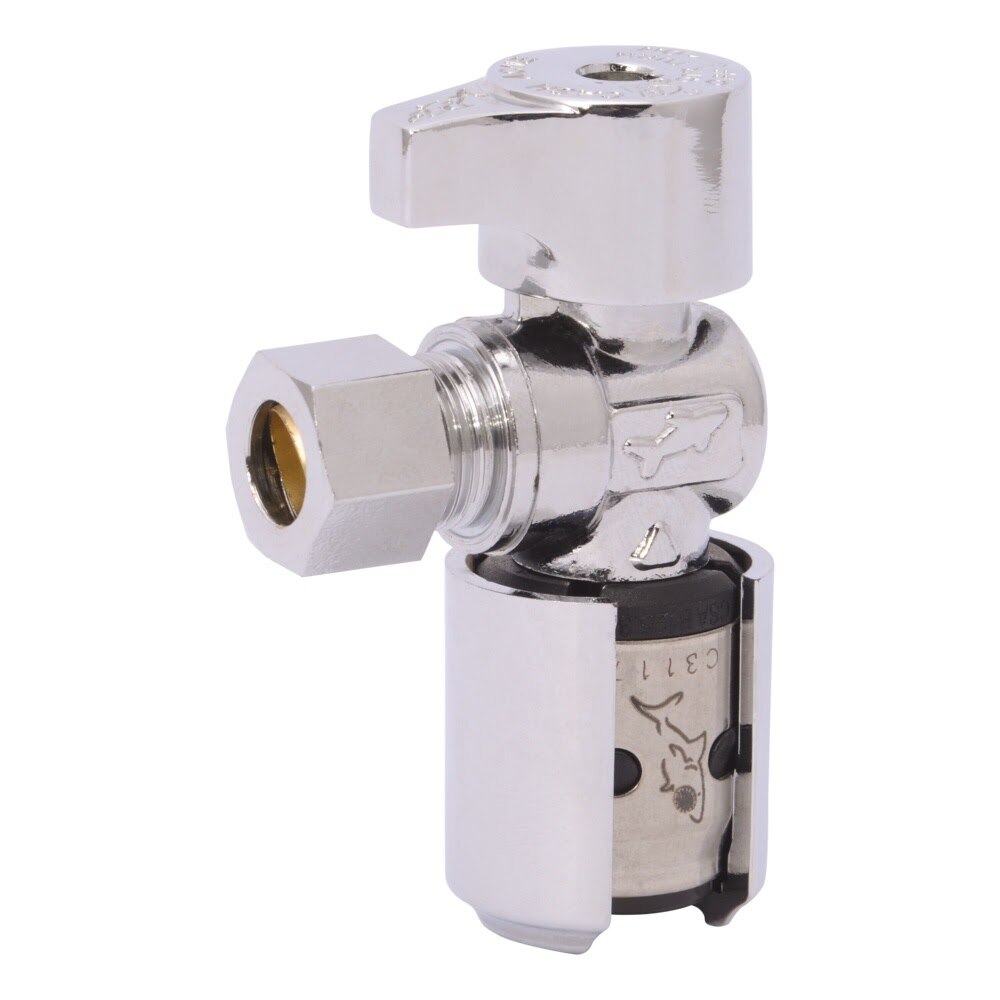

SharkBite K23036 Description
The SharkBite EvoPEX 1/2 in. x 3/8 in. OD compression angle stop is a quarter-turn shutoff valve designed for residential and commercial plumbing systems. It features an EvoPEX push-to-connect inlet, a compression outlet, and an included escutcheon for a clean finished installation in potable water and glycol applications.
SharkBite K23036 Includes

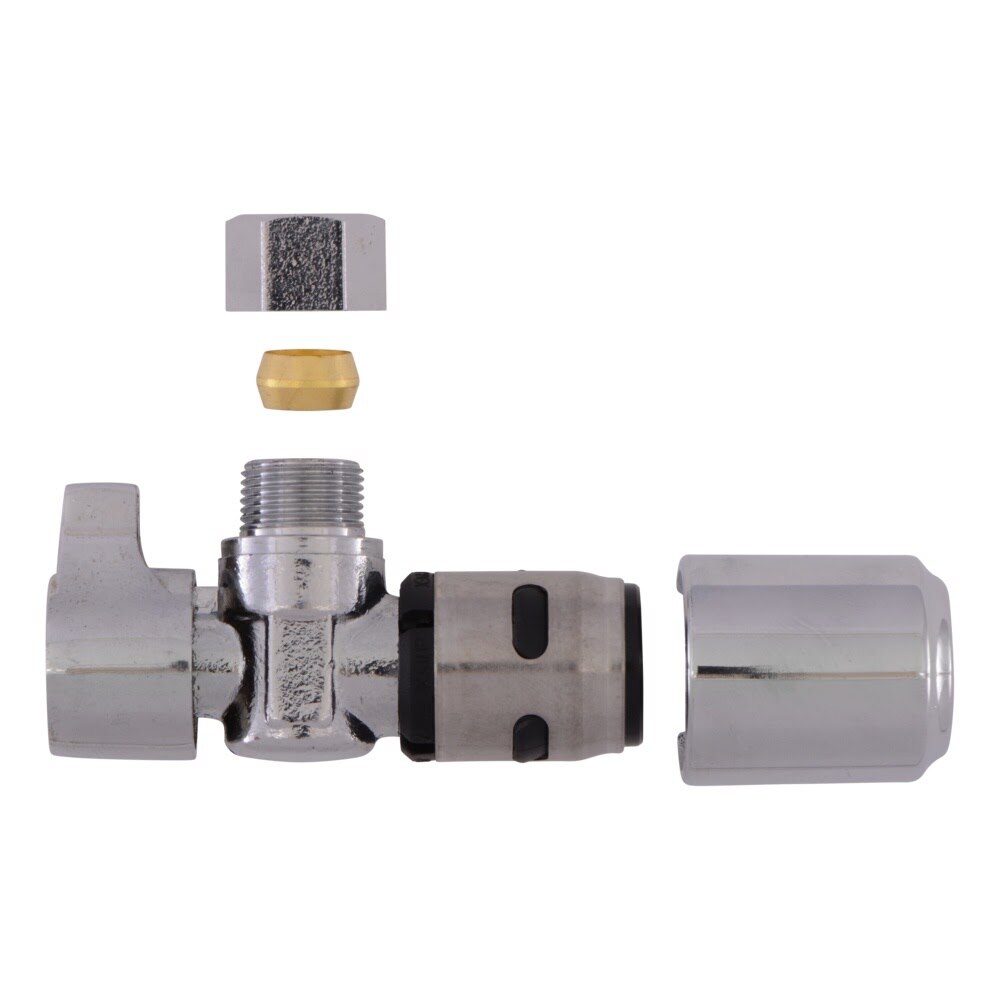

- (1) 1/2 in. x 3/8 in. OD Compression Angle Stop Valve
- (1) Escutcheon
SharkBite K23036 Features
- EvoPEX push-to-connect inlet allows quick installation and immediate testing
- 3/8 in. OD compression outlet connects to fixture supply lines
- Includes escutcheon for a clean finished appearance
- Quarter-turn brass ball provides secure shutoff
- No tools, solder, clamps, rings, unions, or glue required on the EvoPEX end
- Visual indicator helps confirm connection
- DZR lead-free brass construction offers corrosion resistance
- Approved for potable water and glycol up to 100% mix in hot and cold domestic water systems and radiant heating systems
SharkBite K23036 Specifications
| Series | EvoPEX |
| Product Type | Angle Stop |
| Size | 1/2 in. x 3/8 in. OD |
| Connection Type | EvoPEX x Compression |
| Body Material | DZR LF Brass |
| Seat Material | PTFE |
| Olive Material | Copper |
| Ball Material | DZR LF Brass |
| Stem O-Rings Material | EPDM |
| Stem Material | Brass |
| Pressure Rating at 73.4 DegreeF | 200 psi |
| Pressure Rating at 180 DegreeF | 100 psi |
| Pressure Rating at 200 DegreeF | 80 psi |
| A Dimension | 2.65 in. |
| B Dimension | 1.63 in. |
| Product Weight | 0.244 lb |
| Certifications | NSF/ANSI 359, ASTM F877, ASME A112.18.1/CSA B125.1-12, NSF/ANSI 61, NSF 372, IAPMO listed |
| Application | Potable water and glycol systems; residential and commercial |
