SharkBite K520WP2 Description

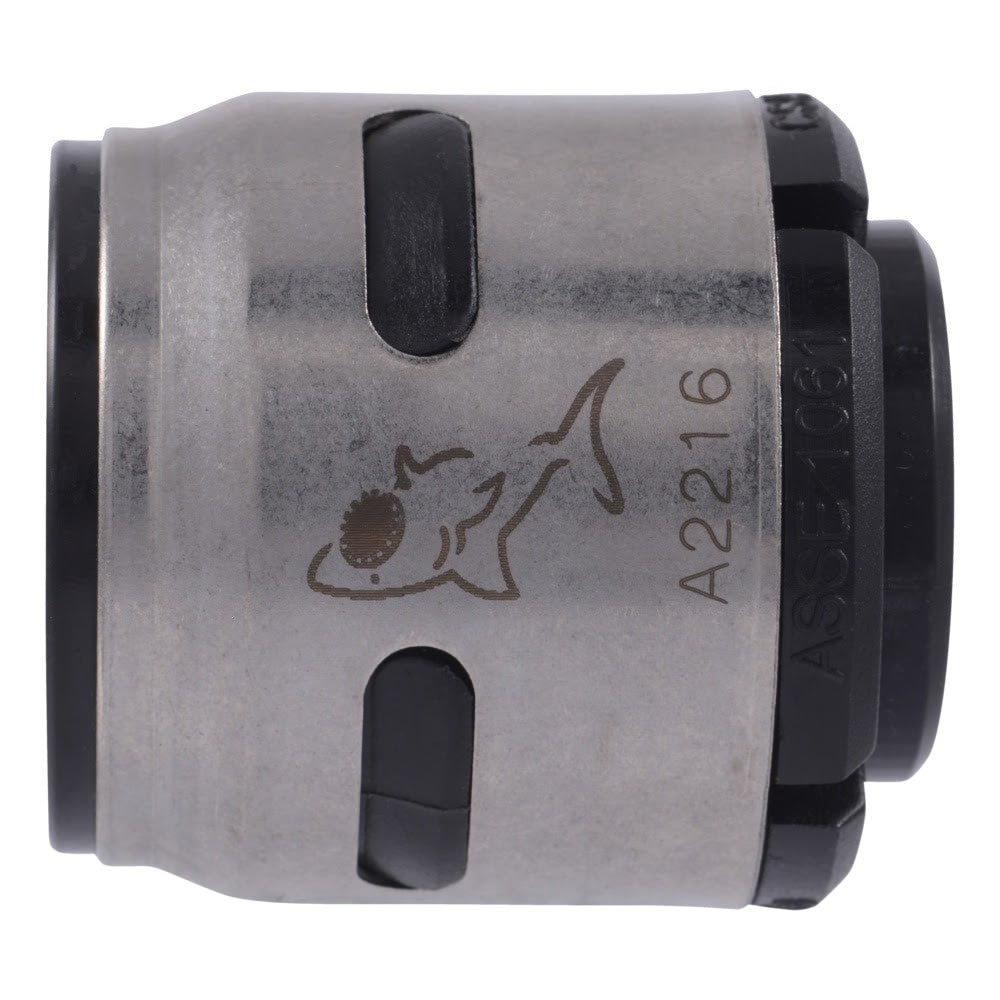

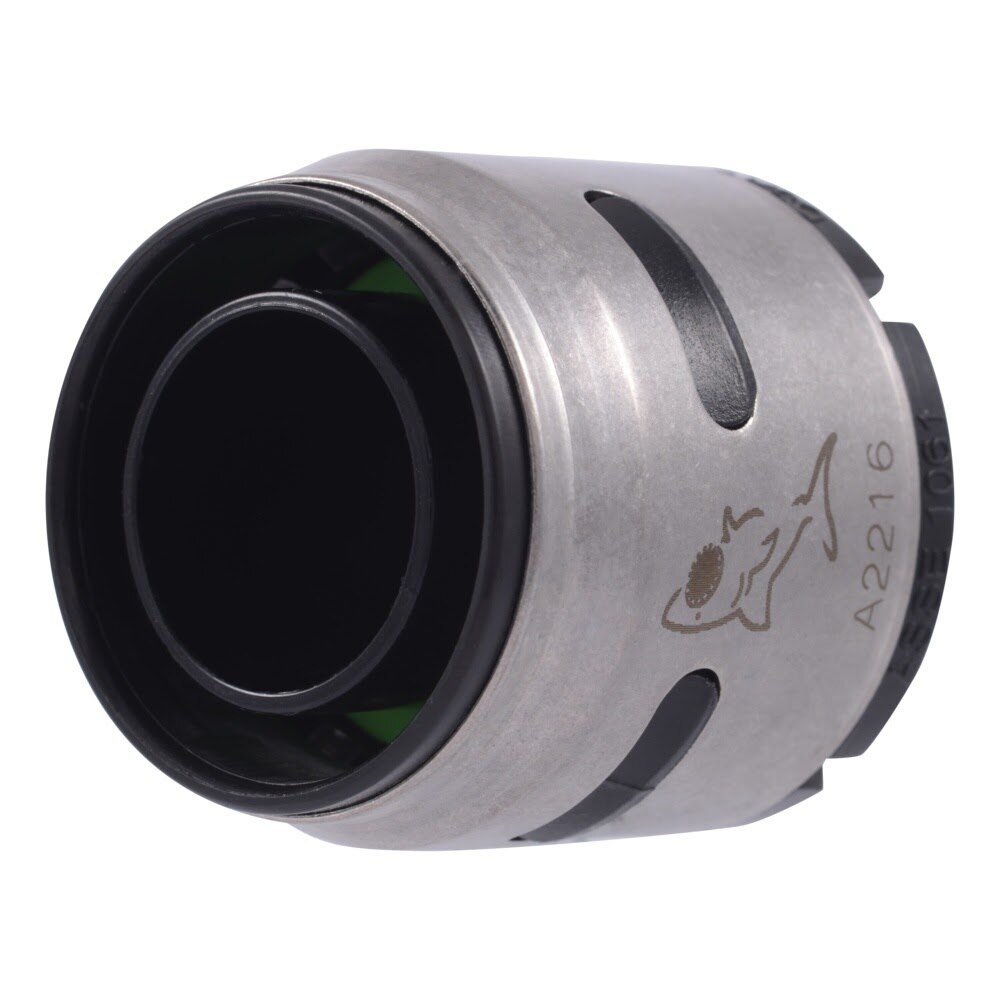

The SharkBite EvoPEX 1 in. end cap offers a fast push-to-connect way to seal off PEX and CPVC lines. It installs without soldering, clamps, unions, or glue, and uses a visible green indicator ring to help confirm a secure connection. This fitting is suitable for potable water and radiant heating applications, including underground or behind-the-wall installations.
SharkBite K520WP2 Includes
- (2) SharkBite EvoPEX 1 in. End Caps
SharkBite K520WP2 Features
- Push-to-connect installation for fast line termination
- No soldering, clamps, unions, or glue required

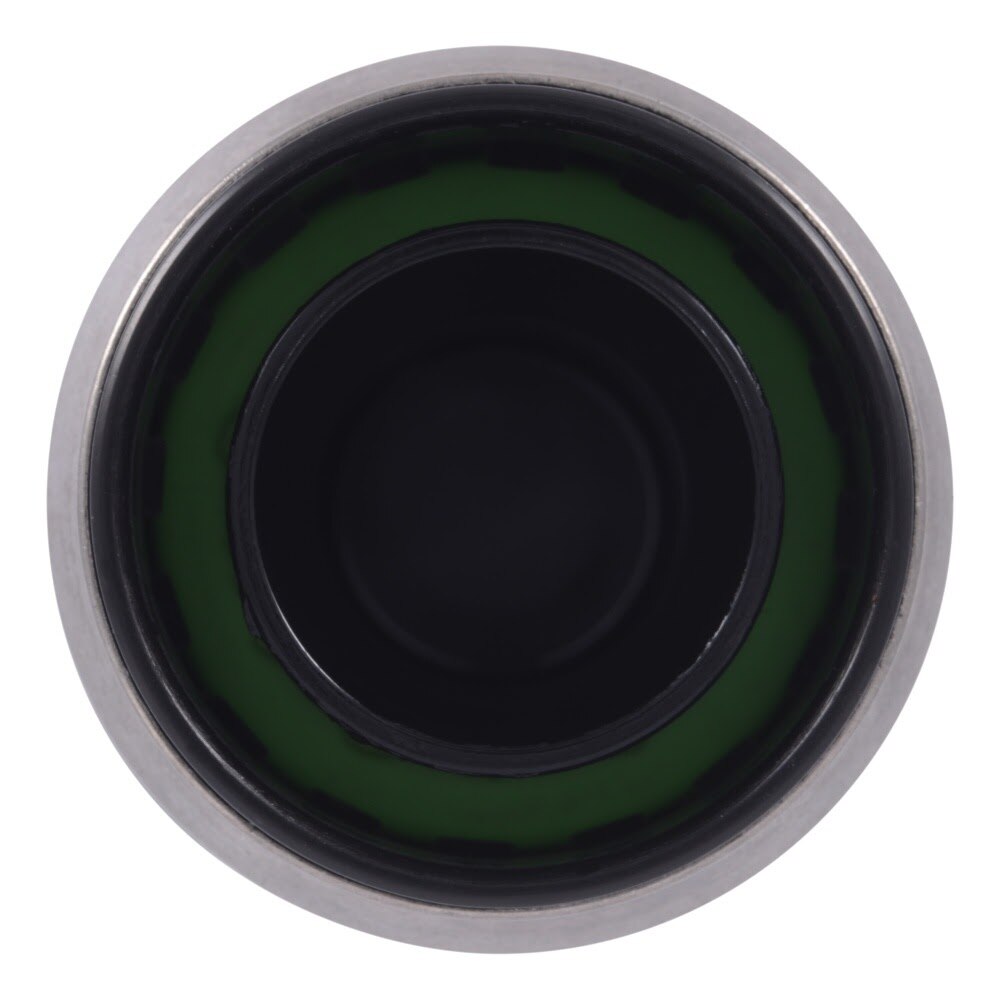

- Green indicator ring helps verify a secure connection
- For potable water and radiant heating applications
- Suitable for underground or behind-the-wall installations
- Rated to 160 psi at 73.4 F
- Rated to 100 psi at 180 F
- Rated to 80 psi at 200 F
SharkBite K520WP2 Specifications
| Type | End Cap |
| Product Line | EvoPEX |
| Size | 1 in. |
| Fitting System Compatibility | Push Fit |
| Tubing Compatibility | PEX, CPVC |
| Application | Potable Water, Radiant Heating |
| Material | Acudel |
| Insertion Depth | 1-5/16 in. |
| Standards Met | NSF |
| Warranty | 25 Year |
| Pressure Rating at 73.4 F | 160 psi |
| Pressure Rating at 180 F | 100 psi |
| Pressure Rating at 200 F | 80 psi |
| Shipping Weight | 0.17 lb |
Toolup Part # :
884827
