SharkBite PM024UP Description

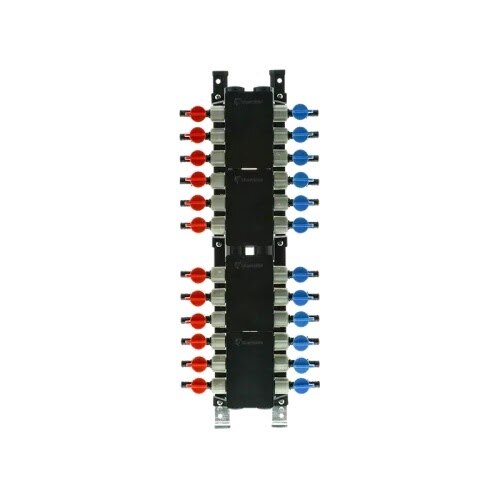

The SharkBite PM024UP 24-port home-run manifold provides centralized control of water lines in PEX or PE-RT plumbing systems. Made from high-performance Acudel polymer, this corrosion-resistant manifold uses poly crimp ball valves and connects to PEX pipe with copper crimp rings or stainless steel clamp rings for potable water and hydronic heating applications.
SharkBite PM024UP Includes
- (1) 24 Port manifold with poly crimp ball valves
SharkBite PM024UP Features
- 24-port home-run manifold allows centralized control of water lines
- Compatible with PEX or PE-RT pipe
- Made from high-performance Acudel polymer
- Connects to PEX pipe with copper crimp rings or stainless steel clamp rings
- Corrosion-resistant design for potable water systems
- Certified for potable water and hydronic heating system applications
- Minimum working temperature of 33 F at 160 psi
- Maximum working temperature of 200 F at 80 psi
SharkBite PM024UP Specifications
| Port Count | 24 |
| Inlet Size | 3/4 in. |
| Outlet Size | 1/2 in. |
| Valve Type | Poly ball valves |
| Compatible Pipe | PEX or PE-RT |
| Material | Acudel Polymer |
| Connection Type | Copper crimp rings or stainless steel clamp rings |
| Minimum Working Temperature | 33 F at 160 psi |
| Maximum Working Temperature | 200 F at 80 psi |
| Application | Potable water and hydronic heating systems |
| Product Length (in) | 25.00 |
| Product Width (in) | 5.50 |
| Product Height (in) | 4.90 |
| Product Weight (lbs) | 6.26 |
Toolup Part # :
882249
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
