SharkBite U5260LFA Description

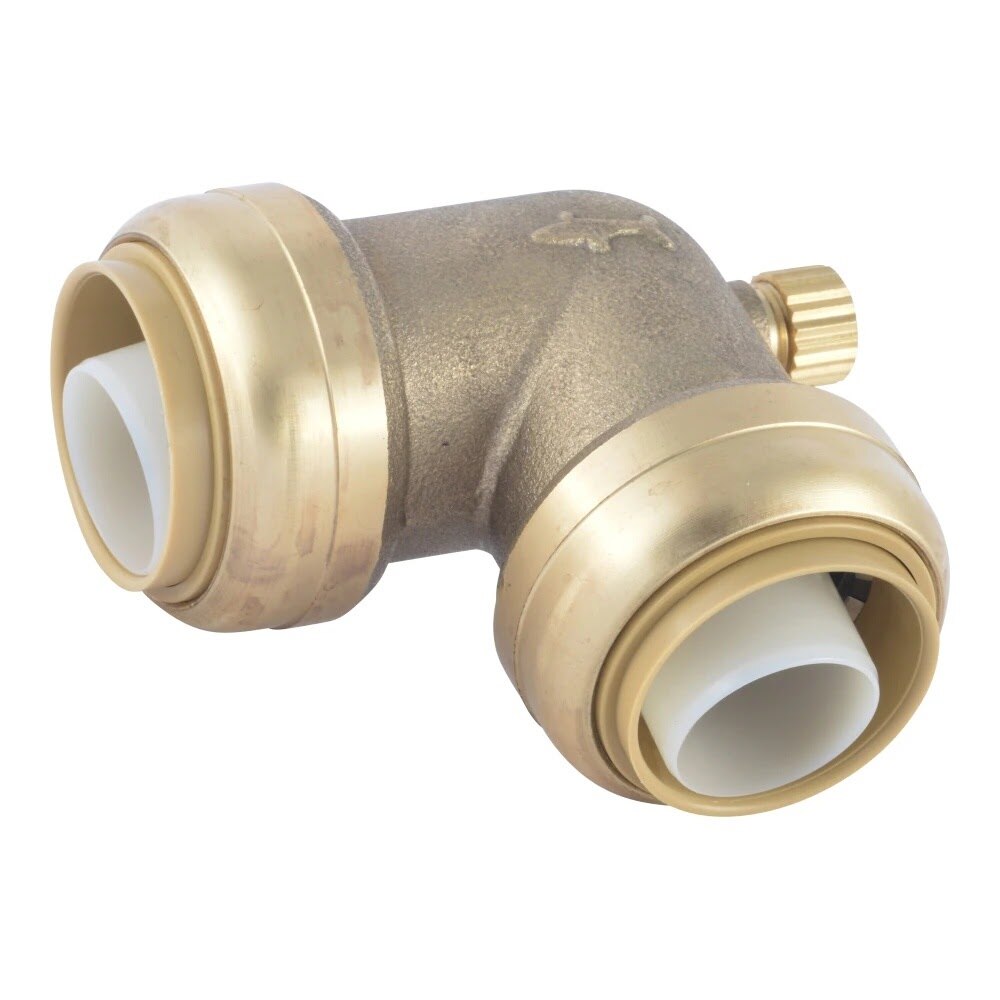

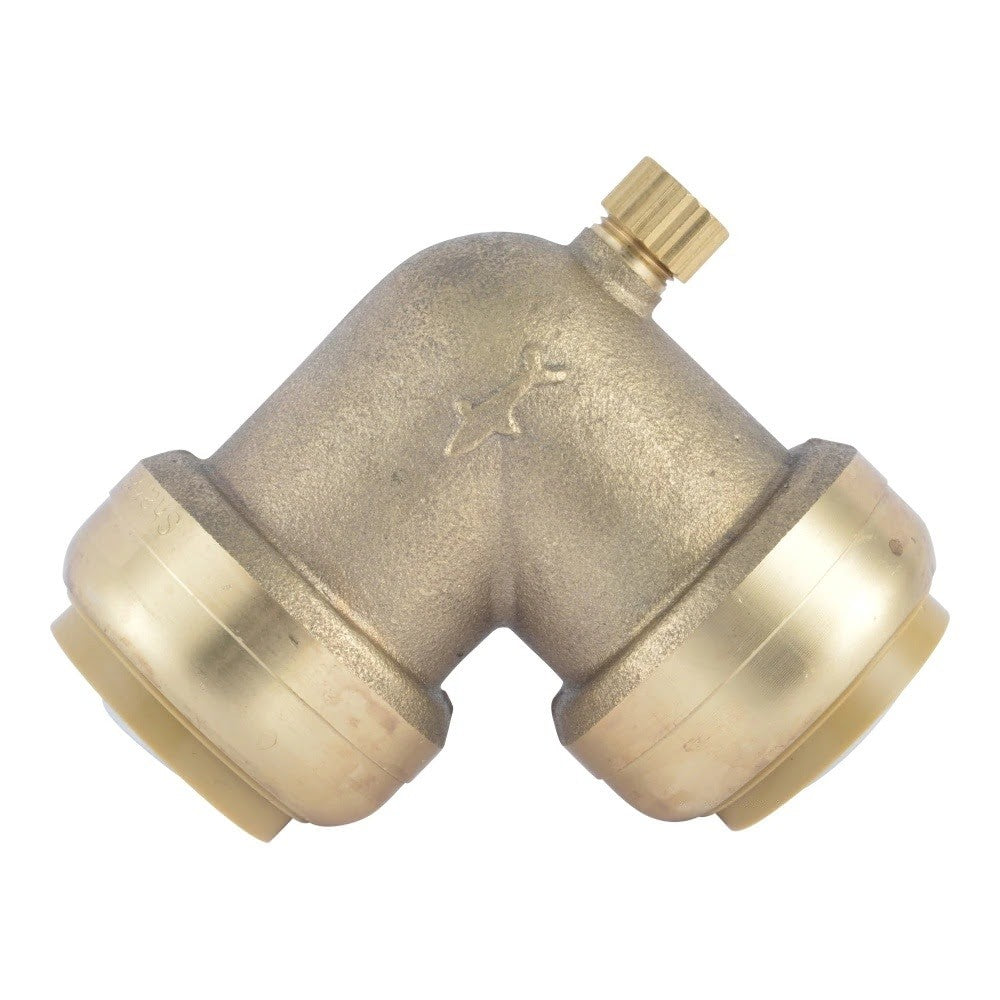

The SharkBite U5260LFA is a 1 in. push-to-connect 90 Degree elbow with a 1/8 in. NPSM drain for making fast water line connections and draining the line when needed. Its low-lead brass body connects copper, PEX, CPVC, PE-RT, and HDPE pipe without soldering, clamps, glue, or special tools, making it ideal for tight spaces, repairs, and new installations on hot or cold water lines.
SharkBite U5260LFA Includes
- (1) 1 in. Push-to-Connect 90 Degree Elbow with 1/8 in. NPSM Drain
SharkBite U5260LFA Features
- Push-to-connect design installs without soldering, clamps, glue, or special tools
- Connects 1 in. copper, PEX, CPVC, PE-RT, and HDPE pipe in any combination
- Built-in 1/8 in. NPSM drain helps drain the line after shutoff
- Works on wet or dry lines and can be pressure tested immediately
- Rotatable after installation and removable with a disconnect tool
- Ideal for installation in tight spaces
- Low-lead DZR brass body with stainless steel gripping teeth and chlorine-resistant O-ring
- Rated to 200 F and 200 PSI
- Approved for underground and behind-the-wall applications when wrapped for burial
- IAPMO listed and backed by a 25-year limited warranty
SharkBite U5260LFA Specifications
| Brand | SharkBite |
| Product Type | Elbow |
| Sub Type | Standard elbow |
| Material | Brass |
| Connection Type End 1 | Push-to-connect |
| Connection Type End 2 | Push-to-connect |
| Diameter End 1 | 1 in. |
| Diameter End 2 | 1 in. |
| Angle | 90 Degree |
| Drain Connection | 1/8 in. NPSM |
| Drain/Vent | Yes |
| Compatible Pipe Materials | Copper, PEX, CPVC, PE-RT, HDPE |
| Maximum Working Temperature | 200 F |
| Minimum Working Temperature | 33 F |
| Maximum Working Pressure | 200 PSI |
| Removable | Yes |
| Rotatable After Installation | Yes |
| For Use with RVs | Yes |
| Safety Listing | IAPMO |
| Code Approvals | IAPMO/ANSI Z1157, NSF/ANSI/CAN 61, NSF/ANSI 372 |
| Warranty | 25-year limited |
| Item Weight | 0.49 lb |
| UPC | 697285050037 |
