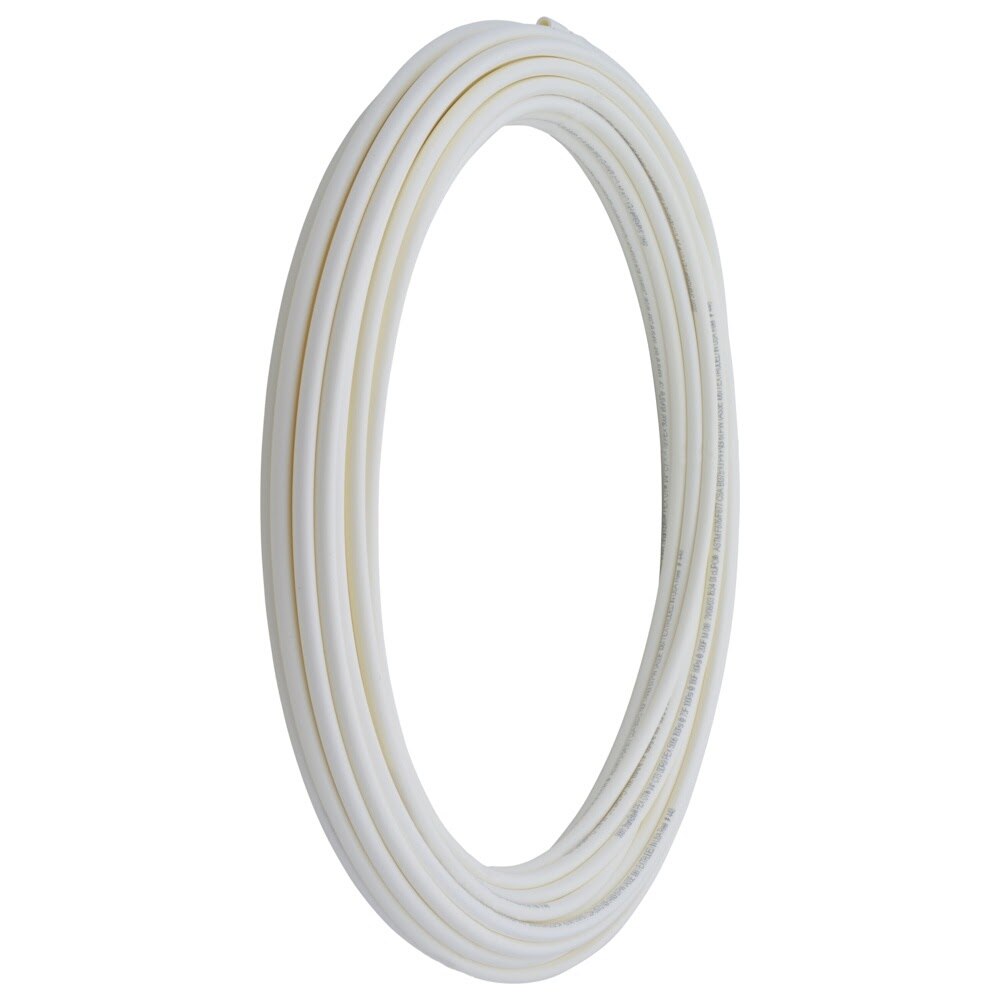

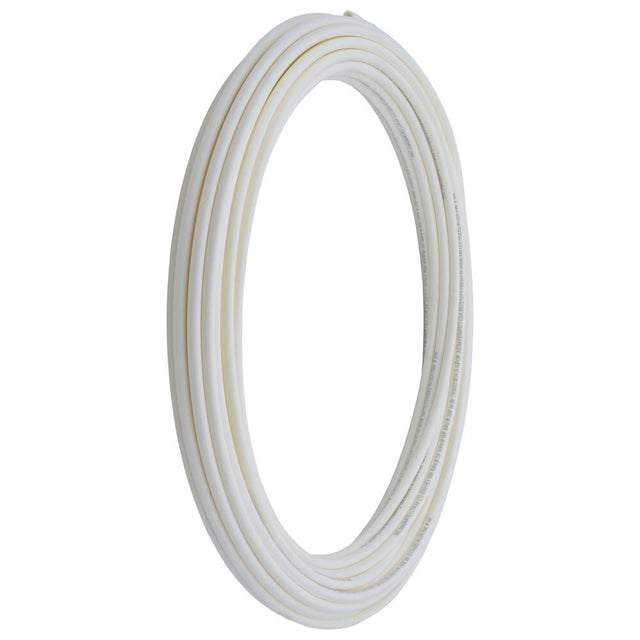

SharkBite U850W5 Description
This SharkBite 1/4 in. x 5 ft. white PEX-b pipe stick is designed for potable water applications. Its flexible construction helps reduce connection points compared to rigid pipe and it is approved for use with compatible SharkBite and barb fittings.
SharkBite U850W5 Includes
- (1) 1/4 in. x 5 ft. White PEX-b Pipe Stick
SharkBite U850W5 Features
- Flexible PEX-b pipe helps reduce connection points compared to rigid pipe
- Suitable for hot and cold potable water distribution
- Freeze-resistant pipe can expand slightly if frozen and contract when thawed
- Offers the highest-rated chlorine resistance
- Provides six-month UV resistance
- Approved for water service lines and burial applications, including under concrete
- Compatible with SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb, and brass barb fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Minimum working temperature is 33 F at 160 psi
- Maximum working temperature is 200 F at 80 psi
- Maximum working pressure is 160 psi at 33 F to 70 F
- Made in USA
SharkBite U850W5 Specifications
| Brand | SharkBite |
| Product Type | Pipe |
| Pipe Material | PEX-b |
| Color | White |
| Nominal Size | 1/4 in. |
| Length | 5 ft. |
| Form | Straight length stick |
| Application | Potable water distribution |
| Compatible Fittings | SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb ASTM F2159, brass barb ASTM F1807 |
| Chlorine Resistance | Highest-rated |
| UV Resistance | 6 months |
| Burial Approved | Yes, including under concrete |
| Hot Water Recirculation | Certified to ASTM F2023 oxidative-resistance requirements |
| Minimum Working Temperature | 33 F @ 160 psi |
| Maximum Working Temperature | 200 F @ 80 psi |
| Maximum Working Pressure | 160 psi @ 33 F to 70 F |
| Country of Manufacture | USA |
Toolup Part # :
883914
