At a Glance
Overall Length
100 ft
Pipe Size
1/2 in
Material
PEX-C
Sold As
Individual
Application
Hydronic Heating
Description
Description
SharkBite U860O100 Description

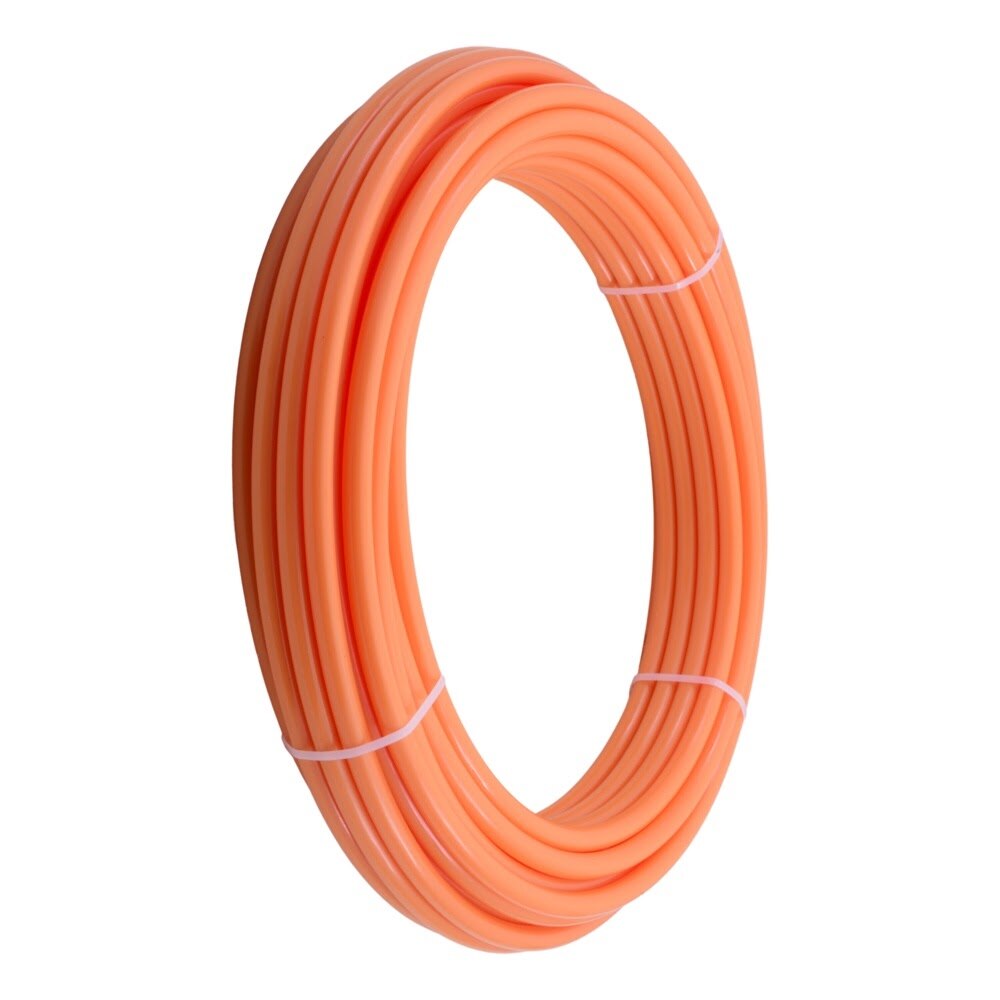

The SharkBite 1/2 in. x 100 ft. orange oxygen barrier PEX-C pipe coil is designed for radiant in-floor and hydronic heating applications. Its exterior oxygen diffusion barrier helps limit oxygen permeation through the pipe wall to reduce corrosion of ferrous metal components in the heating system. This coil is also approved for burial applications, including concrete.
SharkBite U860O100 Includes
- (1) 1/2 in. x 100 ft. Orange Oxygen Barrier PEX-C Pipe Coil
SharkBite U860O100 Features
- Designed for radiant in-floor and hydronic heating applications
- Exterior oxygen barrier helps reduce corrosion in ferrous metal system components
- Approved for non-potable radiant heating systems
- Suitable for burial applications, including concrete
- Compatible with SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb, and brass barb fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Maximum working pressure of 160 psi at 33 Degree F to 70 Degree F
- Maximum working temperature of 200 Degree F at 80 psi
SharkBite U860O100 Specifications
| Brand | SharkBite |
| Part Number | U860O100 |
| Pipe Size | 1/2 in. |
| Coil Length | 100 ft. |
| Color | Orange |
| Material | PEX-C |
| Pipe Type | Oxygen Barrier PEX Pipe Coil |
| Application | Radiant in-floor and hydronic heating |
| Burial Approved | Yes, including concrete |
| Maximum Working Pressure | 160 psi at 33 Degree F to 70 Degree F |
| Minimum Working Temperature | 33 Degree F at 160 psi |
| Maximum Working Temperature | 200 Degree F at 80 psi |
| Compatible Fittings | SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb ASTM F2159, brass barb ASTM F1807 |
| Package Width | 6.00 in. |
| Package Height | 29.00 in. |
| Package Length | 29.00 in. |
| Shipping Weight | 5.84 lb |
Toolup Part # :
882254
