SharkBite U860O300 Description

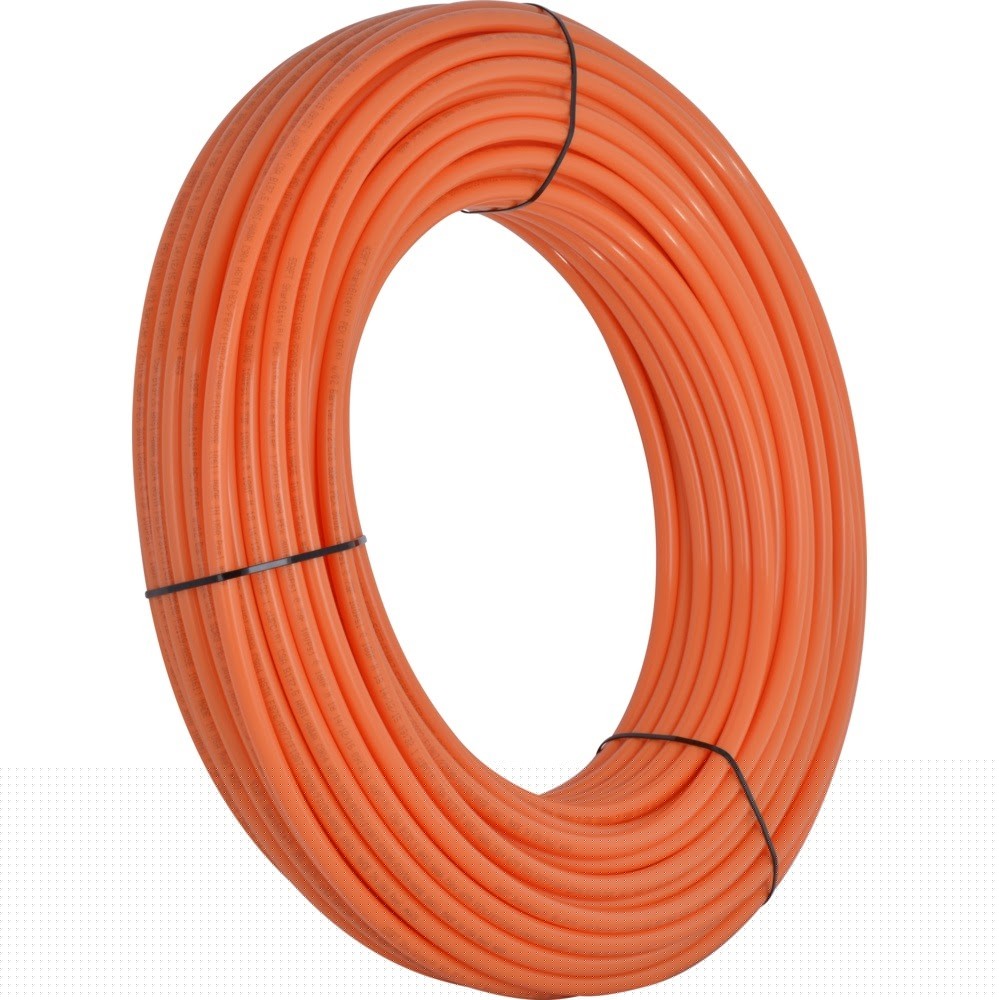

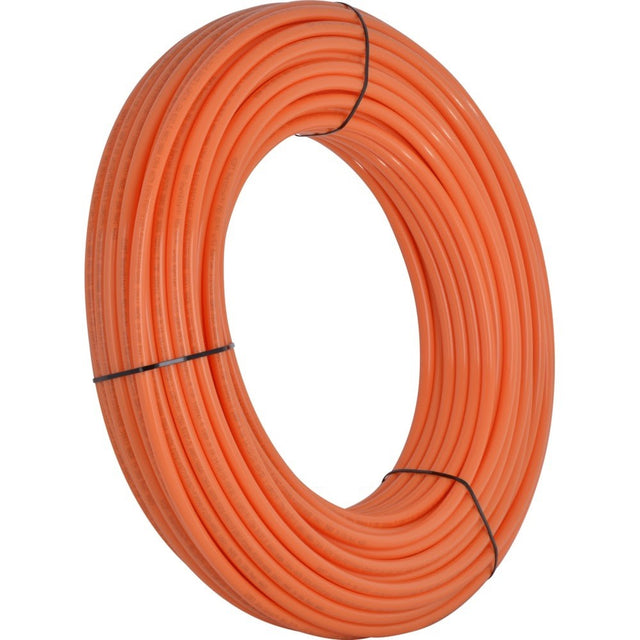

SharkBite oxygen barrier PEX-C pipe is designed for non-potable radiant in-floor and hydronic heating applications. This 1/2 in. x 300 ft. orange coil features an exterior oxygen diffusion barrier to help limit oxygen permeation and protect ferrous metal components from corrosion, and it is approved for burial applications including concrete.
SharkBite U860O300 Includes
- (1) 1/2 in. x 300 ft. Oxygen Barrier PEX-C Pipe Coil
SharkBite U860O300 Features
- Oxygen barrier helps reduce oxygen permeation in hydronic heating systems
- Approved for non-potable radiant heating systems and burial applications including concrete
- 300 ft. coil allows longer runs with fewer connections
- Compatible with SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb, and brass barb fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements
- Minimum working temperature is 33 F at 160 psi
- Maximum working temperature is 200 F at 80 psi
- Maximum working pressure is 160 psi at 33 F to 70 F
SharkBite U860O300 Specifications
| Nominal Size | 1/2 in. |
| Coil Length | 300 ft. |
| Color | Orange |
| Material | PEX-C cross-linked polyethylene |
| Pipe Type | Oxygen Barrier PEX Pipe |
| Applications | Radiant in-floor heating, hydronic heating, burial applications including concrete |
| System Use | Non-potable radiant heating systems |
| Compatible Fittings | SharkBite EvoPEX, SharkBite Universal push-to-connect (ASSE 1061), plastic barb (ASTM F2159), brass barb (ASTM F1807) |
| Certification | ASTM F2023 oxidative-resistance requirements |
| Minimum Working Temperature | 33 F @ 160 psi |
| Maximum Working Temperature | 200 F @ 80 psi |
| Maximum Working Pressure | 160 psi @ 33 F to 70 F |
| Product Length (in) | 33.00 |
| Product Width (in) | 33.00 |
| Product Height (in) | 4.75 |
| Shipping Weight (lb) | 16.31 |
