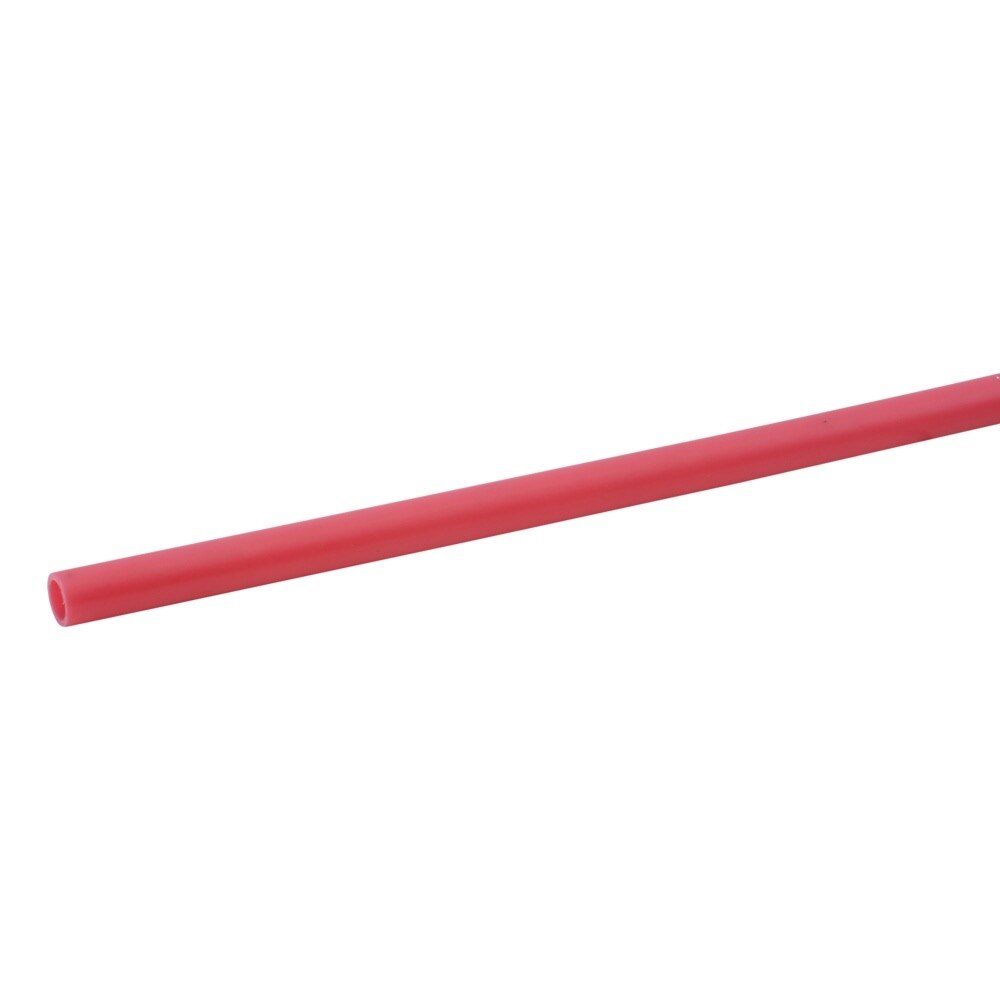

SharkBite U860R5 Description
SharkBite PEX-B is a flexible cross-linked polyethylene pipe stick designed for residential and commercial hot or cold potable water plumbing applications. It is durable, corrosion- and freeze-resistant, and compatible with push-to-connect, plastic barb, and brass barb fittings to help simplify installation and reduce leak points.
SharkBite U860R5 Includes
- (1) 1/2 in. x 5 ft. Red PEX-B Pipe Stick
SharkBite U860R5 Features
- Flexible PEX-B tubing for residential and commercial plumbing applications
- Designed for hot or cold potable water plumbing use
- Corrosion- and freeze-resistant construction
- Helps reduce the number of fittings needed during installation
- Compatible with push-to-connect fittings
- Compatible with plastic barb fittings
- Compatible with brass barb fittings
- Approved for water service lines and burial applications, including under concrete
- Highest-rated chlorine resistance
- Six-month UV resistance
- Rated up to 160 PSI at 33 to 70 Degrees F
- Rated up to 200 Degrees F at 80 PSI
- Made in USA
SharkBite U860R5 Specifications
| Color | Red |
| Material | PEX |
| PEX Type | PEX-B |
| Pipe Diameter | 1/2-in |
| Pipe Length | 5-ft |
| Common Use | Potable water |
| Maximum Working Temperature | 200 Degrees F |
| Minimum Working Temperature | 33 Degrees F |
| Maximum Working Pressure | 160 PSI |
| Product Length | 60.00 in |
| Product Width | 0.50 in |
| Product Height | 0.50 in |
| Product Weight | 0.29 lb |
| Complies with Federal Lead Guidelines | Yes |
| Safety Listing | NSF safety listing |
| Warranty | 25-year limited |
| Code Approvals | ANSI/NSF 61, ANSI/NSF 14, CSA B137.5, ASTM F876, ASTM F877, ASTM F2023, ASTM F2657, ASTM E84, AWWA C904, UL 1821, and CAN/ULC S102.2 |
