SharkBite U870O20 Description

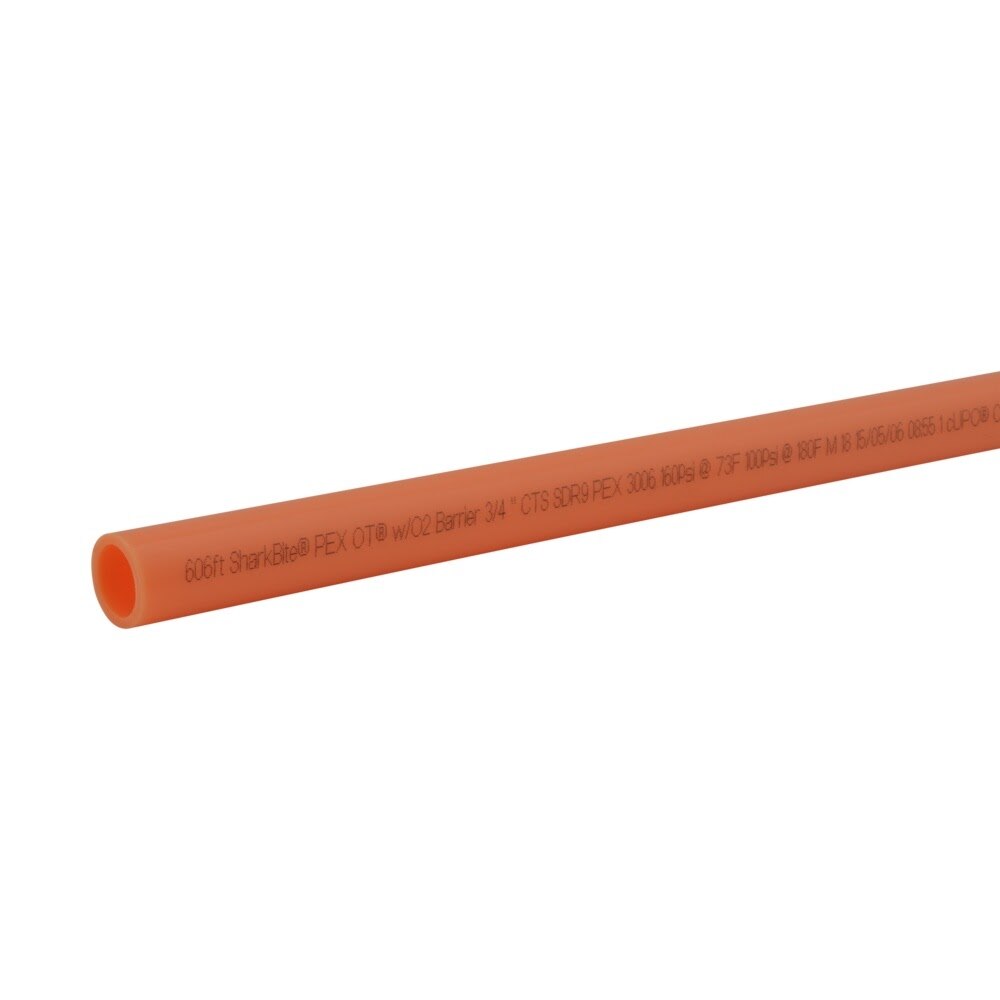

The SharkBite 3/4 in. x 20 ft. orange oxygen barrier PEX-C pipe stick is designed for non-potable radiant floor and hydronic heating applications. Its exterior oxygen diffusion barrier helps reduce corrosion of ferrous system components, and the pipe is approved for burial applications including concrete.
SharkBite U870O20 Includes
- (1) 3/4 in. x 20 ft. Orange Oxygen Barrier PEX-C Pipe Stick
SharkBite U870O20 Features
- Approved for non-potable radiant heating systems
- Suitable for burial applications including concrete
- Exterior oxygen barrier helps limit oxygen permeation and reduce corrosion of ferrous components
- Flexible PEX-C construction helps reduce connection points and potential leak points
- Compatible with SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb ASTM F2159, and brass barb ASTM F1807 fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Maximum working pressure is 160 psi at 33 F to 70 F
- Working temperature range is 33 F to 200 F
SharkBite U870O20 Specifications
| Nominal Size | 3/4 in. |
| Length | 20 ft. |
| Color | Orange |
| Material | PEX-C |
| Pipe Type | Oxygen Barrier PEX Pipe Stick |
| Application | Non-potable radiant heating and hydronic heating |
| Burial Rated | Yes, including concrete |
| Compatible Fittings | SharkBite EvoPEX, SharkBite Universal push-to-connect, plastic barb ASTM F2159, brass barb ASTM F1807 |
| ASTM Standard | ASTM F2023 |
| Maximum Working Pressure | 160 psi @ 33 F to 70 F |
| Minimum Working Temperature | 33 F @ 160 psi |
| Maximum Working Temperature | 200 F @ 80 psi |
| Each Shipping Weight | 2.12 lb |
Toolup Part # :
882532
