SharkBite UA260 Description

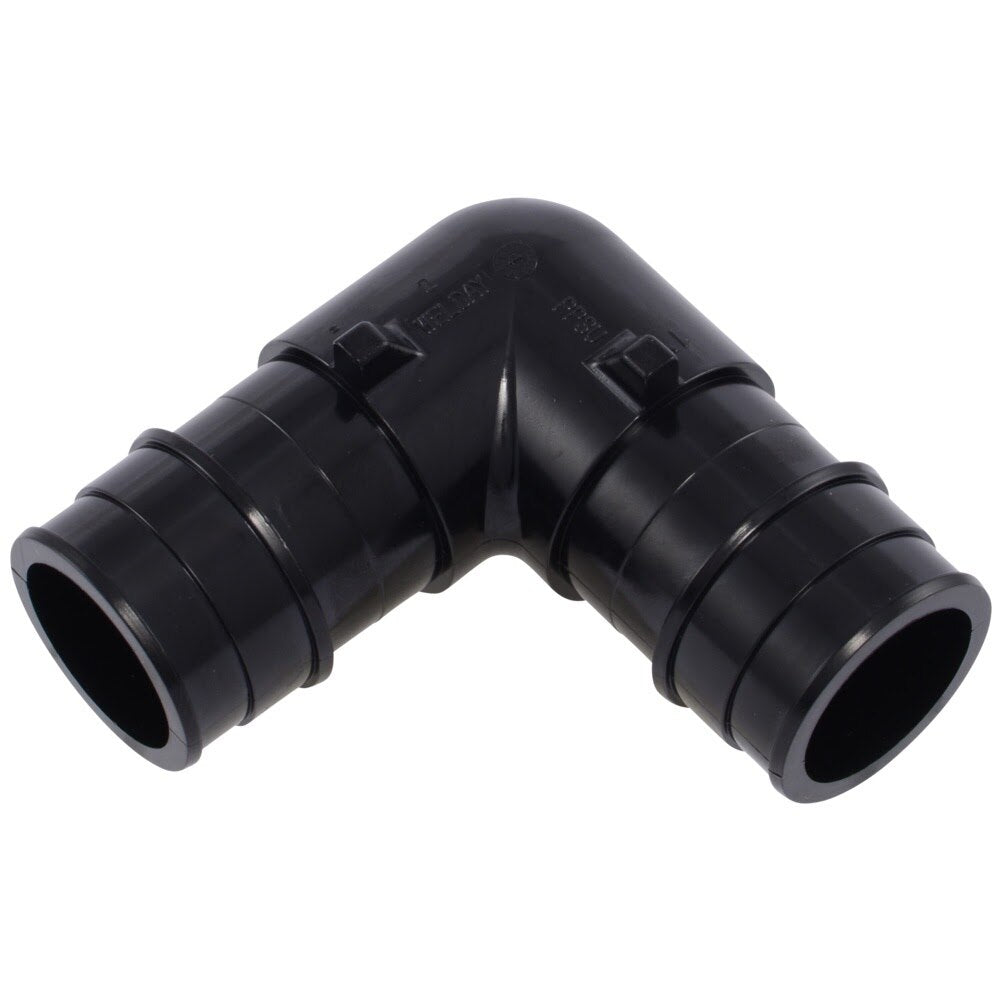

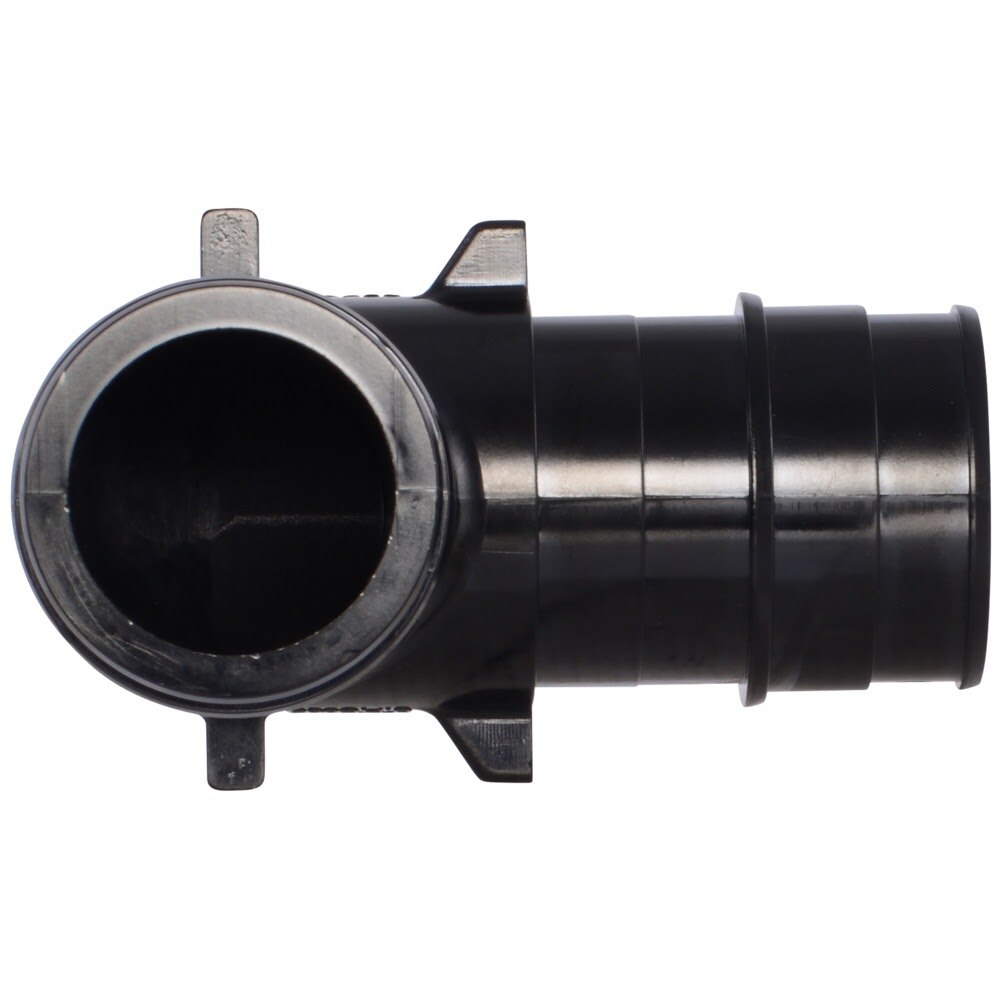

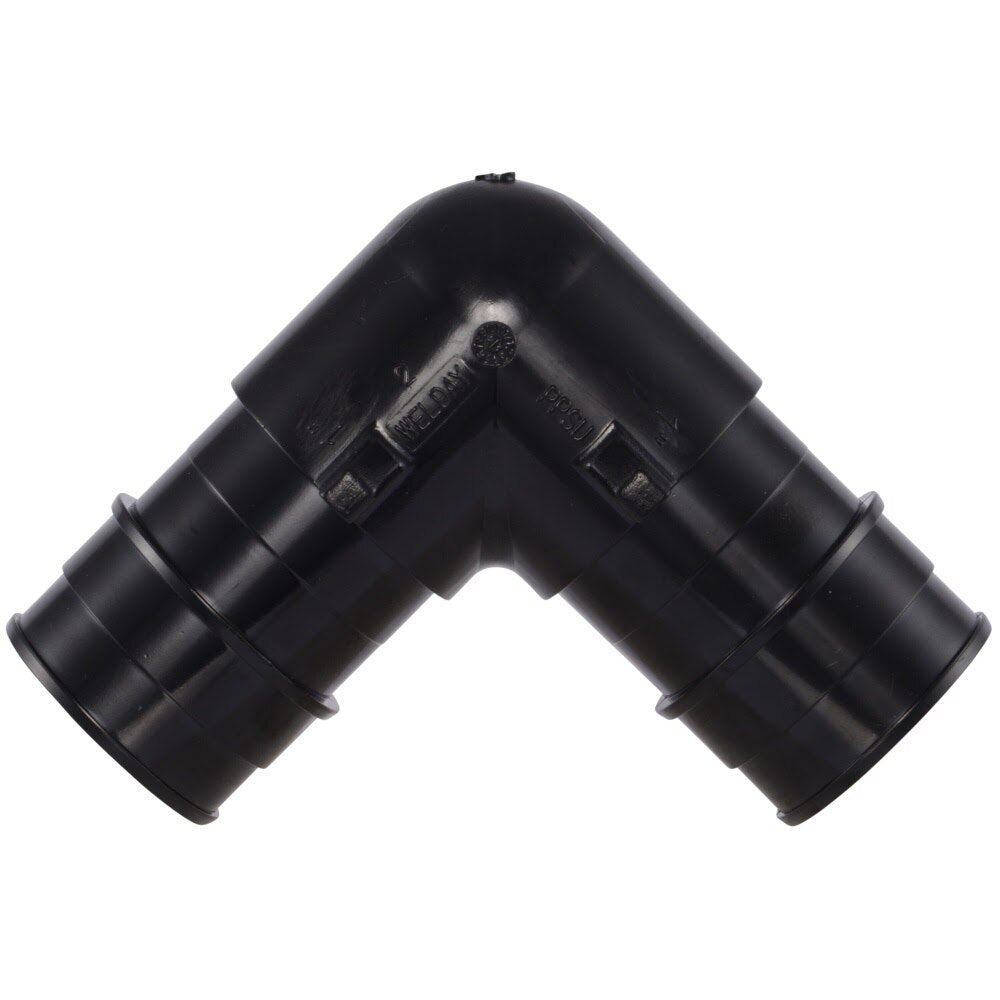

The SharkBite UA260 is a 1 in. x 1 in. poly expansion elbow designed to create a 90 degree turn in PEX-a tubing systems. Made from durable PPSU material and intended for use with SharkBite expansion rings, it is suitable for potable water, hydronic heating and cooling, reclaimed water, and direct burial applications.
SharkBite UA260 Includes
- (1) Poly Expansion Elbow
SharkBite UA260 Features
- 1 in. x 1 in. elbow fitting for changing direction in PEX-a plumbing runs
- Durable PPSU poly construction
- Designed for use with PEX-a tubing
- For use with SharkBite expansion rings
- Suitable for residential and commercial potable water systems
- Approved for hydronic heating and cooling applications with up to 50% glycol concentration
- Can be used in reclaimed water systems and direct burial installations
- Backed by a 25-year system warranty when used with SharkBite PEX-a tubing
SharkBite UA260 Specifications
| Product Type | Expansion Elbow |
| Nominal Size | 1 in. x 1 in. |
| Material | PPSU |
| Connection Type | PEX-A Expansion |
| Angle | 90 degree |
| Maximum Working Pressure | 80 psi at 200 F; 100 psi at 180 F; 160 psi at 73.4 F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling up to 50% glycol concentration, and direct burial |
| Certifications and Listings | ASTM F1960; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372; ASTM E84; CAN/ULC S102.2; ASTM E119; CAN/ULC S101 |
| Product Length (in) | 2.52 |
| Product Height (in) | 2.52 |
| Product Width (in) | 1.50 |
| Product Weight (lb) | 0.07 |
| Warranty | 25-year system warranty when used with SharkBite PEX-a tubing |
