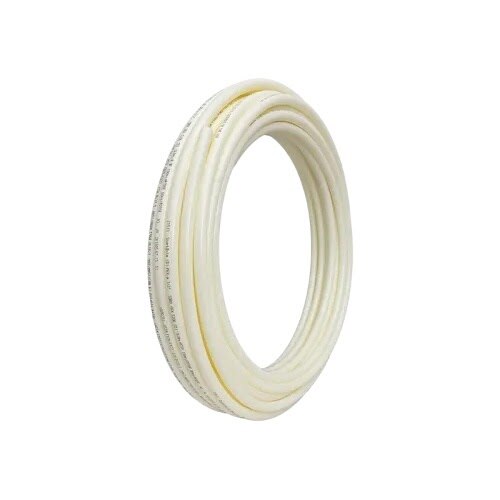

SharkBite UA60W500 Description
The SharkBite UA60W500 is a 1/2 in. x 500 ft. white PEX-a pipe coil designed for hot and cold potable water distribution, fire protection, and municipal water service lines. Its flexible, freeze-resistant construction helps reduce connections and speed installation, while six-month UV resistance and burial approval expand application options.
SharkBite UA60W500 Includes
- (1) 1/2 in. x 500 ft. White PEX-A Pipe Coil
SharkBite UA60W500 Features
- Flexible PEX-a pipe helps speed installation and reduce the number of connections
- Freeze-resistant material can expand slightly if frozen and contract when thawed
- Approved for hot and cold potable water distribution, fire protection, and municipal water service lines
- Approved for burial applications, including installation under concrete
- Offers six-month UV resistance
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Compatible with SharkBite EvoPEX, SharkBite Brass Push, ASTM F1960 expansion, ASTM F2159 plastic barb, and ASTM F1807 brass barb fittings
- Minimum working temperature is 33°F @ 160 psi, maximum working temperature is 200°F @ 80 psi, and maximum working pressure is 160 psi @ 33°F to 70°F
SharkBite UA60W500 Specifications
| Brand | SharkBite |
| Part Number | UA60W500 |
| UPC | 697285110304 |
| Nominal Size | 1/2 in. |
| Length | 500 ft. |
| Color | White |
| Pipe Type | PEX-a |
| Application | Hot and cold potable water distribution, fire protection, and municipal water service lines |
| Minimum Working Temperature | 33°F @ 160 psi |
| Maximum Working Temperature | 200°F @ 80 psi |
| Maximum Working Pressure | 160 psi @ 33°F - 70°F |
| UV Resistance | Six months |
| Burial Approved | Yes, including under concrete |
| Continuous Hot Water Recirculation | Certified to meet ASTM F2023 oxidative-resistance requirements |
| Compatible Fittings | SharkBite EvoPEX, SharkBite Brass Push (ASSE 1061), ASTM F1960 expansion, ASTM F2159 plastic barb, and ASTM F1807 brass barb fittings |
