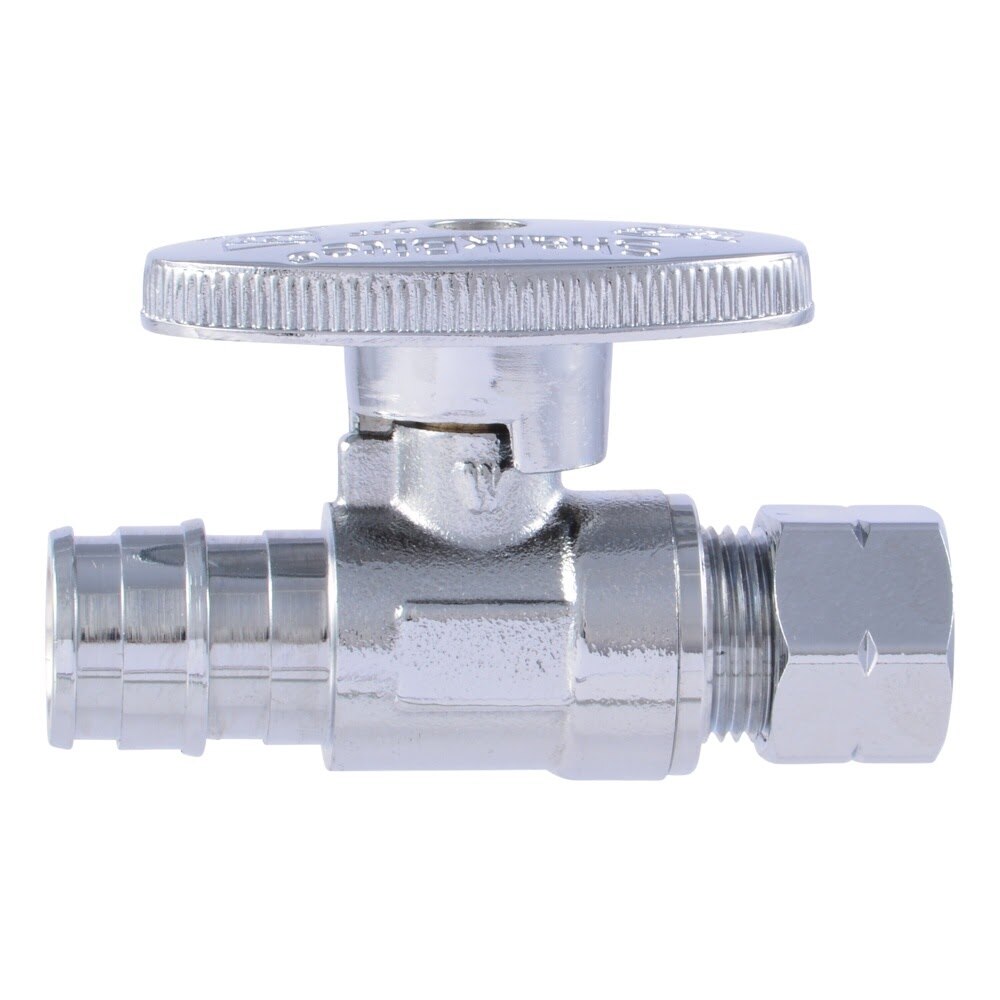

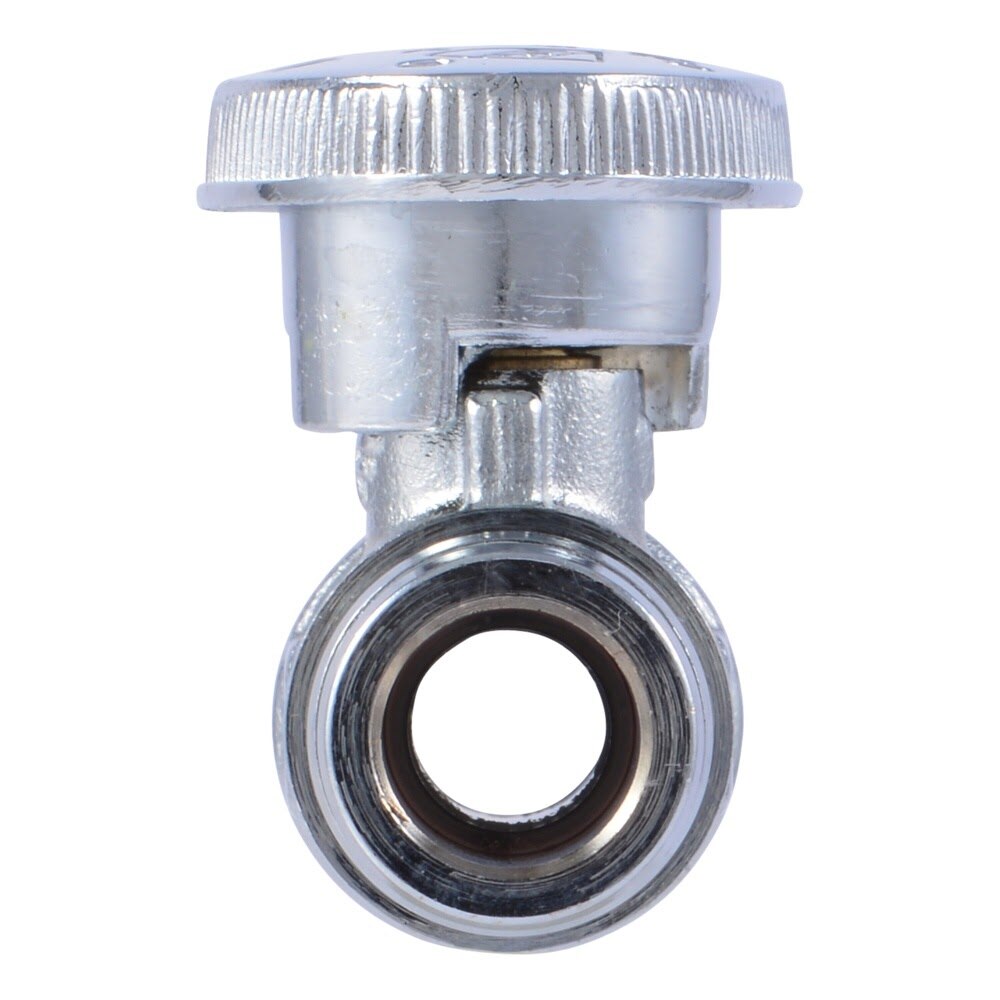

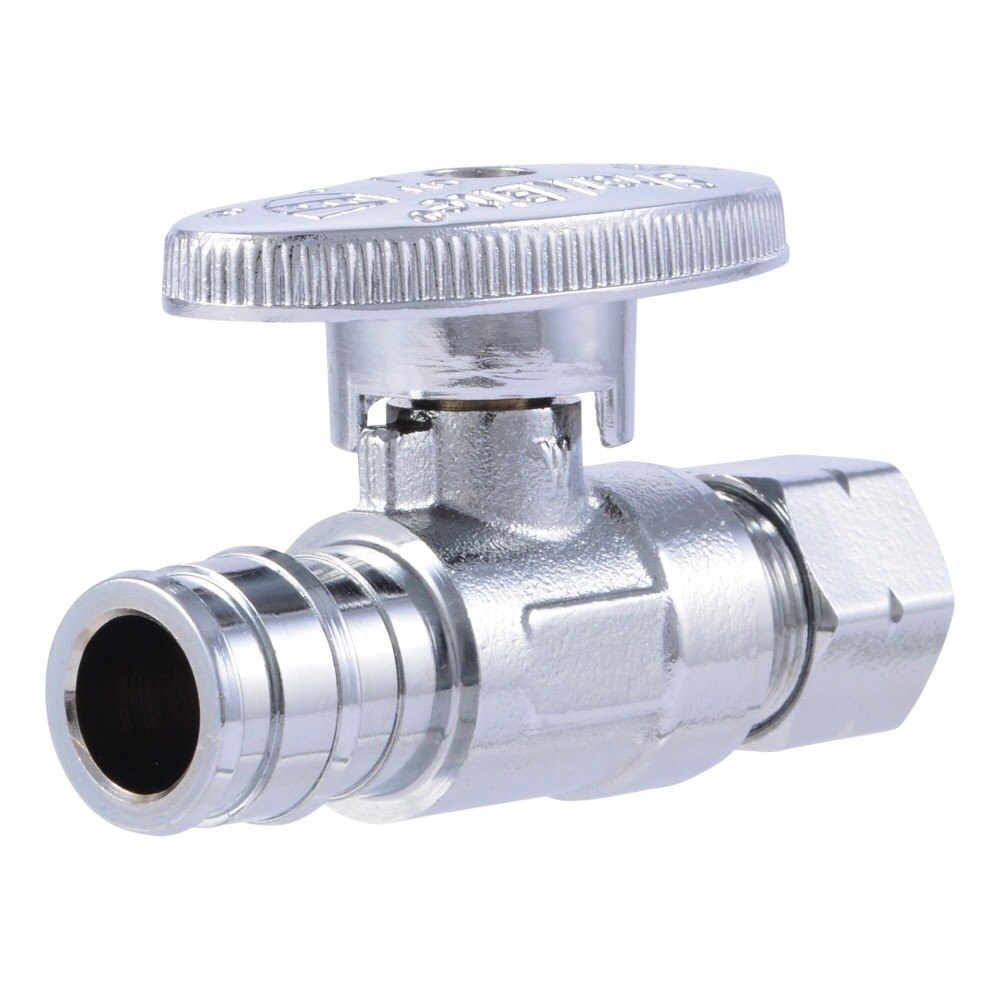

SharkBite UAB23057LFA Description
The SharkBite brass straight stop valve provides a quarter-turn shutoff for faucet and toilet supply lines, with a 1/2 in. PEX-A expansion inlet and 3/8 in. OD compression outlet. Its lead-free dezincification-resistant brass body delivers full flow performance for potable water and water supply applications.
SharkBite UAB23057LFA Includes
- (1) Brass Quarter Turn Straight Stop Valve
SharkBite UAB23057LFA Features
- Quarter-turn straight stop valve for controlling water flow to faucets and toilets
- 1/2 in. PEX-A expansion inlet is compatible with PEX-A pipe only
- 3/8 in. OD compression outlet fits common supply line connections
- Lead-free dezincification-resistant brass construction
- Full flow design for potable water and water supply applications
- Expansion connection creates a secure fit that grows stronger over time
- Requires a PEX expansion tool and expansion ring for installation
- Approved for water service lines and burial applications including concrete
- Meets ASTM F1960 and ASTM F877 standards
- Listed to NSF 14/61 and meets UPC, IPC, and cUPC requirements
SharkBite UAB23057LFA Specifications
| Material | Brass |
| Valve Type | Straight Stop Valve |
| Operation | Quarter Turn |
| Connection Type | Expansion Barb x Compression |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. OD |
| Compatible Pipe Type | PEX-A |
| Application | Potable Water, Water Supply |
| Compatible Product | Faucet, Toilet |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Finish | Silver |
| Indoor/Outdoor | Indoor |
| Lead Free | Yes |
| Product Length | 3 in. |
