SharkBite UAB26061LF Description

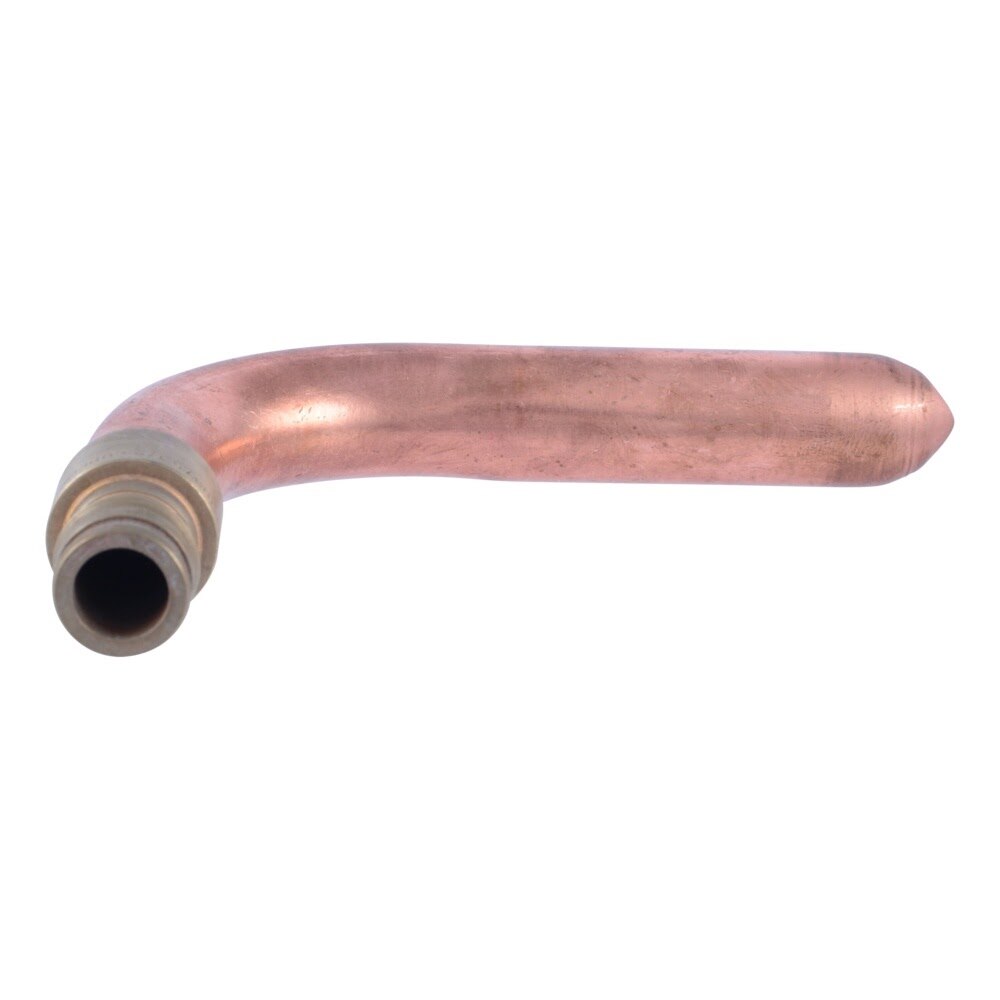

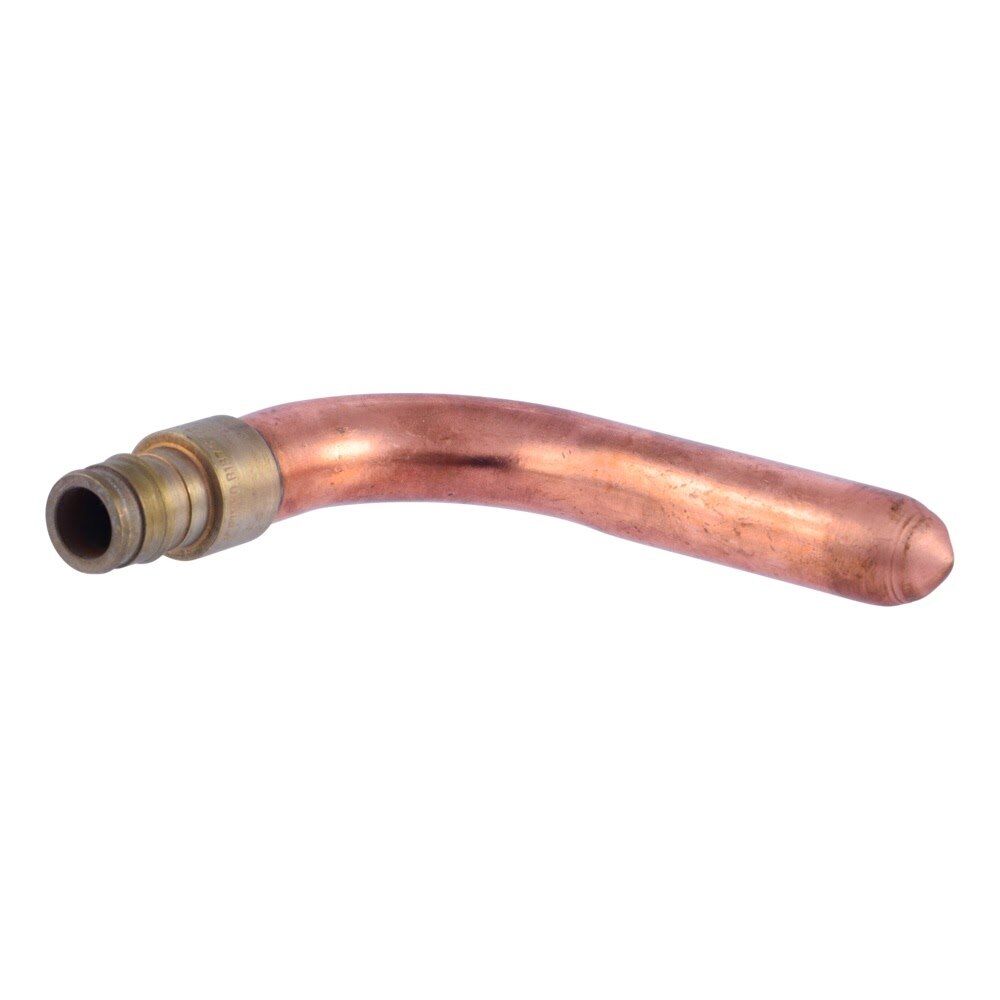

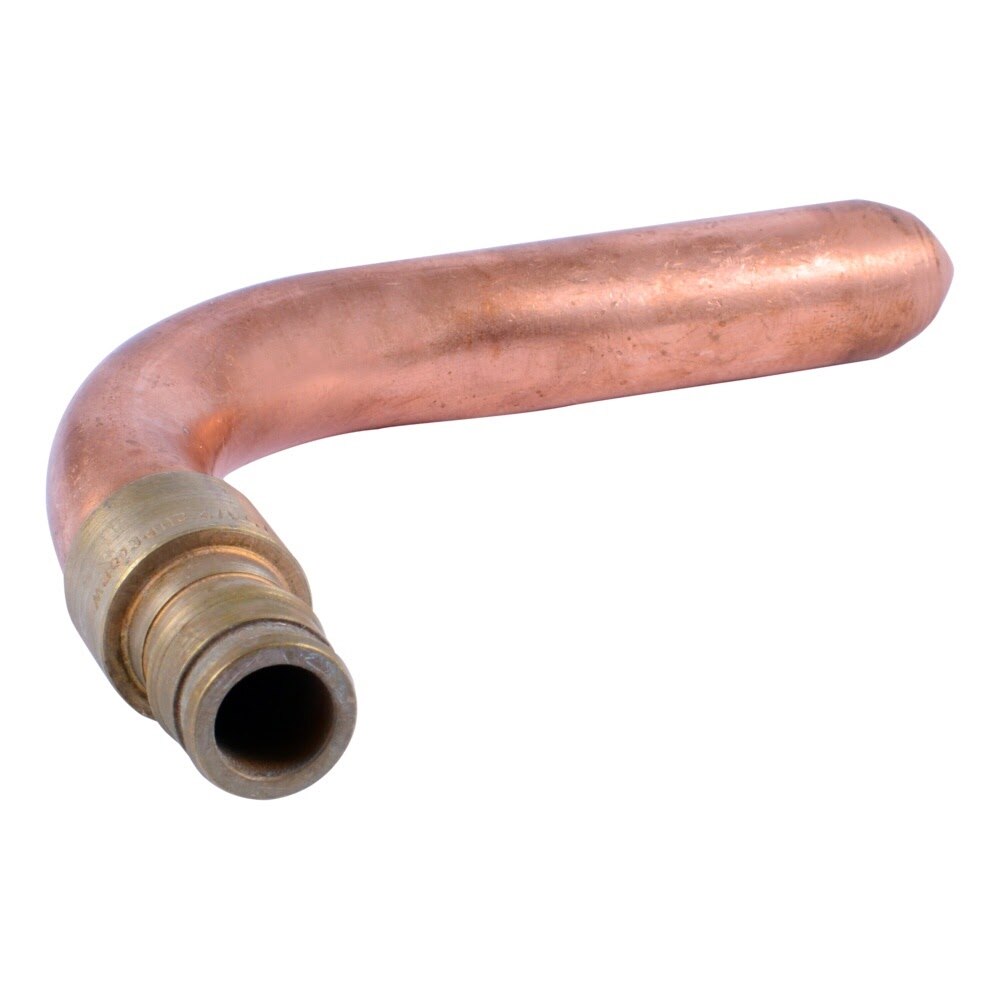

The SharkBite UAB26061LF is a 1/2 in. PEX-A copper stub out fitting with 3 in. x 4 in. dimensions. It combines a copper stub-out with a lead-free DZR brass fitting and is designed for use with PEX-a tubing and SharkBite expansion rings in potable water, hydronic, reclaimed water, and direct burial applications.
SharkBite UAB26061LF Includes
- (1) 1/2 in. PEX-A Copper Stub Out Fitting
SharkBite UAB26061LF Features
- Designed for use with PEX-a tubing
- Compatible with SharkBite expansion rings
- Copper stub-out with lead-free DZR brass fitting
- 1/2 in. size with 3 in. x 4 in. stub-out dimensions
- Suitable for potable water, recirculation, reclaimed water systems, hydronic heating and cooling, and direct burial
- Pressure rated up to 160 psi at 73.4 F, 100 psi at 180 F, and 80 psi at 200 F
- Certified to ASTM, CSA, and NSF standards
SharkBite UAB26061LF Specifications
| Brand | SharkBite |
| Product Type | Copper Stub Out Fitting |
| Connection Type | PEX-A Expansion |
| Nominal Size | 1/2 in. |
| Stub-Out Dimensions | 3 in. x 4 in. |
| Stub-Out Material | Copper |
| Fitting Material | Lead-Free DZR Brass |
| Product Length (in) | 4.00 |
| Product Height (in) | 3.00 |
| Product Width (in) | 0.63 |
| Shipping Weight (lb) | 0.12 |
| Max Working Pressure at 73.4 F | 160 psi |
| Max Working Pressure at 180 F | 100 psi |
| Max Working Pressure at 200 F | 80 psi |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
