SharkBite UAB26062LF Description

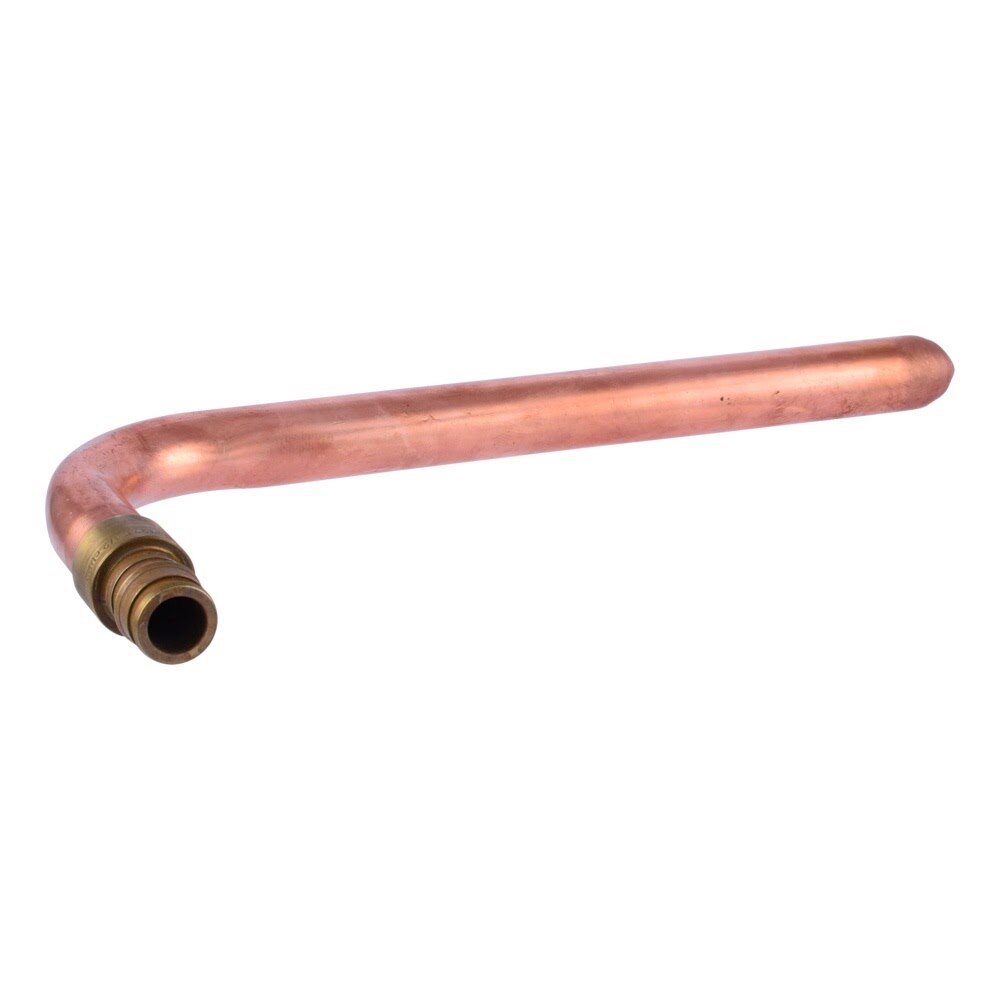

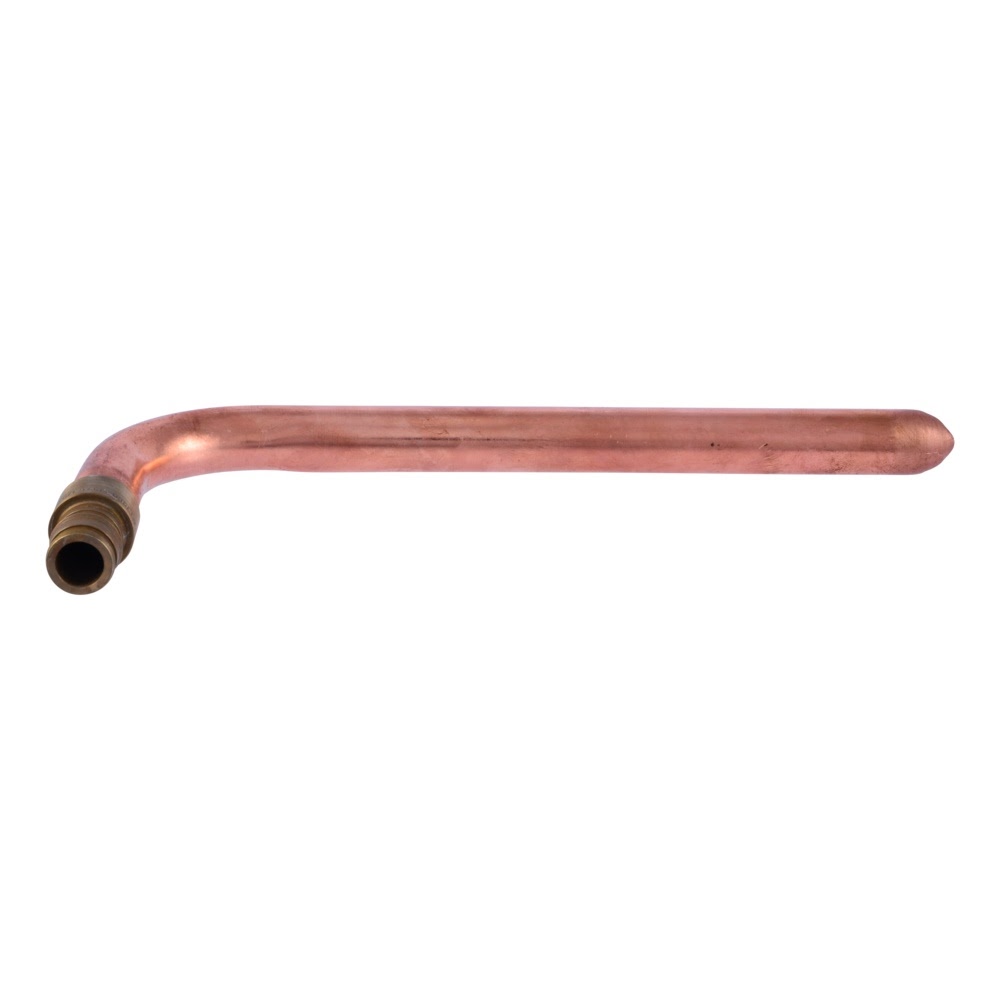

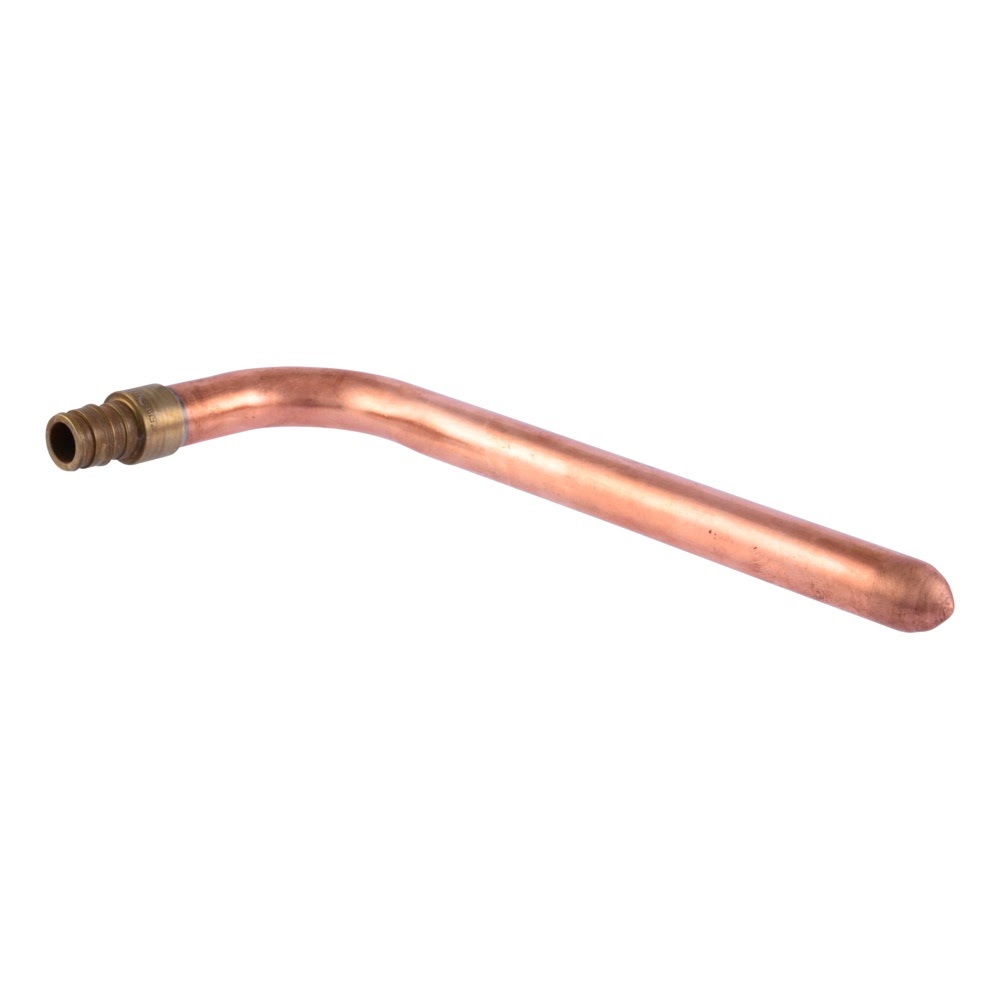

The SharkBite UAB26062LF is a 1/2 in. PEX-A copper stub out measuring 3.5 in. x 8 in. It features a copper stub-out with a lead-free DZR brass fitting and is designed for use with PEX-a tubing and SharkBite expansion rings in potable water, recirculation, reclaimed water, and hydronic heating and cooling applications.
SharkBite UAB26062LF Includes
- (1) 1/2 in. PEX-A Copper Stub Out
SharkBite UAB26062LF Features
- Designed for use with 1/2 in. PEX-a tubing
- Copper stub-out with lead-free DZR brass fitting
- For use with SharkBite expansion rings
- Approved for residential and commercial potable water systems
- Suitable for recirculation and reclaimed water systems
- Compatible with hydronic heating and cooling systems up to 50% glycol concentration
- Direct burial approved
- Rated up to 160 psi at 73.4 Degrees F, 100 psi at 180 Degrees F, and 80 psi at 200 Degrees F
- Backed by a 25-year system warranty when used with SharkBite PEX-a tubing
SharkBite UAB26062LF Specifications
| Brand | SharkBite |
| Part Number | UAB26062LF |
| Size | 1/2 in. |
| Dimensions | 3.5 in. x 8 in. |
| Connection Type | PEX-A |
| Stub-Out Material | Copper |
| Fitting Material | Lead-Free DZR Brass |
| Maximum Working Pressure | 80 psi at 200 Degrees F; 100 psi at 180 Degrees F; 160 psi at 73.4 Degrees F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
| Product Length (in) | 8.00 |
| Product Height (in) | 3.50 |
| Product Width (in) | 0.63 |
| Shipping Weight (lb) | 0.22 |
