SharkBite UAB26072LF Description

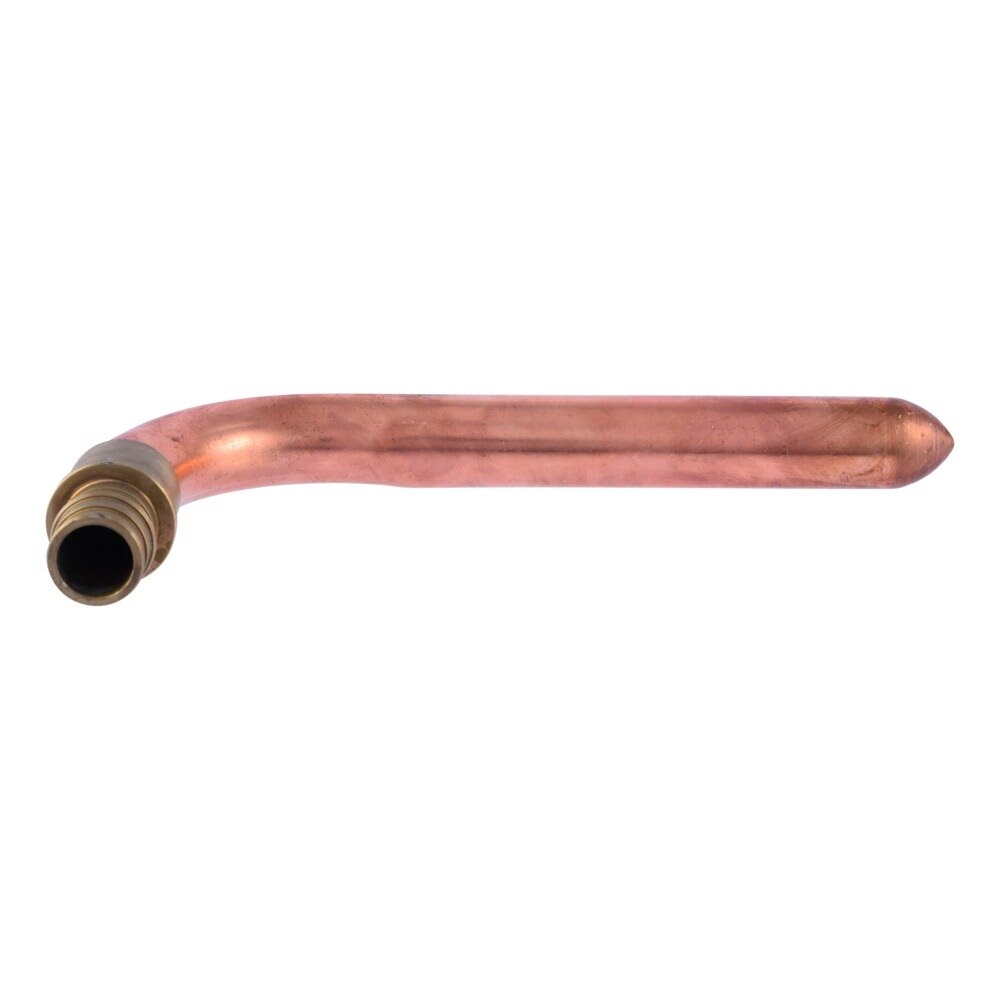

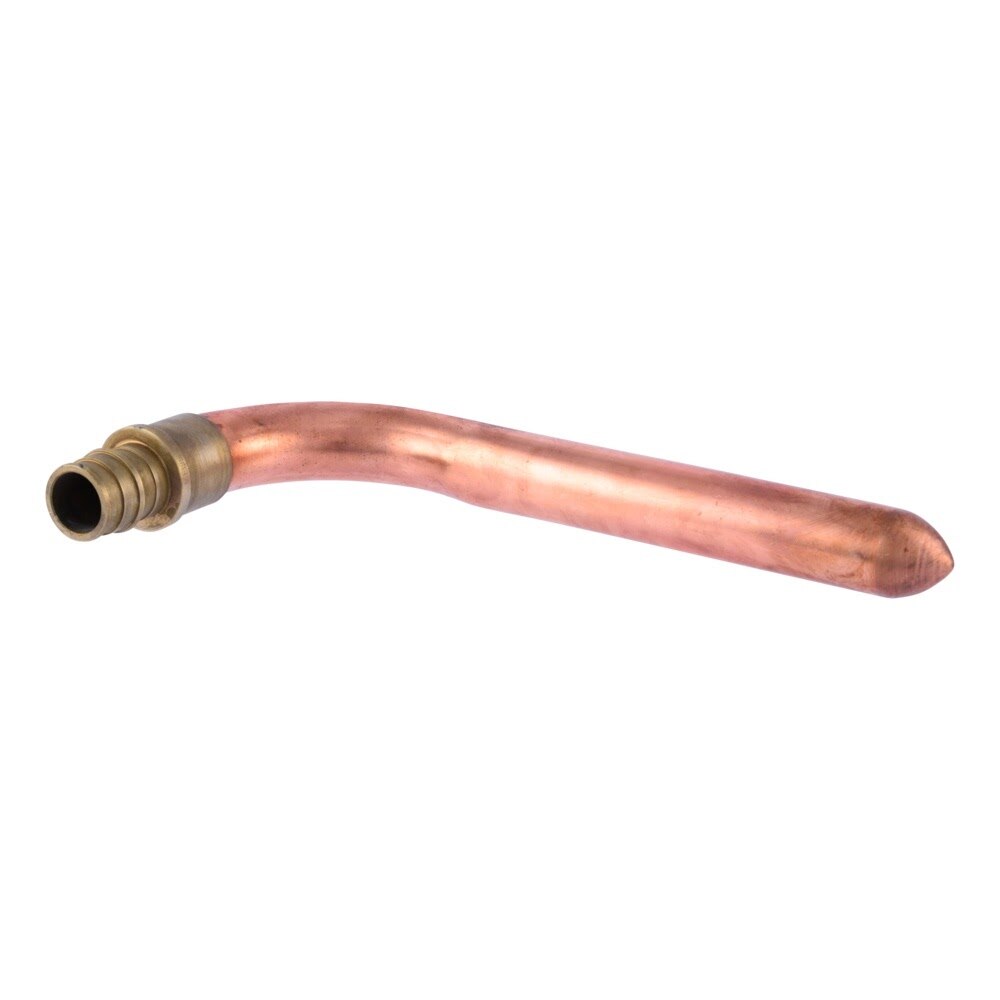

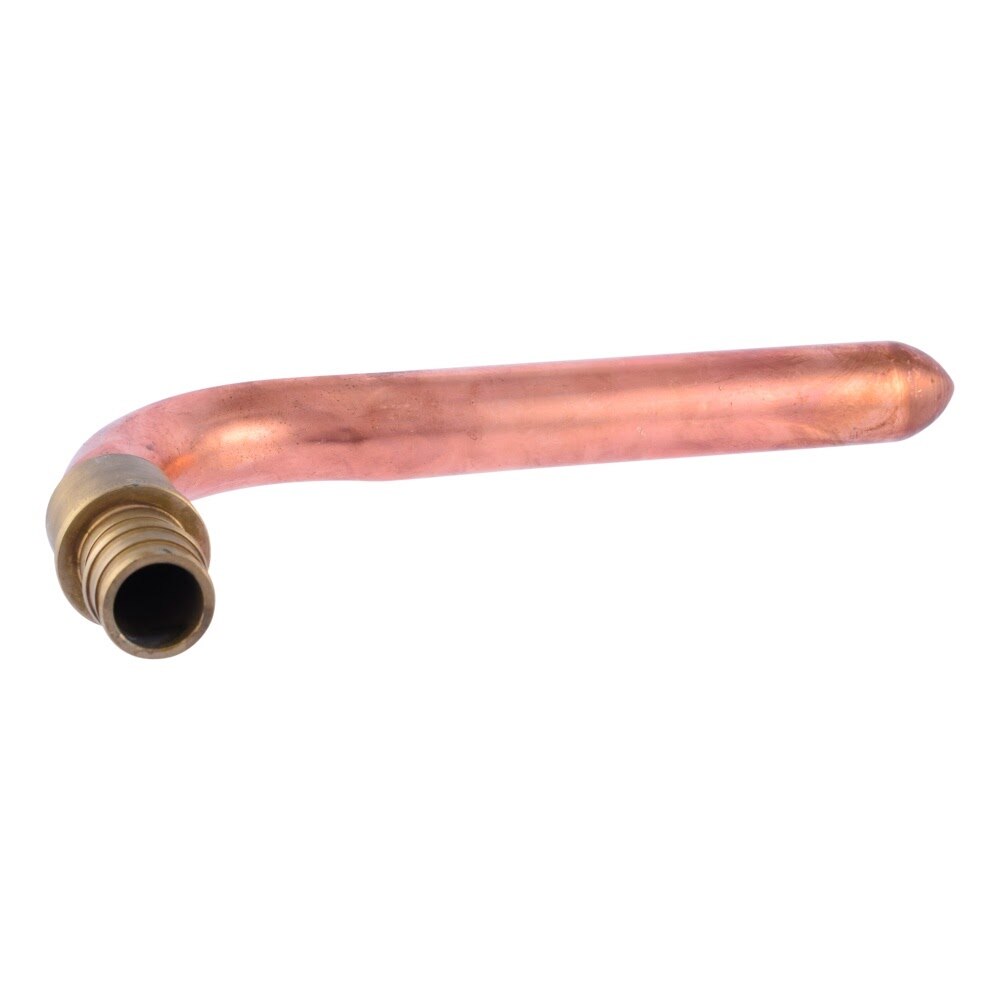

The SharkBite UAB26072LF is a 3/4 in. PEX-A copper stub out with 4 in. x 8 in. dimensions for durable plumbing connections. It features a copper stub-out body with a lead-free DZR brass fitting and is designed for use with PEX-a tubing and SharkBite expansion rings in residential and commercial water distribution applications.
SharkBite UAB26072LF Includes
- (1) 3/4 in. PEX-A Copper Stub Out
SharkBite UAB26072LF Features
- Designed for use with PEX-a tubing and SharkBite expansion rings
- Copper stub-out body with lead-free DZR brass fitting
- Suitable for residential and commercial potable water systems
- Approved for recirculation and reclaimed water systems
- Compatible with hydronic heating and cooling systems up to 50% glycol concentration
- Approved for direct burial applications
- Maximum working pressure of 160 psi at 73.4 F, 100 psi at 180 F, and 80 psi at 200 F
- Covered by a 25-year system warranty when used with SharkBite PEX-a tubing
SharkBite UAB26072LF Specifications
| Brand | SharkBite |
| SKU | UAB26072LF |
| Nominal Size | 3/4 in. |
| Dimensions | 4 in. x 8 in. |
| Connection Type | PEX-A Expansion |
| Stub-Out Material | Copper |
| Fitting Material | Lead-Free DZR Brass |
| Maximum Working Pressure | 160 psi at 73.4 F; 100 psi at 180 F; 80 psi at 200 F |
| Approved Applications | Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating and cooling up to 50% glycol concentration, and direct burial |
| Certifications | ASTM F1960, ASTM F877, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101 |
| Product Length (in) | 8.00 |
| Product Height (in) | 3.98 |
| Product Width (in) | 0.88 |
| Shipping Weight (lb) | 0.41 |
